Fixed Type Vacuum Homogenizer Complete Line With RO Water Treatment Equipment For Cream Cheese Mayonnaise Cosmetic Lotion Production
SIPUXIN 1000L Fixed Conical Bottom Vacuum Homogenizer Mixing Complete Line With Oil & Water Phase Preheating Tank, Operation Platform And RO Purified Water Treatment Equipment For Dairy Cheese, Mayonnaise, Sauce, Cosmetic Cream Lotion Mass Production

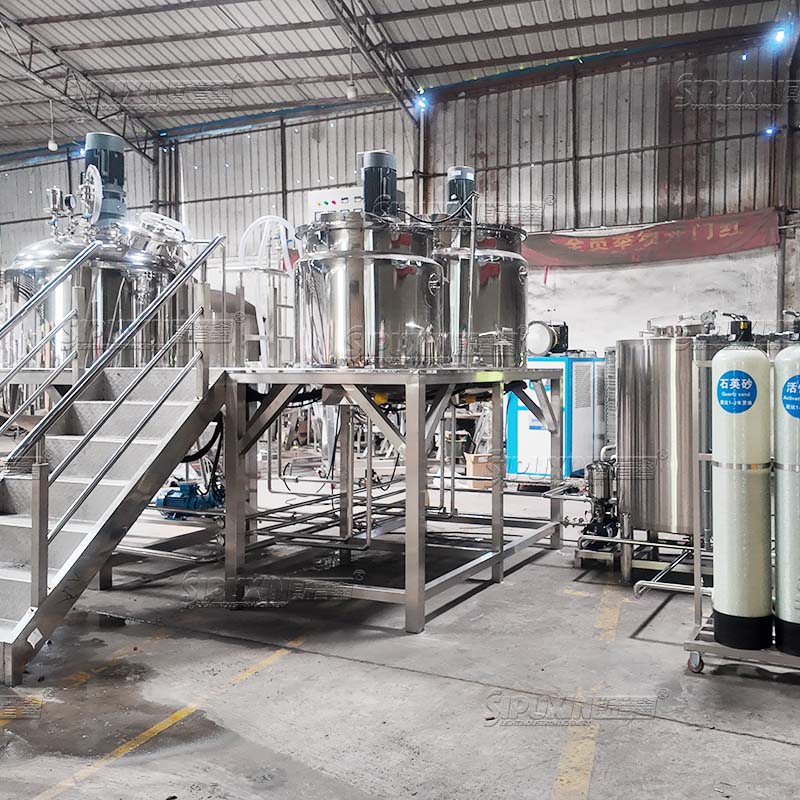

This complete production line integrates a 1000L fixed vacuum homogenizer and supporting RO water treatment equipment, independently developed by SIPUXIN. It forms a one-stop automatic production system covering purified water preparation, raw material preheating, vacuum stirring and high-shear emulsification. The whole set is widely applied for mass manufacturing dairy products, food sauces and cosmetic emulsions, perfectly matching medium-to-large factory batch production demands.
Machine composition

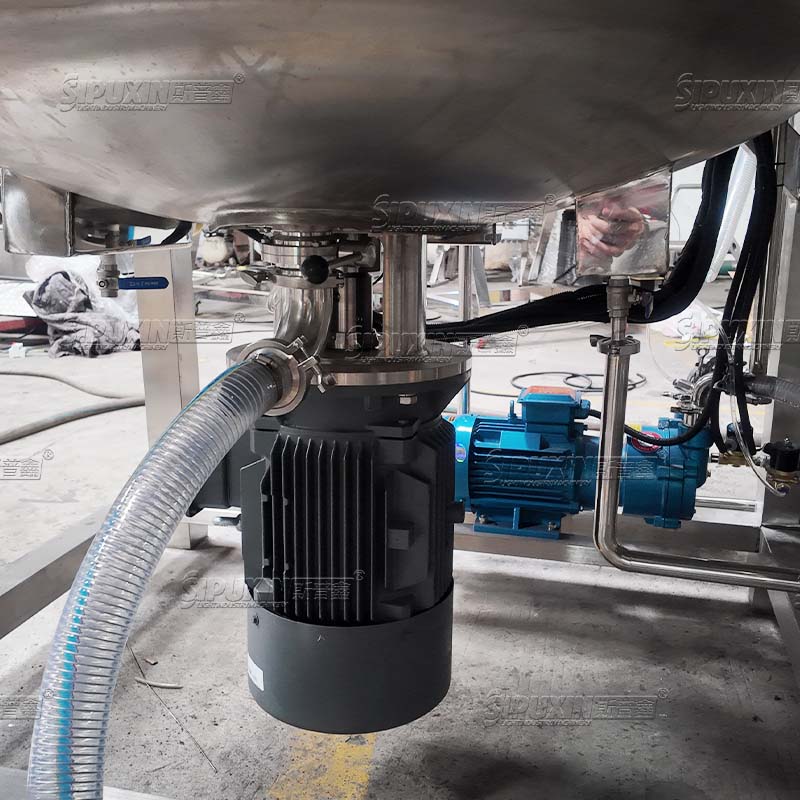

1000L main fixed vacuum homogenizer tank: Equipped with top wall-scraping stirring system, bottom independent high-shear emulsifier, PLC touch control cabinet and high-precision weighing base.

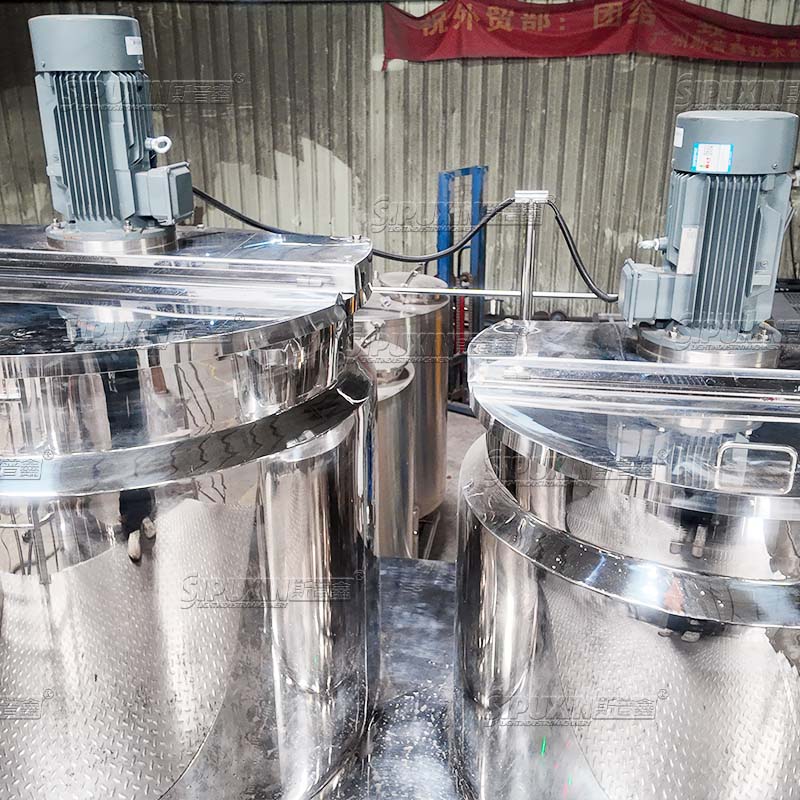

Oil & water phase preheating auxiliary tanks: Two separated stainless steel tanks for raw material heating and dissolving.

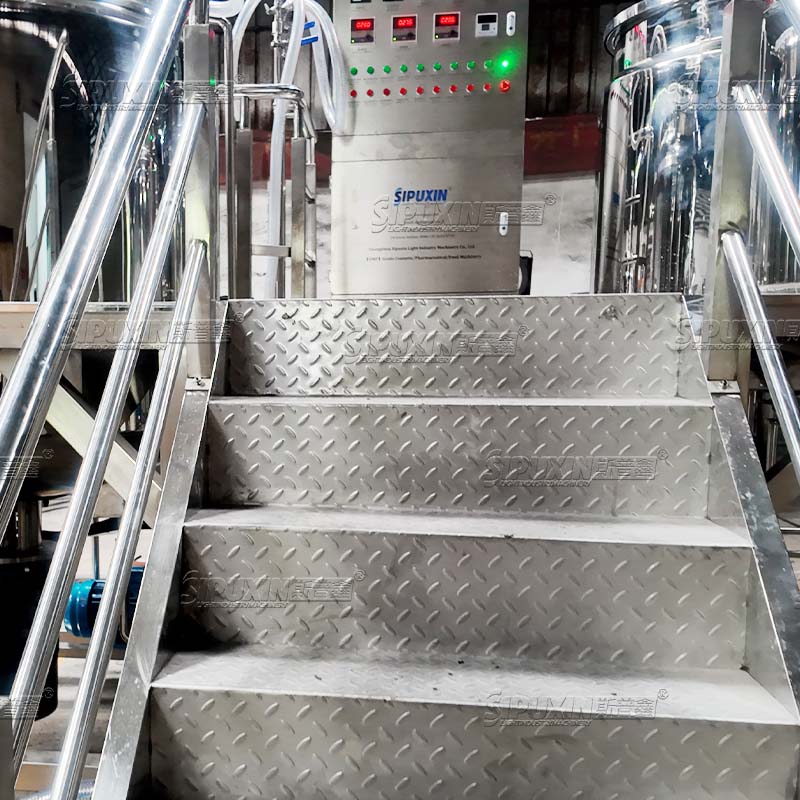

Stainless steel operation platform & anti-slip stairs: For feeding, observation and maintenance access.

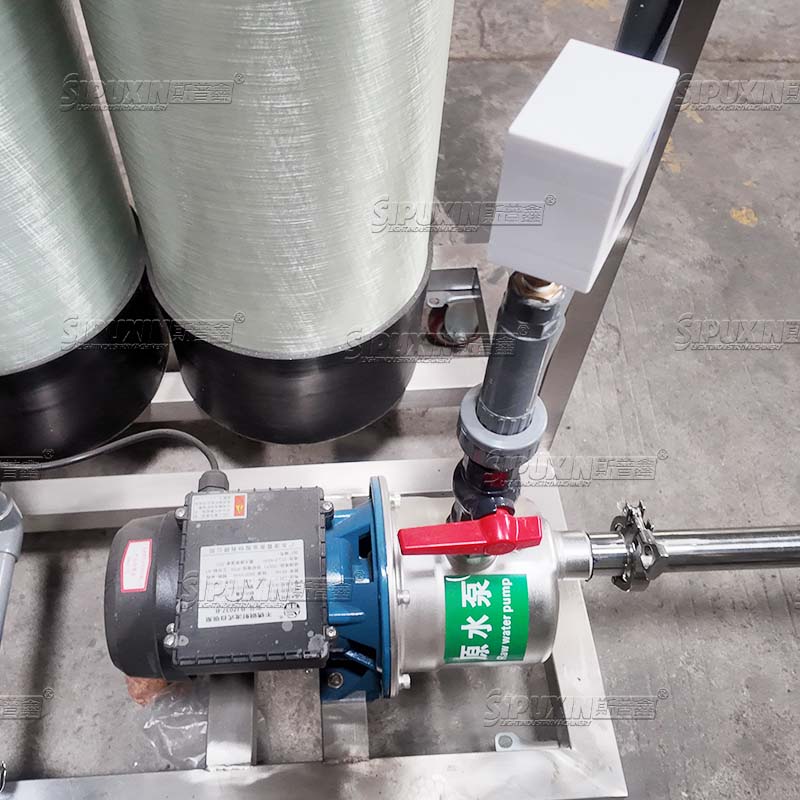

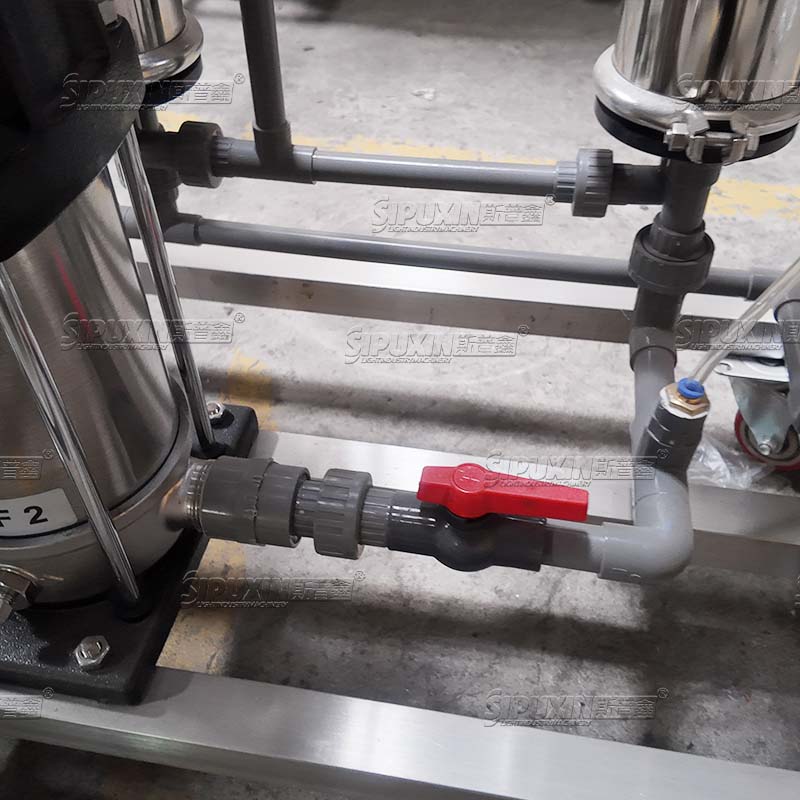

RO reverse osmosis water treatment equipment: To produce standard purified water for production.
All material contact components adopt SUS304 food-grade stainless steel for hygienic manufacturing.
Usage and Application
Usage
Produce qualified purified water via the supporting RO water treatment equipment first to meet production standards.
2. Add oil-phase and water-phase raw materials into two independent preheating tanks respectively, set temperature to fully dissolve ingredients.
3. Transfer pre-melted raw materials into the 1000L main vacuum homogenizing tank through automatic feeding ports.
4. Set stirring speed, emulsifying speed, heating temperature and vacuum time on the PLC touch screen.
5. Start vacuum stirring and high-shear emulsification simultaneously; the wall-scraping agitator avoids material sticking to the tank wall for even mixing.
6. After emulsification is finished, discharge finished products from the sanitary conical bottom outlet for filling and packaging.
Application Range
Food & Dairy
Industry Cream cheese, mascarpone, spreadable processed cheese, cheese sauce, mayonnaise, salad dressing, honey, fruit syrup, chili sauce and various viscous food pastes.
Cosmetic & Daily
Chemical Industry Facial cream, body lotion, hand cream, shampoo, mask emulsion, skincare serum and other cream & lotion cosmetic products.
Core Advantage
Integrated One-Stop Production Line
Combines RO water purification, raw material preheating and vacuum emulsification in one set. Factories do not need to purchase separate water treatment machines, saving procurement cost and workshop space.
Large 1000L Batch Capacity & High Output
Suitable for medium and large mass production factories, greatly improving daily production efficiency to meet large order demands.
Dual Mixing & Emulsifying System
Top wall-scraping stirring prevents high-viscosity material adhesion; independent bottom high-shear homogenizer achieves ultra-fine dispersion. Vacuum operation removes bubbles to deliver smooth, stable finished goods with longer shelf life.

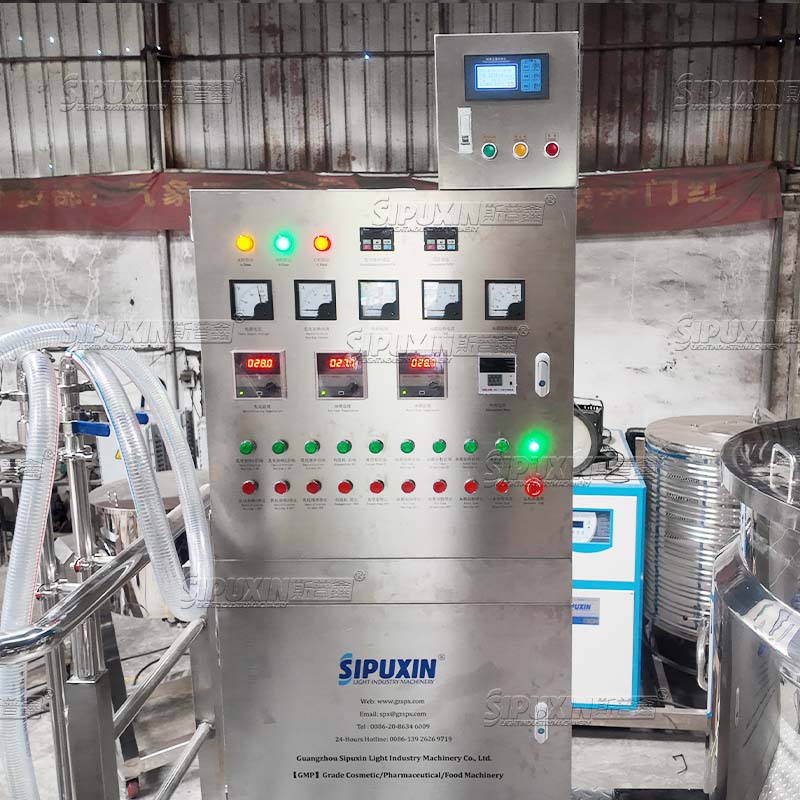

Full Automatic PLC Intelligent Control
Dual-language touch screen unifies control of temperature, speed, vacuum and feeding. Precise weighing system guarantees consistent formula ratio for every batch. Safety interlock design avoids operational risks.
Food-Grade Sanitary Structure
All material contact parts are SUS304 mirror polished stainless steel. Conical tank bottom realizes complete residue-free discharging; quick-disassembly pipelines with no dead corners for easy cleaning and sterilization.
6. Multi-Industry Versatility
Perfectly fits dairy cheese, food sauce, honey syrup as well as cosmetic cream and lotion production, one machine meets diverse product manufacturing needs.
Item
Parameter
Model
SPX-1000L Fixed Vacuum Homogenizer Matching RO Water Treatment Line
