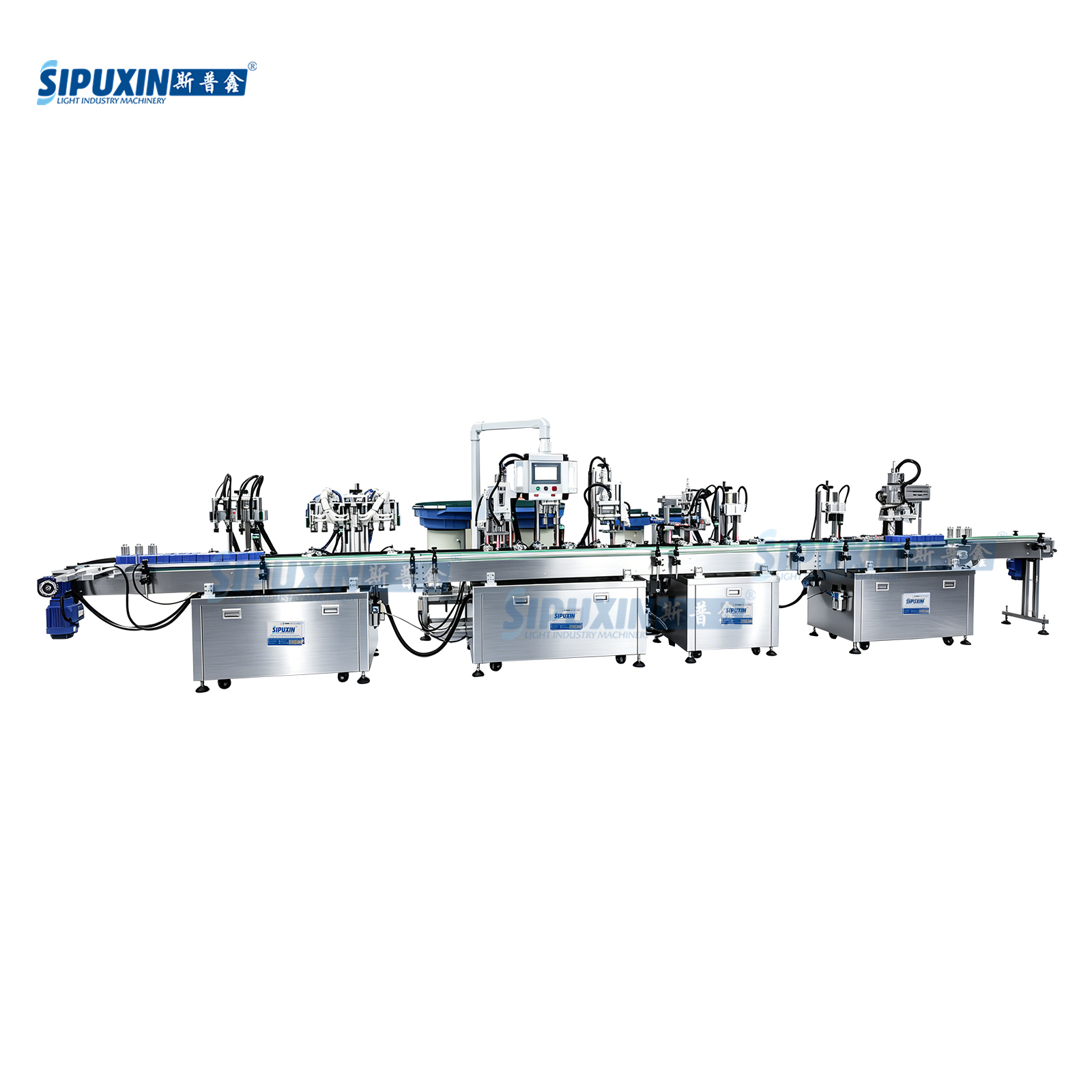

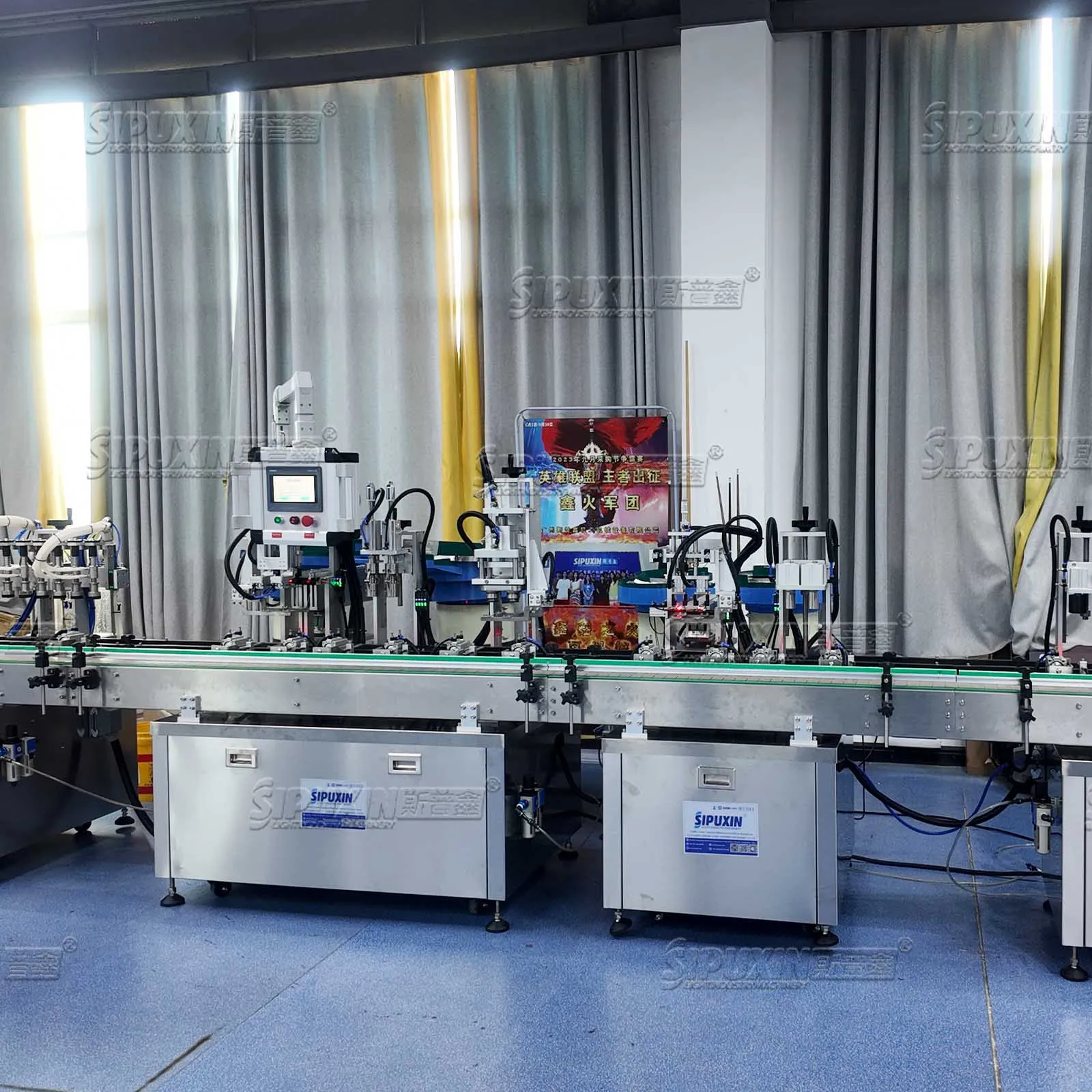

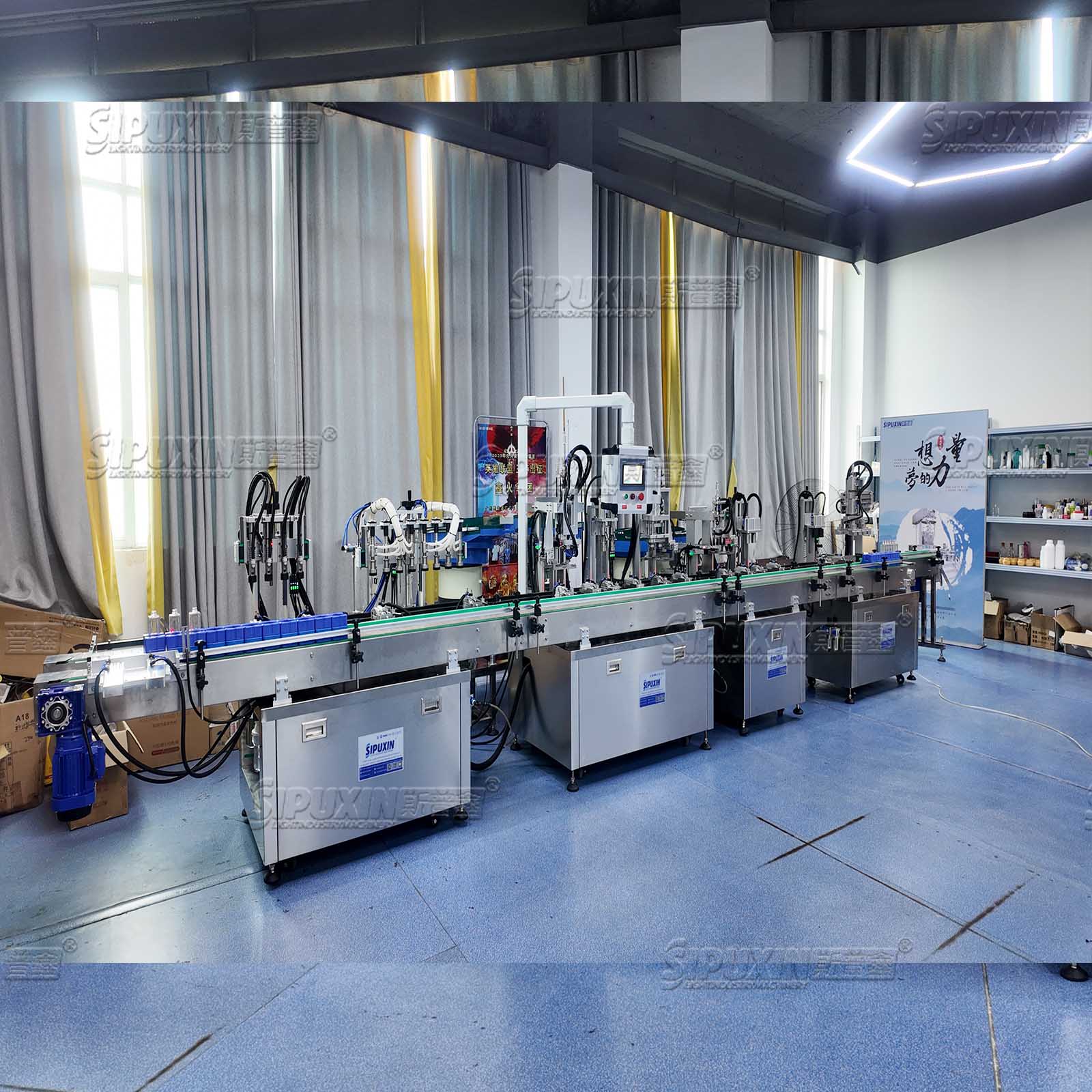

Linear Double Station Auto Perfume Filling Machine 2 Heads Negative Pressure Filler For Perfume Water Fragrance Oil Bottling

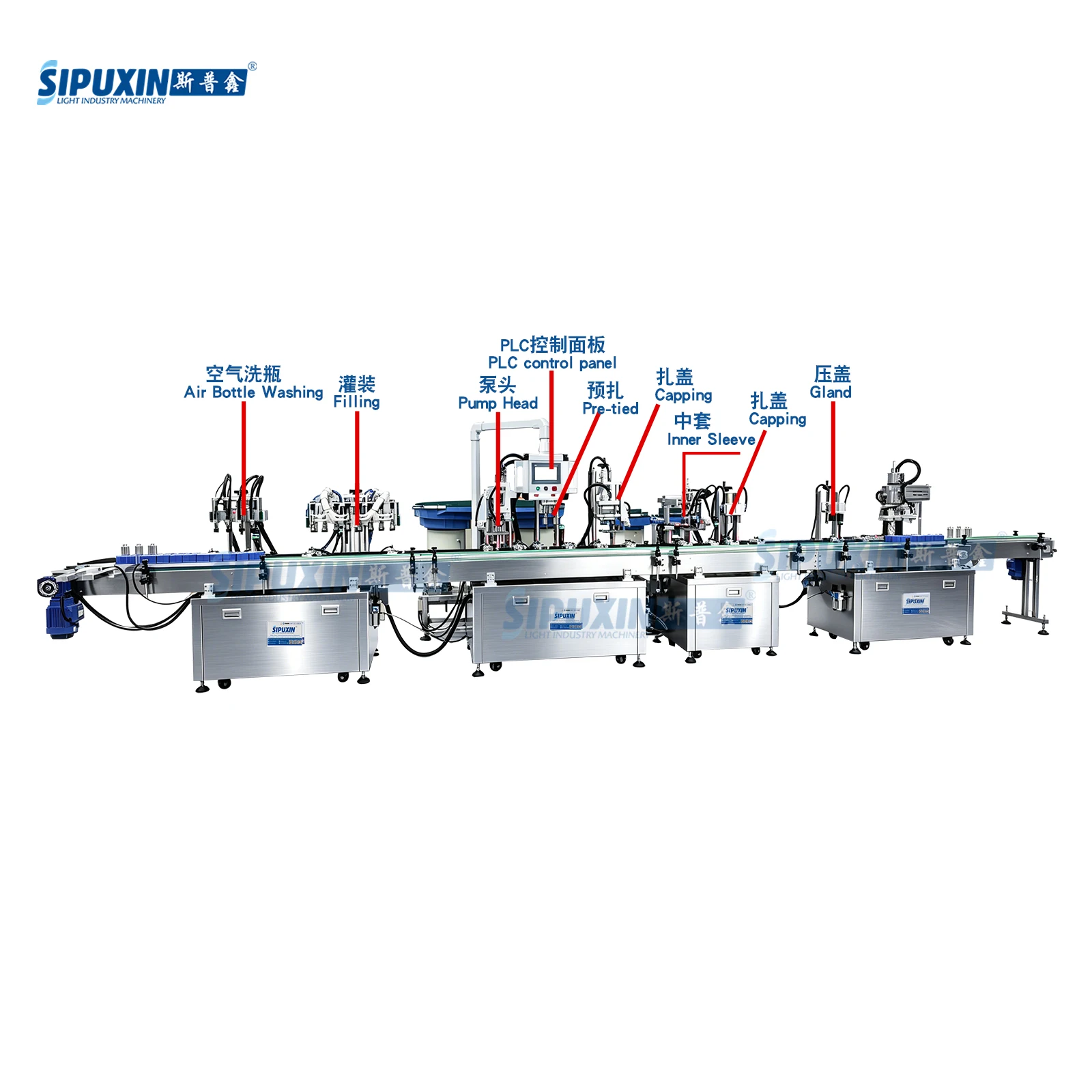

Machine components details

Pictures for reference

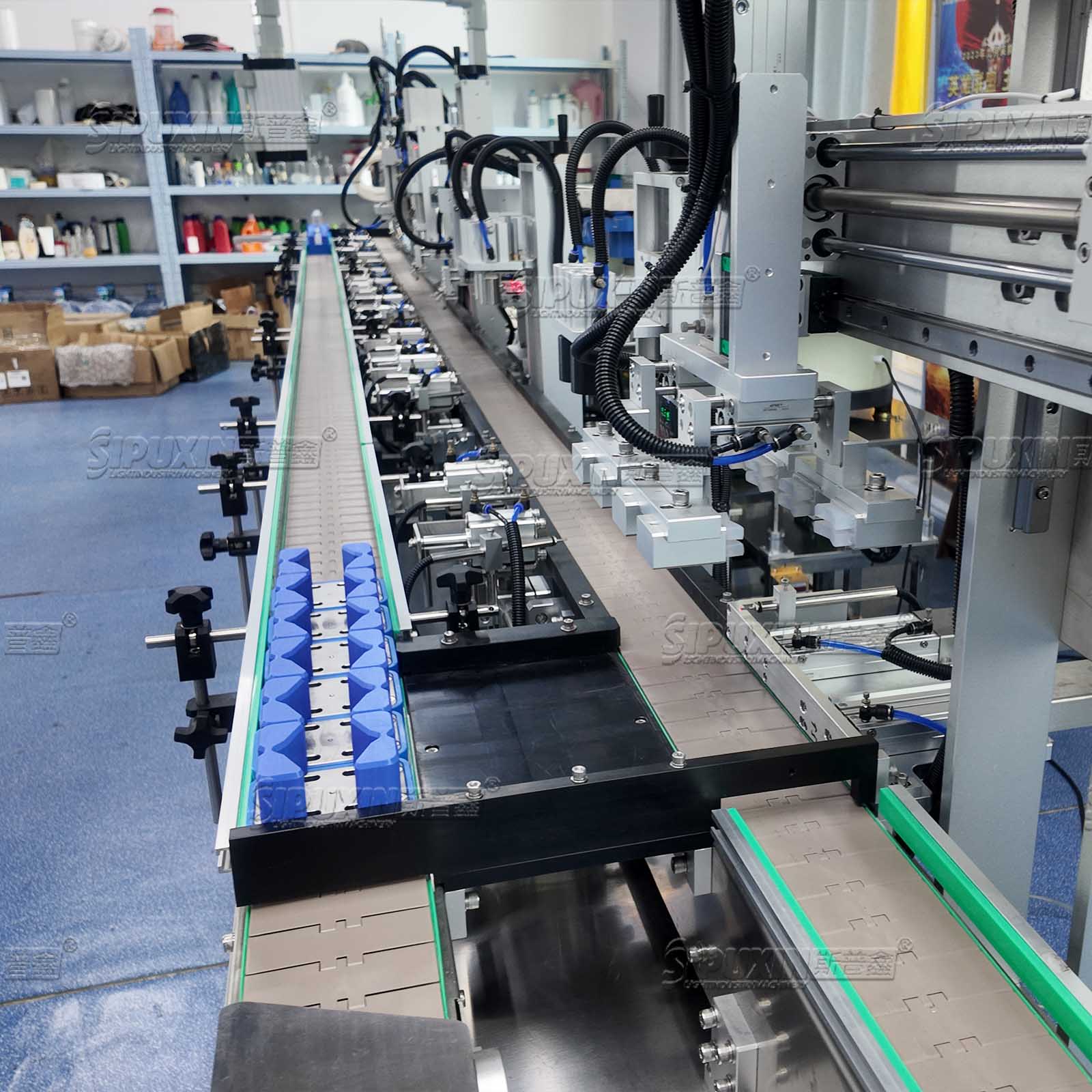

Circulation belt and universal molds

Equipped with universal mold fitting perfume bottles in all sizes and shapes, plus circulating conveyor for continuous running

Advantage:

1.Universal mold design, compatible with perfume bottles of all shapes & sizes without mold replacement

2. Circulating conveyor belt enables continuous uninterrupted production

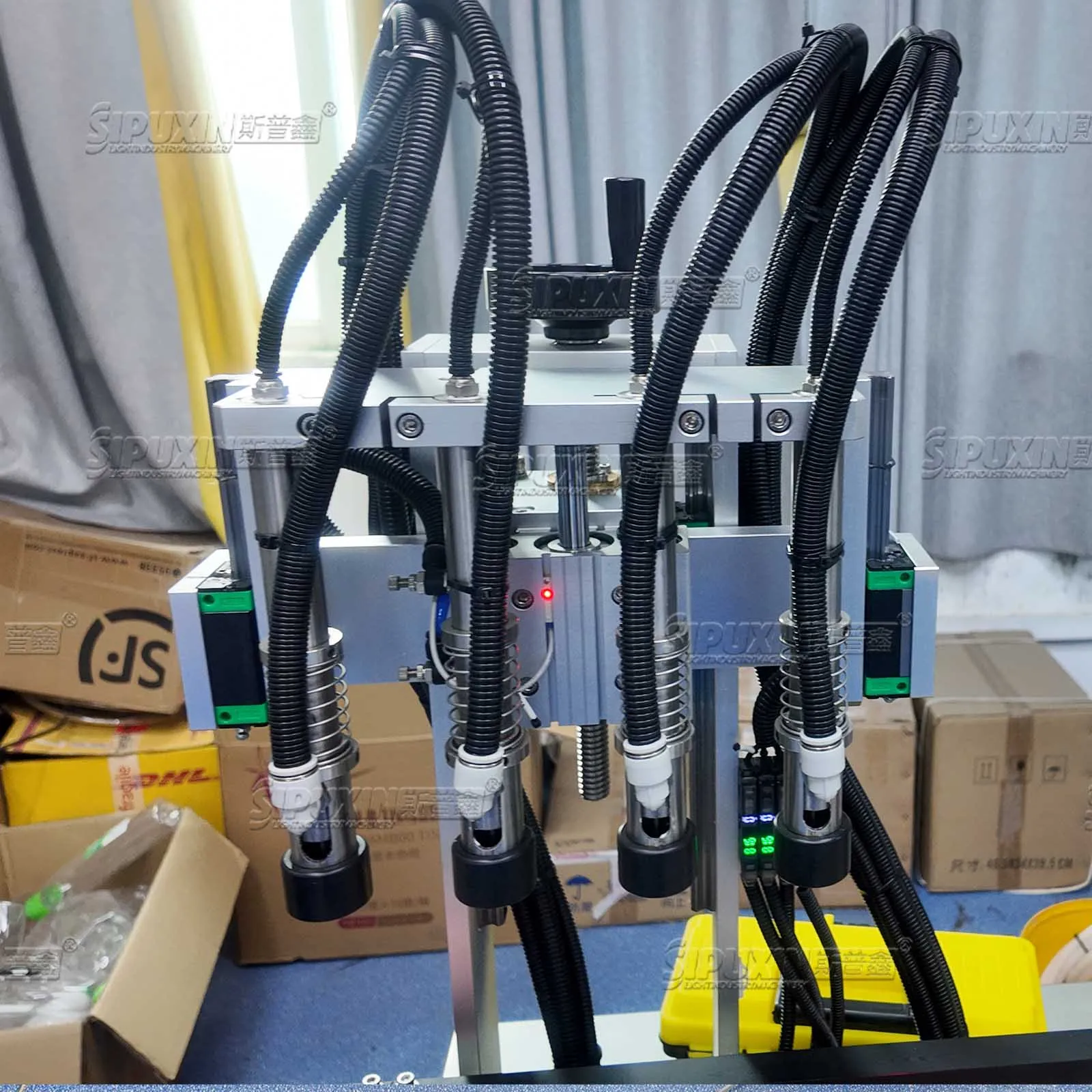

4 Air washing

It has 4 nozzle air washing device.

Advantage:

1.Four simultaneous air cleaning stations for high cleaning efficiency

2. Dry cleaning without water, no residual liquid inside bottles

3. Effectively clear fine dust and debris inside glass vials

4. Stable high-pressure airflow, uniform cleaning effect

5. Save labor, match perfume filling production line perfectly

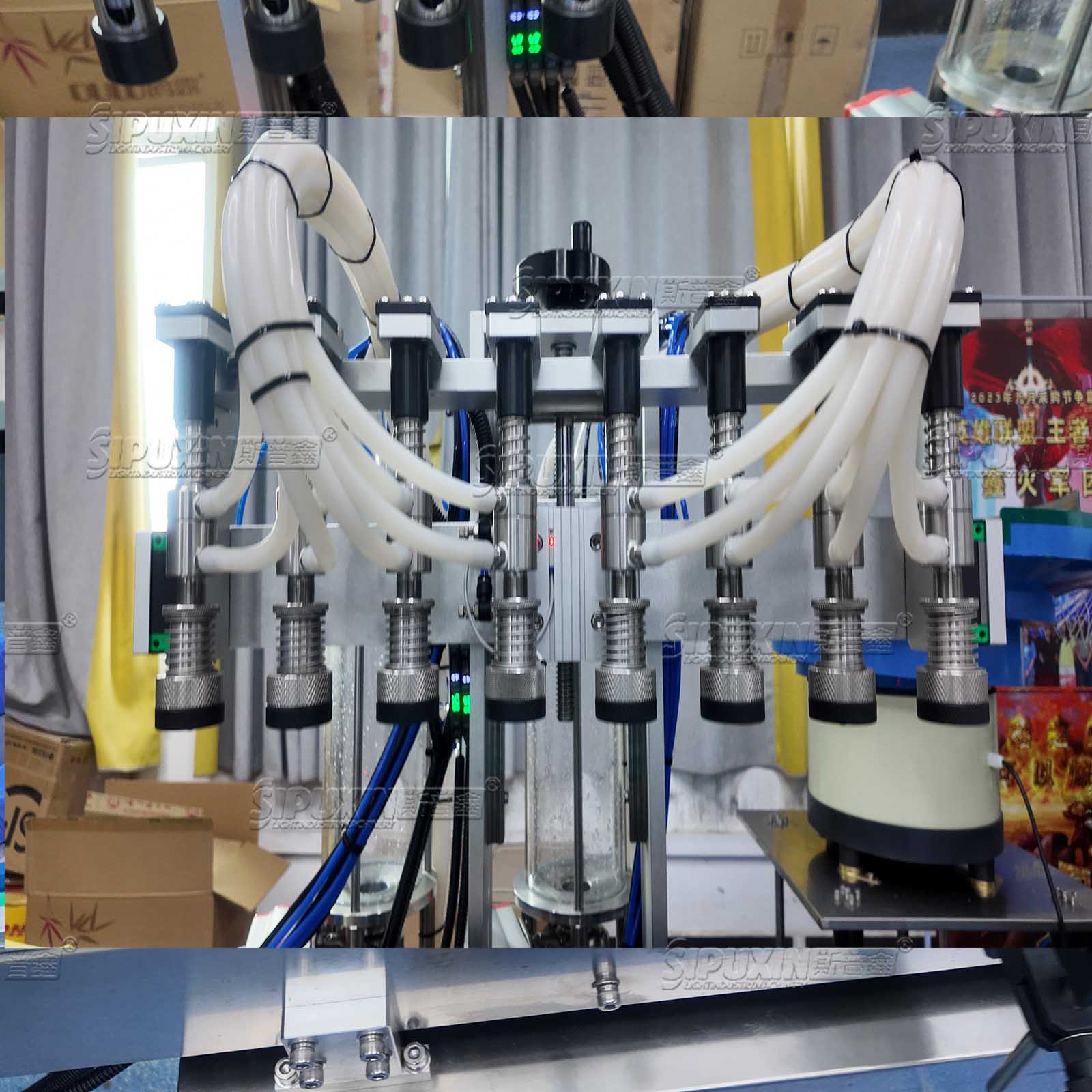

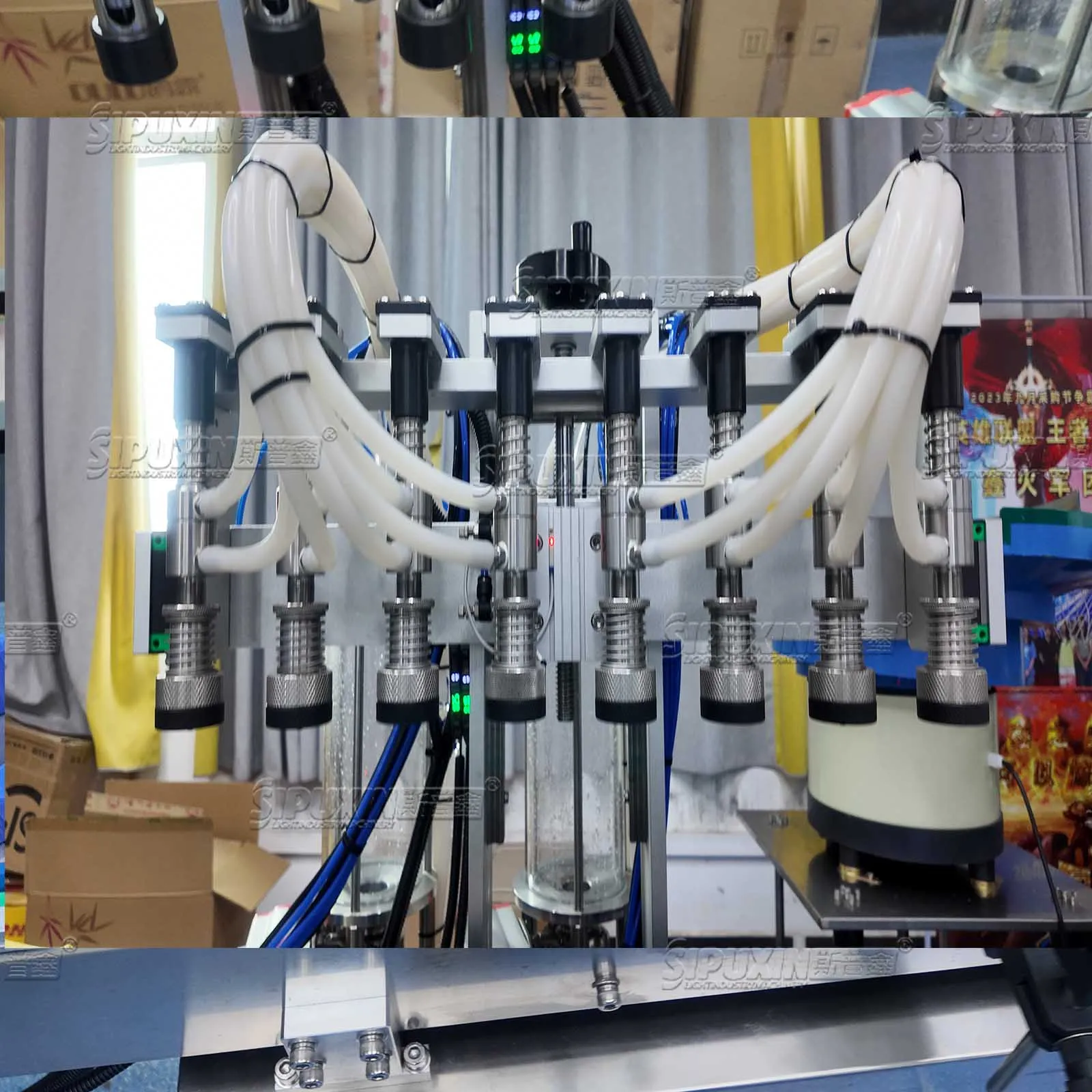

8 Filling

8-head level vacuum filling heads automatically fill perfume by equal liquid level via negative pressure vacuum suction.

Advantage:

1.8 filling heads work simultaneously for high output

2. Equal liquid level ensures consistent bottle appearance

3. Vacuum filling prevents perfume bubbling & overflow

4. Stable filling, high precision for cosmetic glass bottles

5. Adapt to alcohol-based fragrance liquid

6. Easy disassembly for quick cleaning & sterilization

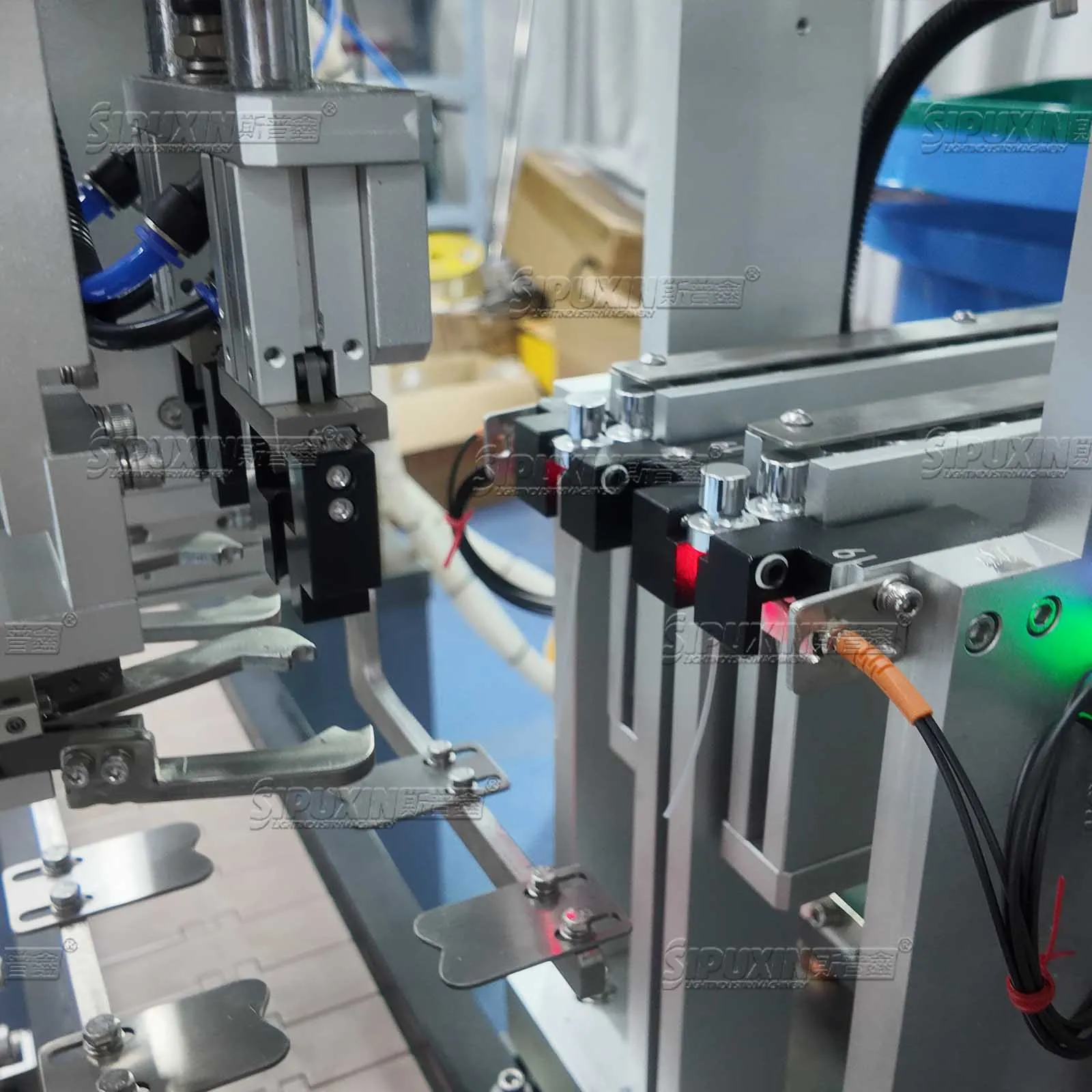

2 Pump feeding

2 Pump feeding devices feed the pumps connected with 2 vibrating bowls store pumps,2 robotic heads automatically place pumps and straighten pump straws.

Advantage:

1.Auto feeding via vibration bowls, save manual labor

2. Manipulator precisely positions and straighten pump straws

3. Stable placement, no skewed pump heads

4. Match high-speed perfume filling line continuously

5. Easy adjustment for different pump specifications

2 Pre-crimping

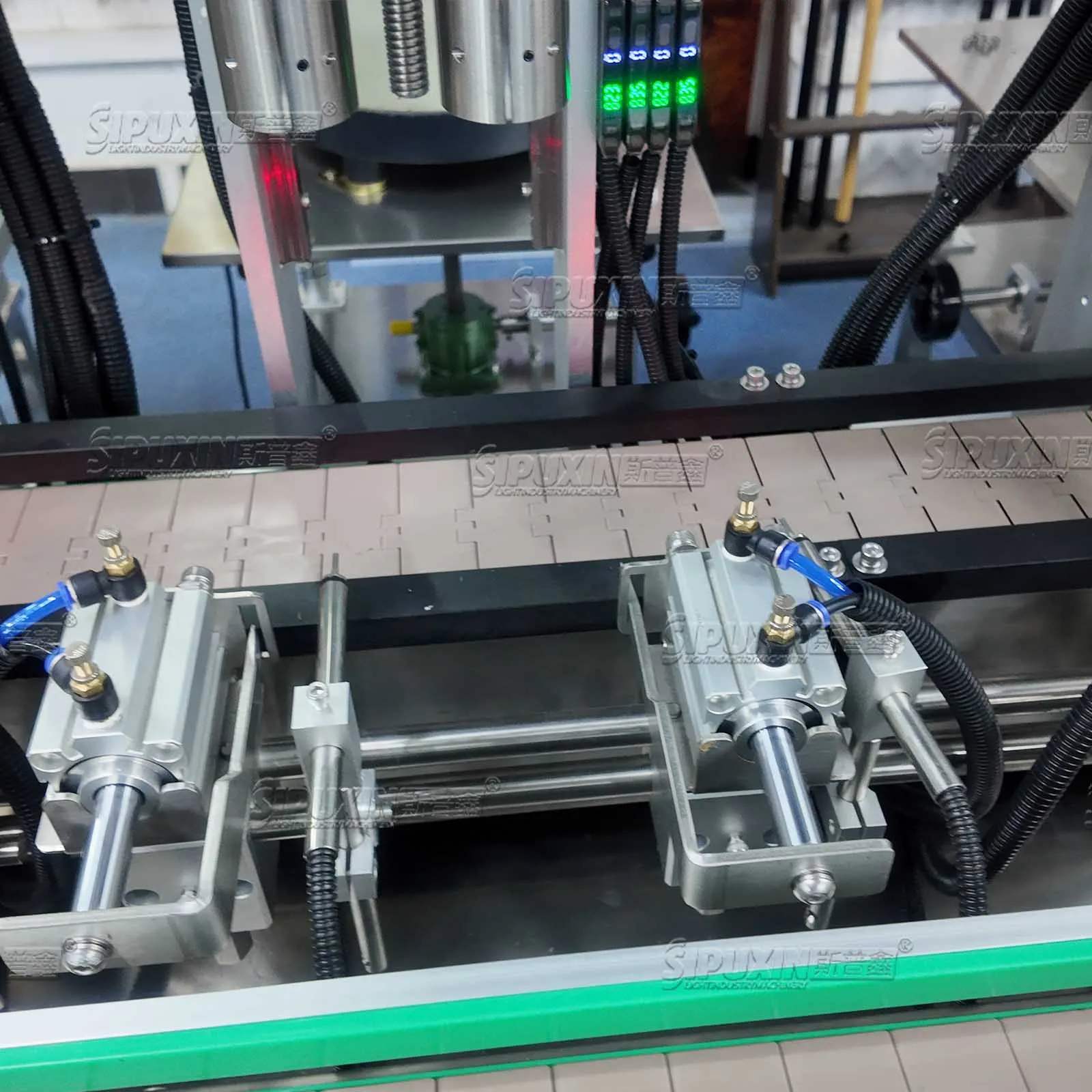

Two pre-crimping stations preliminarily press pumps onto perfume bottles for positioning before formal crimping.

Advantage:

1.Dual stations work synchronously to boost production speed

2. Pre-fix pumps to avoid offset and tilting

3. Uniform pressing force for consistent positioning

4. Reduce subsequent crimping failure rate

5. Adjustable pressure to fit various pumps

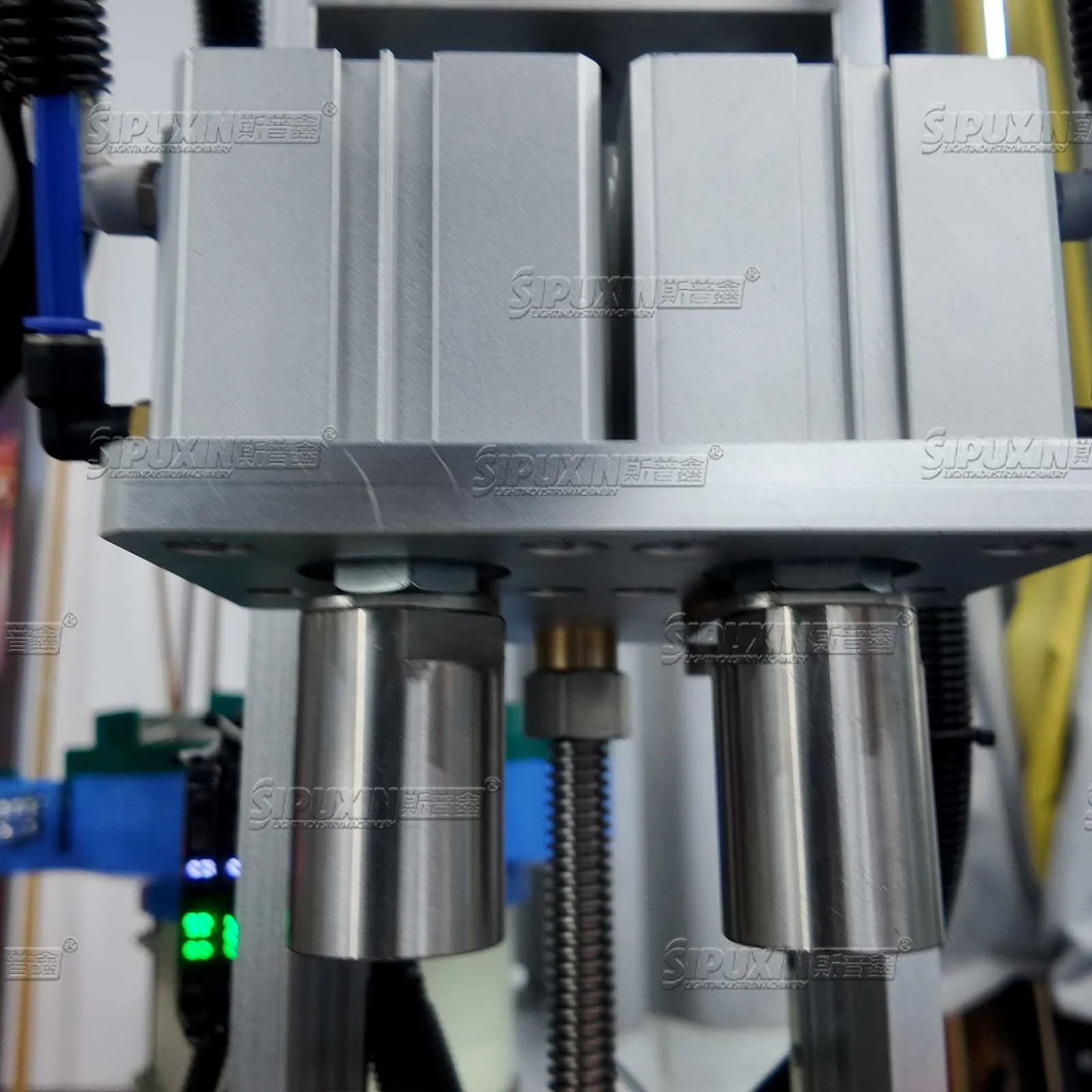

2 crimping

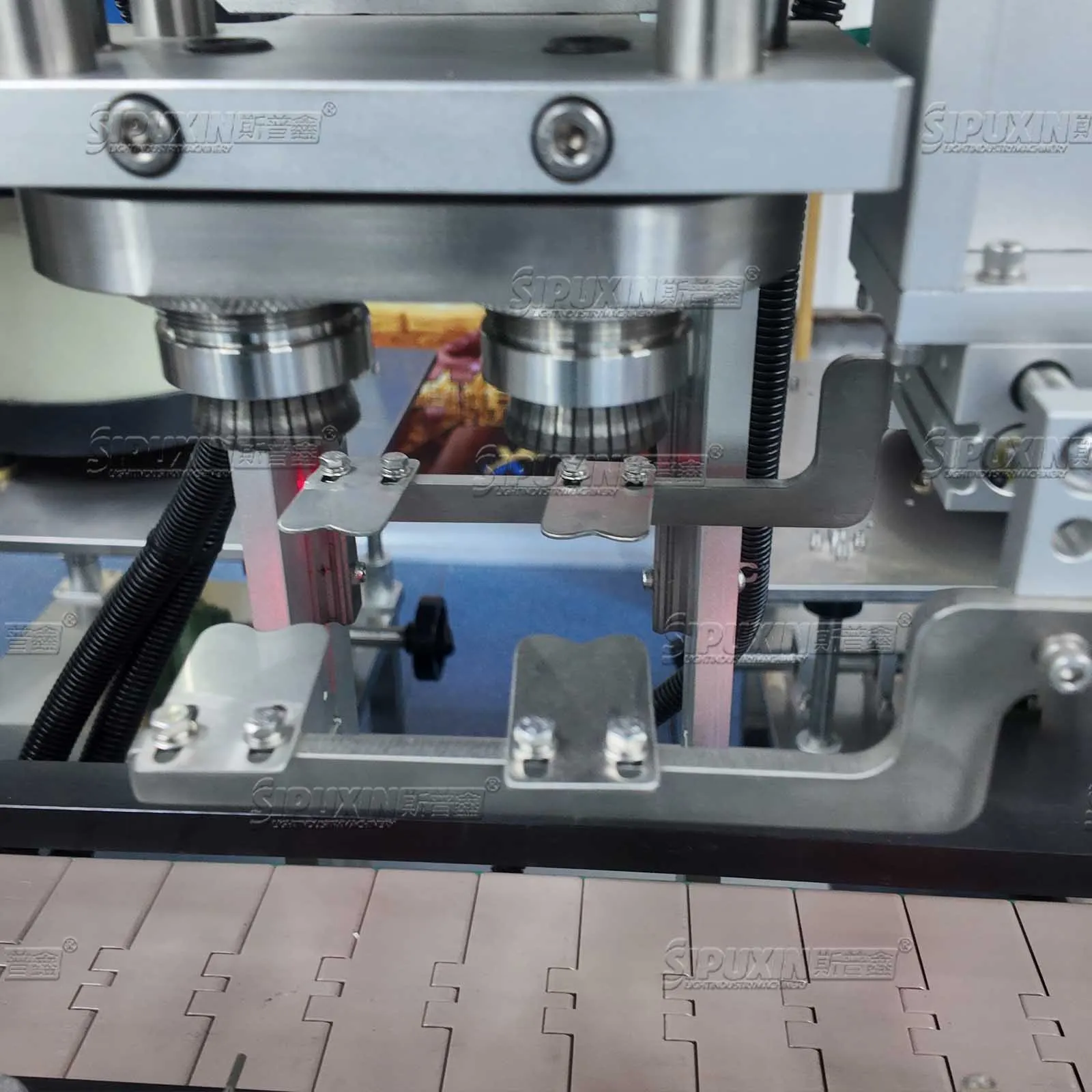

Dual crimping stations lock perfume pumps tightly onto bottle necks.

Advantage:

1.Double stations for fast continuous production

2. Uniform crimp force, tight & leak-proof sealing

3. Prevent pump loosening during transportation

4. Adjustable crimp size for different pumps

2 Collar feeding

Dual collar feeding devices which are connected with 2 vibrating bowls automatically fit collars onto perfume bottle necks.

Advantage:

1.Two stations running at the same time to raise output

2. Precise positioning, no skew or misalignment of collars

3. Adjustable to fit collars of different sizes

4. Smooth matching with follow-up capping procedure

2 Collaring

Dual collar pressing devices firmly press collars onto bottle necks for fixed positioning.

Advantage:

1.Double stations boost production capacity

2. Even pressing force for tight, flat collar fitting

3. Avoid loose or tilted collars

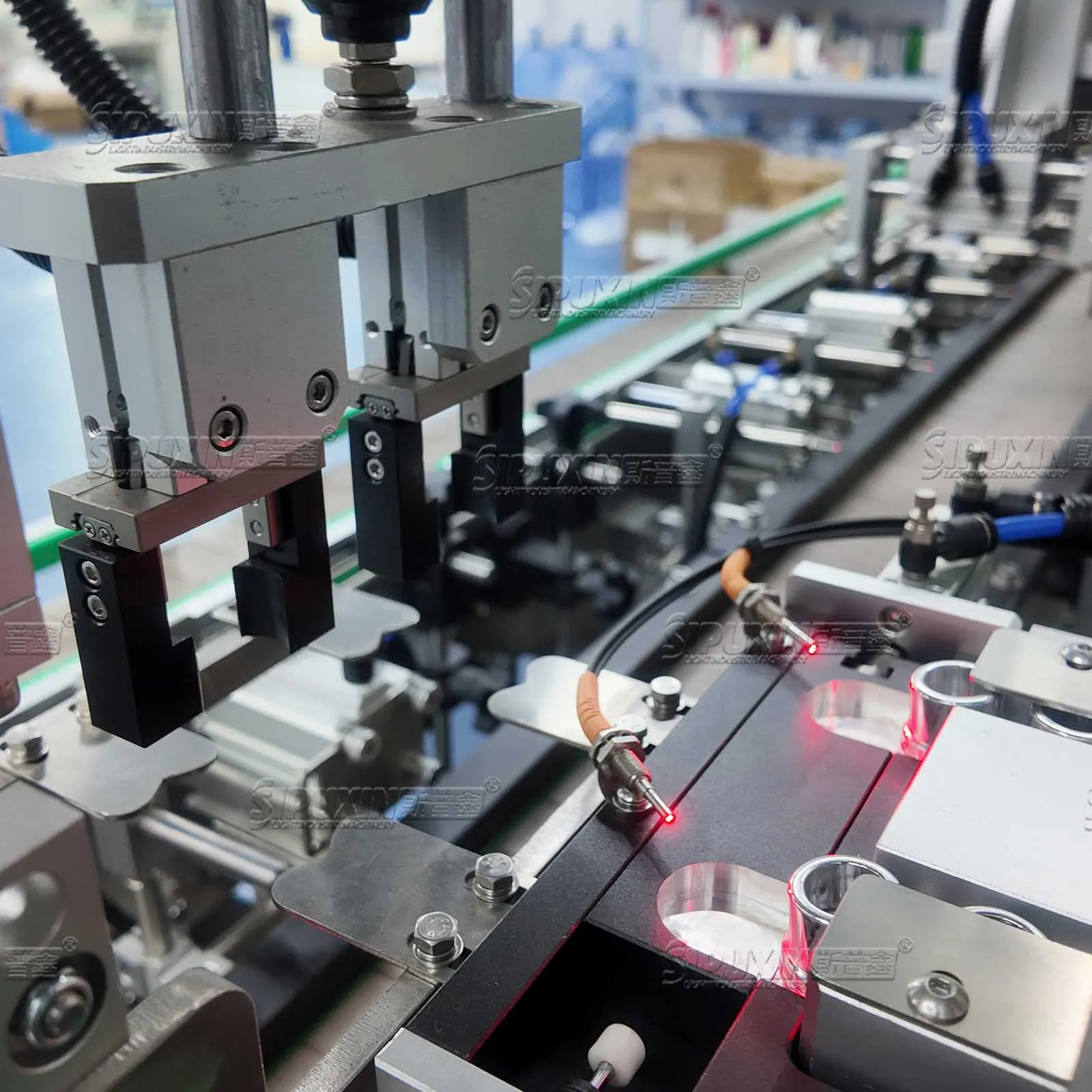

2 Bottle clamping out

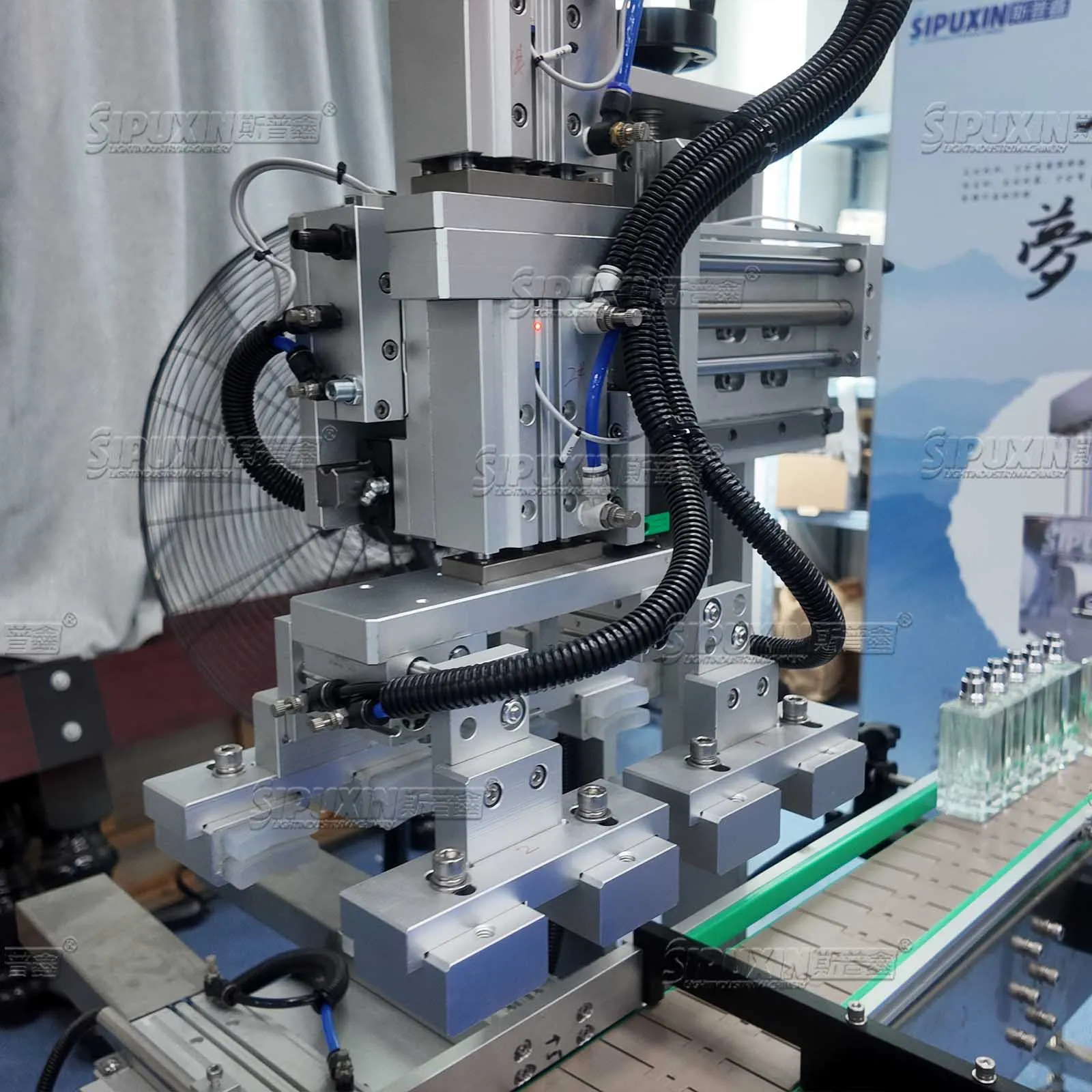

Dual bottle clamping out devices grip finished bottles and deliver them to the conveyor belt for next process automatically.

Advantage:

1.Dual stations improve overall line speed

2. Stable clamping prevents bottle tipping or scratching

3. Adjustable clamp width for various bottle shapes & sizes

4. Smooth automatic discharge, no manual collection needed

5. Synchronize perfectly with upstream filling & capping processes

PLC Control

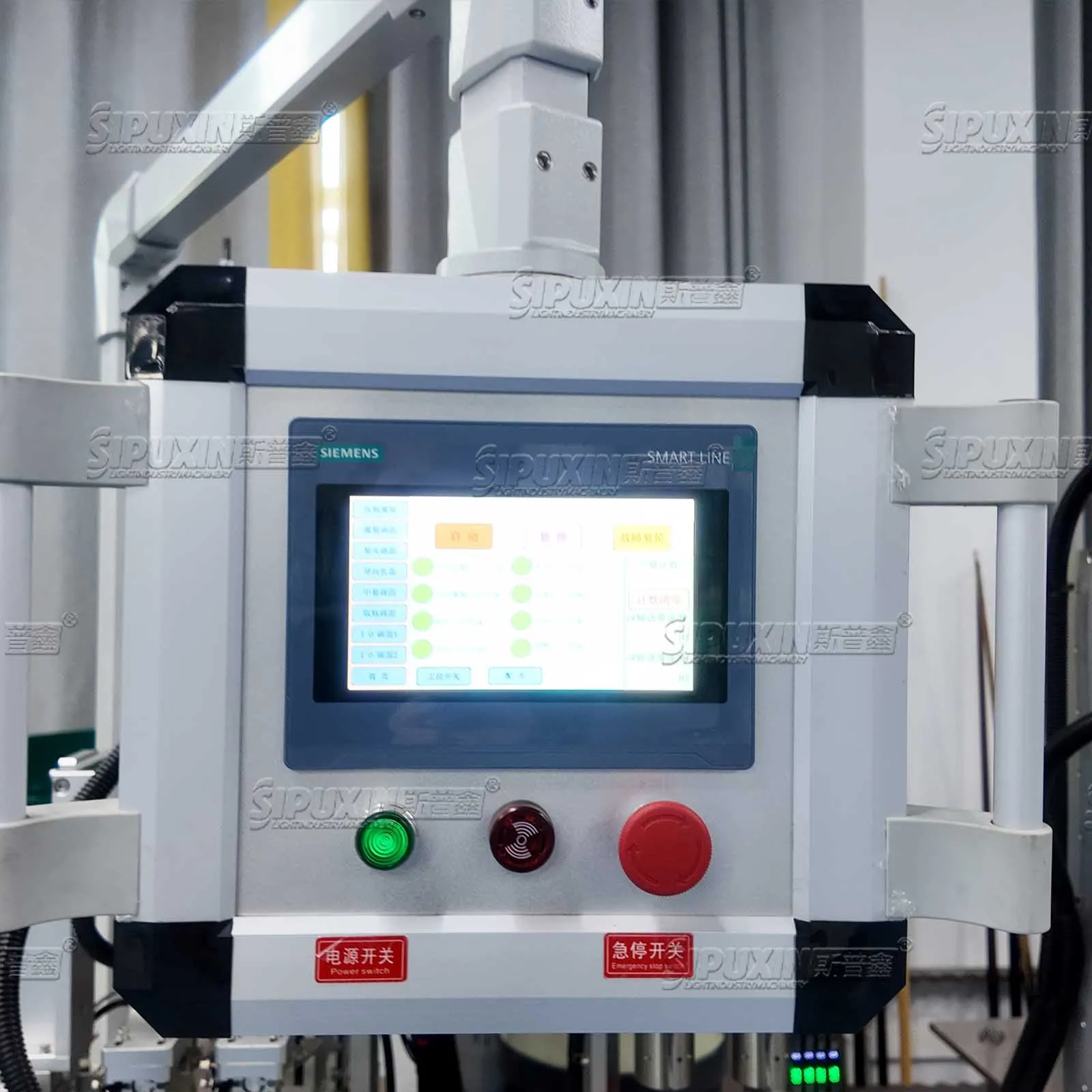

Adopt SIEMENS PLC core control with touch screen human-machine interface to operate and adjust all machine parameters centrally.

Advantage:

1.Intuitive touch screen operation, simple parameter setting

2. PLC stable program control, consistent running performance

3. Real-time display of production speed, fault alarms and output data 4. Convenient parameter storage for fast model switching

5. Low failure rate, easy troubleshooting and maintenance

6. Support custom program modification for different production demands

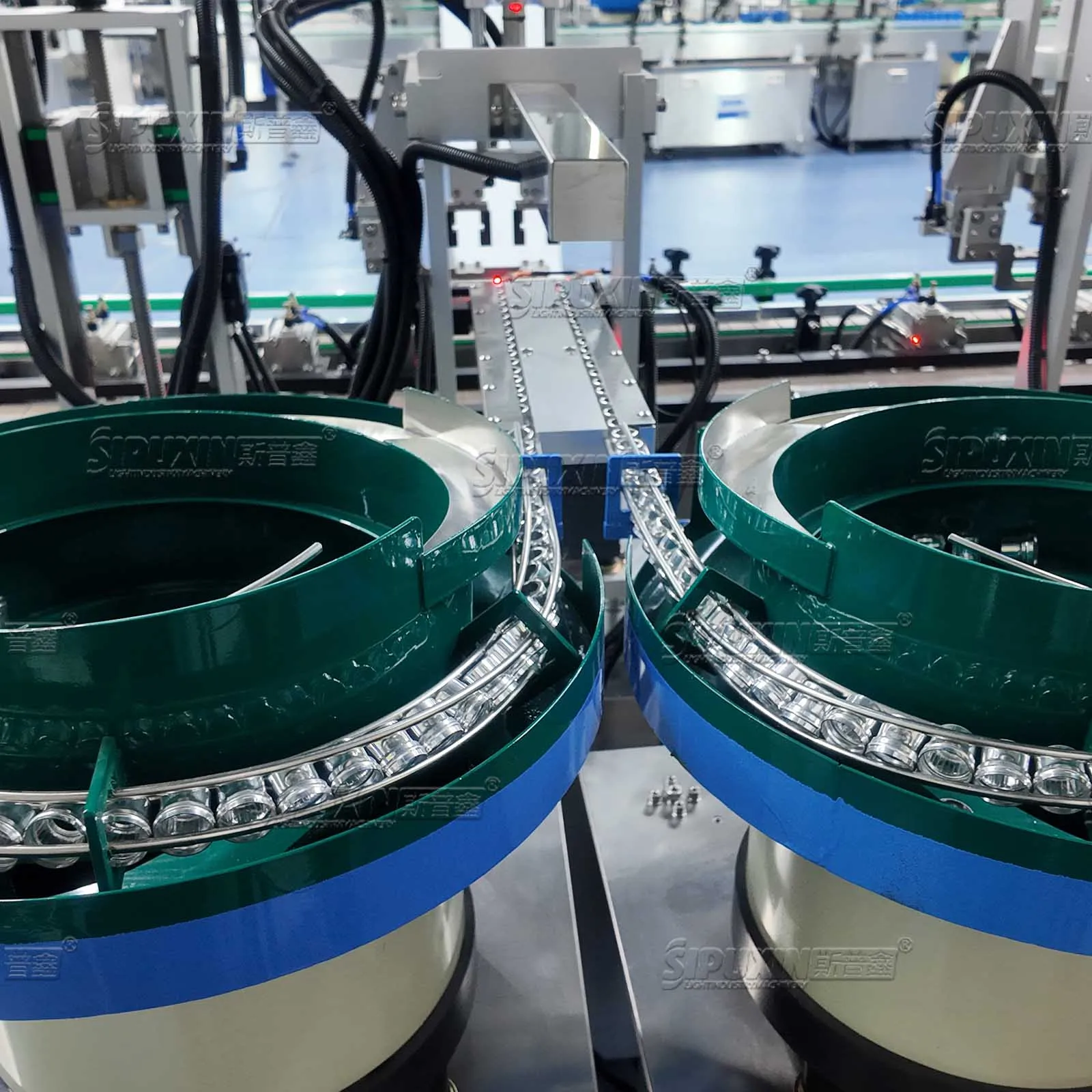

2 Vibrating bowls

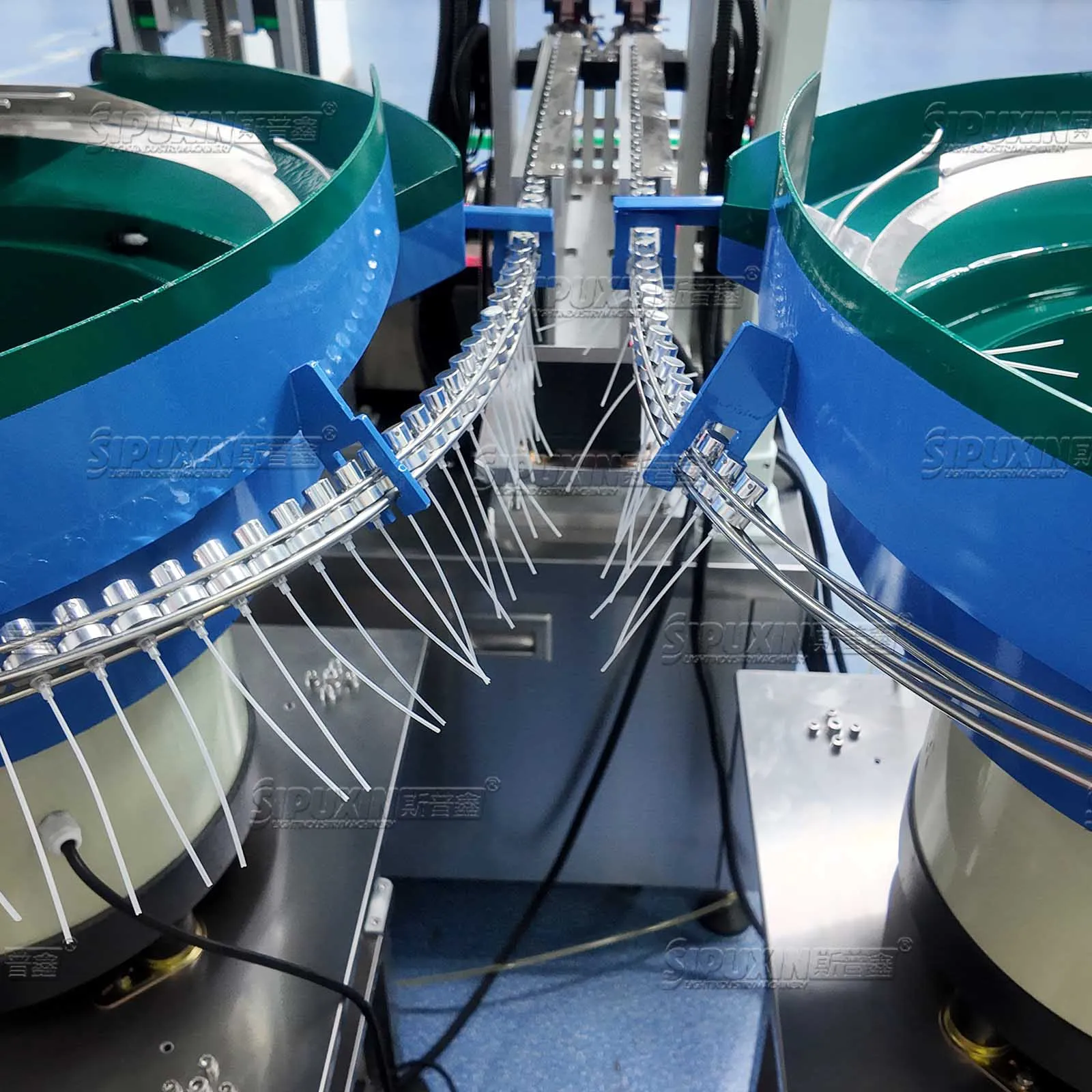

Dual-station vibrating feeders auto-sort and feed accessories like pumps and collars synchronously.

Advantage:

1.Two vibration bowls work simultaneously to raise line speed

2. Separate feeding for different fittings without cross interference

3. Stable automatic sorting, less manual feeding,save labors

4. Compact layout, well matched with perfume filling line
