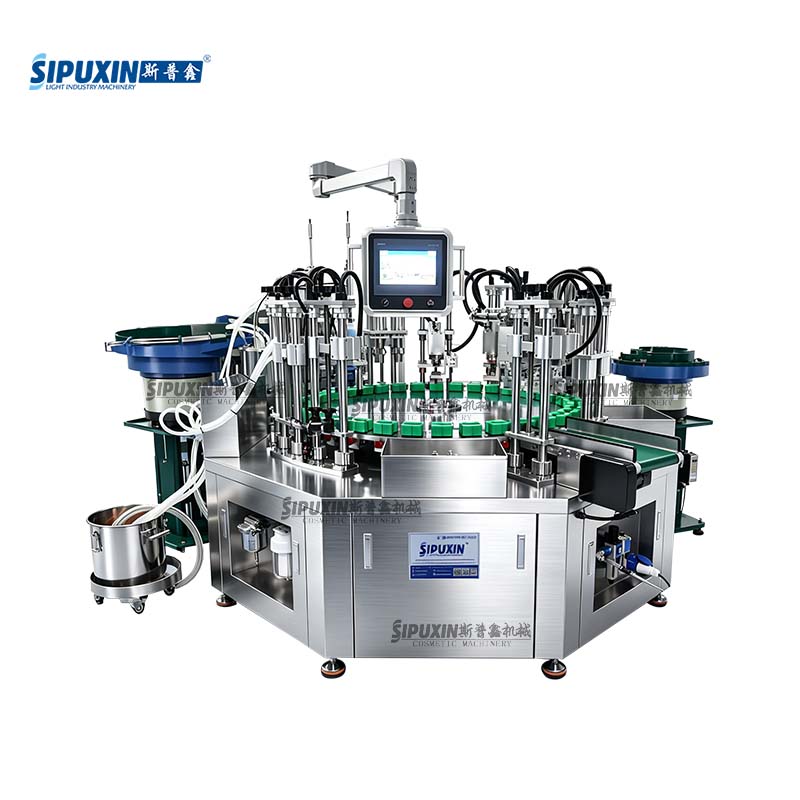

Automatic 2 Station Rotary Perfume Filling Crimping Collaring Machine PLC Touch Screen Perfume Bottle Filling Capping Production Line For Glass Perfume Bottles

Machine components details

Pictures for reference

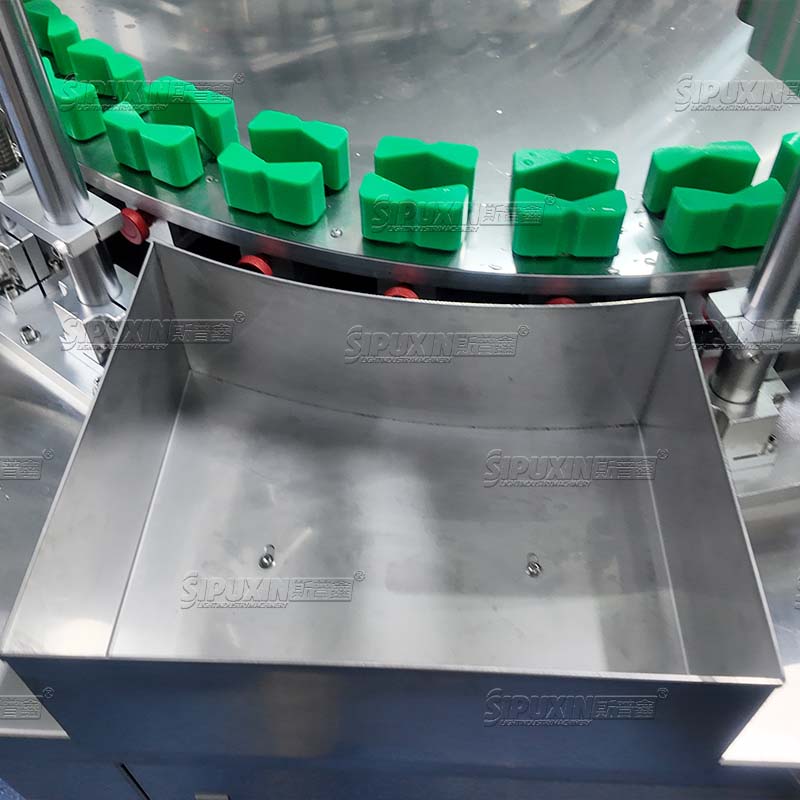

Rotary chuck and Feeding table

The rotary chuck has many universal bottle molds.The molds are changeable and adjusted to suit different bottles with various shapes and sizes.

A bottle feeding table is equipped for people to feed the bottle into the molds.

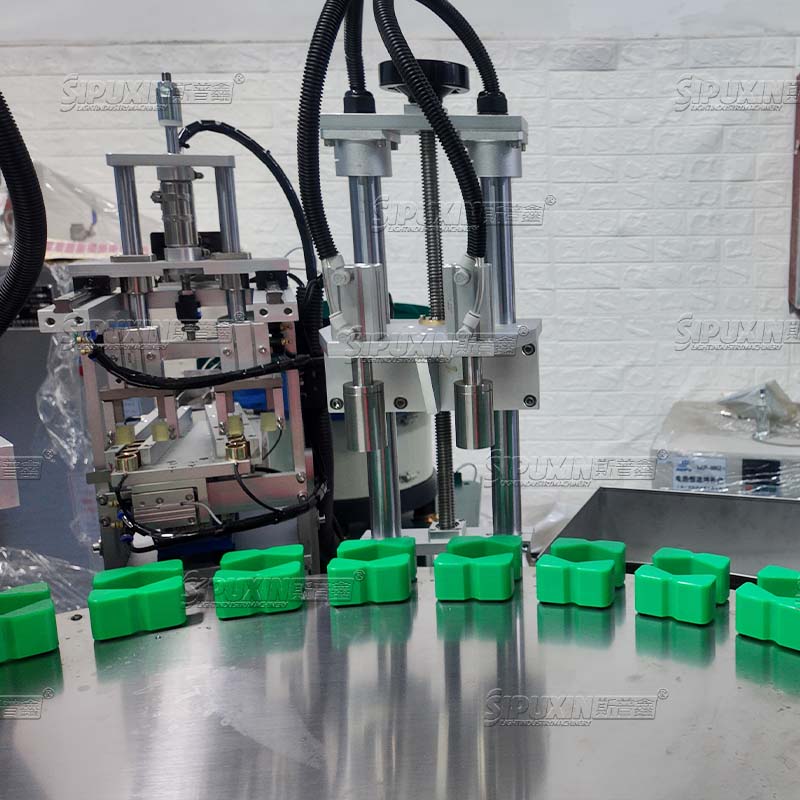

Air washing

2 piece of the air washing is equipped to clean the perfume bottles.

Remove dust and debris inside bottles by clean compressed air, dry without water for perfume glass bottles.

Filling

Magnetic pump filling with 4 lifting nozzle: No liquid splashing during filling, stable output, no leakage, corrosion resistance for alcohol perfume.

•Lift-up filling nozzle prevents splashing

• Magnetic pump: corrosion-proof, no metal contamination

• Stable, drip-free perfume filling

Vacuum reflux system

Vacuum reflux system detects liquid level of filled bottles.

Excess perfume is siphoned back through separate pipeline, while insufficient liquid will be refilled automatically for consistent level.

Pump feeding

2 spray pump feeding stations are connected with the vibration bowl. When the vibration bowl start vibrating,it will feed the pump the this station automatically. And then the robotic hand will clamp the pump into the bottle.

Pre-crimping

After the pump being fed into the bottle,some pump will be not very vertical to fit the bottles. So 2 pre-crimping stations will press the pump a bit,make the pump vertically fit into the bottle,,make it ready for crimping officially.

Crimping

2 crimping stations will press the pump into the bottle ,and then crimping it,make the pump fixed with the bottles.

Collar feeding

2 collar feeding stations are connected with the vibration bowl. When the vibration bowl start vibrating,it will feed the pump the this station automatically. And then the robotic hand will clamp the collar into the bottle.

Collaring

2 collaring stations will press the collar down,make it fixed into the bottle.

Fix & seal perfume pump collar tightly

Bottle clamping out

Bottle clamping transport device: stable gripping, no bottle tipping, smooth conveying.Clamp the bottle out to the conveyor belt.

It save labors and speed it up.

PLC Control system

This machine uses SIEMENS PLC control system with HMI touch screen. It can set the filling volume,filling speed those kind of parameters, with remote sensing control.

PLC control system: stable operation, easy parameter adjustment, full automatic running with touch screen.

Factory setting

Our showroom

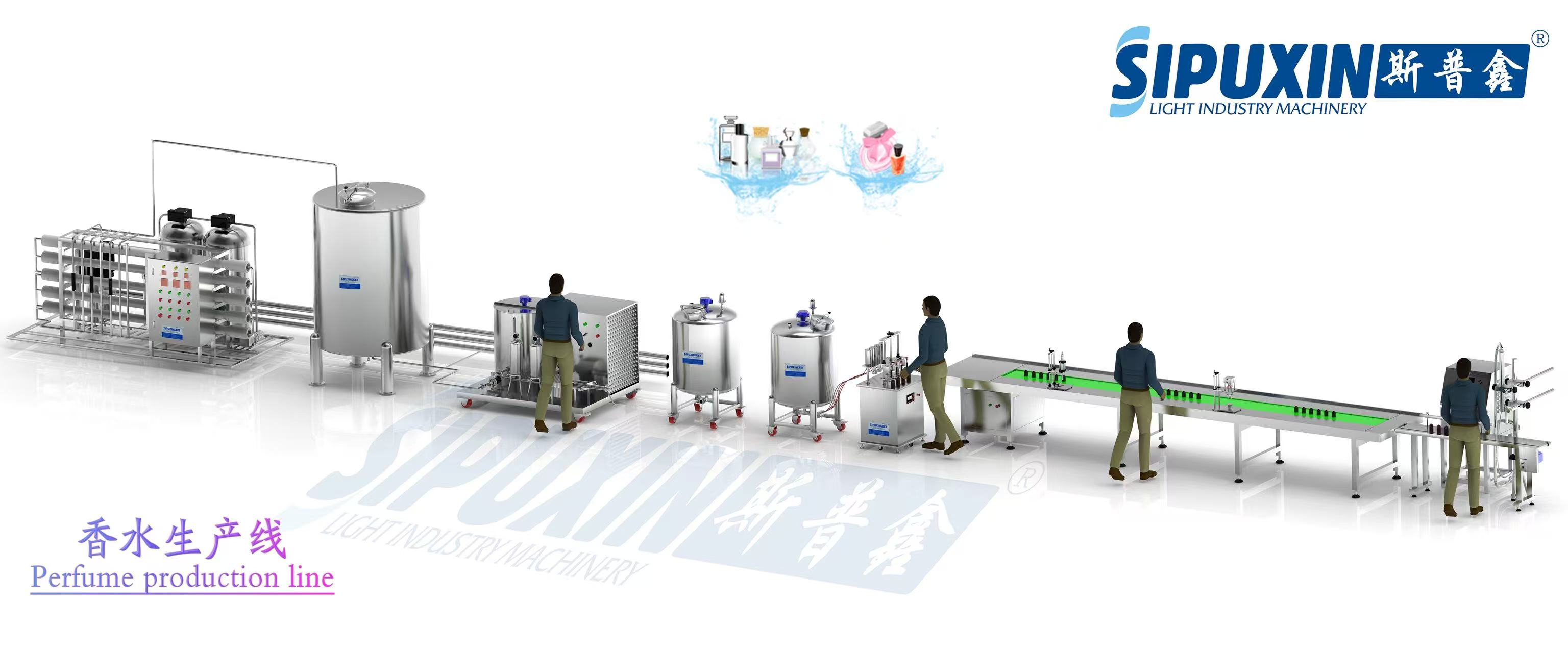

production configuration

Engineering Case

Package

FAQ

1.Are you a factory or trading company? We are a direct factory with over 24 years of production experience. We support factory inspection and welcome your visit anytime. 2.Where is your factory? Our factory is located in Baiyun District, Guangzhou City, Guangdong Province. 3.Can your machines be customized? Yes. We provide OEM & ODM service. We can customize machine size, capacity, material, voltage and functions according to your production requirements.

4.What is your warranty period? We provide 1 year warranty for the whole machine and lifelong technical support and consoulation.

5.How do I do the installation of the machines? We will send you the user manuals and videos of the operating and installing of the machines.We can also provide the online technical support through the video call.

We can also arrange our engineers to your country to help installation and teaching.
