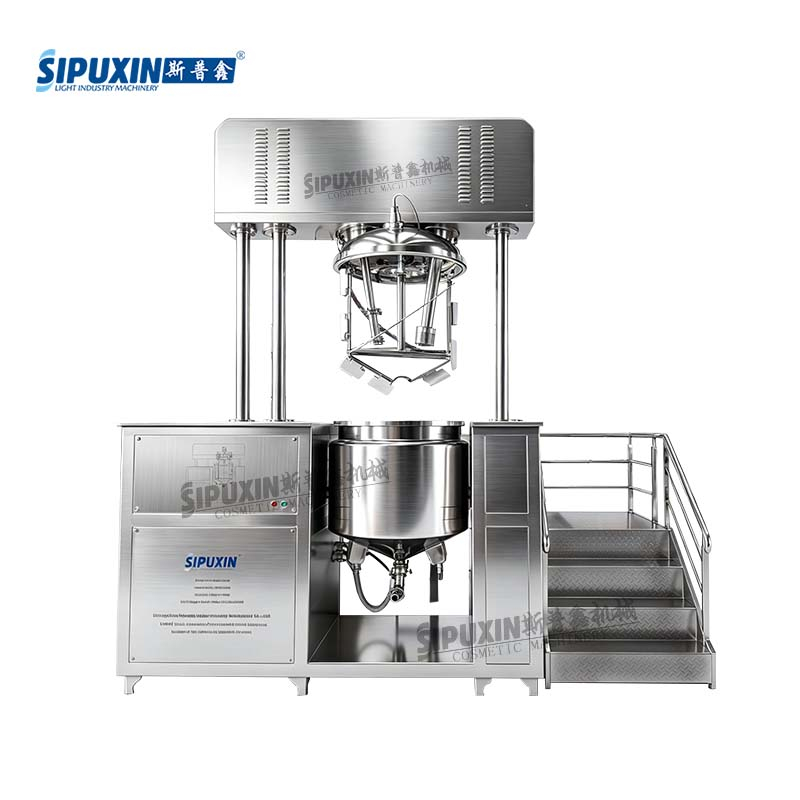

300L Two-in-one Electric Heating Vacuum Homogenizer Toothpaste Mixing Machine, Double Lifting Toothpaste Production Equipment for Daily Chemical Factory

Machine Composition

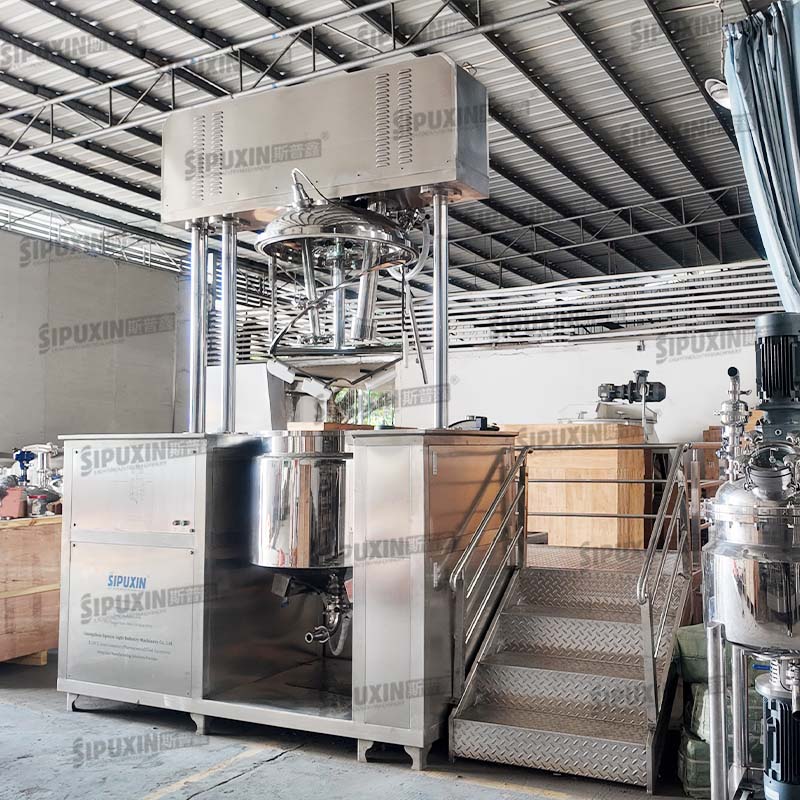

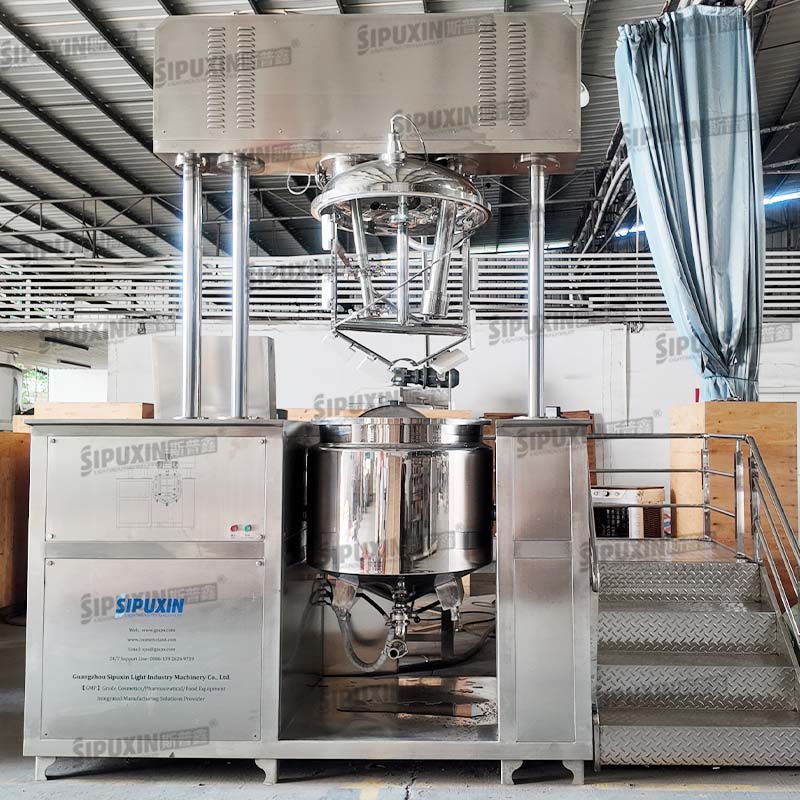

1. Hydraulic Lifting Homogenizing Head Assembly

Double lifting structure, the stirring and homogenizing unit can be fully lifted for easy tank cleaning and raw material feeding.

2. 300L Double-layer Heating Main Tank

316L stainless steel inner tank, electric heating interlayer with thermal insulation, constant temperature control system.

3. Frame & Stainless Steel Stairs with Handrail

Convenient for operators to observe production status and maintain the machine.

4. PLC Touch Control Cabinet PLC

Integrate temperature, stirring speed, vacuum and lifting parameter adjustment.

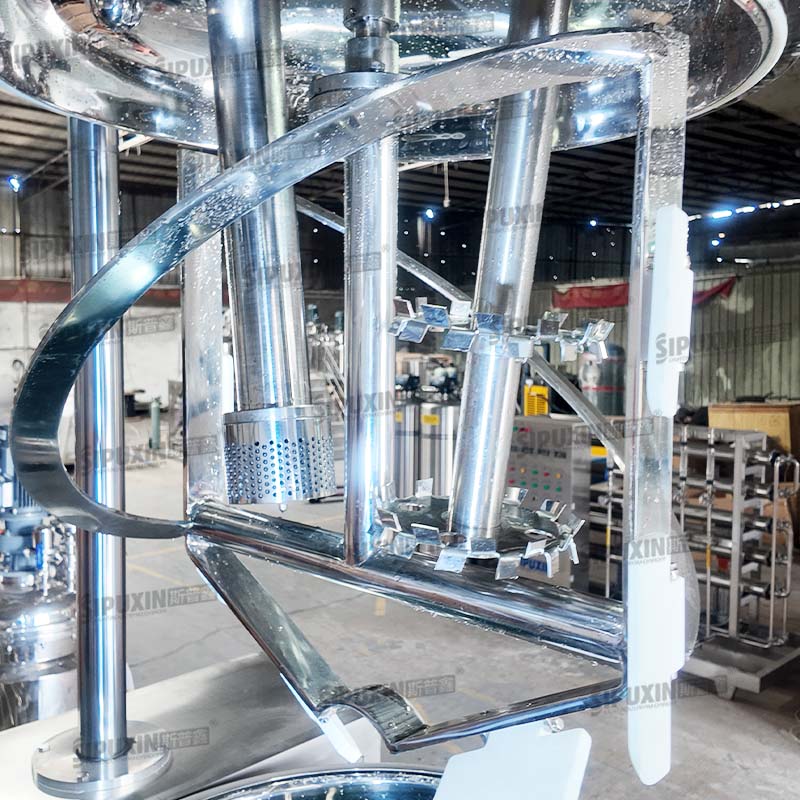

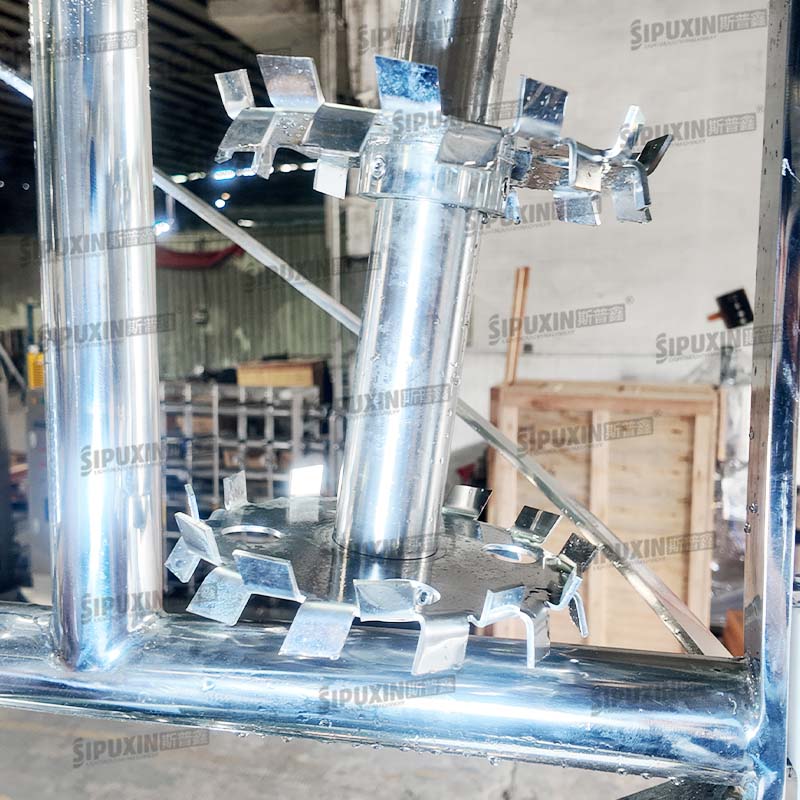

5. Frame Stirring & High-shear Dispersion Disc

Simultaneous mixing and homogenization to fully fuse powder and liquid raw materials for toothpaste.

6. Vacuum Pump System

Remove air bubbles during mixing to make toothpaste smooth and dense without granular texture.

7. Discharge Valve at Tank Bottom

Convenient for fully discharging finished toothpaste without residue.

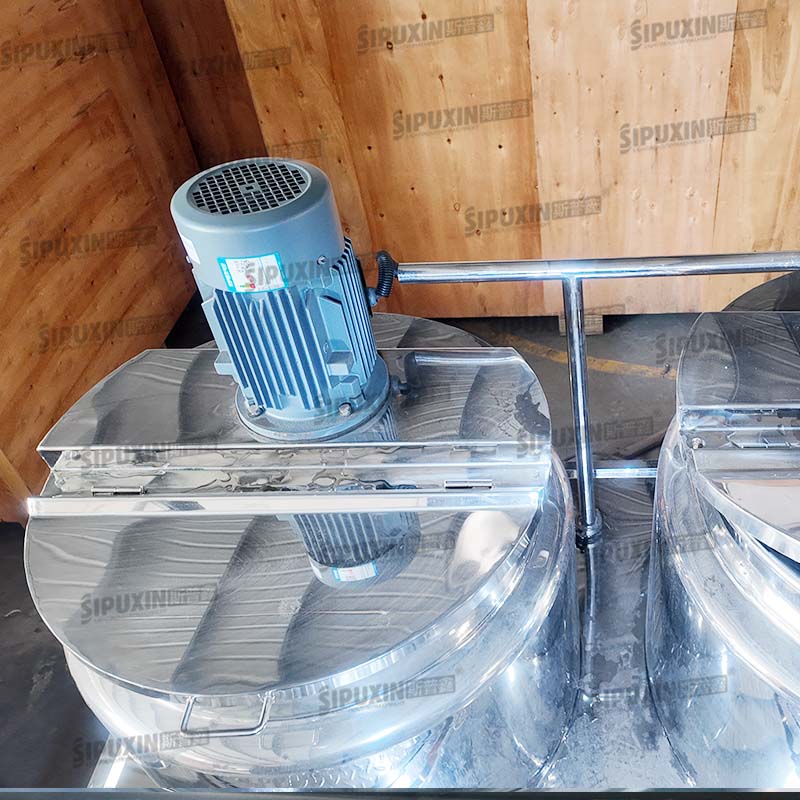

8. Transmission Motor, Gearbox & Sealed Bearings

Stable power output for long-time continuous mixing production.

Usage and Application

Usage

1. Put toothpaste raw materials (calcium carbonate, glycerin, surfactant, essence, abrasive powder) into the main tank.

2. Close the tank, start electric heating to reach the set temperature, turn on vacuum system to eliminate bubbles.

3. Operate frame stirring and high-speed homogenizer at the same time to fully emulsify and disperse solid-liquid raw materials.

4. After mixing, lift the homogenizing head, open the bottom valve to discharge finished toothpaste directly to filling equipment.

5. Adjust heating temperature, stirring speed and vacuum degree via PLC screen according to different toothpaste formulas.

Application Scope

• Products: All kinds of toothpaste, medical ointment, polishing paste, thick cream paste with high solid content.

• Industries: Daily chemical factory, oral care product manufacturing, pharmaceutical ointment workshop.

• Matching equipment: Can connect with toothpaste tube filling & sealing machine to form complete toothpaste production line.
