Facial cream, body lotion, eye cream, hair mask, BB cream, foundation, medicinal ointment, massage paste, hair wax, petroleum jelly and other medium & high viscosity emulsified paste.

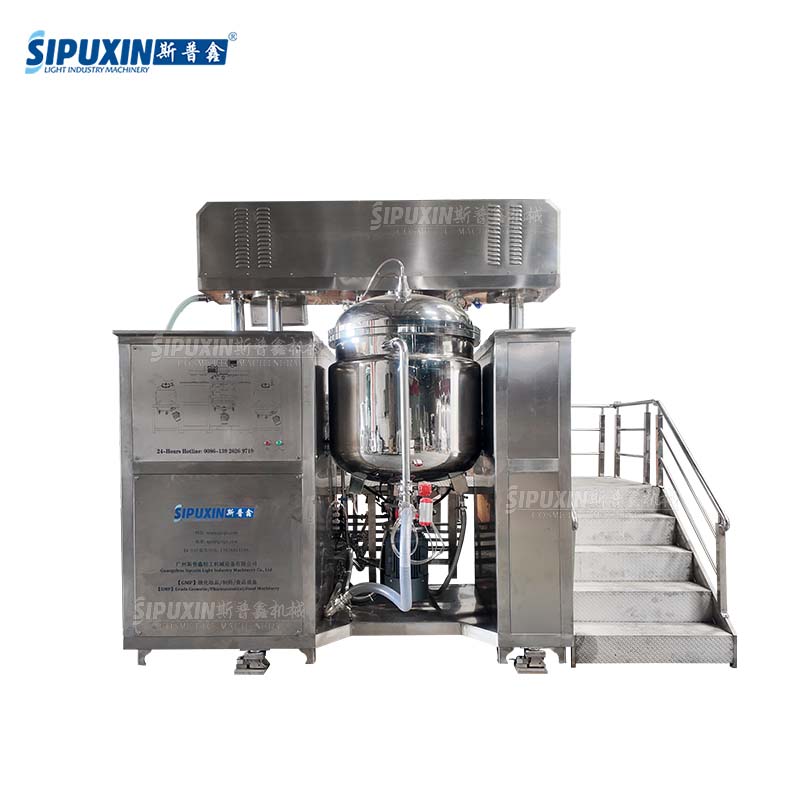

1. 500L Main Emulsifying TankSUS316L mirror polished inner tank, double-layer electric heating & heat preservation jacket, flat round bottom structure. Equipped with weight weighing sensor under the tank base for real-time raw material weight monitoring.

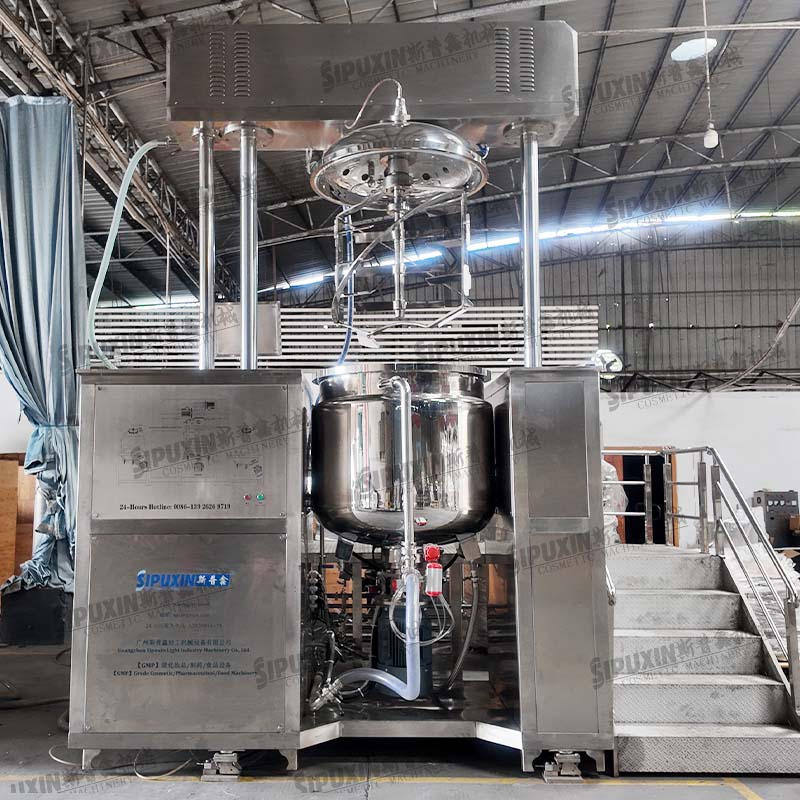

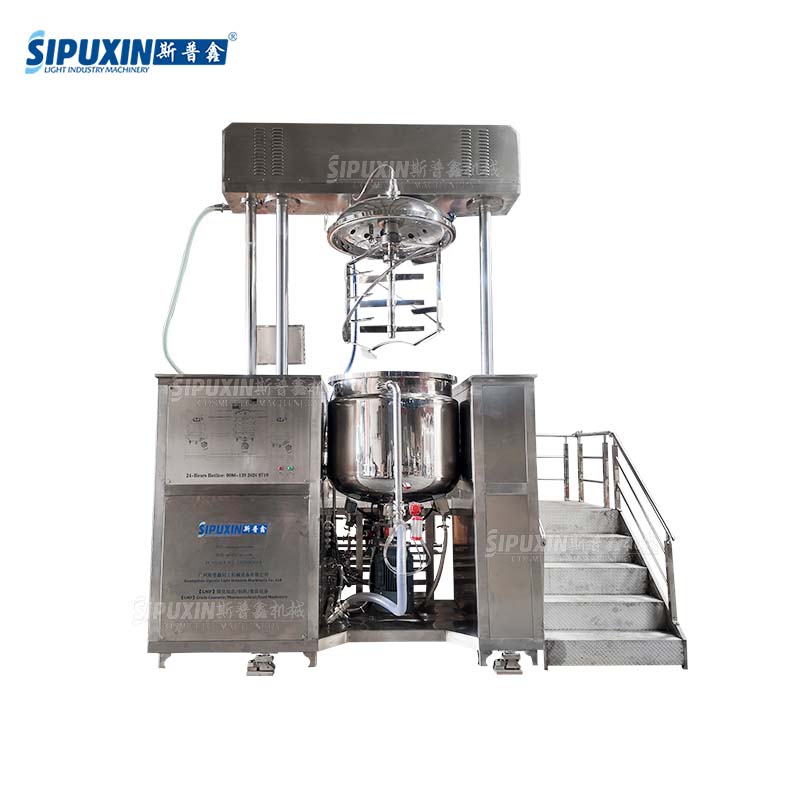

2. 4-Pillar Hydraulic Lifting SystemFour vertical thick support columns with hydraulic driving unit, can lift the entire top stirring & homogenizing assembly fully. Greatly simplify tank interior washing, residue cleaning and formula replacement.
3. Frame Wall-Scraping Stirring SystemTop low-speed stirring motor matched with reducer, silicone scraper fits the tank inner wall completely to avoid material adhesion and local overheating.
4. Bottom High Shear Homogenizer UnitBuilt-in high-speed homogenizing head at tank bottom, ultrafine dispersion of oil & water phase raw materials to form delicate cream under vacuum condition.
5. Integrated Weighing Module & PLC Touch Control CabinetCantilever color touch screen panel, built-in high-precision weighing sensor system. Real-time display feeding weight, temperature, stirring speed, homogenizer speed and vacuum value; all production parameters can be stored automatically.
6. Vacuum Defoaming AssemblySupporting water ring vacuum pump, form negative pressure inside sealed tank to remove tiny air bubbles from paste, prevent product oxidation and improve surface gloss.

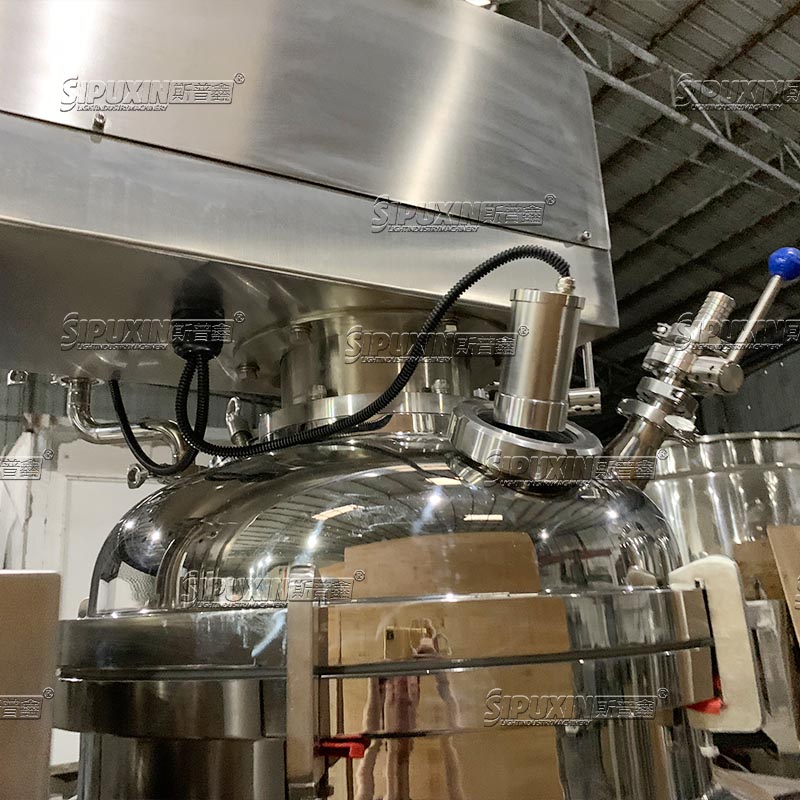

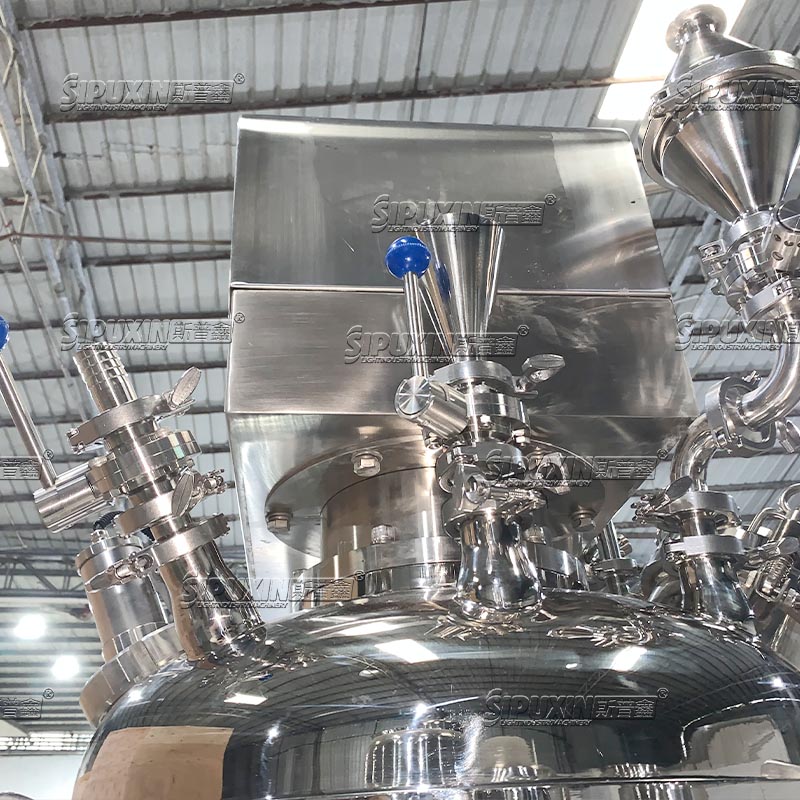

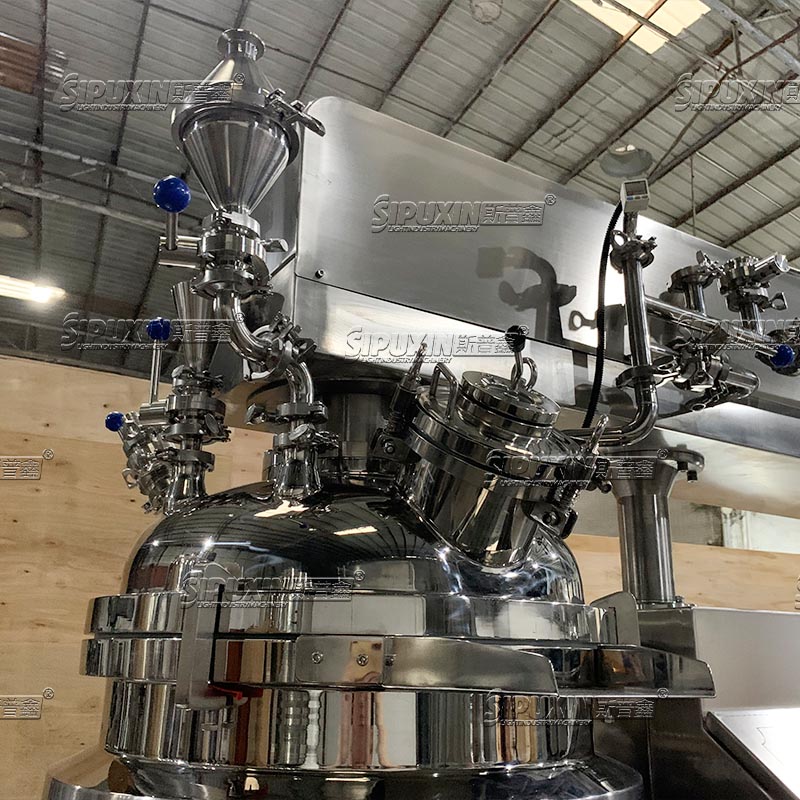

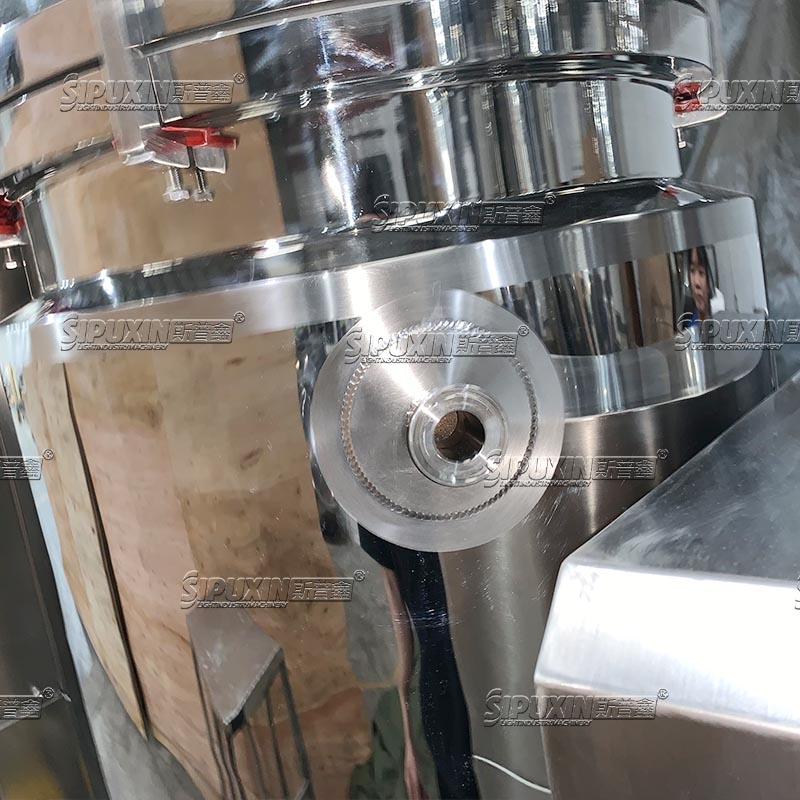

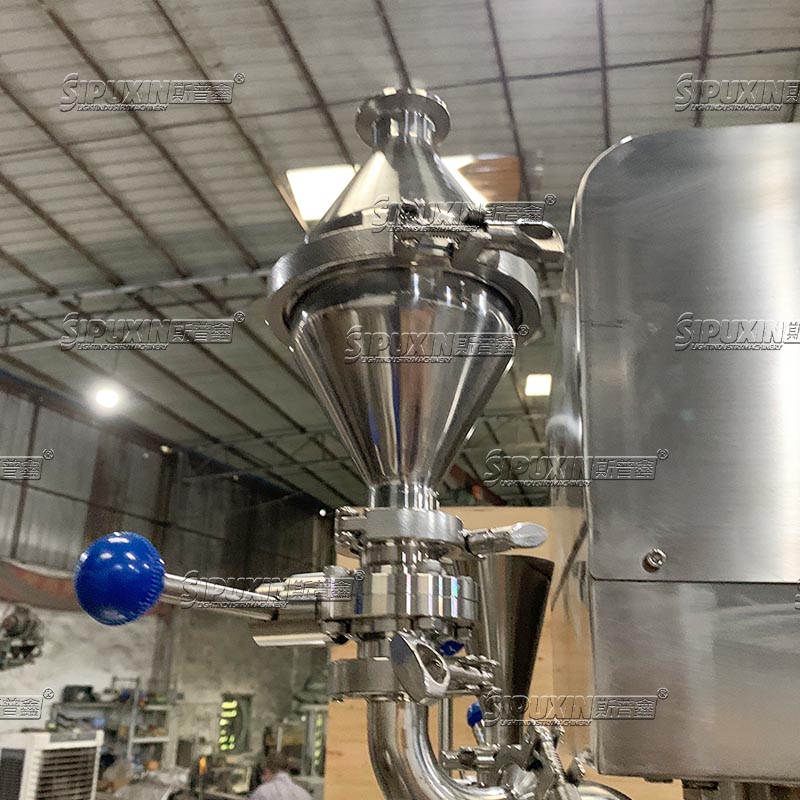

7. Sanitary Pipeline & ValvesStainless steel feeding ports, discharge valve, sampling port, exhaust valve and CIP cleaning connector, quick-disassembly sanitary fittings without dead corners.

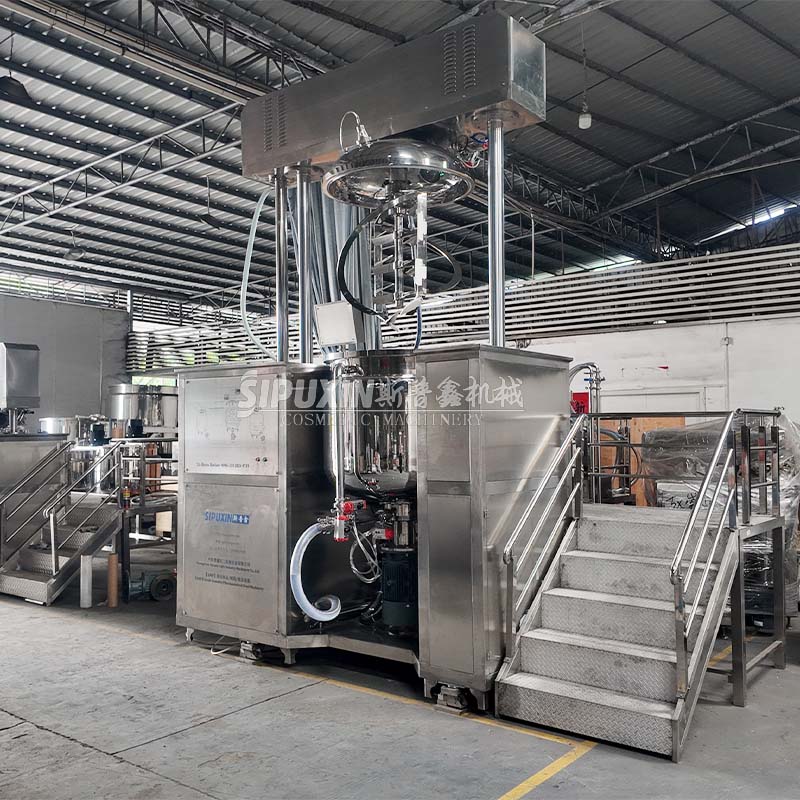

8. Stainless Steel Machine Base & Operating Stair PlatformIntegrated SUS304 cabinet frame, mobile casters with locking function, matched stainless steel stair stand for convenient manual feeding and equipment inspection.
| Parameter Item | Technical Specification |
| Effective Working Volume | 500L |
| Tank Contact Material | SUS316L stainless steel, mirror polished |
| Outer Shell Material | SUS304 stainless steel |
| Heating Mode | Electric jacket heating with thermal insulation layer |
| Stirring Structure | Frame type wall-scraping stirring paddle |
| Stirring Speed | 0~63rpm stepless adjustable |
| Homogenizer Type | Bottom high shear homogenizer |
| Homogenizer Speed | 0~3600rpm frequency conversion adjustable |
| Lifting Structure | 4-column full hydraulic lifting |
| Weighing System | Built-in high-precision load cell weighing module |
| Control System | PLC color touch screen integrated control |
| Working Condition | Vacuum negative pressure emulsification |
| Vacuum Degree | -0.08~-0.095MPa |
| Applicable Viscosity | 1000~1,000,000 cps medium & high viscosity paste |
| Automation Level | Semi-Automatic |
| Matching Auxiliary | Stainless steel operating stair platform, water ring vacuum pump |
| Applicable Products | Facial cream, body lotion, eye cream, hair mask, medicinal ointment, foundation cream |
