100L Mobile Electric Heating Vacuum Emulsifier SUS316L Stainless Steel Bottom Homogenizer Mixing Tank For Cosmetic Cream Lotion Ointment Production

Introduction

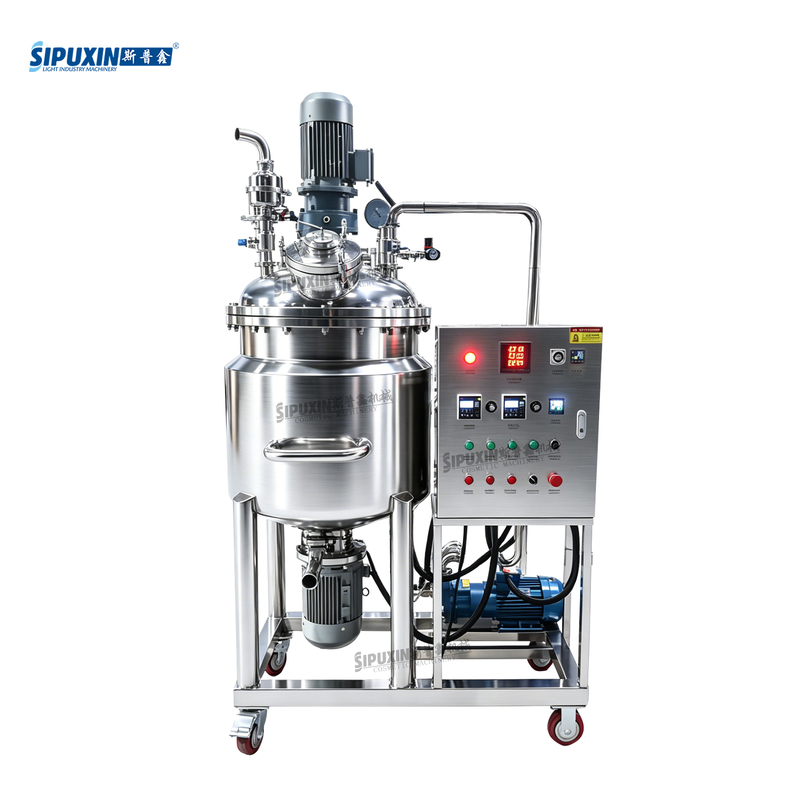

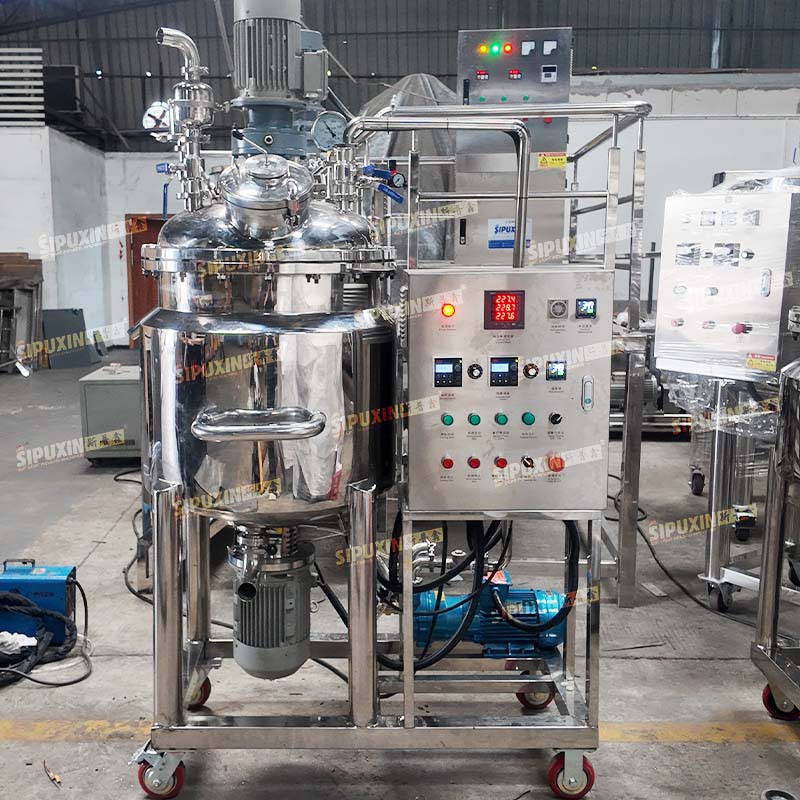

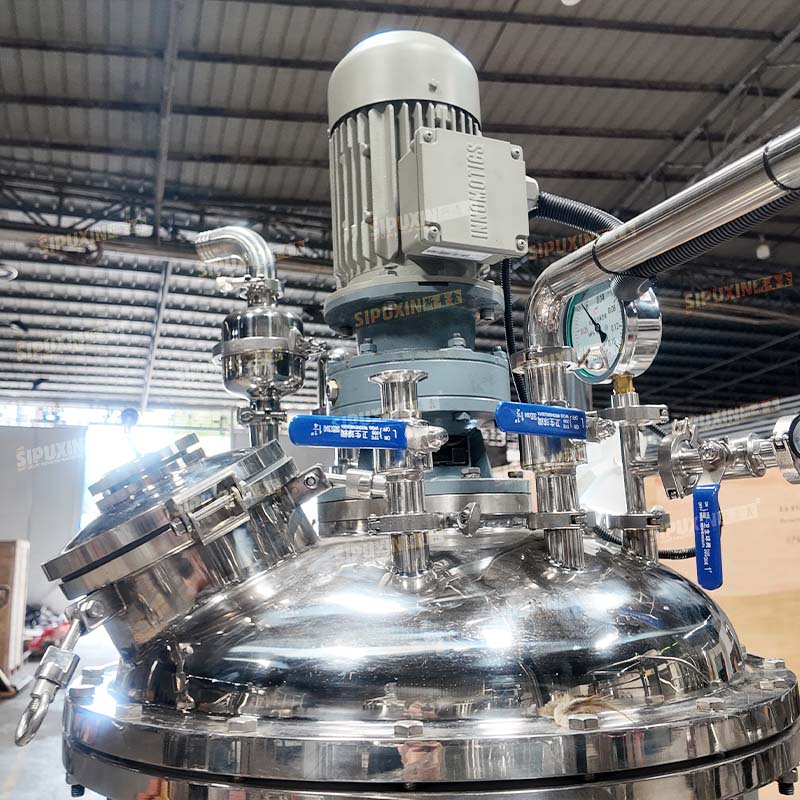

This 100L mobile electric heating vacuum emulsifier consists of SUS316L sealed main tank, electric thermal oil heating jacket, top wall scraping stirring motor & gearbox, bottom high shear homogenizer, independent vacuum pump assembly, split stainless steel control cabinet, pressure gauge, safety relief valve and lockable mobile casters. All material contact surfaces adopt mirror polished SUS316L stainless steel.

Machine composition

This 100L mobile electric heating vacuum emulsifier adopts full SUS316L sanitary stainless steel tank, equipped with top wall scraping stirring and bottom high-shear homogenizer. It supports thermal oil constant temperature heating and full vacuum defoaming, controlled by independent digital cabinet. Lockable casters enable flexible workshop transfer, ideal for medium-batch production of cosmetic cream, lotion and pharmaceutical ointment. Key core components include motor, gearbox, pressure vessel, bearing and PLC, with energy-saving, safe and multifunctional features.

Usage and Application

Usage

 1. Push the machine to feeding position and lock casters, open the top manhole to add oil phase and water phase raw materials, then seal the cover tightly.

 2. Set heating temperature, stirring speed and homogenizer speed on the split control panel, start electric heating to melt solid wax and emulsifiers evenly.

 3. Turn on the vacuum pump to form negative pressure inside the tank, run wall scraper stirring and bottom homogenizer synchronously to realize full vacuum emulsification and eliminate tiny bubbles in paste.

 4. After emulsification reaction completes, stop heating, stirring and homogenizing, release vacuum pressure, open the bottom discharge valve to output finished cosmetic paste.

 5. Clean the tank interior, stirring paddles and homogenizer rotor-stator with purified water after batch production for next batch trial production.

 Application

Mainly applied in cosmetic, pharmaceutical and daily chemical factories for medium-batch production of facial cream, body lotion, eye ointment, hair mask, medicinal ointment and other viscous emulsified products. The integrated vacuum & heating mixing system meets small and medium workshop mass production demand.

Core Advantage

1. Full SUS316L sanitary stainless steel tank with mirror polishing, no sanitary dead corners, fully comply with GMP cosmetic workshop hygiene standard, anti-corrosion for alcohol and acidic raw materials.

2.  Bottom high-shear homogenizer design, strong shear force to fully split oil-water phase, produce ultra-fine smooth paste without grain.

3. Electric thermal oil jacket uniform heating, precise constant temperature control to avoid local overheating and protect raw material active ingredients.

4.  Complete vacuum negative pressure emulsification system, effectively remove micro bubbles inside finished cream to improve texture and appearance.

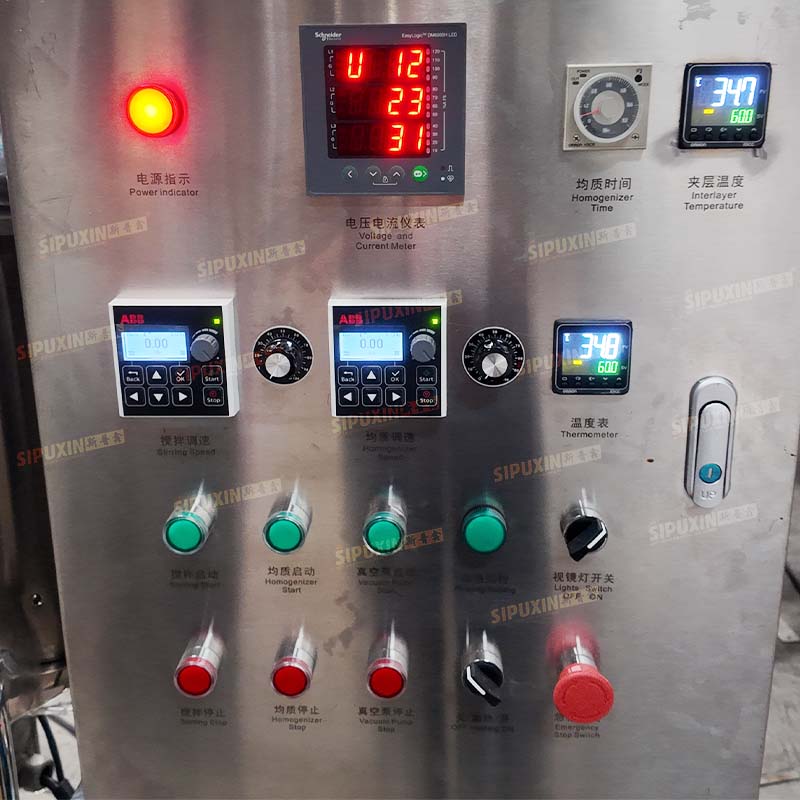

5.   Lockable mobile casters, flexible to move between feeding, emulsifying and filling stations, save workshop handling labor. 6. Split independent control cabinet, centralized display and adjustment of temperature, speed, vacuum and emergency stop, easy operation for workers.




Item	Specification
Effective Working Volume	100L
Tank Contact Material	SUS316L stainless steel, mirror polished
Outer Jacket Material	SUS304 stainless steel with thermal insulation layer
Heating Mode	Electric thermal oil jacket heating
Wall Scraper Stirring Power	1.5KW
Stirring Speed	0–60 RPM frequency conversion adjustable
Bottom Homogenizer Power	3KW
Homogenizer Speed	0–3600 RPM adjustable
Vacuum Supporting Parts	Vacuum pump, vacuum gauge, safety relief valve
Mobile Structure	Stainless steel brake casters

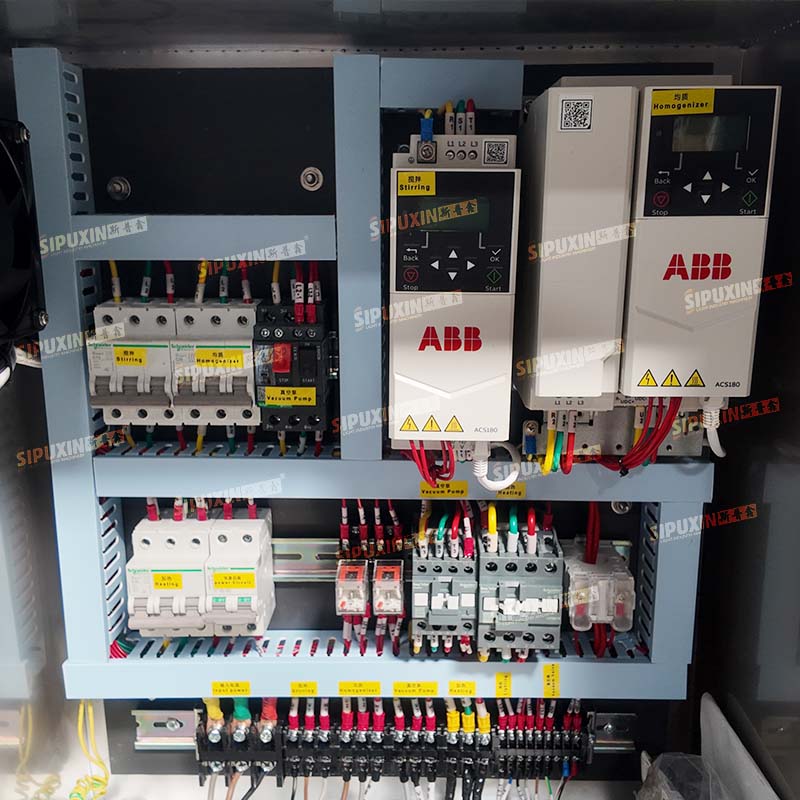

Control System	Split stainless steel digital control cabinet
Net Weight	About 720KG
Packed Gross Weight	About 810KG
Standard Voltage	380V 50Hz, customizable 220V single phase
Standard Matching Core Components	Motor, Gearbox, Pressure Vessel, Bearing, PLC
