Product Description
Performance
1.The homogenizing structure made through German technology adopts the inported double-end mechanical seal effect.The maximum emulsifying tatation speed can reach 4,200rpm and the highest shearing fineness can reach 0.2-5um.
2.The pot body is welded by imported three-layer stainless steel plate.The tank body and the pipes adopt mirror polishing,which fully confirms to GMP requirements.
3.According to technological requirements,the tank body can heat or cool the materials.The heating modes mainly include steam heating or electric heating.
Application
The machine is mainly applied in such industries as daily chemical care products,food industry,paint and ink,nanometer materials,cosmetic cream,etc.The emulsifying effect is more prominent for materials of high base viscosity and high solid content.
Capacity | 1000L/customization |
Heating way | Power:18KW
Electric heating water in jacket with tap-water cooling system |
Mixing way | Power: 4KW; Speed: 0-63 r/min Mixer：Fixed stirrer & frame-wall teflon scrapping agitator with blade |
Material | Stainless steel sus304/sus316L |
Homogenizer way | Power: 7.5KW; Speed: 0-3000RPM,speed adjustable |
Vacuum system | Power: 3KW |
Control way | Button control/PLC+Touch screen |
Details Images

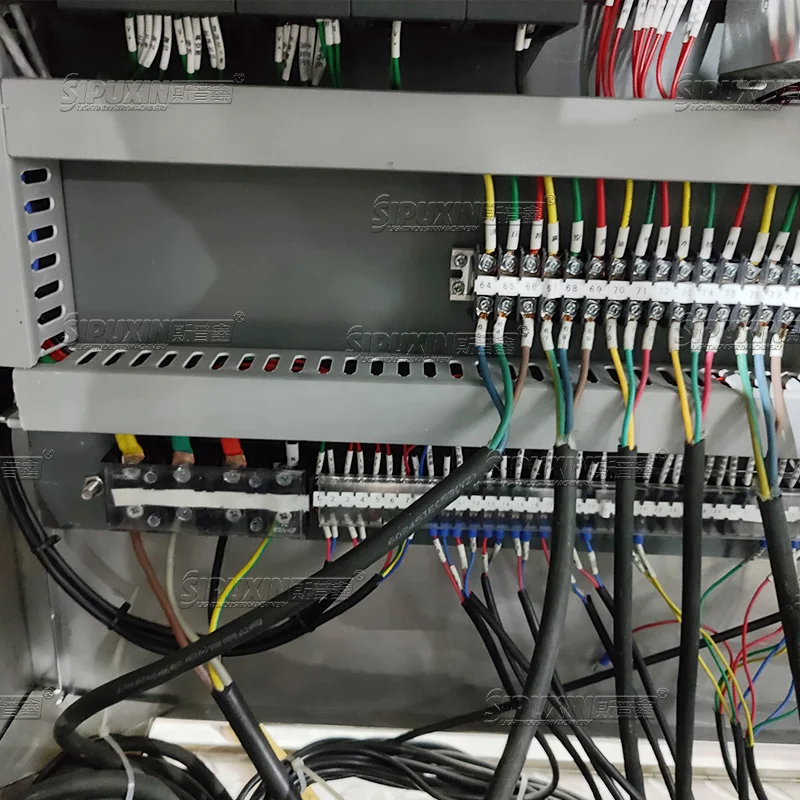

Botton control pannel
The control panel convenient for the operator to operate various functions, adjustable frequency, quick start, and immediate stop, which is very sensitive.

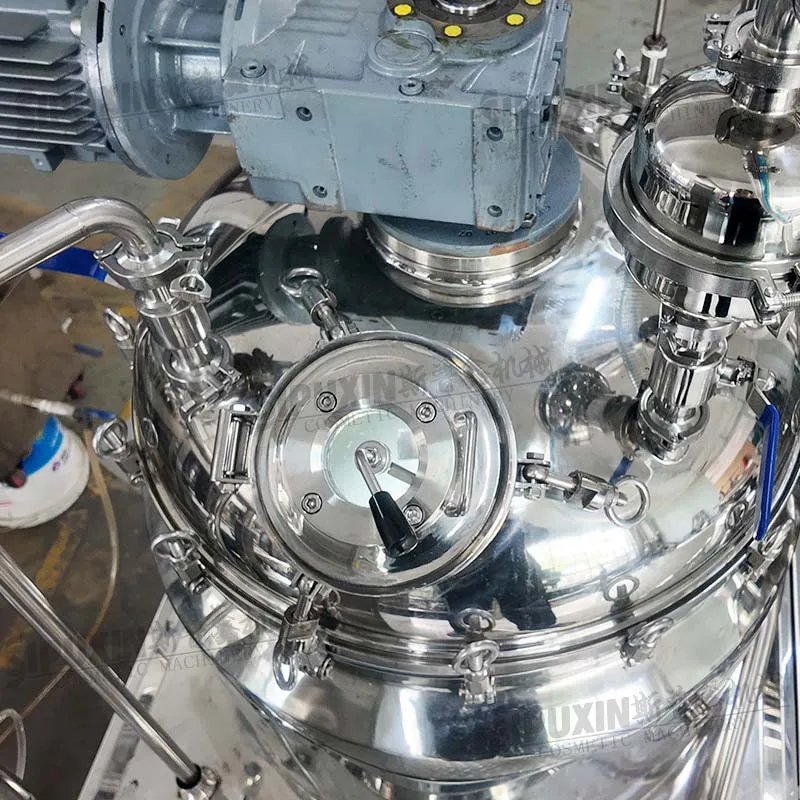

Mixing system
the mixing system consists of inter fix paddle,scrapper mixer and clockwise direction blender,which the retation speed can reach 63 times per minute.and the perfect mixing result increase the mixing efficiency and performance,as well as heating efficiency.
Water Tank And Oil Tank
The water tank and fuel tank are pretreated by electric heating and stirring. On the one hand, it is to microprocess the material
which is difficult to dissolve. The other is to reduce damage to the main pot.

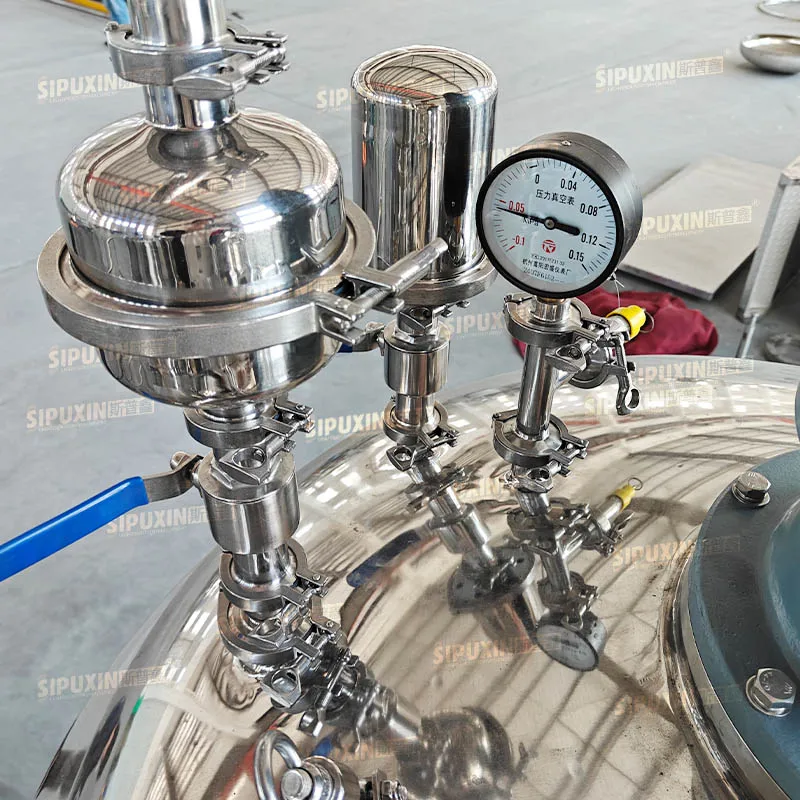

Vacuum pump
Vacuum pump is generally water ring vacuum pump,it is equipped with stainless steel circulating water tank and control solenoid
valve.
The maximum vacuum limit:0.1Mpa (generally 0.085Mpa)
Function:
1.Through vacuum, remove air and defoaming.
2.Transfer the raw material through vacuum suction
Operating Platform
motor
Material:SUS.304
Thickness:2mm
Function：
1.It is water-proof and oil-proof,to prevent people from slipping.
2.It is very easy to clean and maintain it.
3.It provides a place for people to operate it.
Company Introduction
About Us
Guangzhou Sipuxin Light Industrial Machinery Equipment Co.,Ltd.with Yangzhou Sipuxin Light Industrial Machinery Equipment Factory as a solid backing,specializing in cosmetics,food,daily chemicals and other industries complete sets of equipmer manufacturers,to provide customers with a variety of special application fields of solutions .
The main products include vacuum homogenizing emulsifier,high-shear liquid detergent mixer,storage tank various cream,various bottle capping machine and other cosmetic and perfume whole-set production line,laboratory equipment,conveyor,etc.
