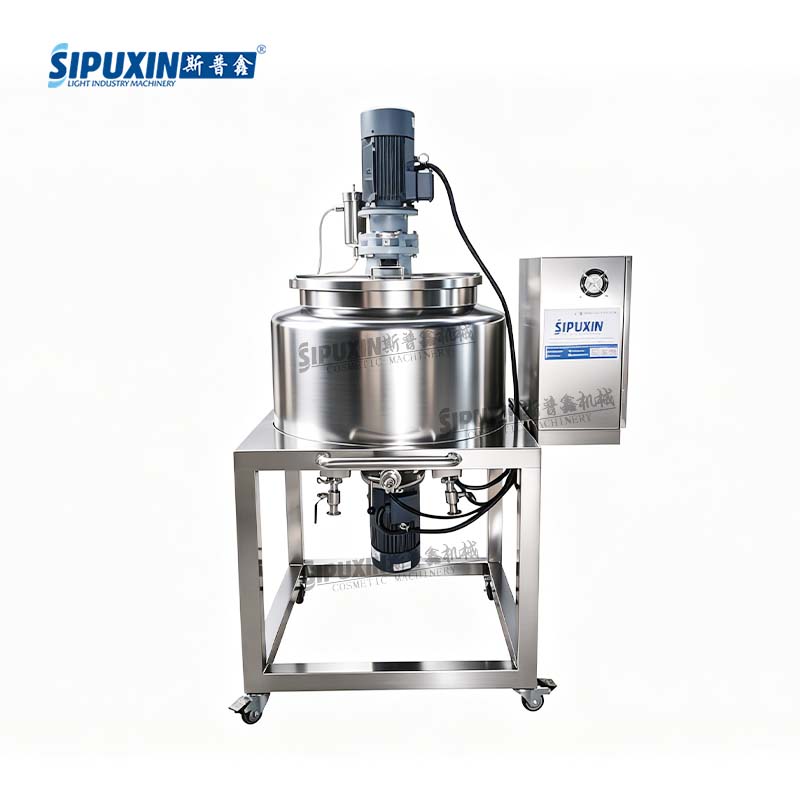

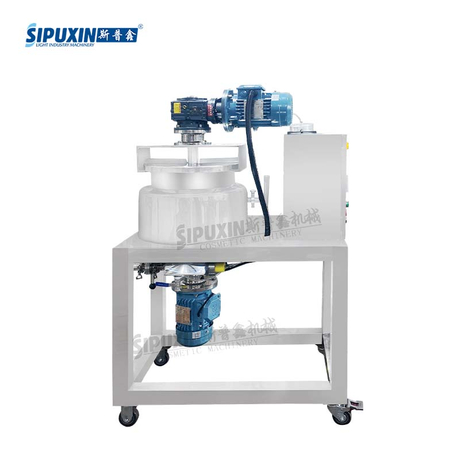

100L Mobile Stainless Steel Heating Mixing Tank Double Jacket Electric Heating Top Stirring Bottom Homogenizer Pot For Cosmetic Lotion Cream Shampoo Making

Introduction

Introduction

This vertical automatic bag packaging machine integrates film feeding, quantitative filling, sealing, cutting and finished bag output in one unit, specially designed for small sachet packaging of liquid, lotion, cream, honey and sauce.Equipped with sanitary stainless steel hopper and servo filling pump, filling volume can be precisely adjusted via touch screen. All liquid contact parts are SUS304 stainless steel, easy to disassemble and clean.It supports composite plastic film roll material, can make three-side sealed, four-side sealed and back-sealed sample bags. Compact cabinet with brake casters, small floor space, widely used for cosmetic trial packs, food condiment sachets and daily chemical single-use packaging.

Machine composition

1. 100L double-jacket heating mixing tank (SS304 mirror polished)

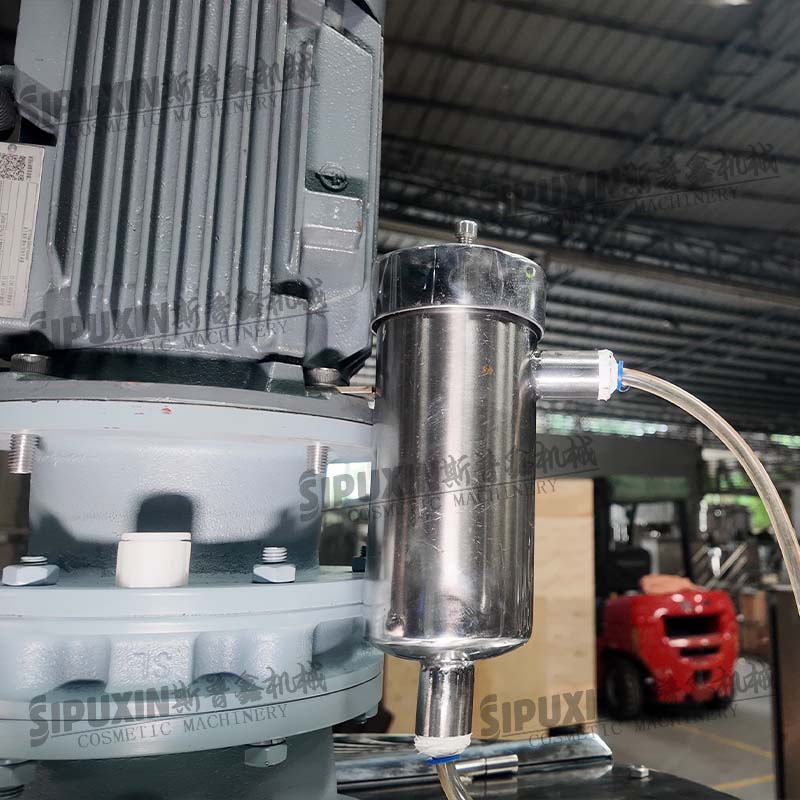

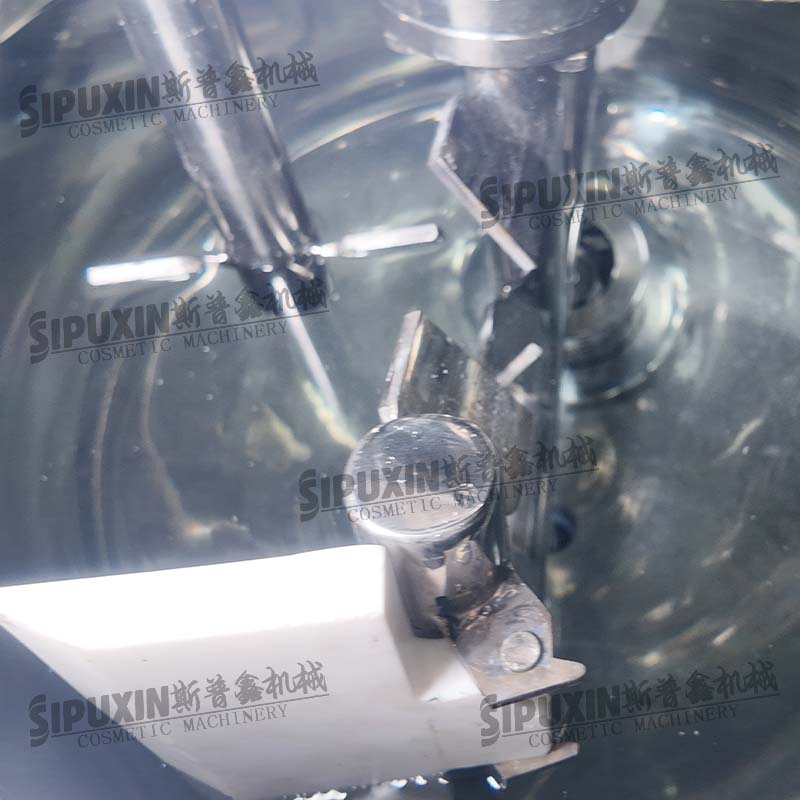

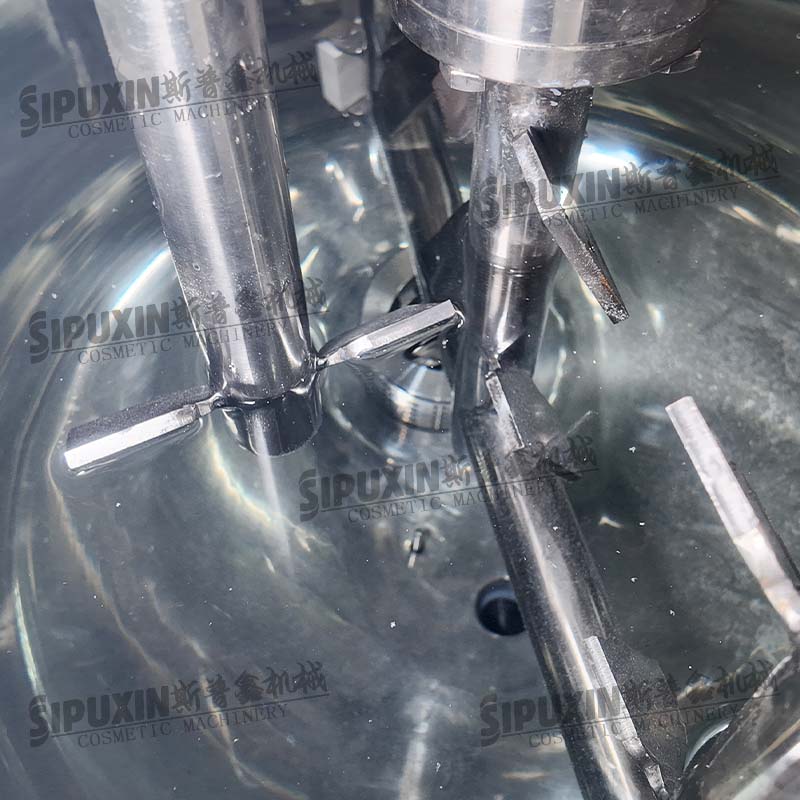

2. Top low-speed stirring motor & mixing paddle

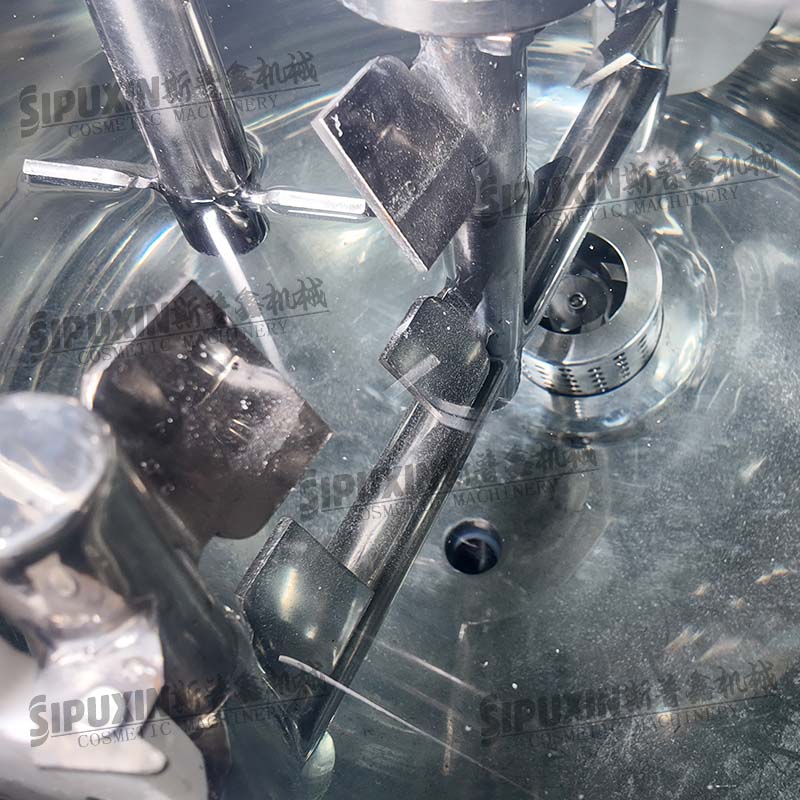

3. Bottom high-shear homogenizing emulsifier

4. Independent electric heating & temperature control cabinet

5. Stainless steel mobile frame with lockable universal casters

6. Sealed feeding manhole, discharge valve, sampling port

Usage and Application

Used for heating, stirring, homogenizing and emulsifying medium batches of cream, lotion, shampoo, body wash, ointment, sauce and syrup. Widely applied in cosmetic factories, daily chemical workshops, food processing plants for formal small-batch production.

Core Advantage

1. Double-jacket electric heating, uniform temperature distribution, adjustable heating range

2. Dual mixing system: top stirring + bottom high-shear homogenizer, excellent emulsification effect

3. Full SS304 food-grade stainless steel, smooth mirror surface, easy to clean without residue

4. Mobile stainless steel stand with lock casters, convenient to move and fix at working station

5. Independent temperature control box with real-time digital temperature display, simple operation

6. Large 100L capacity for stable medium batch output, compact overall layout

7. Low running noise, energy-saving, durable transmission parts and long service life




Item	Specification
Model	SPX-MT100 100L Mobile Homogenizer Mixing Pot
Effective Volume	100 Liters
Tank Material	SS304 stainless steel
Heating Method	Double jacket electric heating
Temperature Control Range	RT ~ 90℃ adjustable
Mixing Configuration	Top agitator + bottom high shear homogenizer

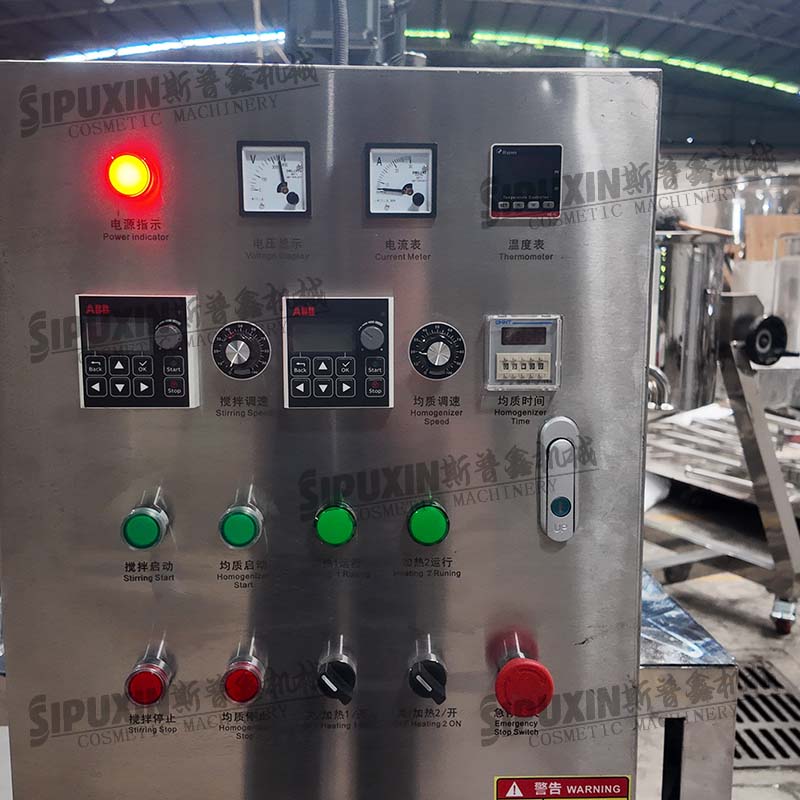

Control System	Digital temperature control cabinet
Driving Mode	Electric drive
Optional Upgrade	PLC touch screen, vacuum system, cooling function
