Industrial 1000LPH Stainless Steel RO Purification System One Stage Water Treatment Plant With Pure Water Buffer Storage Tank

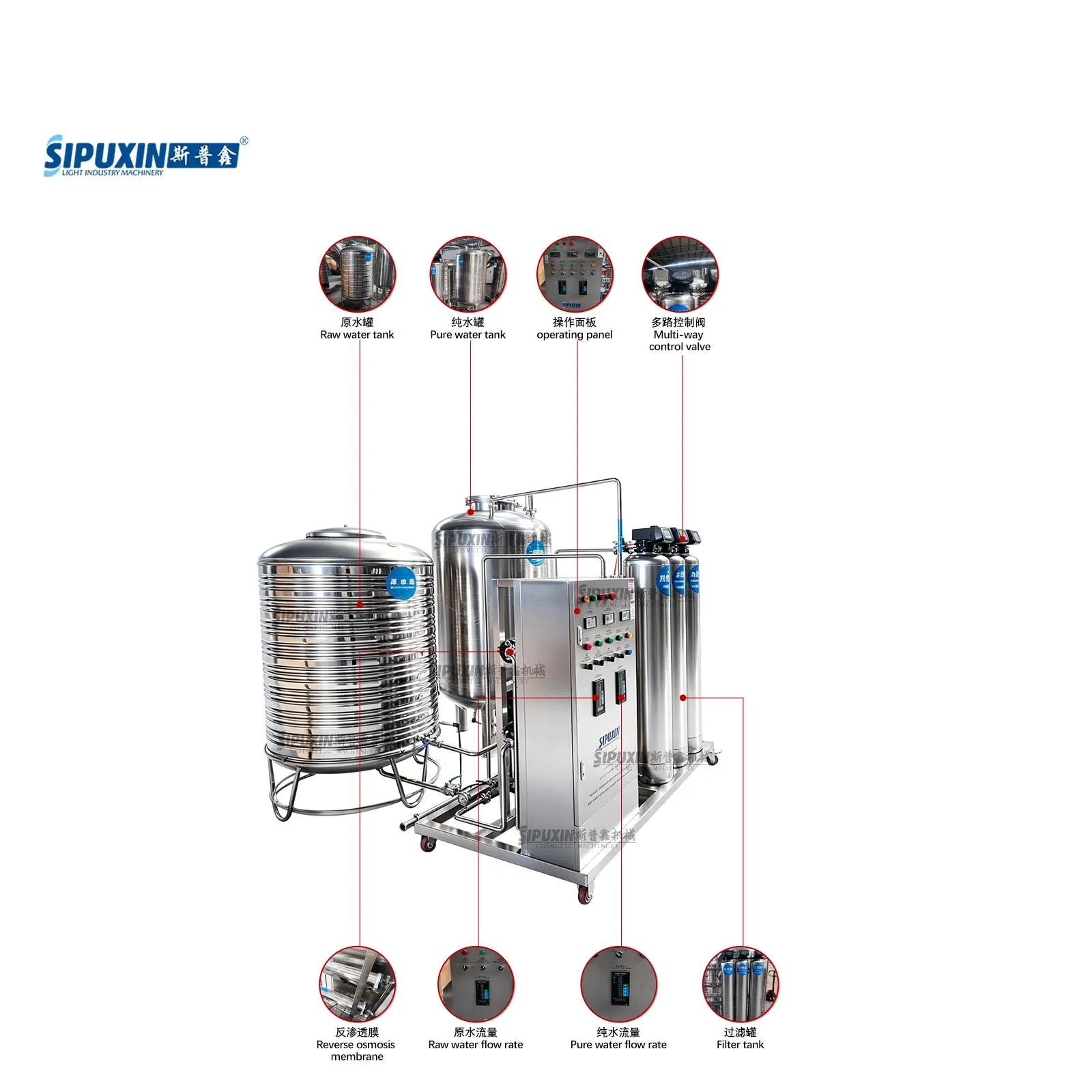

Machine components details

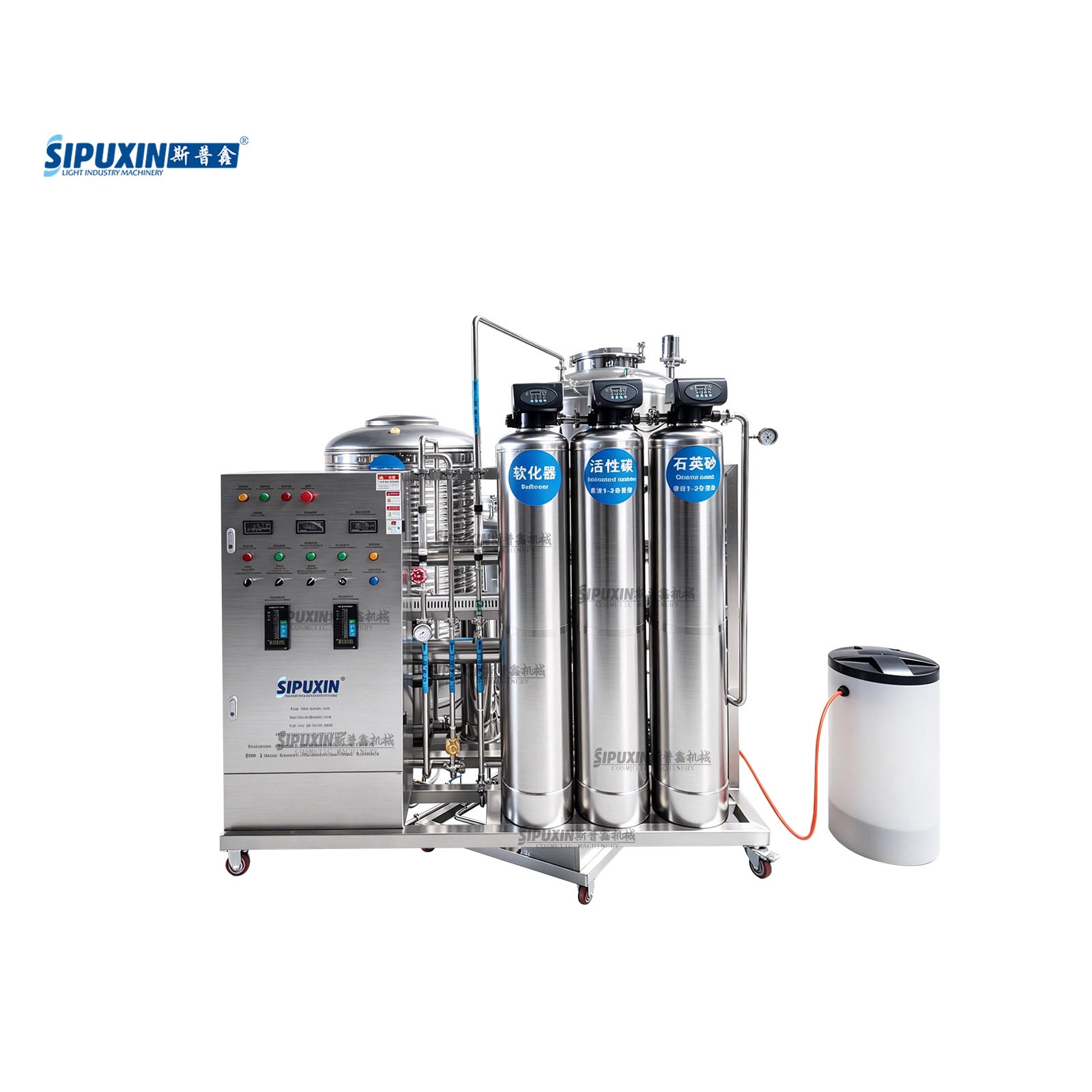

Pictures for reference

3 Pre-filters

Carbon filter

Absorb residual chlorine, peculiar smell, organic substances and color in water, improve water quality taste, and protect RO membrane from chemical damage.

Sand filter:

Effectively filter sand, silt, rust and large suspended particles in raw water, reduce water turbidity, avoid blockage of
subsequent filter materials and RO membrane.

Water softening:

Reduce water hardness by removing calcium and magnesium ions, prevent scale formation on RO membrane and pipeline, extend equipment service life.

Precision filter

Trap fine tiny particles and impurities from pre-filtered water. Protect RO membrane effectively, ensure stable inlet water
quality for RO system.

RO Membrane

Frame material:SUS.304

Membrane:USA brand,one stage RO membrane

Function:

Remove salt, bacteria, viruses, heavy metals and tiny impurities from water. Achieve effective water purification and produce standard industrial pure water.

Flow gauge

Real-time monitor tank water level, avoid overflow or dry running, ensure stable system operation.

Button control box

Material:SUS.304

Components:Power switch,self-protection system
etc.

Adopts button manual control design, supports one-key start and stop of the water treatment system. Realizes stable operation
control and equipment safety protection, simple operation and easy maintenance.

Water tanks

2 water tanks

(raw water tank+purified water tank)

Material:SUS.304

Thickness:2mm

Raw Water Tank:

Function: Store raw water stably, balance water inflow, ensure continuous and stable water supply for the whole treatment system.

Pure Water Tank: Function: Store purified pure water, reserve water volume for standby use, supply stable pure water for production.
