Product Description

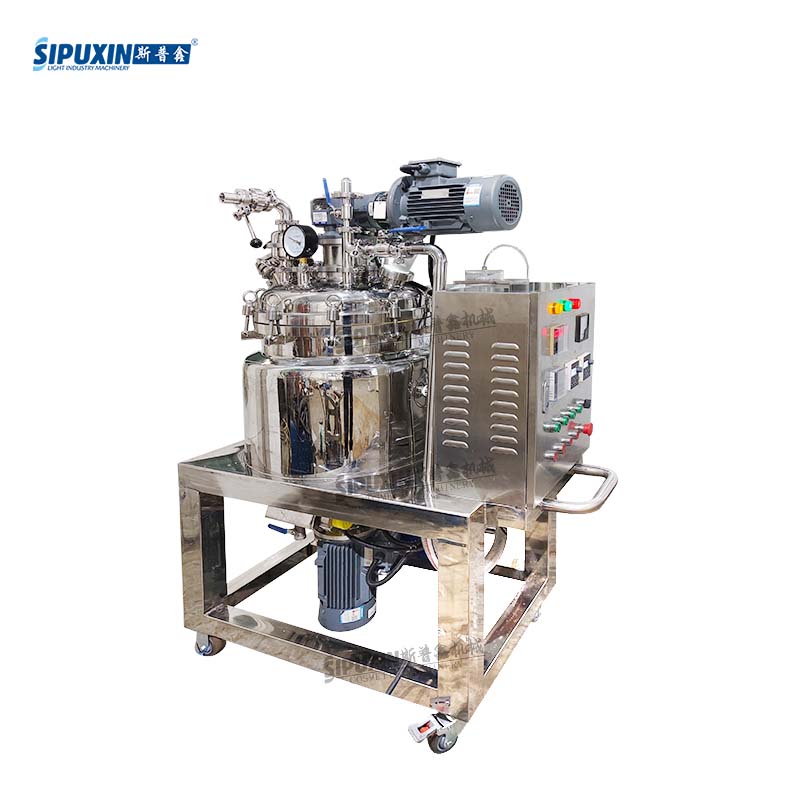

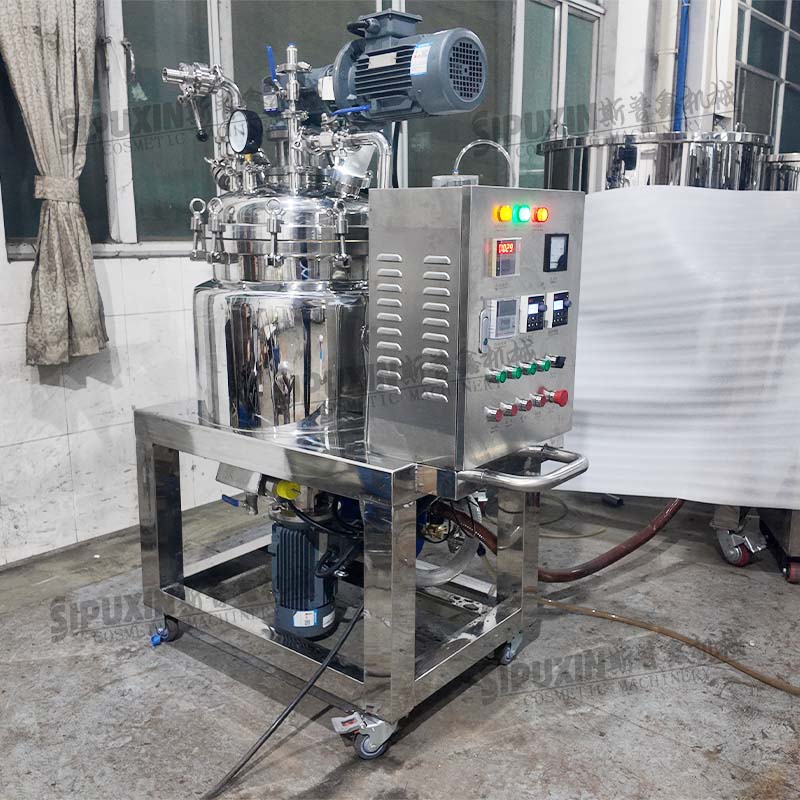

50L Fixed Flange Fully Sealed Movable Vacuum Homogenizer Machine Horizontal Stirring High Shear Emulsifier for Cosmetic Face Cream Lotion Ointment Production
The 50L fixed flange sealed vacuum homogenizer adopts fully closed flange sealing design with horizontal stirring motor and bottom high-shear homogenizer.
Equipped with electric heating, vacuum deaeration system and movable casters, it is ideal for small-batch production of cream, lotion and ointment in cosmetic laboratory and small factories.

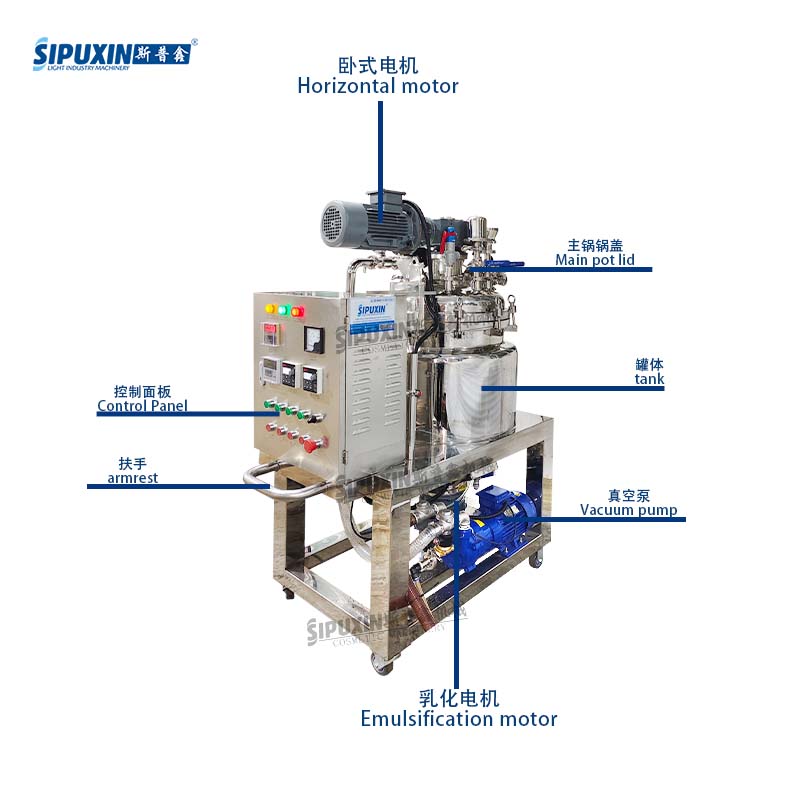

1. Horizontal stirring motor: Drive wall-scraping stirring, frequency speed control
2. Main pot lid & Flange sealed tank: Fully closed vacuum structure, no air leakage
3. SUS304 tank body: Interlayer heating, mirror polishing, no dead corners
4. Bottom emulsification motor: High shear homogenizing rotor-stator
5. Independent vacuum pump: Remove bubbles for delicate cream texture
6. Integrated control panel: Adjust temp, stirring, homogenizing & vacuum
7. Movable frame with casters: Easy to move and install

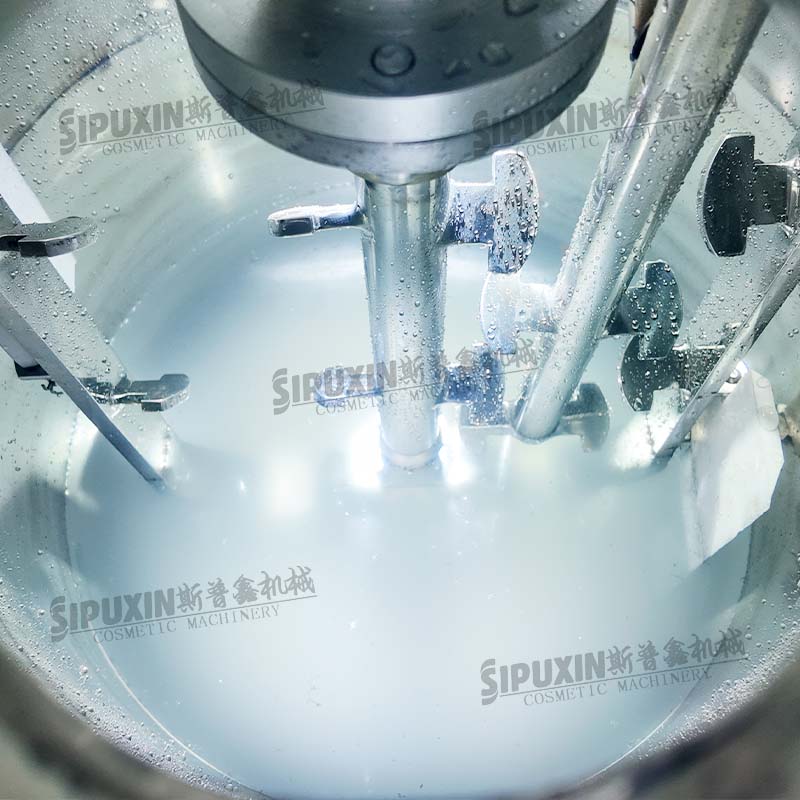

Full wall-scraping anchor stirrerFit tank inner wall completely, scrape off materials stuck on wall to ensure even mixing without residue.
Central bottom high shear homogenizer headHigh-speed rotor-stator generates strong shear force to emulsify, disperse and refine cream materials.
SUS304 polished tank interiorSmooth mirror surface, no sanitary dead corners, easy to clean.
Closed vacuum working spaceFlange sealed tank body removes air bubbles during mixing for fine, smooth finished lotion & cream.

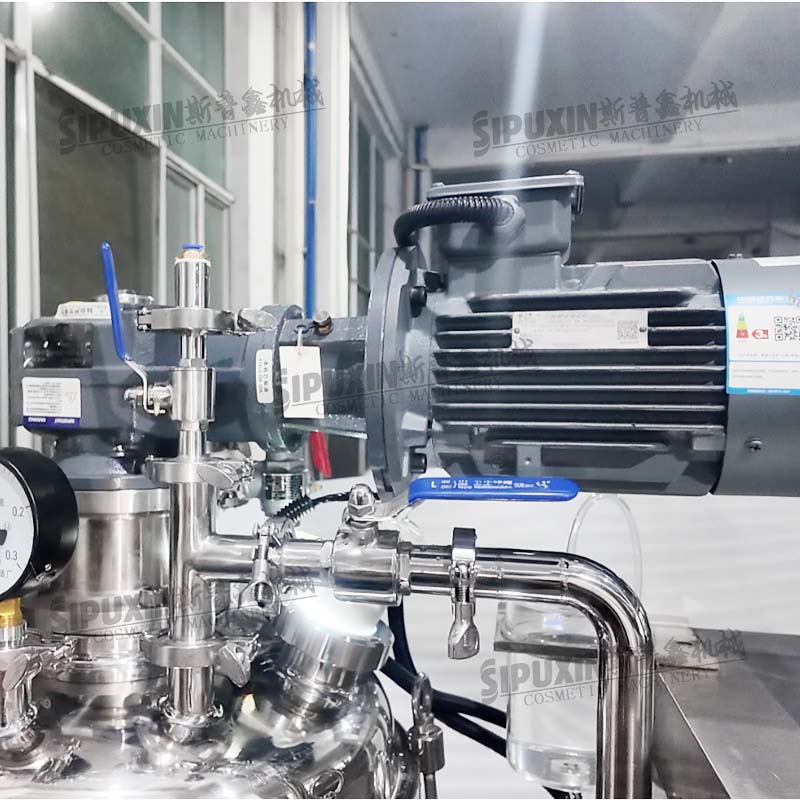

Stirring Motor
Horizontal frequency conversion stirring motorDrive the full wall-scraping anchor stirrer, speed adjustable 0–63 RPM, low noise and stable operation.
Reducer gearboxSlow down motor speed and increase torque to fully stir high-viscosity cream materials.
Sanitary stainless steel pipeline & manual valvesControl feeding, vacuum and cleaning channels, quick-clamp design for easy disassembly & sanitation.
Vacuum pressure gaugeReal-time monitoring internal tank vacuum degree during emulsification process.
Flange sealed tank top structureFully closed design to prevent air leakage under vacuum working condition.

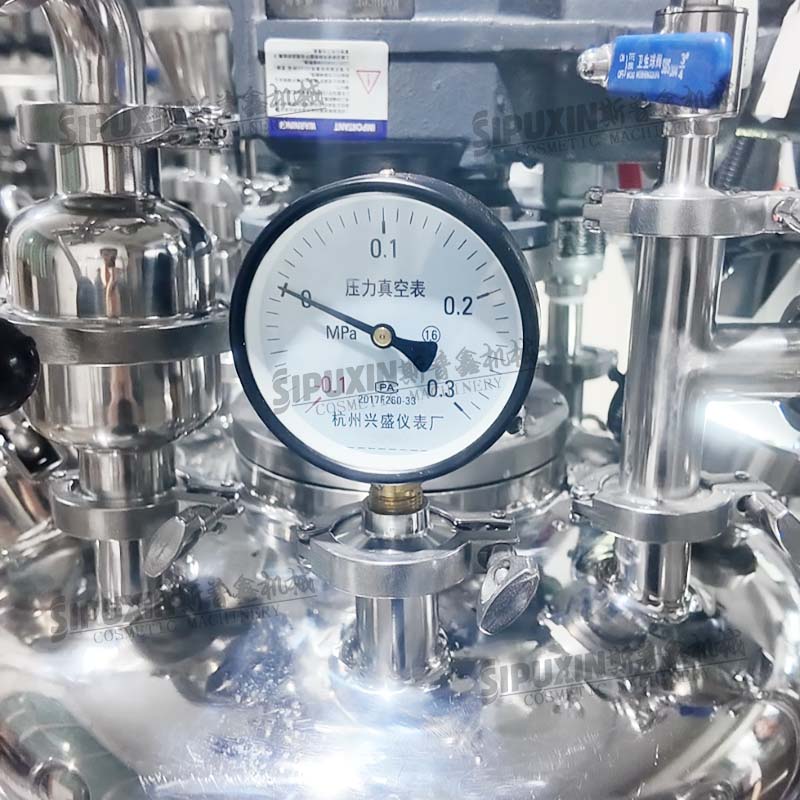

Vacuum Pressure Gauge
Real-time vacuum monitoringVisually display internal vacuum value of the emulsifying tank, measuring range 0 ~ -0.098MPa.
Sanitary quick-mount connectionStandard stainless steel flange interface, easy disassembly for cleaning and maintenance.
Stable pressure detectionAccurately feedback vacuum degree to adjust pump operation, eliminate air bubbles in cream/lotion.

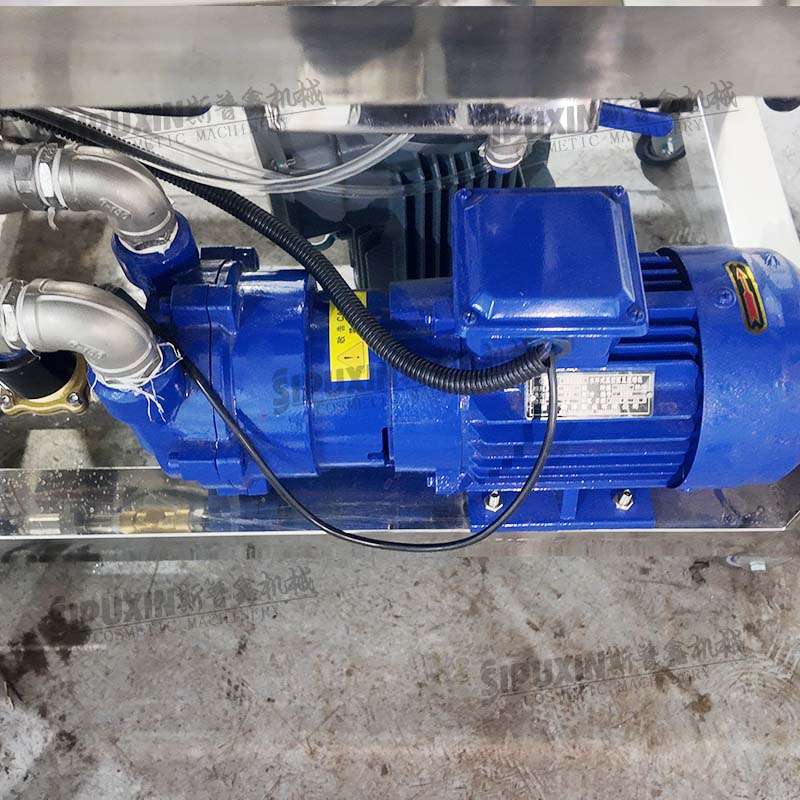

Water Ring Vacuum Pump
Water ring vacuum structureStable negative pressure generation, reach vacuum degree -0.09~-0.098MPa, remove bubbles from cosmetic paste.
Integrated cast blue pump body + copper wire motorLow noise, continuous long-time operation, stable performance.
Stainless steel pipeline interfaceCorrosion-resistant, quick connection with emulsifier tank for air extraction.
Circulating water cooling designAvoid overheating during continuous vacuum working, extend service life.

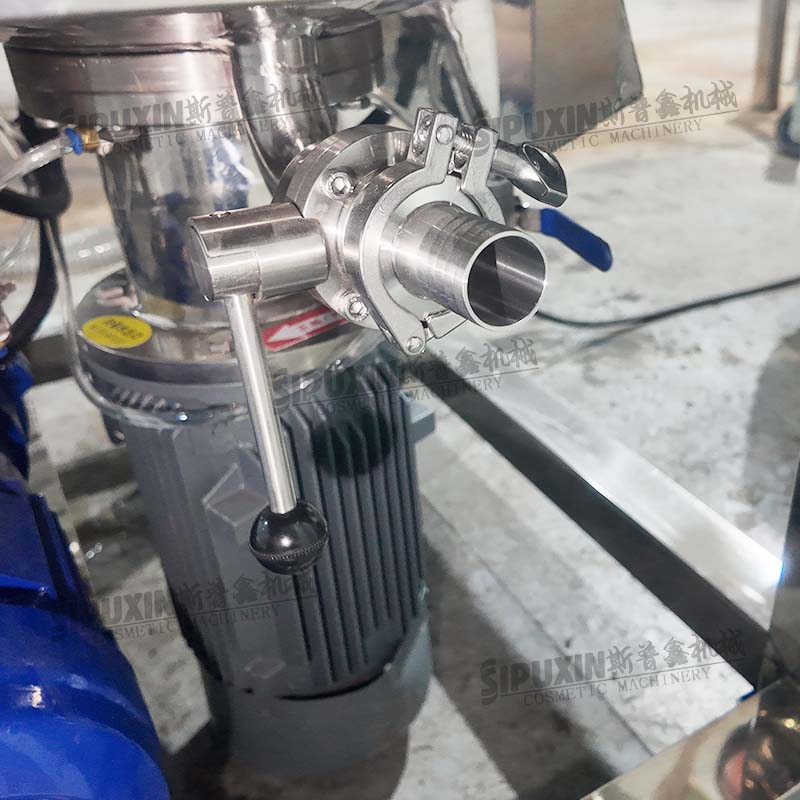

Bottom Homogenizer Motor
High shear homogenizer motorDrive internal rotor-stator to produce strong shear force, emulsify and refine cosmetic raw materials evenly. Speed adjustable 0–3600 RPM.
Sanitary tri-clamp discharge ball valveManual switch for finished material discharging; quick disassembly design for easy cleaning.
Full stainless steel contact partsNo sanitary dead corners, anti-corrosion, meet cosmetic production hygiene standard.
Integrated compact layoutHomogenizing and discharging combined at tank bottom, save space and simplify operation

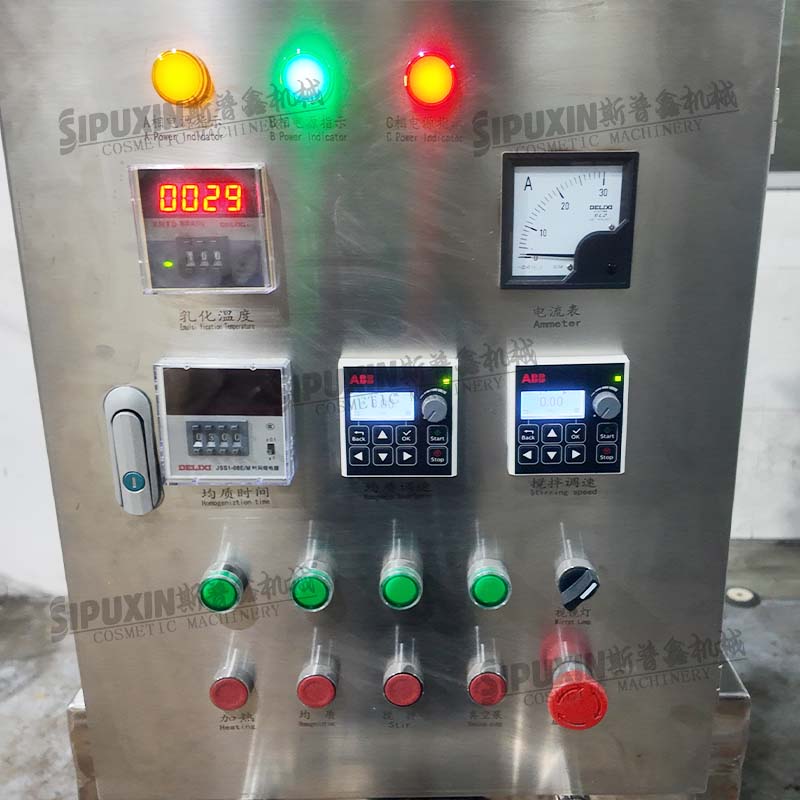

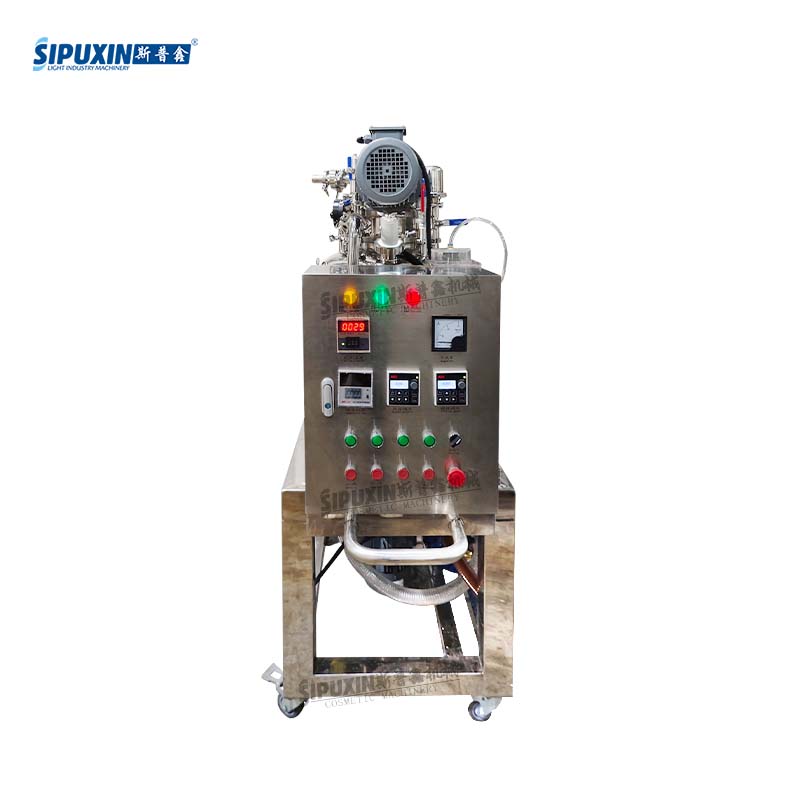

Control Panel
Indicator LightsYellow/Green/Red lights display power, running and fault status in real time.
Digital Temperature Controller & Timing MeterSet and display heating temperature and homogenizing working time.
Two ABB Frequency ConvertersIndependent speed regulation for homogenizer and wall-scraping stirrer.
AmmeterMonitor real-time operating current of motors.
Control Buttons & Emergency StopGreen start buttons, red stop buttons; big red emergency stop for sudden power cut protection.
Main Power SwitchOverall power on/off control for the whole emulsifier machine.
