Semi Automatic Aerosol Filling Crimping Gas Filling Machine 2 In 1 Dual Pneumatic Aerosol Can Filling Machine For Spray Cosmetic

Introduction

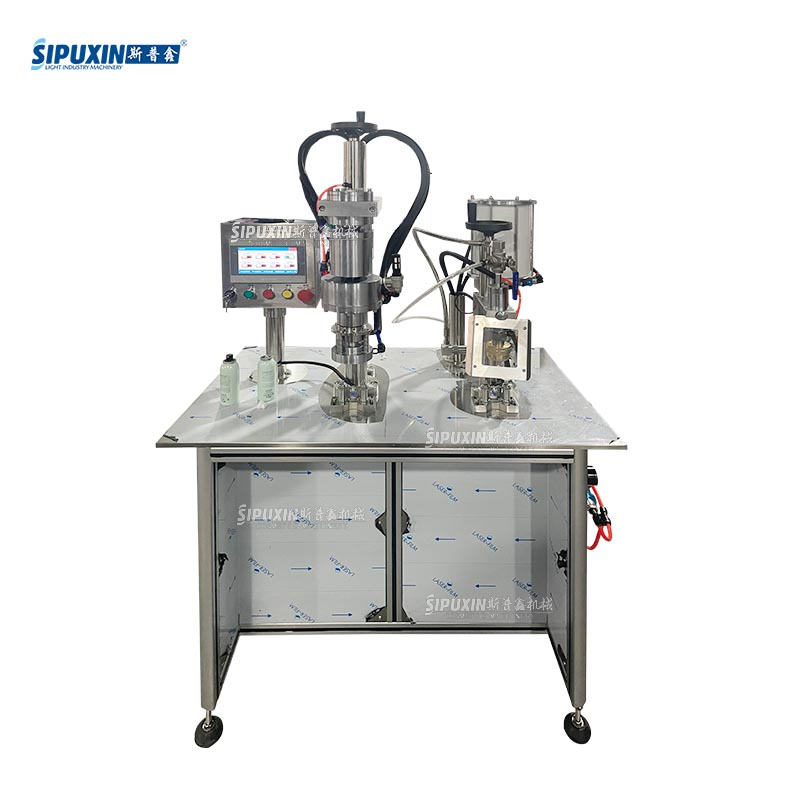

This 2-in-1 dual pneumatic aerosol filling machine is composed of PLC touch control panel, liquid filling cylinder assembly, aerosol crimping mechanism, gas filling unit, stainless steel worktable with cabinet, pneumatic driving system and mobile casters. All contact liquid parts are SUS316L stainless steel, matched with air compressor supporting pipeline for full pneumatic operation.

Machine composition

This semi-automatic 2-in-1 dual pneumatic aerosol filling machine consists of seven core assemblies: PLC touch control panel, SUS316L liquid filling cylinder assembly, aerosol valve crimping mechanism, gas filling unit, stainless steel cabinet worktable, full pneumatic driving pipeline system and brake mobile casters. All liquid contact parts adopt SUS316L stainless steel, matched with supporting air compressor pipeline to realize fully pneumatic explosion-proof operation for aerosol production.

Usage and Application

Usage

1. Connect air compressor pipeline to the machine, set filling volume and crimp parameters on PLC touch screen.

2. Place empty aerosol cans under liquid filling station, start liquid filling to inject cosmetic lotion, cream or liquid raw materials into cans.

3. Transfer filled cans to crimp station to seal aerosol valve tightly.

4. Move sealed cans to gas filling station to fill propellant gas inside cans.

5.  Take finished aerosol cans out for labeling and packaging, clean liquid pipeline after batch production.

Application

Suitable for semi-automatic production of various aerosol spray products, including hair spray, facial mist, sunscreen spray, disinfection spray, perfume spray and industrial aerosol reagents. Widely used in cosmetic factories, daily chemical workshops and small aerosol processing plants for small & medium batch production.

Core Advantage

• 2-in-1 integrated design: complete liquid filling, valve crimping and gas filling on one single table, save workshop space and equipment cost.

• Full pneumatic drive, explosion-proof structure, safe for aerosol flammable propellant production.

• SUS316L filling cylinder, corrosion resistant, suitable for alcohol-containing cosmetic spray liquid.

• PLC touch screen parameter adjustment, filling volume and crimp pressure adjustable accurately, stable filling precision.

• Stainless steel cabinet workbench with mobile casters, flexible to move and easy to clean residue.

• Small footprint, easy operation, ideal for small batch trial production and medium-scale aerosol manufacturing.

Item	Specification
Machine Type	Semi-automatic 2-in-1 aerosol filling & gas filling machine
Filling Range	10–500ml (customizable)
Filling Precision	±1%
Working Air Pressure	0.6–0.8MPa
Contact Liquid Material	SUS316L Stainless Steel
Control System	PLC Touch Screen Control
Drive Mode	Full Pneumatic Drive
Applicable Can Diameter	Φ22–Φ52mm
Applicable Can Height	80–260mm
Worktable Material	SUS304 Stainless Steel
Mobile Structure	Universal movable casters with brake
Standard Voltage	220V 50Hz (customizable 380V)
Core Standard Components	Motor, PLC, Bearing, Pump, Gearbox
