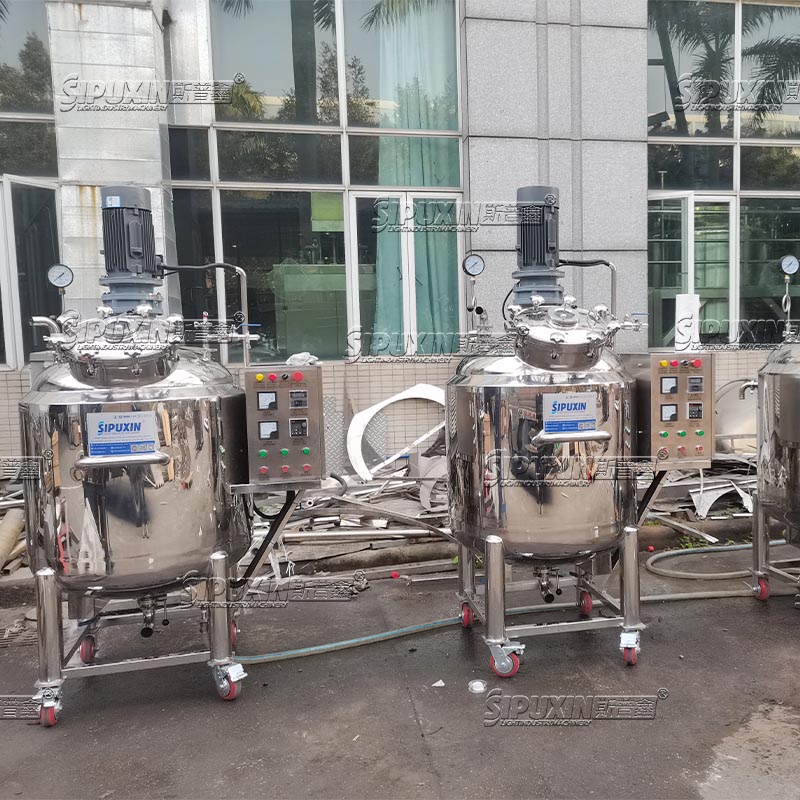

300L Electric Heating Sealed Mixing Tank With Manhole Movable Casters Stainless Steel Mixing Vessel For Toothpaste Cream Sauce Juice Mixing

Introduction

Introduction

This vertical automatic bag packaging machine integrates film feeding, quantitative filling, sealing, cutting and finished bag output in one unit, specially designed for small sachet packaging of liquid, lotion, cream, honey and sauce.Equipped with sanitary stainless steel hopper and servo filling pump, filling volume can be precisely adjusted via touch screen. All liquid contact parts are SUS304 stainless steel, easy to disassemble and clean.It supports composite plastic film roll material, can make three-side sealed, four-side sealed and back-sealed sample bags. Compact cabinet with brake casters, small floor space, widely used for cosmetic trial packs, food condiment sachets and daily chemical single-use packaging.

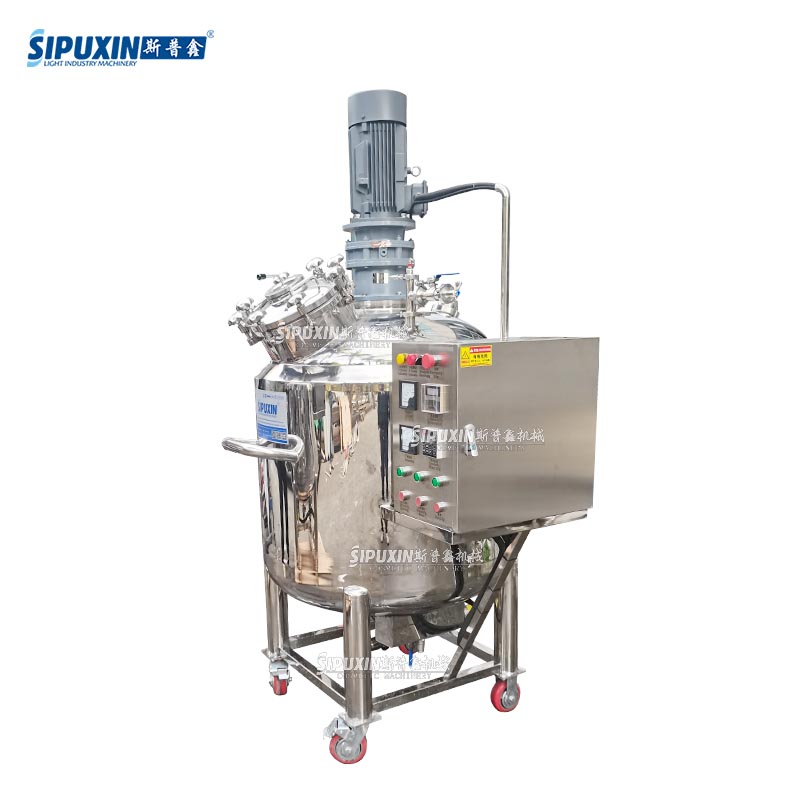

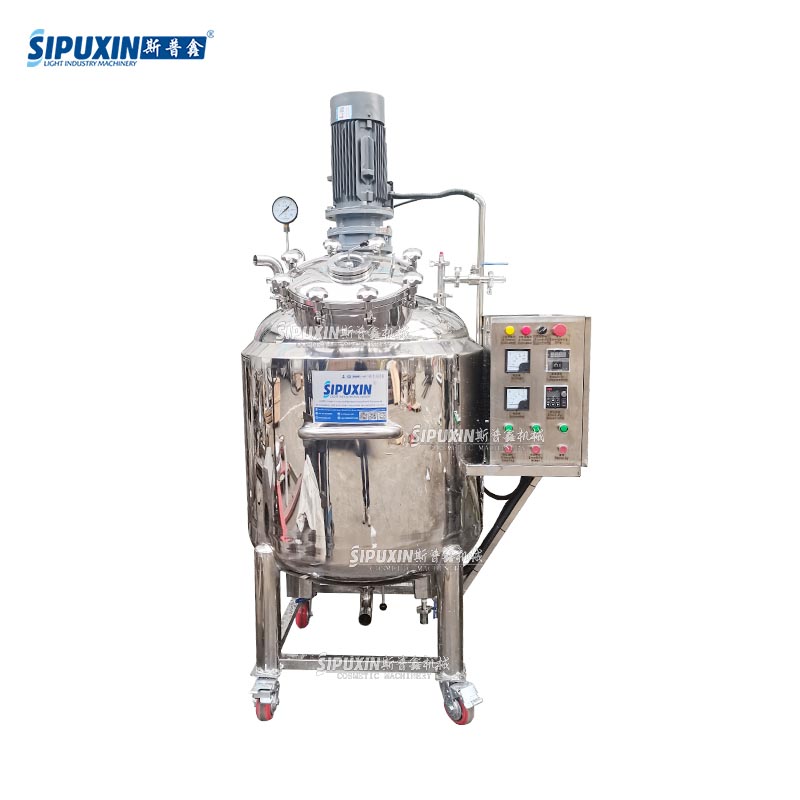

Machine composition

1. 300L stainless steel sealed tank body with electric heating jacket

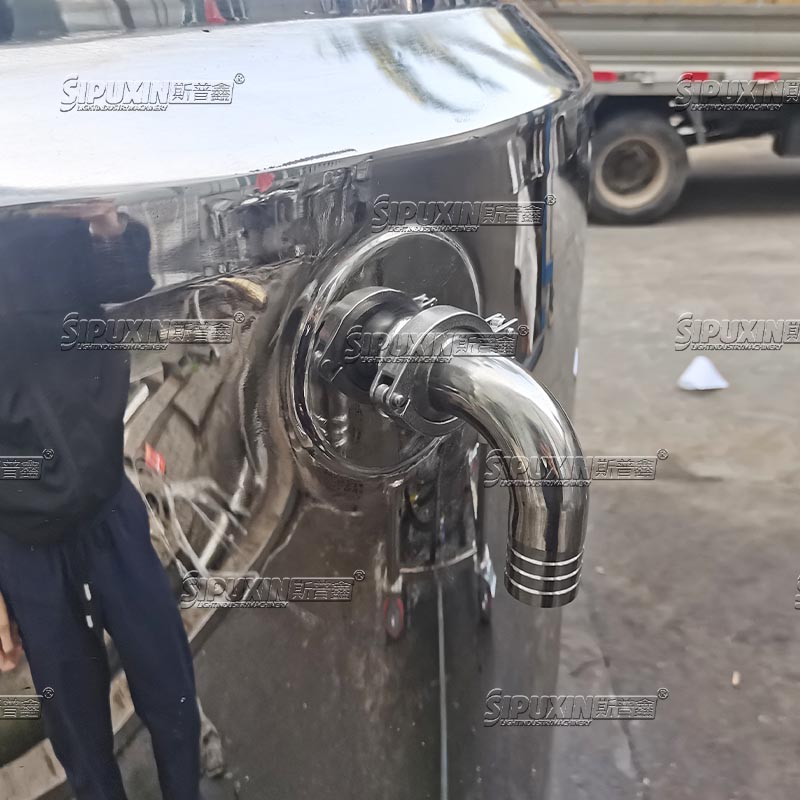

2. Flip type feeding manhole, pressure gauge, discharge valve and multiple interface ports

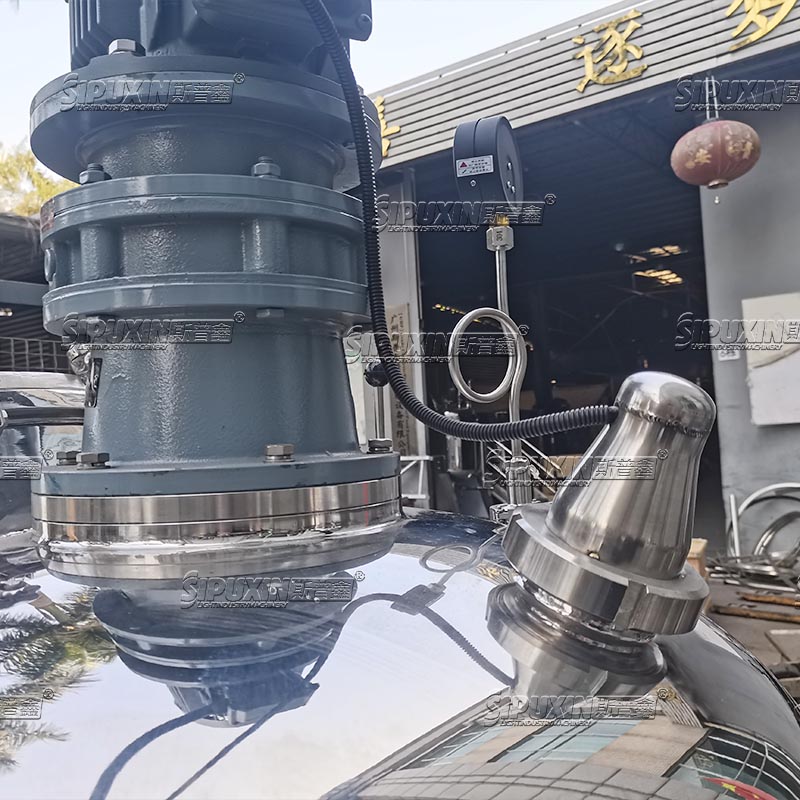

3. Vertical top stirring motor & mixing paddle assembly

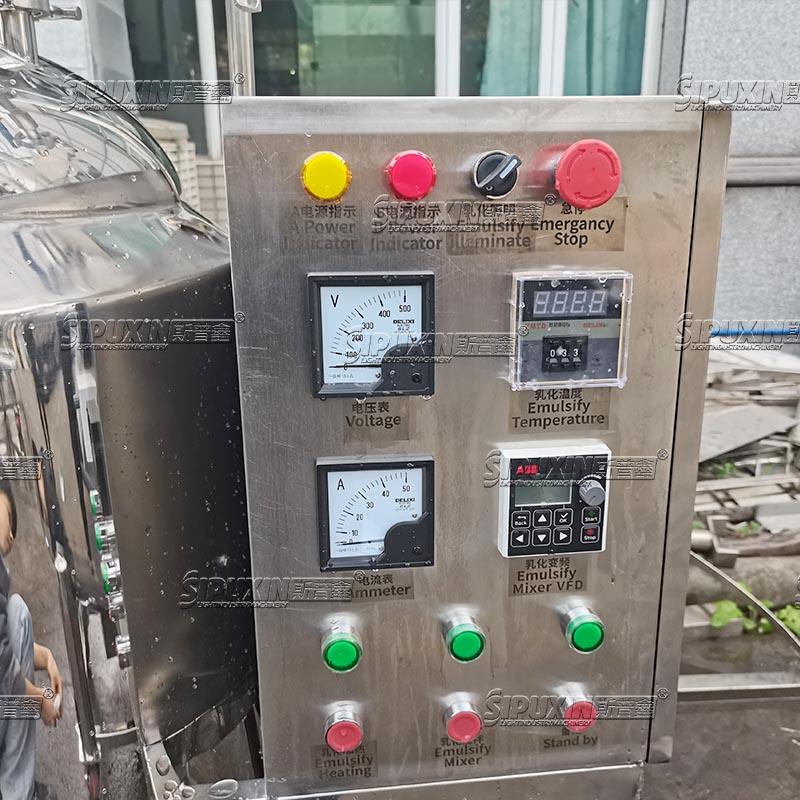

4. Independent digital temperature & speed control electrical cabinet

5. Universal movable casters with brake foot pads

6. Safety pressure relief valve, heat insulation outer cladding

Usage and Application

Usage

1. Push the tank to the designated production area and lock the brake casters;

2. Open the manhole and put all raw materials into the tank, then close and seal the manhole cover;

3. Adjust heating temperature and stirring speed on the control panel according to production formula;

4. After uniform mixing, open the bottom sanitary valve to discharge finished materials directly.

Application

  • Cosmetic & Daily Chemical: toothpaste, facial cream, body lotion, shampoo, hair mask, ointment

  • Food Industry: fruit puree, salad dressing, honey, jam, beverage raw liquid

  • Fine Chemical & Pharmacy: mild solvent paste, medical ointment, oral care gel

Core Advantage

1. Fully sealed manhole design, effectively avoid raw material volatilization and external contamination;

2. Electric jacket heating, uniform heat transfer, precise constant temperature control for paste materials;

3. Movable brake casters, freely shift workshop positions, flexible layout without fixed foundation;

4. SUS304/SUS316L food-grade stainless steel, smooth mirror surface, easy cleaning and disinfection;

5. Independent control cabinet, separate adjustment of temperature and stirring speed, simple operation;

6.  Multi-functional compatibility, support mixing of cosmetics, food and chemical paste products;

7.  Low noise stable stirring motor, energy saving, long service life, low maintenance cost.

Item	Specification
Model	SPX 300L Electric Heating Sealed Movable Mixing Tank
Effective Volume	300 Liters
Tank Material	SUS304 / SUS316L Stainless Steel Optional
Heating Mode	Electric Jacket Heating
Mixing Structure	Top vertical slow stirring paddle
Control System	Independent digital temperature & speed control panel
Total Power	4.2 KW
Voltage	380V 50Hz / 220V 60Hz Customizable
Net Weight	390 KG
Gross Weight	475 KG
Mobility	Universal brake casters
