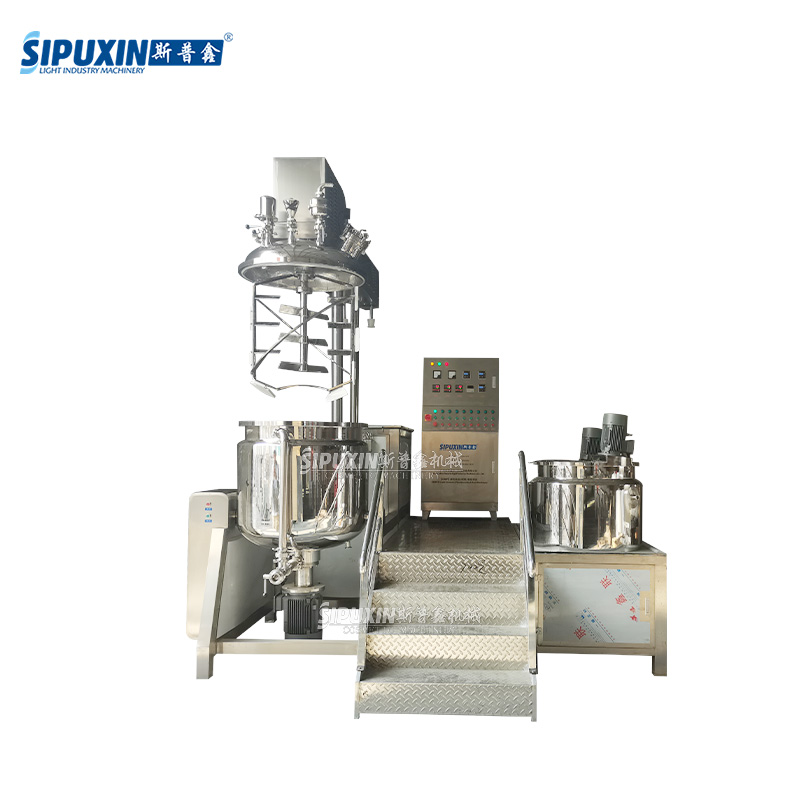

300L Hydraulic Lifting Vacuum Emulsifying Machine – Complete Daily Chemical Equipment with Internal and External Circulation Homogenization for the Main Vessel
To meet the large-scale production needs of small and medium-sized daily chemical plants, we have launched a complete 300L hydraulic-lift vacuum emulsifying unit. Unlike standard models with bottom-mounted homogenizers, this machine features a core advantage: an internal/external circulation homogenization system built into the main vessel. This design effectively resolves common issues such as uneven emulsification of high-viscosity pastes, material sedimentation, and product separation. It is suitable for the standardized production of cosmetics, skincare products, personal care items, ointments, and sauces, and fully complies with GMP standards for use in certified facilities.
I. Core Configuration: Internal & External Circulation Homogenization System
Conventional emulsifiers on the market typically feature only single-direction shearing at the bottom of the vessel, resulting in poor material flow and difficulty in achieving a fine emulsion with high-viscosity materials. This 300L vacuum emulsifier features an upgraded main vessel design, integrating bottom-mounted high-shear homogenization with an external recirculation loop. This structure ensures materials undergo continuous, closed-loop shearing, achieving comprehensive emulsification and mixing with no dead zones.
Key Advantages: Produces smaller emulsion particle sizes and superior material integration; the finished product remains stable without separation, air bubbles, or uneven color over time. It is suitable for producing high-viscosity materials such as creams, lotions, foundations, toothpaste, and medicinal ointments, delivering emulsification quality far superior to standard single-direction homogenization equipment.
II. Machine Structure: Convenient Hydraulic Lifting Design
The equipment utilizes a dual-cylinder hydraulic system for lid lifting, allowing for one-touch operation without the need for manual effort. This greatly facilitates internal cleaning, component maintenance, and formula changes. It supports rapid cleaning and sterilization for multi-product production runs, effectively preventing cross-contamination and reducing manual maintenance costs.
The entire unit is constructed from food-grade SUS304/316L stainless steel. The vessel features a double-layer jacket design supporting both electric heating and water cooling for precise, stable temperature control, meeting the requirements for constant-temperature emulsification of personal care ingredients. The entire production process operates under vacuum, automatically eliminating air bubbles to prevent defects at the source.
III. Integrated Unit Configuration
This unit is supplied as a complete, ready-to-use system requiring no additional auxiliary equipment. It comprises a 300L main emulsification vessel, an oil phase tank, a water phase pre-treatment tank, a vacuum system, a temperature control system, and a PLC touch-screen control system; it is ready for immediate operation upon connection to the power supply. With a batch capacity of 240L, it is ideally suited for the production needs of small-to-medium-sized factories. Independent variable-frequency speed control for both the mixing and homogenization functions allows for precise speed adjustment, accommodating a wide range of materials from low-viscosity liquids to high-viscosity pastes.
IV. Applicable Industries and Services
Applicable Industries: Cosmetics and personal care, food sauces and condiments, pharmaceutical ointments, and fine chemicals.
Applicable Products: Skin creams, body lotions, shampoos, facial cleansers, medicinal ointments, salad dressings, and industrial paste raw materials.
We offer non-standard customization, allowing for modifications to vessel volume, power ratings, and control system configurations. Our services include on-site installation, commissioning, and technical training for operators. We provide a comprehensive warranty and robust after-sales support, helping enterprises establish standardized paste production lines cost-effectively.
