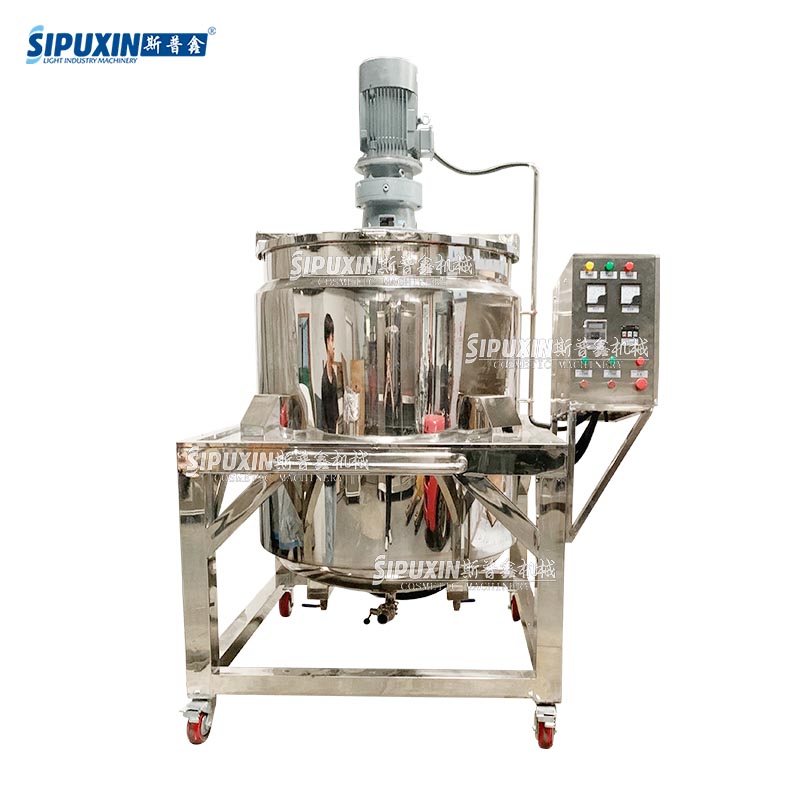

1000L Movable Type Mixing Tank with Support Frame
This 1000L movable electric heating mixing tank is built with sturdy supporting frame and heavy‑duty casters. Made of SUS304 stainless steel, it is equipped with electric heating jacket for material heating & temperature keeping. Suitable for large‑batch mixing of shampoo, body wash, liquid soap, detergent and other daily‑chemical liquids. Robust frame structure improves overall stability while moving. It features easy operation, convenient discharging and simple internal cleaning. Customization on material, temperature range and mixing paddle type is available.
Our 1000L Movable Mixing Tank with horizontal motor is a practical liquid blending unit specially designed for daily‑chemical industry. Different from homogenizing mixing tanks, this model comes without bottom high‑shear homogenizer, focusing on efficient stirring and mixing of low‑to‑medium viscosity liquid materials.
The whole tank is built with SUS304 stainless steel, inner surface mirror polished to meet hygiene requirements. Fitted with heavy‑duty movable casters, operators can shift the whole machine between production area, filling station and cleaning zone conveniently, saving workshop layout cost.
The horizontal side‑mounted agitator motor ensures stable stirring performance, reduces tank height and saves workshop space. It is widely applied to produce shampoo, shower gel, hand wash, liquid detergent and other liquid products. Electric heating system, different agitator types and outlet connections are optional for customization.
Key Note: This unit has NO bottom homogenizer, only for liquid stirring & blending, not for emulsification or high‑shear homogenizing process.
Main Features
1000L working capacity, horizontal side‑mounted stirring motor
Without bottom homogenizer, for liquid mixing purpose
SUS304 stainless steel construction, mirror polishing inner tank
Movable casters for easy transportation inside workshop
Simple control panel, easy operation and maintenance
Support optional electric‑heating, different mixing paddles, discharge ports
Application
Suitable for mixing shampoo, body wash, liquid soap, hand sanitizer, laundry detergent and other daily‑chemical liquid raw materials.

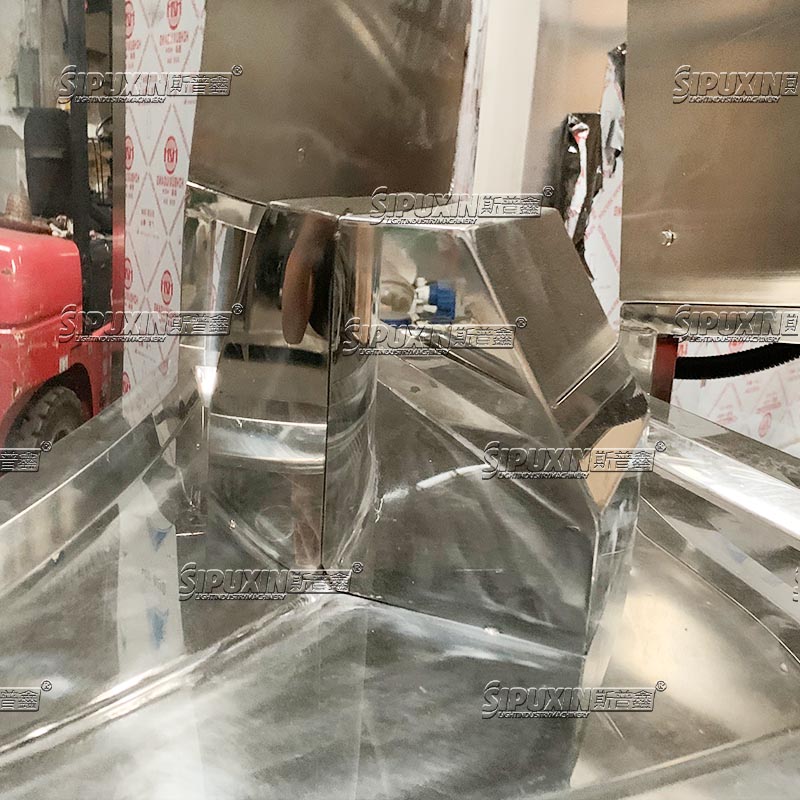

More detailed pics as follows:
Our 1000L Movable Mixing Tank with horizontal motor is a practical liquid blending unit specially designed for daily‑chemical industry. Different from homogenizing mixing tanks, this model comes without bottom high‑shear homogenizer, focusing on efficient stirring and mixing of low‑to‑medium viscosity liquid materials.
The whole tank is built with SUS304 stainless steel, inner surface mirror polished to meet hygiene requirements. Fitted with heavy‑duty movable casters, operators can shift the whole machine between production area, filling station and cleaning zone conveniently, saving workshop layout cost.
The horizontal side‑mounted agitator motor ensures stable stirring performance, reduces tank height and saves workshop space. It is widely applied to produce shampoo, shower gel, hand wash, liquid detergent and other liquid products. Electric heating system, different agitator types and outlet connections are optional for customization.
Key Note: This unit has NO bottom homogenizer, only for liquid stirring & blending, not for emulsification or high‑shear homogenizing process.
Main Features
1000L working capacity, horizontal side‑mounted stirring motor
Without bottom homogenizer, for liquid mixing purpose
SUS304 stainless steel construction, mirror polishing inner tank
Movable casters for easy transportation inside workshop
Simple control panel, easy operation and maintenance
Support optional electric‑heating, different mixing paddles, discharge ports
Application
Suitable for mixing shampoo, body wash, liquid soap, hand sanitizer, laundry detergent and other daily‑chemical liquid raw materials.
FAQs for 1000L Movable Electric Heating Mixing Tank With Supporting Frame
Q1: What is the effective working volume of this 1000L mixing tank?
A: The total tank capacity is 1000L. We recommend working volume at 700‑800L. Do not fill the tank fully, to prevent liquid overflow and splashing during stirring.
Q2: Does this mixing tank include bottom homogenizer?
A: This standard version is designed for liquid stirring and mixing only, without bottom high‑shear homogenizer. If homogenizing function is required, please contact us for modified model solution.
Q3: What material is the tank and supporting frame made of?
A: Tank body and supporting frame adopt SUS304 stainless steel as standard. Inner tank surface is mirror‑polished to meet cosmetic and daily‑chemical hygiene requirements. SUS316L stainless steel is optional for corrosive raw materials.

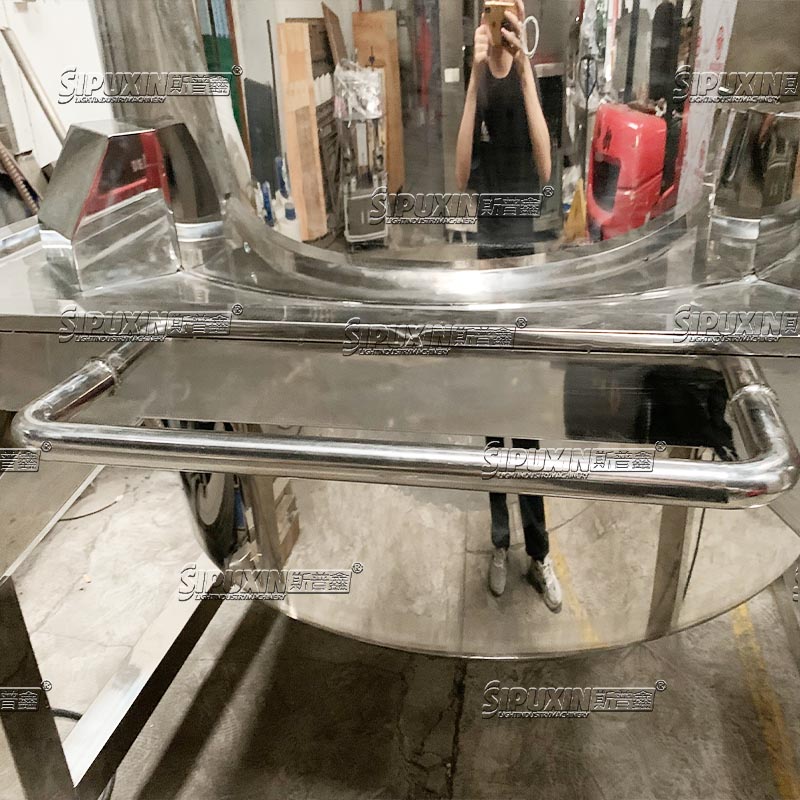

Q4: What is the function of the independent supporting frame?
A: The heavy‑duty stainless steel supporting frame reinforces overall mechanical stability. It reduces shaking during high‑volume stirring and tank moving, protects heating jacket and pipeline, makes discharging operation more convenient.
Q5: Can this tank be moved freely inside workshop?
A: Yes, it is equipped with heavy‑duty movable casters. You can transfer the whole unit between batching area, filling station and cleaning zone. Please lock casters tightly before starting stirring operation.
Q6: How about the electric heating system?
A: It comes with electric heating jacket and temperature control panel. Users can set target temperature according to raw material demands. Heat preservation layer is equipped to reduce heat loss. Heating power can be adjusted upon customization.
Q7: What products can this machine produce?
A: Suitable for large‑batch mixing & heating of shampoo, body wash, liquid soap, hand wash, laundry detergent and other low‑medium viscosity daily‑chemical liquids. Not suitable for high‑viscosity cream emulsification processing.
Q8: Is stirring speed adjustable?
A: Standard configuration is fixed stirring speed. Variable‑frequency speed regulation can be customized if you need to adapt different material viscosity.
Q9: Can I customize discharge port, mixing paddle or other parts?
A: Yes. We support non‑standard customization. Discharge outlet type, mixing paddle style, temperature range and other accessories can be adjusted according to your production condition.
Q10: What is warranty and production lead time?
A: 1‑year machine warranty (wear‑and‑tear spare parts excluded). The lead time is around 20‑25 working days after deposit confirmation.
Q11: Does it include installation service?
A: The machine is fully assembled before delivery. We provide operation manual for on‑site commissioning. Overseas on‑site service is available by extra arrangement.
