SIPIXIN 200L Mobile Electric Heating Vacuum Emulsifier with Stirring‑Dispersing and Bottom Homogenizer

200L mobile vacuum emulsifier equipped with bottom homogenizer, electric heating, stirring & dispersing function. 316 stainless steel, movable casters, suitable for medium‑batch cosmetic cream, ointment and lotion production.

Availability:

Quantity:



Inquire Add to Basket

Model:
SPX-EHD200
Brand:
SIPUXIN
Code:
SPX-EHD200

Product Description

1. Product Overview

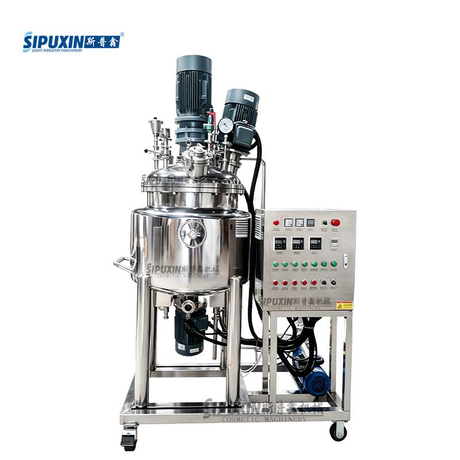

This 200L mobile vacuum emulsifier integrates bottom homogenizing, slow stirring and high‑speed dispersing. Adopts electric heating method, fitted with movable casters for convenient site transfer. Under vacuum condition, it realizes emulsification, dispersion and mixing for cosmetic and pharmaceutical ointment, avoids bubble inside finished products, meets medium‑scale production demands.

2. Main Technical Parameters

Item	Parameter
Effective Volume	200L
Contact Material	316L stainless steel
Shell Material	304 stainless steel
Heating Mode	Electric heating
Homogenizer	Bottom high‑speed homogenizer
Stirring Speed	0‑63rpm adjustable
Dispersing Speed	0‑1440rpm adjustable
Vacuum	-0.09~‑0.095 MPa
Control System	PLC & touch screen
Mobility	Heavy‑duty movable casters with brake
Working Temp	Room temp ~95℃
Power Supply	380V 50Hz (customized)

3. Features & Advantages

1. Bottom homogenizer: Material is cut and emulsified from tank bottom, good uniformity for high‑viscosity cream and ointment.

2. Triple mixing system: Slow wall‑scraping stirring + high‑speed dispersing + bottom homogenizer, no dead mixing corner.

3. Mobile design: Brake‑equipped casters, easy to move between workshop positions.

4. Electric heating: Fast heating, easy temperature setting and temperature real‑time display.

5. Vacuum working: Negative‑pressure mixing, effectively remove air bubbles, smooth finished paste.

6. Safe interlock: Lid opening protection, over‑temperature protection, vacuum safety protection.

7. Easy cleaning: Human manhole for internal inspection & CIP cleaning.

4. Application Scope

Perfect for producing: face cream, body cream, moisturizing lotion, hair mask paste, pharmaceutical ointment, skin care paste, semi‑solid cosmetic products.

5. Working Video & Packaging

You can embed your Youtube working video link here.

Packaging: Standard export wooden case.

Delivery lead time: 25‑30 working days.

Trade term: EXW / FOB available. Welcome to send inquiry for full quotation.
