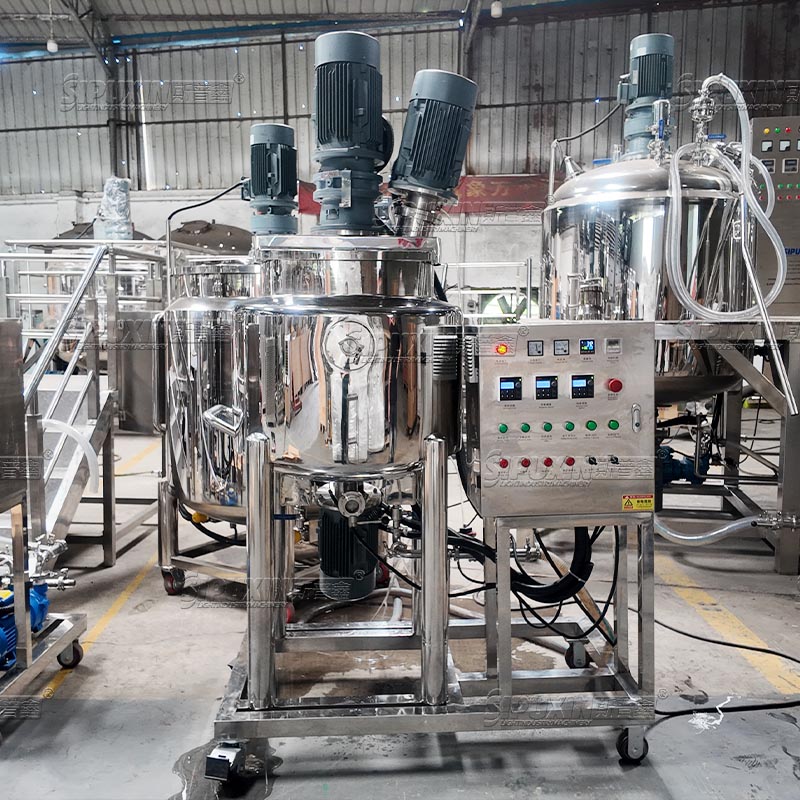

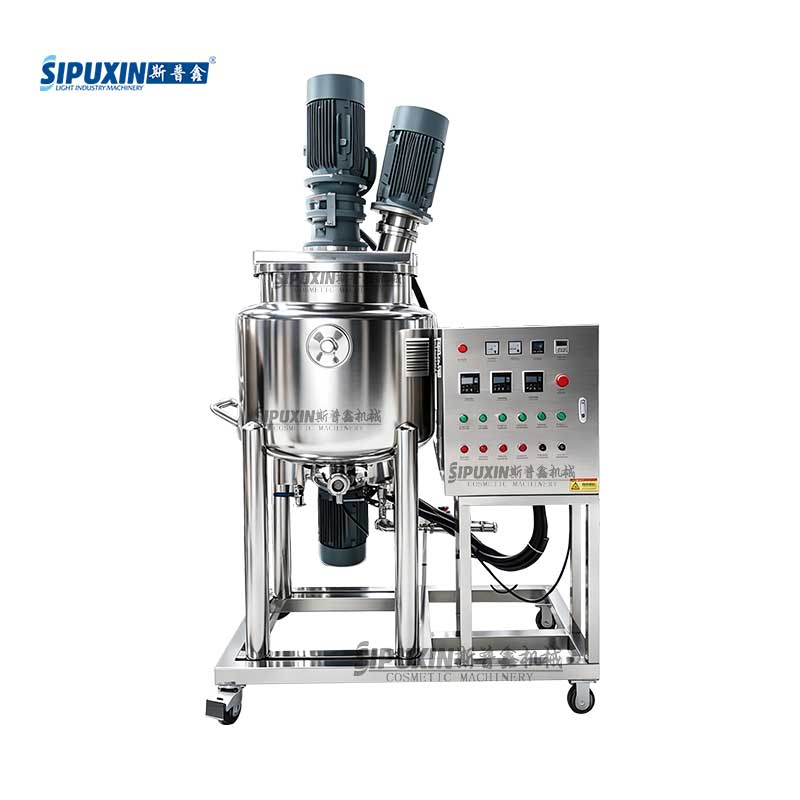

200L Movable Electric Heating Mixing Tank with Bottom Homogenizer High Speed Disperser Custom SUS304 SUS316L Cosmetic Shampoo Production Machine
Mixing Motor:Drive the main mixing paddle for uniform stirring of materials.
Dsipersing mixer Motor: High‑speed shear motor for fine
Heat‑dissipation rib structure: Good heat dissipation, supports long‑duration continuous production.

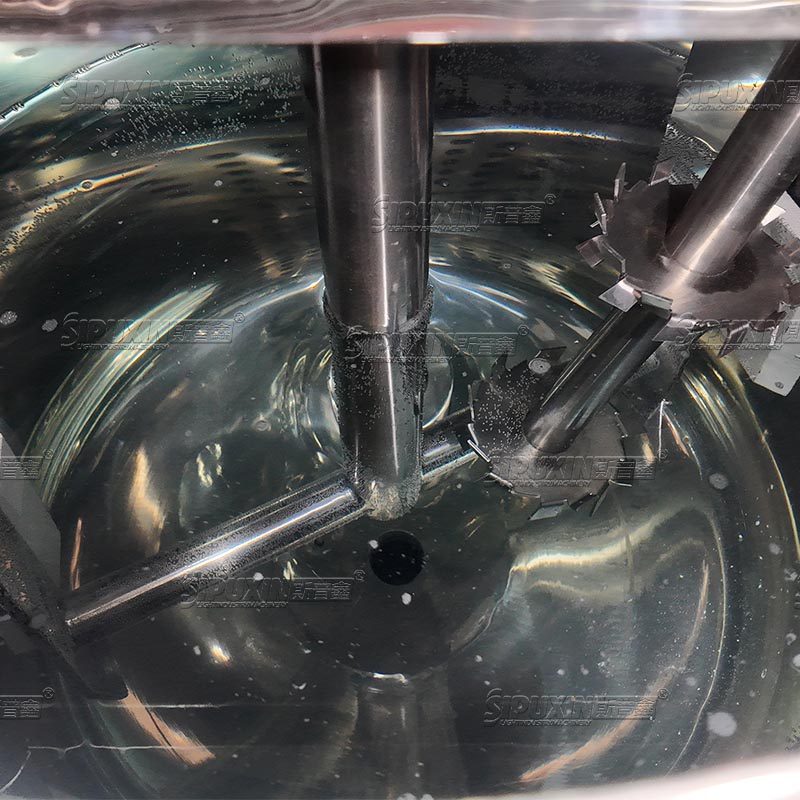

Mixing system
Frame-wall fixed mixer with side Teflon scraper
Speed:0-63 RPM ,speed is adjustable, ABB Switzerland brand ,frequency convertor. Material: SUS.316 Effect: The mixer of the emulsifier achieves rapid dispersion and homogenization through directional shear force and circulating flow, forming a stable and delicate emulsion, and at the same time, the structure is simple and the energy consumption is low, which is suitable for the continuous emulsification of high viscosity

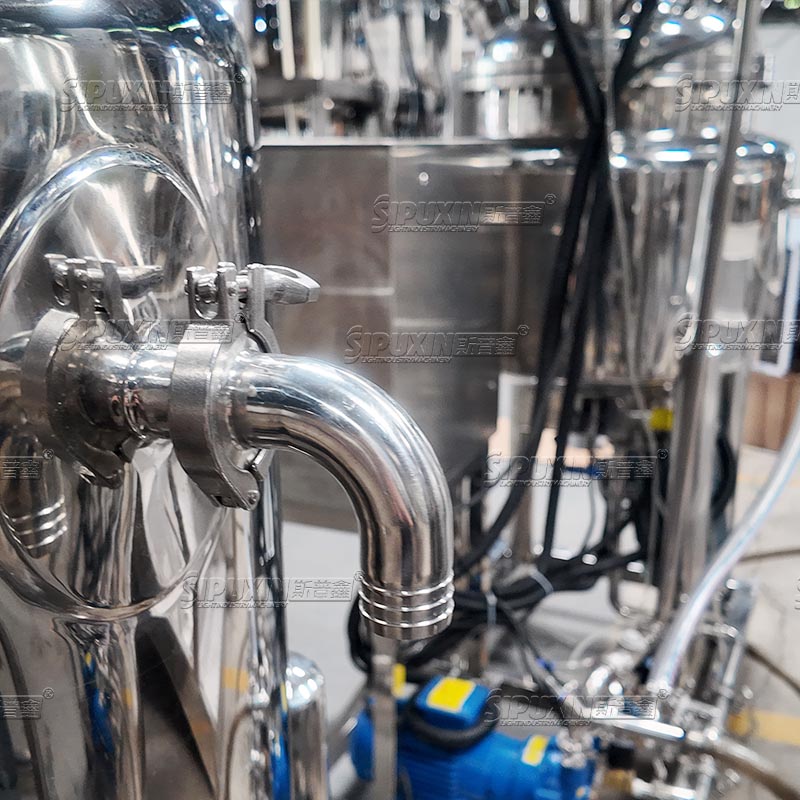

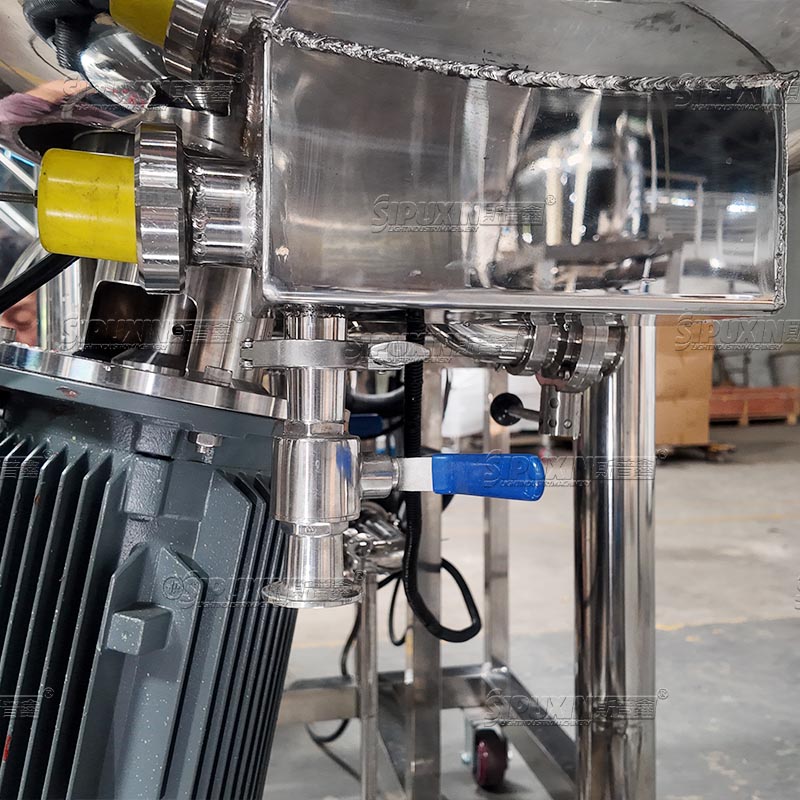

Bottom discharge
The bottom discharge hole with manual valve control.
1.Gravity discharge:It is suitable for the low viscous product.Let it be discharged by gravity 2.Pressure discharge:Add air,give it pressure to discharge the product. 3.Pump discharge:Use pump(like lobe pump) to discharge the product.
Button control box
Material: SUS.304
Components:Power switch,voltage,current,speed adjustment,temperature controller,timer of the homogenizer, self-protection system etc.
* Be able to display, set and adjust the center mixer speed . * Be able to set and adjust the homogenizing speed * Be able to display, set and adjust temperature * Be able to display,set and adjust working time for homogenizer.
Guangzhou Sipuxin Light Industrial Machinery Equipment Co.,Ltd.with Yangzhou Sipuxin Light Industrial Machinery Equipment Factory as a solid backing,specializing in cosmetics,pharmaceutical,food,daily chemicals and other industries complete sets of equipmer manufacturers,to provide customers with a variety of special application fields of solutions .
The main products include vacuum homogenizing emulsifier,high-shear liquid detergent mixer,storage tank various cream,various bottle capping machine and other cosmetic and perfume whole-set production line,laboratory equipment,conveyor,etc.
