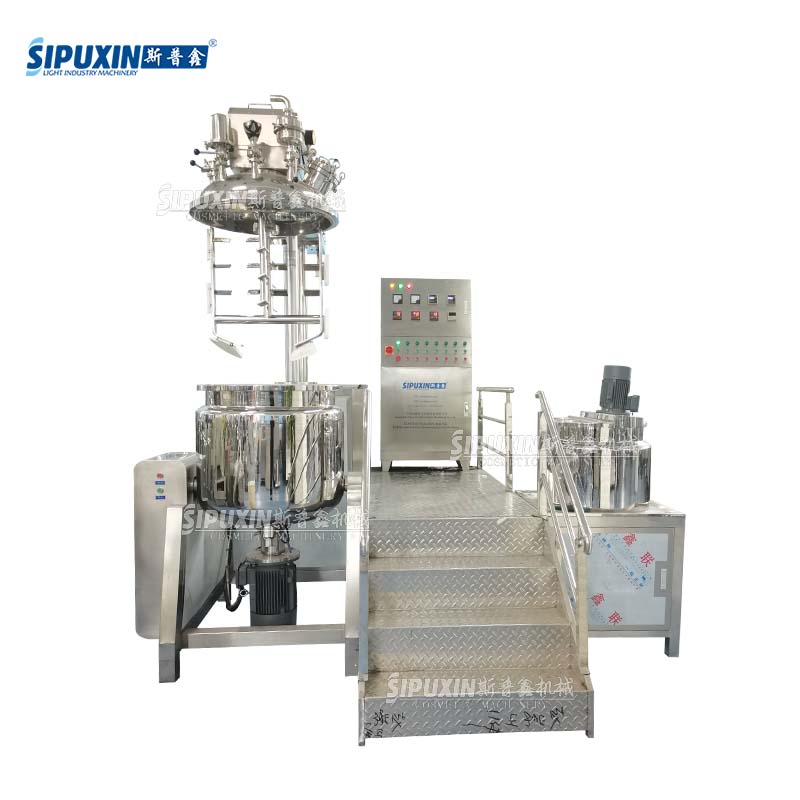

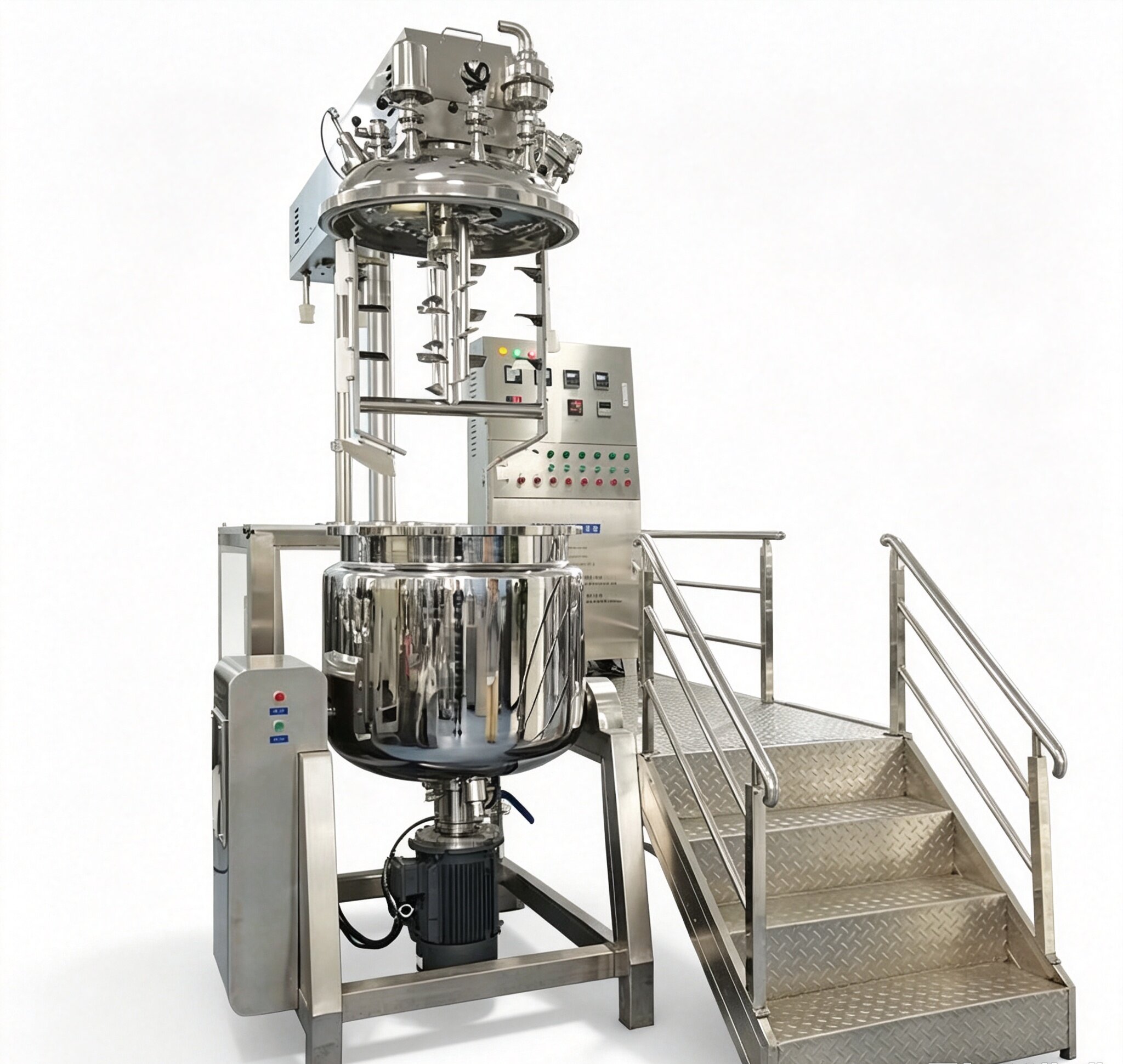

SIPUXIN 200L Single‑tank Hydraulic Lifting Vacuum Emulsifying Machine is a core homogenization equipment for cosmetic, pharmaceutical and food paste production. It adopts hydraulic lifting structure for easy tank opening, cleaning and material change. Combined with frame scrape‑wall stirring and bottom high shear homogenizer, materials will be fully mixed and emulsified under vacuum condition to get fine, bubble‑free paste. Widely used to make face cream, body lotion, ointment, hand cream, mayonnaise, salad dressing and other high‑viscosity products. Main contact parts adopt SUS316L stainless steel to meet hygiene production requirements.

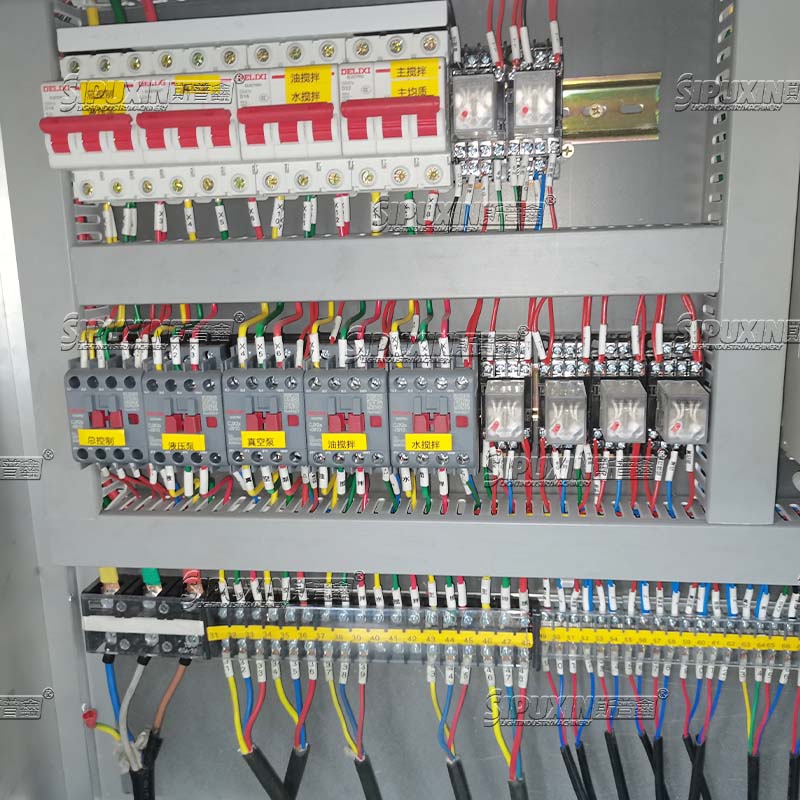

The 200L single‑tank hydraulic lifting vacuum emulsifying machine is designed for medium‑batch production of cream, lotion, ointment and food paste. The hydraulic lifting lid can be raised automatically, which brings great convenience for internal inspection, residue cleaning and formula test. Working under vacuum environment eliminates air bubbles inside finished products, improving product texture and stability. It is matched with independent water‑phase tank, electric heating oil‑jacket system, PLC control cabinet and operation platform.
Technical Parameters
Item
Specification
Model
SPX‑ZJR200 Single‑tank Vacuum Emulsifier
Effective Volume
200L
Main Tank Material
Contact parts SUS316L stainless steel; outer shell SUS304
Lifting Mode
Hydraulic lifting for top cover
Homogenizer
Bottom high‑shear homogenizer
Stirring System
Frame type scrape‑wall slow stirring
Heating Method
Electric thermal‑oil jacket heating
Vacuum Degree
‑0.09~‑0.098MPa
Supporting Unit
Water phase dissolving tank, electric control cabinet, anti‑slip operation platform with stairs
Application
Cosmetic cream, lotion, ointment, hand cream, mayonnaise, salad paste and other viscous materials
Main Features

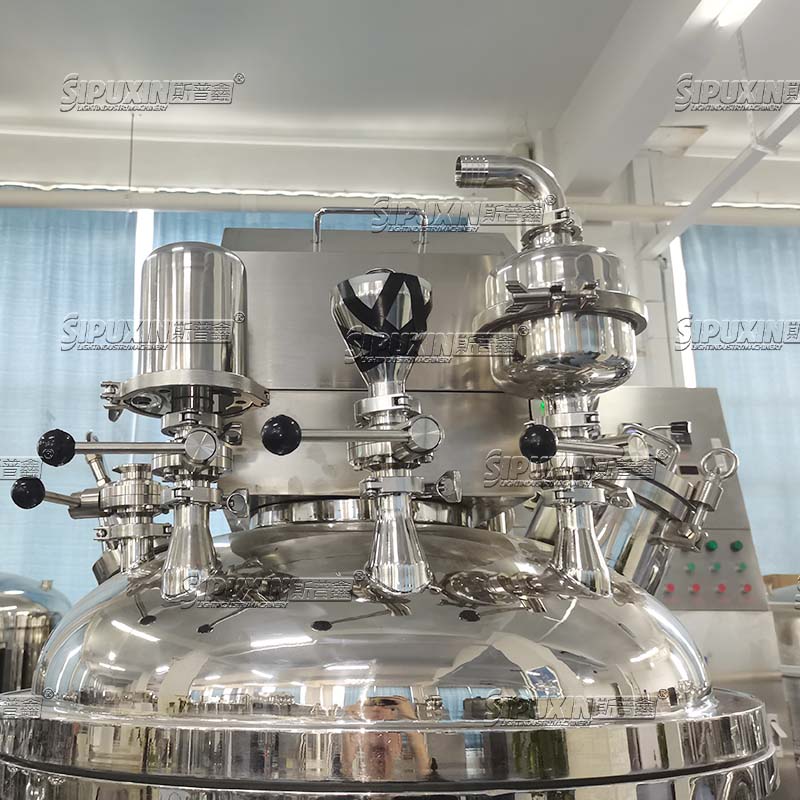

Hydraulic Lifting Structure: The top mixing‑homogenizer assembly lifts up and down hydraulically. Workers can clean tank interior and replace raw materials conveniently.
Double Mixing System: Slow scrape‑wall frame stirring prevents material sticking to tank wall; bottom high‑speed homogenizer realizes ultra‑fine emulsification.
Vacuum Defoaming Function: Mixing in vacuum condition removes air bubbles, finished paste is smooth without pores.
Safe Heating System: Electric thermal oil jacket provides stable heating for paste production. Temperature can be set and displayed on control panel.
Food‑grade Hygienic Design: All parts touching product use SUS316L stainless steel, polishing surface, easy to wash, meet cosmetic & food hygiene standard.
Application Scope
Cosmetic industry: Face cream, body butter, eye cream, hand cream, facial cleanser, lotion, ointment. Food industry: Mayonnaise, salad sauce, thick paste condiment. Pharmaceutical industry: Medical ointment, topical paste.
Our Service
Customized voltage & configuration according to your local requirement.
