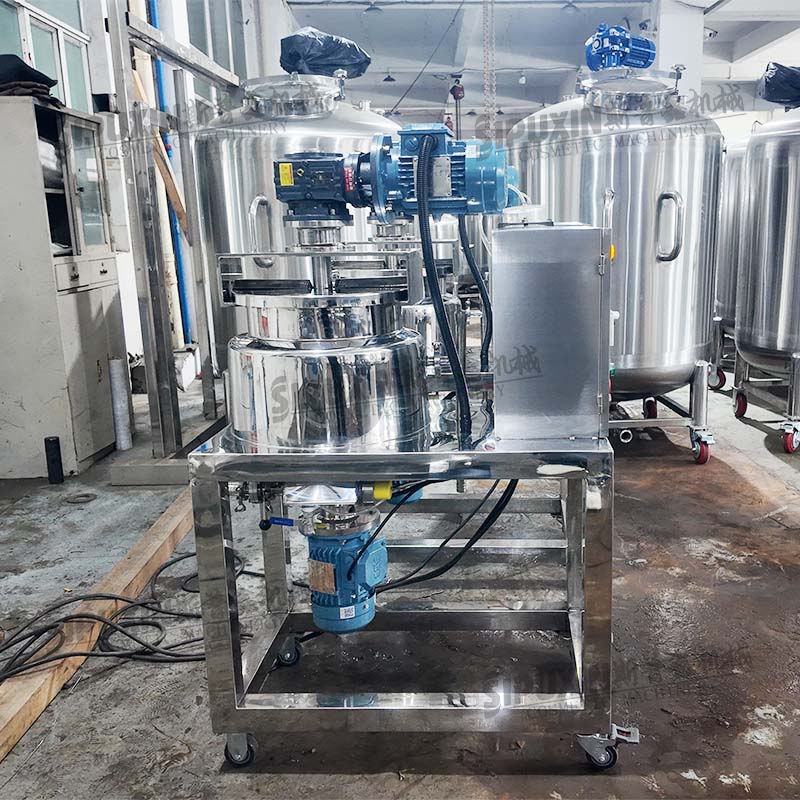

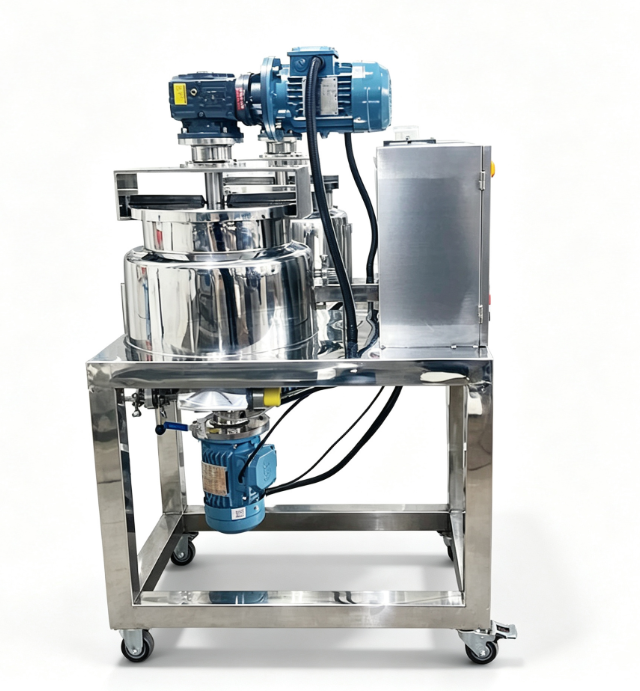

SIPUXIN 25L Mixing and Homogenizing Tank is compact laboratory‑scale emulsifying equipment. It adopts dual‑motor configuration: top stirring motor for material circulation and bottom emulsification motor for high‑shear homogenization. This unit integrates electric heating and circulating water cooling functions. It is widely used for cosmetic formula research, sample preparation and small‑volume production of face cream, body lotion, shampoo, mask paste and other paste materials. Made of sanitary stainless steel with movable brake casters, it occupies small space and is easy to operate and clean for laboratory environment.
The 25L Mixing and Homogenizing Tank is an all‑in‑one lab‑scale mixing and emulsifying machine developed by SIPUXIN. It combines stirring, high‑shear homogenizing, electric heating and circulating water cooling in one compact unit. This machine is specially designed for cosmetic laboratory formula testing, sample trial‑production and small‑batch manufacturing of cream, lotion, shampoo, ointment and various paste‑form products.
Main Technical Parameters
Item
Specification
Effective Working Volume
25L
Core Configuration
Top stirring motor + Bottom high‑shear emulsification motor
Functions
Stirring, High‑shear Homogenizing, Emulsification, Electric Heating, Circulating Water Cooling
Material Contact Part
SUS304 stainless steel (SUS316L optional)
Stirring Speed Range
0‑63 rpm
Homogenizing Speed Range
0‑2880 rpm
Power Supply
220V / 380V, customizable
Structure
Integrated stainless‑steel frame with brake casters
Application
Cosmetic R&D laboratory, small‑batch production
Key Advantages

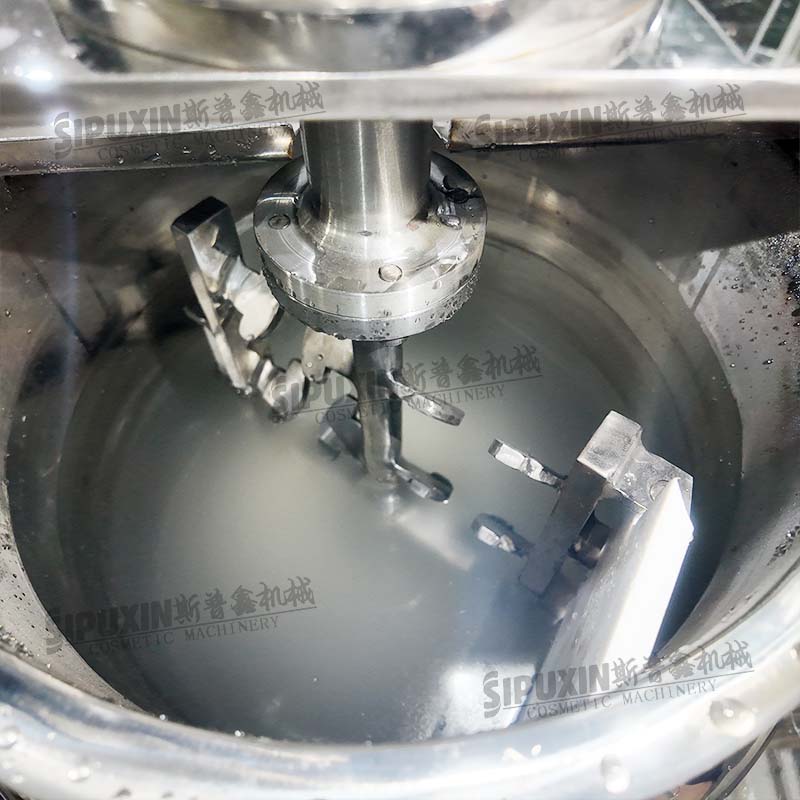

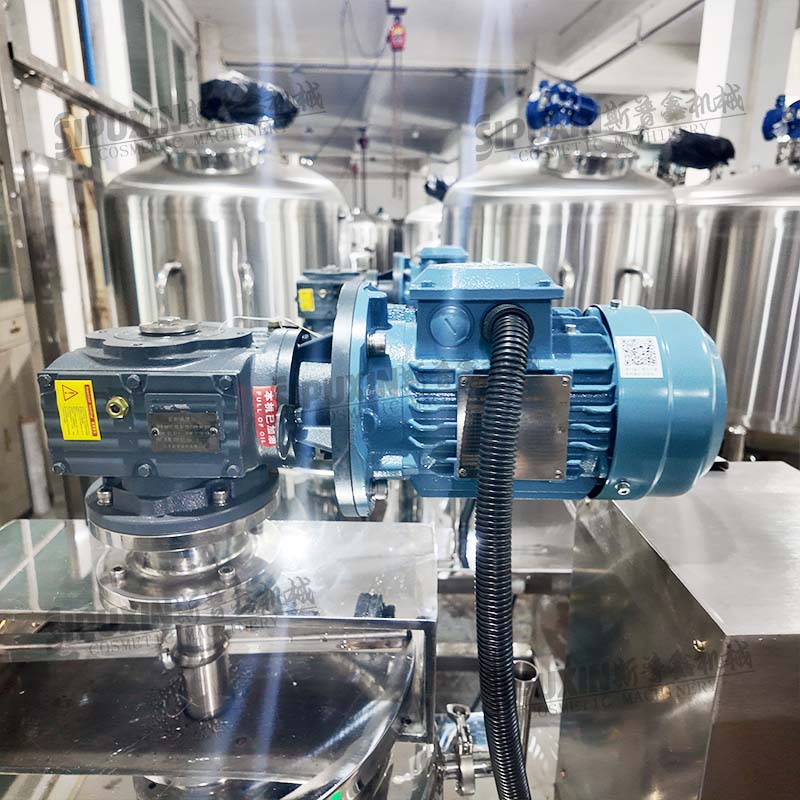

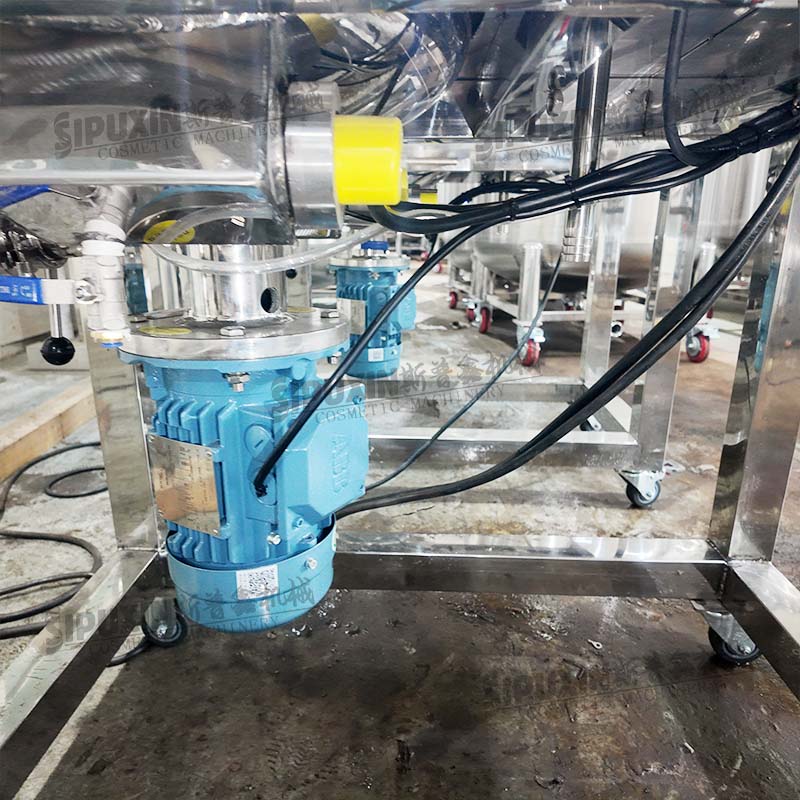

Dual‑motor integrated design Top frame stirring promotes material circulation; bottom high‑shear emulsification motor provides strong shear force to mix oil‑water phase fully, to get fine and stable texture for cream and lotion samples.
Heating & cooling complete‑process solution Equipped with electric heating device and cooling kettle for circulating water cooling. It can finish heating dissolution, emulsification reaction and rapid cooling inside one tank, no need to transfer materials between different vessels.
Sanitary stainless‑steel construction Inner tank adopts mirror polishing treatment. Smooth surface reduces material residue, easy for manual cleaning. SUS316L option is available for processing corrosive raw materials, meets cosmetic and food‑grade hygiene standards.
Compact and mobile for lab space Whole machine installed on frame with lockable brake casters. Small footprint, convenient to move and fix position inside laboratory. Perfect for formula trial‑run and multi‑product sample making.

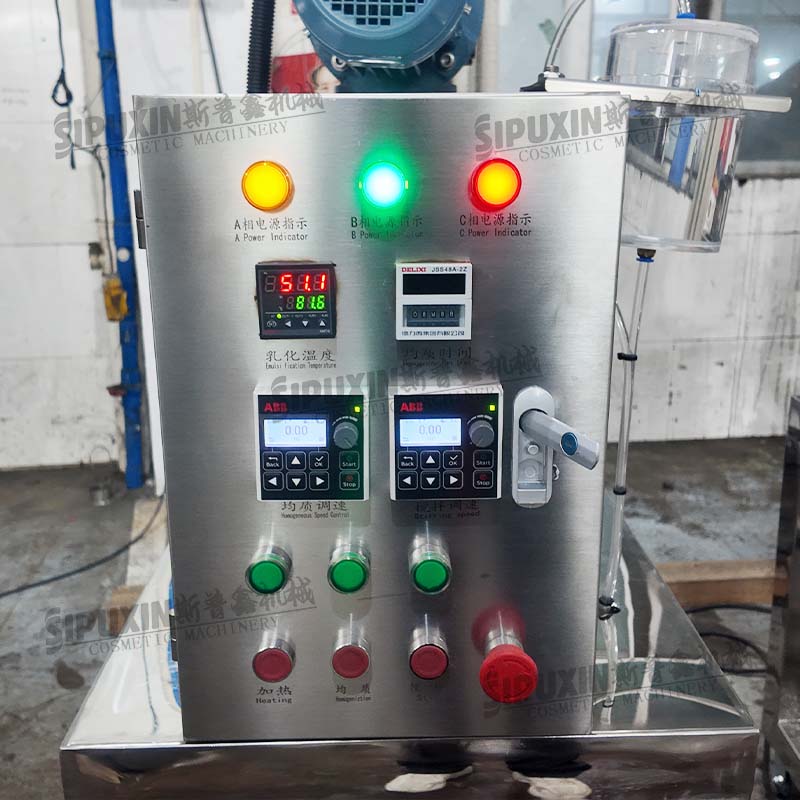

Centralized control panel for easy operation Temperature setting, motor start‑stop and working status indicators are centralized on control panel. Lab operators can monitor and adjust production parameters intuitively, low‑threshold for daily use.
Application Scope
Cosmetic products: face cream, body lotion, facial mask ointment, shampoo, conditioner, liquid hand soap. Suitable for cosmetic R&D laboratories, OEM sample rooms and small‑scale daily‑chemical workshops.
After‑sales Service
One‑year warranty for whole machine (excluding quick‑wear spare parts)
Online video installation guidance and operation training
Long‑term spare‑parts supply service
Support customized configuration according to customer formula requirement
