Automatic Vertical Liquid Paste Sachet Packing Machine Small Pouch Filling Sealing Machine For Shampoo Honey Sauce Cosmetic Sample Bag Packaging

Introduction

Introduction

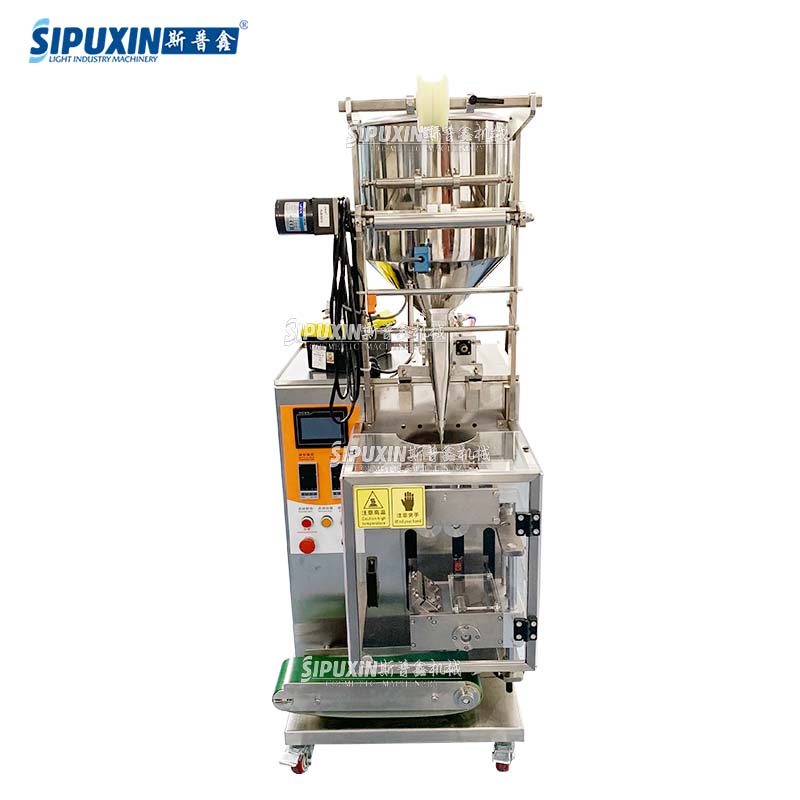

This vertical automatic bag packaging machine integrates film feeding, quantitative filling, sealing, cutting and finished bag output in one unit, specially designed for small sachet packaging of liquid, lotion, cream, honey and sauce.Equipped with sanitary stainless steel hopper and servo filling pump, filling volume can be precisely adjusted via touch screen. All liquid contact parts are SUS304 stainless steel, easy to disassemble and clean.It supports composite plastic film roll material, can make three-side sealed, four-side sealed and back-sealed sample bags. Compact cabinet with brake casters, small floor space, widely used for cosmetic trial packs, food condiment sachets and daily chemical single-use packaging.

Machine composition

Usage and Application

Usage

1. Mount roll packaging film on unwinding rack; set target filling volume, bag length and sealing temperature on touch screen;

2. Liquid/cream flows from hopper into filling pump for fixed-volume dosing;

3. Machine automatically forms pouch, fills material, heat-seals and cuts finished bags;

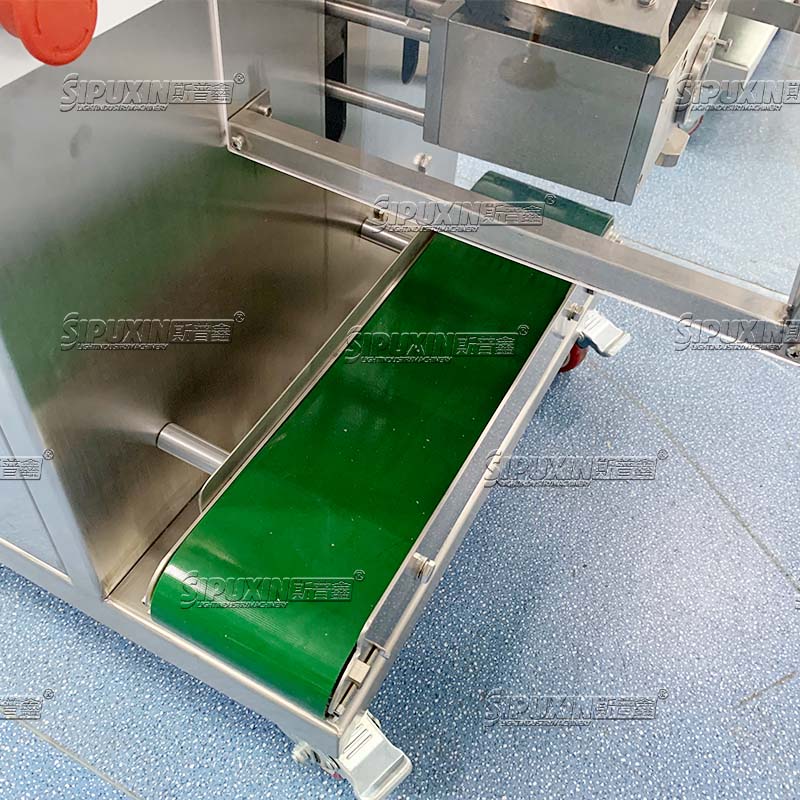

4.  Finished sachets output through conveyor belt continuously.

   Application

Cosmetic samples: shampoo, body wash, facial essence, hand cream sachets;Food industry: honey, jam, chili sauce, edible oil small bags;Daily chemical: disinfectant liquid, laundry detergent single-use pouches.

Core Advantage

• All-in-one automatic forming-filling-sealing-cutting, no manual operation, high packaging efficiency;

• Servo pump filling, adjustable volume with high precision, no dripping or leakage;

• Touch screen intelligent parameter setting, store multiple bag size formulas for quick switching;

• SUS304 food grade contact parts, easy disassembly for washing, meet food & cosmetic hygiene standard;

• Multi-sealing modes available: 3-side seal, 4-side seal, middle back seal;

• Compact movable design with casters, flexible layout for small workshop and lab production.

Item	Specification
Model	SPX Vertical Sachet Packing Machine
Filling Material	Liquid, lotion, cream, viscous sauce
Filling Range	5–200ml customizable
Filling Precision	±1%
Bag Sealing Type	3-side / 4-side / back sealing optional
Control System	PLC + touch screen
Hopper Material	SUS304 stainless steel
Packaging Film	Composite plastic roll film
Automation Degree	Fully automatic
Mobility	With brake casters
