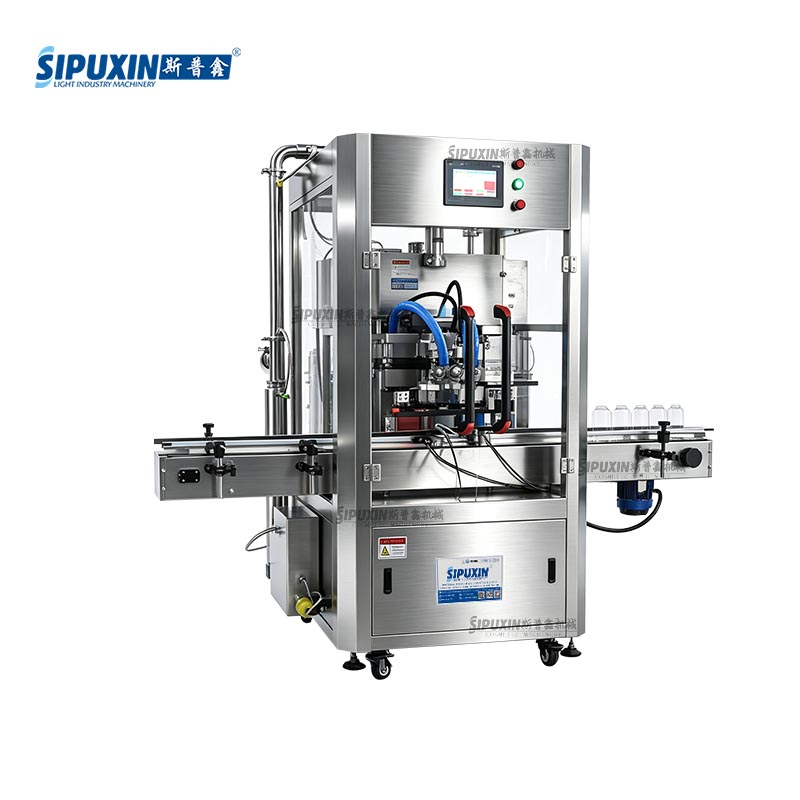

This full-automatic double-head gear pump filling machine with heating system is a specialized quantitative filling equipment developed for high-viscosity materials that are easy to solidify at room temperature. Equipped with an integrated constant-temperature heating stirring tank, it perfectly solves the material blockage problem of cream, lotion, hair mask, honey, fruit syrup, medicinal ointment and other thick pastes during filling.
The equipment adopts high-precision stainless steel gear pumps for metering, matched with independent double filling nozzles to realize synchronous double-station filling, which greatly improves production efficiency compared with single-head filling machines. The whole machine is equipped with PLC touch intelligent control panel; operators can set filling volume, running speed and filling delay time in one screen, with high filling accuracy and simple operation.
All parts in contact with materials are made of food-grade 304 stainless steel, with smooth mirror surface without sanitary dead corners, easy to disassemble, clean and disinfect, fully complying with the production standards of daily chemical, food and pharmaceutical industries. The built-in constant temperature circulation heating system supports adjustable temperature range, keeping materials in a uniform fluid state all the time to ensure stable filling effect.
This two-nozzle heating gear pump filler supports matching conveyor belts, capping machines and labeling machines to form a complete automatic filling production line. We can customize the tank capacity, nozzle spacing and machine frame size according to customers’ bottle specifications, workshop space and output requirements, providing one-stop filling packaging solutions for small and medium factories.
Details description
1. Heating & Stirring Material Tank
The integrated heating tank is made of full 304 stainless steel with mirror polishing inner wall, no dead corners for residue. It adopts water-circulation constant temperature heating structure, temperature adjustable from 30℃ to 90℃ to prevent viscous paste solidification. Equipped with slow-speed mixing agitator inside, which keeps cream, honey, ointment evenly fluid without stratification during long-time continuous production. The tank lid can be opened for quick raw material feeding, and the bottom outlet connects directly to gear pump to avoid material waste.

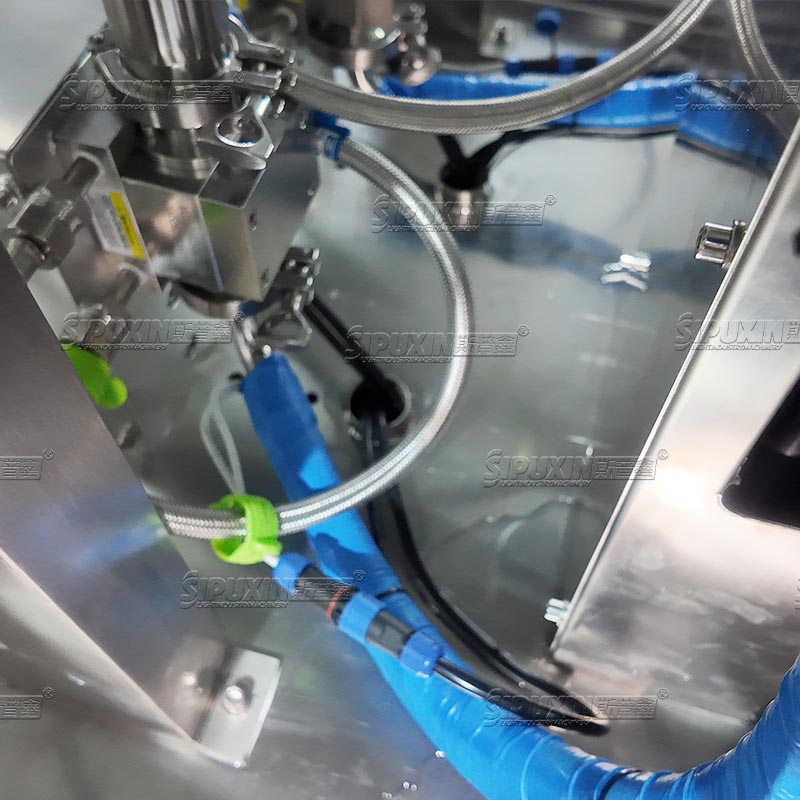

2. Double Gear Pump Metering System
Two independent food-grade stainless steel gear pumps are equipped for separate quantitative control of each filling nozzle. Gear pump delivery volume is driven by servo motor, featuring stable metering, ±1% high filling accuracy even for high-viscosity fluid with particles. The pump head can be quickly disassembled without tools for deep cleaning, no cross-contamination between different batches of products. Double nozzles work synchronously, doubling filling output compared with single-head filling machines.

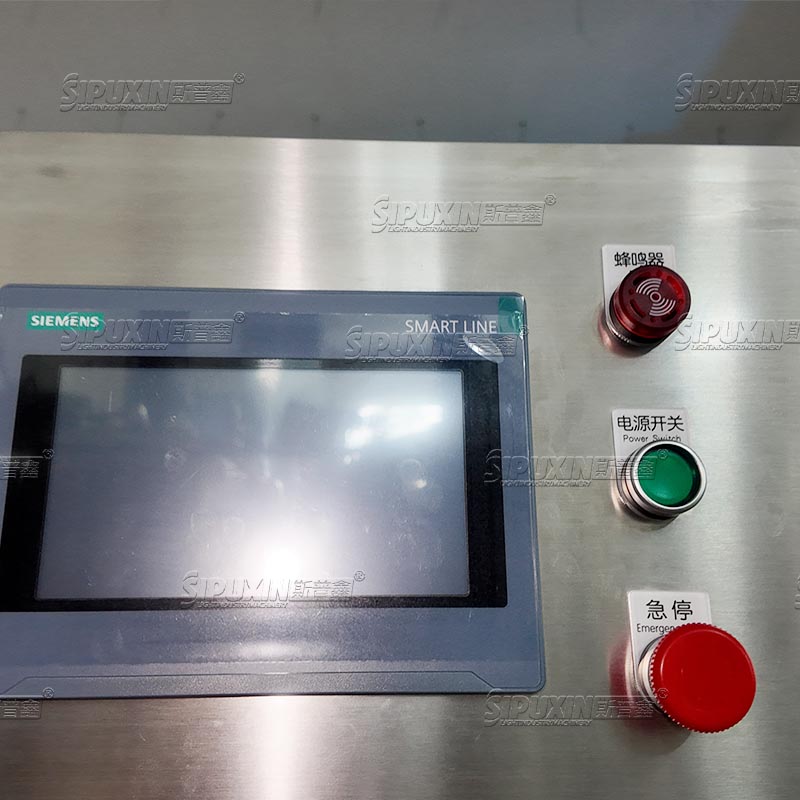

3. PLC Touch Screen Intelligent Control System
7-inch color touch screen with full English operation interface, all parameters including filling volume, filling speed, filling delay, heating temperature can be set directly on one panel. Built-in memory function can store dozens of product formulas for quick switching when changing materials. The system has automatic alarm functions for low material level, abnormal temperature and pump overload, effectively reducing operation failure rate. Simple operation requires no professional technical training for workers.

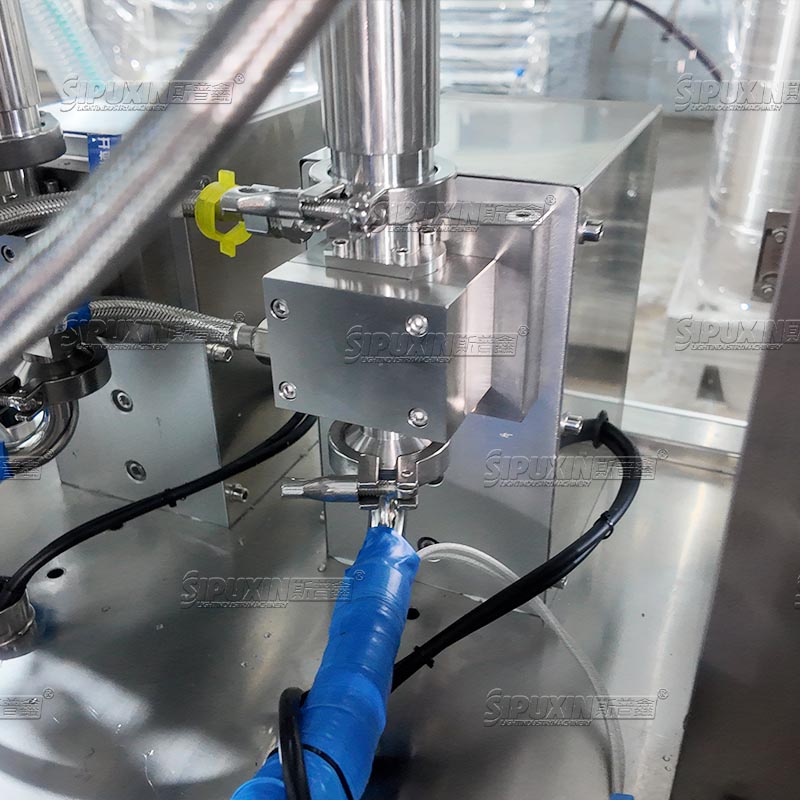

4. Filling Nozzle Anti-drip Design
Each filling nozzle adopts pneumatic cut-off anti-drip structure. When filling stops, the nozzle closes instantly to prevent thick paste from dripping on bottle bodies, keeping finished bottles clean and reducing material waste. The nozzle height and horizontal spacing are adjustable to match round bottles, flat bottles, plastic tubes and various container sizes. The nozzle outlet can be customized with lengthened tube for deep filling of tall bottles.

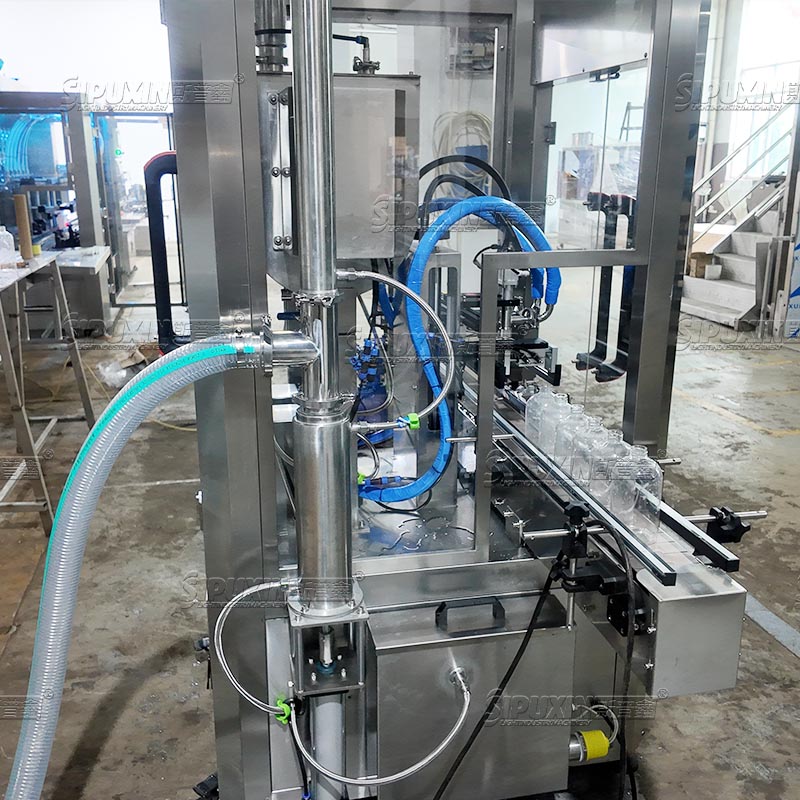

5. Machine Frame & Sanitary Structure
The main frame is thickened stainless steel square tube with anti-rust treatment, stable structure and low running vibration. All parts touching materials are SUS304 stainless steel that meets cosmetic, food and pharmaceutical GMP standards. Every connecting pipeline adopts quick-disconnect clamp design, convenient for daily disassembly, washing and sterilization. The machine surface is smooth and waterproof, easy to wipe clean with water or alcohol.
6. Supporting Expandable Function
This double-head heating gear pump filling machine can be freely matched with automatic conveyor belt, rotary capping machine, self-adhesive labeling machine and bottle washing machine to form a complete automatic filling packaging production line. We support personalized customization including tank capacity, pump flow, nozzle quantity, heating power and machine overall size according to customers’ workshop layout, bottle types and daily output demands.
7. Wide Applicable Materials
Perfect for filling various high-viscosity products: cosmetic cream, body lotion, hair mask, facial mask mud, essential oil ointment, honey, syrup, jam, edible paste, medical ointment and other viscous liquid that easy to solidify at room temperature.
