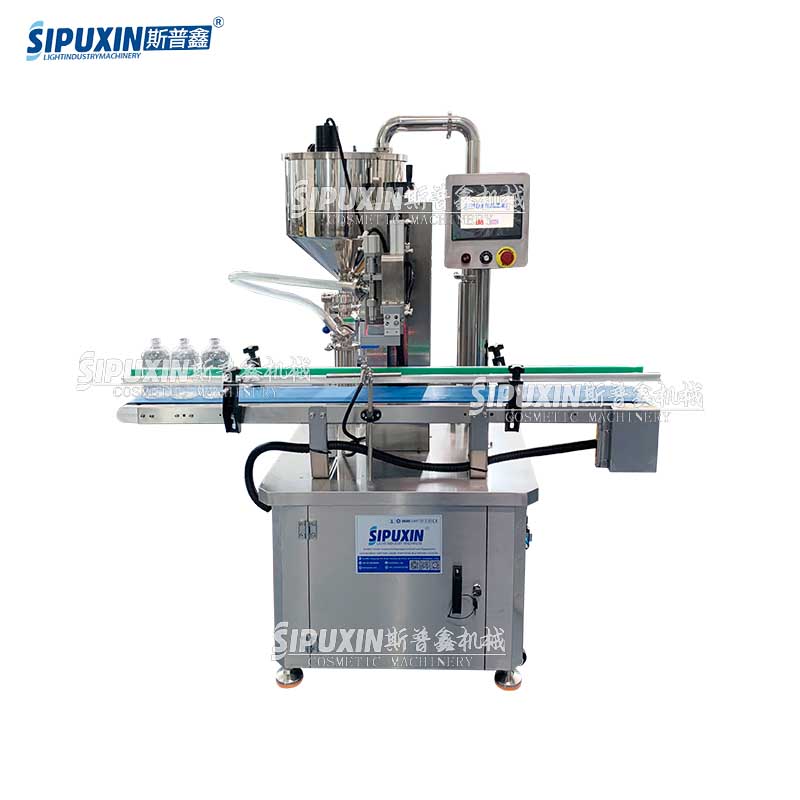

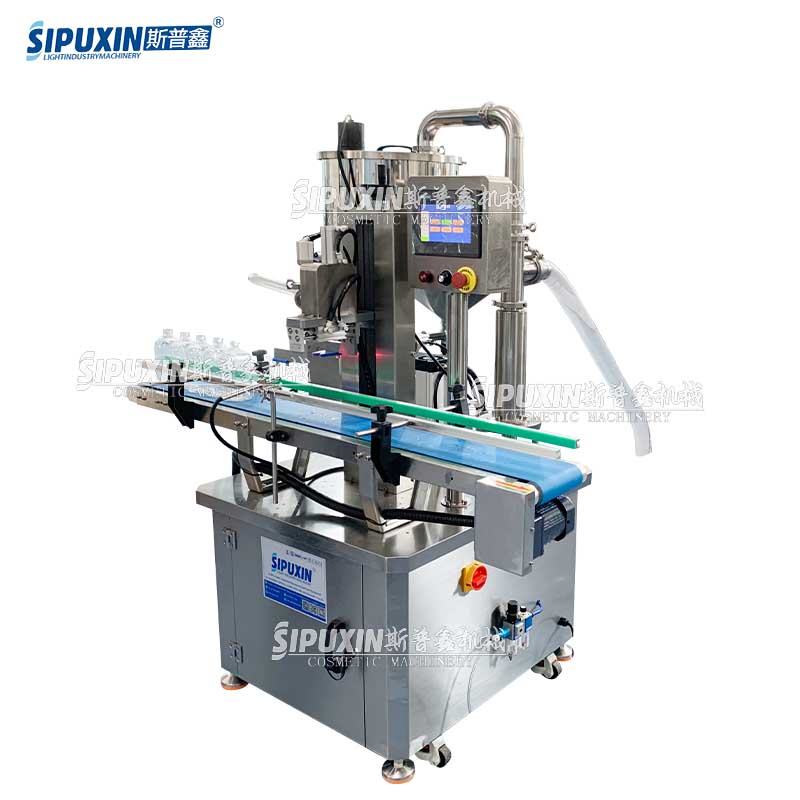

Automatic Single Head Piston Filling Machine with Integrated Feeding Pump SUS316L for Cosmetic Cream Lotion Shampoo Paste Bottle Filling Production Line

Machine composition

Fully automatic single-head piston filling machine built with an integrated feeding pump and conveyor. PLC touch screen control, SUS316L contact parts, high filling accuracy, continuously auto-feeds and fills cream, lotion, shampoo and thick paste into bottles for cosmetic and daily chemical production lines.

Usage and Application

Usage

1. Connect the raw material barrel to the integrated feeding pump; the pump automatically delivers cream, lotion or thick liquid into the machine’s storage hopper.

2. Place empty bottles on the conveyor belt, which automatically transports bottles to the filling nozzle position.

3. Set filling volume, conveyor speed and delay time on the PLC touch screen.

4. The piston cylinder quantitatively discharges materials into bottles, then the conveyor sends filled bottles to the next process continuously.

5. Dismantle and clean the SUS316L filling parts regularly to avoid material cross-contamination.

Application

This machine is widely used in cosmetic, daily chemical, food and pharmaceutical industries for automatic quantitative filling of various materials, including facial cream, body lotion, shampoo, hair conditioner, facial gel, body scrub, liquid soap and other thick paste & liquid products into plastic or glass bottles.

Core Advantage

1. Built-in integrated feeding pump, no manual feeding, continuous automatic material supply to avoid material shortage stop.

2. Single piston volumetric filling, high precision, consistent filling weight for cosmetic batch production.

3. Whole SUS316L filling contact parts, easy to disassemble and clean, meet GMP hygiene standard.

4. Matching automatic conveyor realizes online bottle feeding, greatly saving labor cost.

5. Touch screen one-click parameter setting, adjustable filling volume, speed and delay, simple operation.

6. Stable running, low failure rate, suitable for medium & large cosmetic filling production lines.

Item	Specification
Model	Single head automatic piston filling machine with feeding pump
Filling Range	10–1000ml customizable
Filling Accuracy	±0.5%
Contact Material	SUS316L stainless steel
Body Material	SUS304 stainless steel
Control System	PLC + touch screen operation
Supporting System	Integrated automatic feeding pump + horizontal conveyor
Applicable Material	Lotion, cream, shampoo, gel, sauce, cosmetic thick paste
Driving Mode	Pneumatic + electric
Automation Degree	Fully-Automatic
Power Supply	220V/380V customizable
Total Power	1.5kW
Conveyor Length	Customized standard 1200mm
Production Capacity	10–30 bottles per minute (based on bottle size)
Safety Parts	Emergency stop button, overload protection
Mobile Base	Lockable universal casters
