Semi Automatic Single Head Magnetic Pump Liquid Filling Machine Digital Control Small Bottle Filler For Water Juice Cosmetic Essential Oil Disinfectant

Introduction

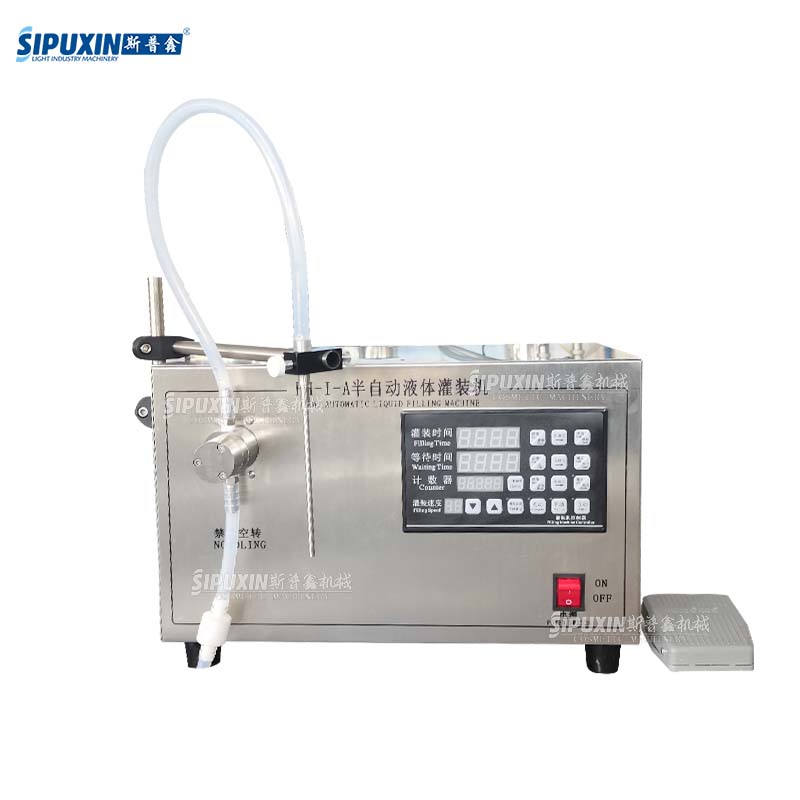

This semi-automatic liquid filling machine consists of SUS304 stainless steel cabinet, magnetic drive filling pump, digital PLC control panel, foot pedal switch, food-grade silicone feeding hose, adjustable filling nozzle and anti-drip valve.

Machine composition

This semi-automatic magnetic pump liquid filler adopts PLC digital control and foot pedal operation. Made of SUS304 stainless steel with anti-drip nozzle, it delivers accurate quantitative filling for low-viscosity liquids like essential oil, disinfectant and cosmetic lotion, ideal for lab testing and small-batch production.

Usage and Application

.Usage

 1. Connect the feeding hose into raw liquid barrel, set filling volume, filling speed and delay time on digital keypad.

 2. Place empty bottles under filling nozzle, step on foot pedal to trigger automatic quantitative filling.

 3. Built-in anti-drip design avoids liquid dripping after filling, easy to clean and switch different liquids.

 Application

Suitable for small-batch filling of low-viscosity liquids: purified water, essence, essential oil, lotion, hand sanitizer, disinfectant, beverage, oral liquid and cosmetic raw liquid, widely used in cosmetic, food, pharmaceutical and daily chemical workshops.

Core Advantage

1.Magnetic pump filling, stable flow, high filling accuracy ±1ml, no liquid leakage.

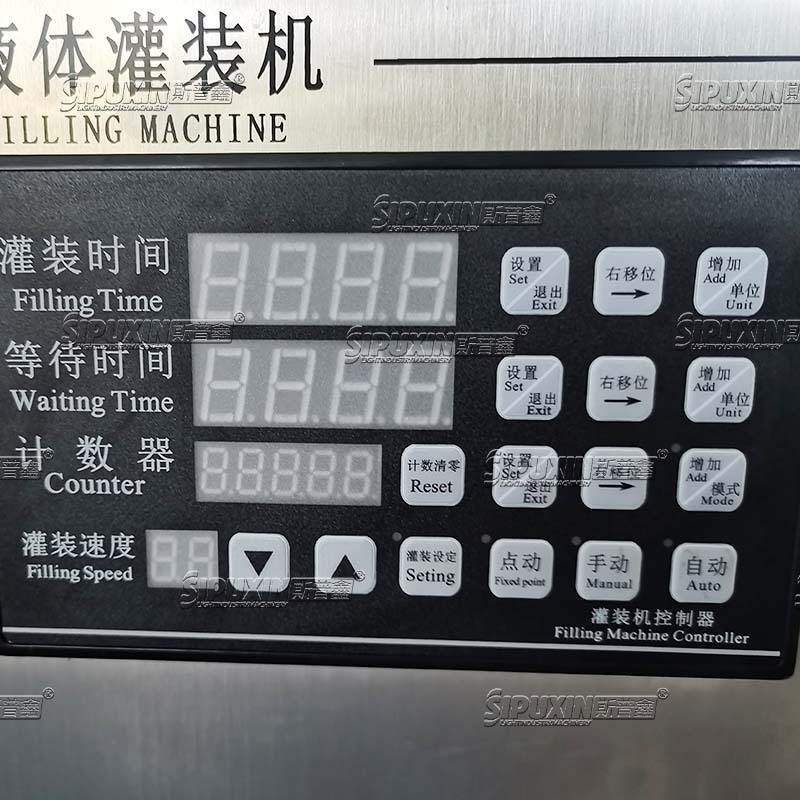

 2. Digital PLC control panel, all filling parameters adjustable directly on screen, easy operation.

 3. Compact desktop stainless steel body, small footprint, easy to move and clean.

 4. Foot pedal manual semi-automatic mode, flexible for small batch production and laboratory trial filling.

 5. Food-grade silicone pipeline, dismountable for sanitization, compatible with alcohol and mild solvent liquid.

 6. Anti-drip nozzle design to prevent waste and bottle surface contamination.

Item	Specification
Filling Head	Single head magnetic pump
Cabinet Material	SUS304 stainless steel
Control System	Digital PLC control panel
Operation Mode	Foot pedal semi-automatic
Filling Accuracy	±1ml
Applicable Liquid	Low viscosity liquid (water, essence, disinfectant, oil, lotion)
Net Weight	About 16KG
Packed Gross Weight	About 20KG
Standard Voltage	220V single phase
Standard Core Components	Motor, Pump, PLC, Bearing
