500L/H Single Stage PVC RO Water Treatment System Industrial Reverse Osmosis Water Purifier for Cosmetic/Food Beverage Production

1

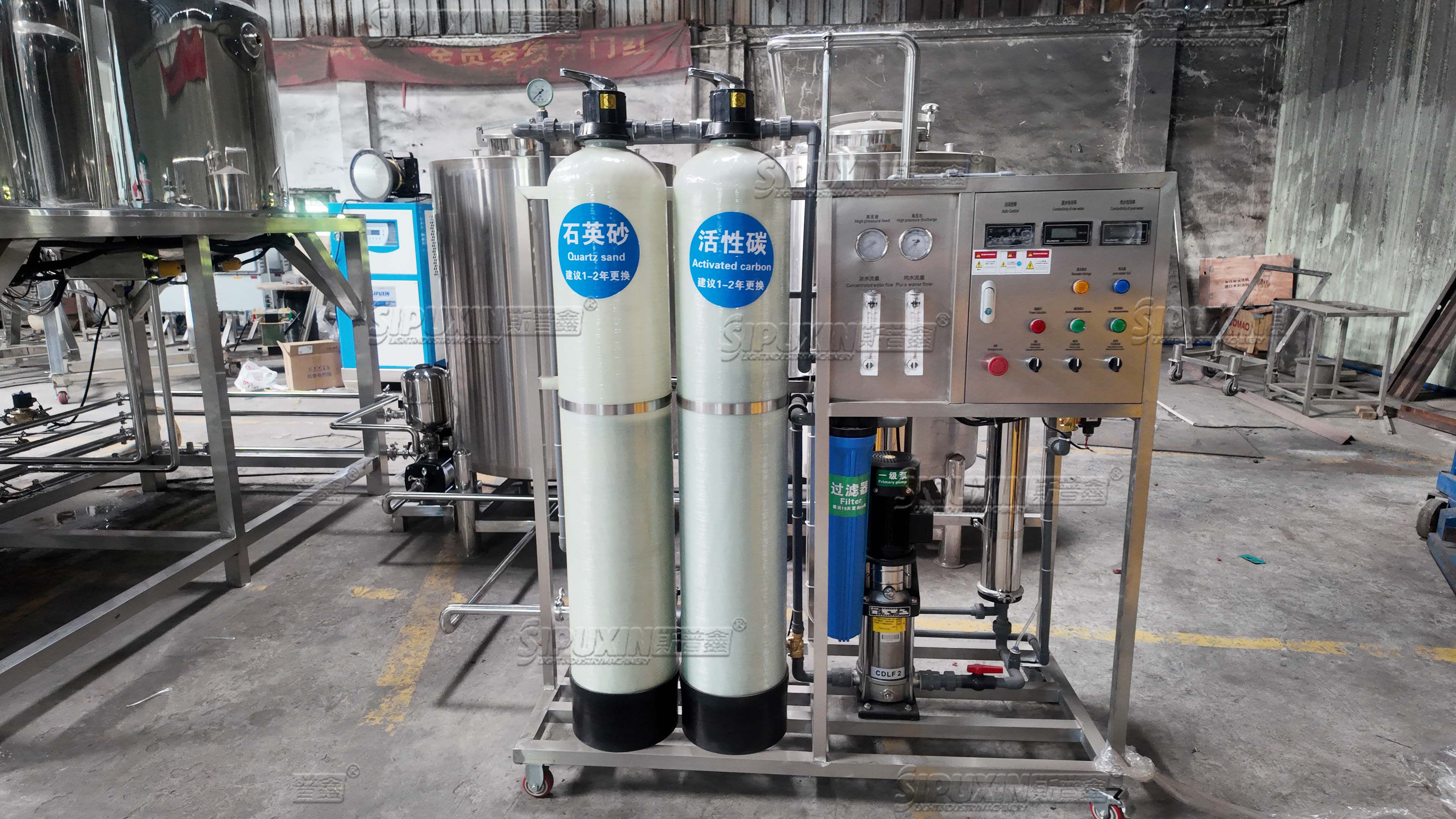

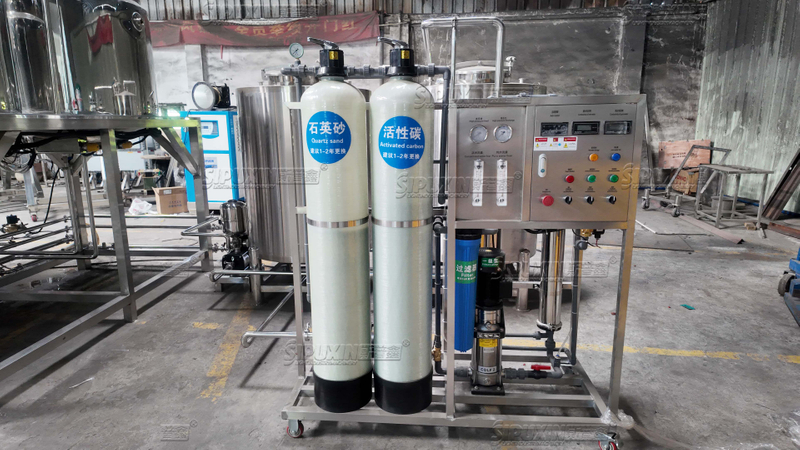

This 500L/H single-stage RO water treatment machine adopts full anti-corrosion PVC pipelines, equipped with quartz sand, activated carbon and precision filter pretreatment. It runs automatically with pressure real-time monitoring, stably producing purified water for cosmetic, food and small factory production. Compact integrated frame, easy operation and maintenance.

Machine composition

1. Pre-filtration tanks: Quartz sand filter tank, activated carbon filter tank

2. Precision security filter

3. High-pressure booster pump

4. Single-stage RO membrane assembly with PVC pipeline

5. Stainless steel integrated frame with moving wheels

6. Intelligent control cabinet, pressure gauges and regulating valves

Usage and Application

Usage

1. Connect raw water inlet and power supply, check all filter cartridges and pipelines.

2. Turn on the machine; quartz sand and activated carbon tanks remove sediment, rust and residual chlorine first.

3. The booster pump delivers pre-treated water to RO membrane for desalination and purification.

4. Qualified purified water flows out for production use, while concentrated water drains separately.

5. Real-time pressure gauges monitor operating status; replace pre-filter media regularly for stable performance.

Application

• Cosmetic factory: Pure water for cream, serum, shampoo formulation and container cleaning

• Food & beverage plant: Purified water for drink, sauce and food processing

• Small workshop, laboratory: Water for experiment, equipment cleaning and circulation

• Mini bottled water filling, commercial drinking water supply

Core Advantage

1. Anti-corrosion PVC pipeline, avoid secondary water pollution

2. Complete pre-filtration system to protect RO membrane and extend service life

3. 500L stable hourly water output, fit small & medium production lines

4. Fully automatic operation with real-time pressure monitoring, easy to operate

5. Compact integrated mobile frame, save workshop space 6. Low maintenance cost, widely applicable to cosmetic, food and other industries

Item	Specification
Model	SPX-RO-500L
Capacity	500 L/H
Process	Single Stage Reverse Osmosis (RO)
Pipeline Material	PVC Anti-corrosion
Pre-treatment	Quartz Sand Filter + Activated Carbon Filter + Precision Security Filter
RO Membrane	1pc 4040 RO Membrane
Booster Pump	High-pressure Vertical Pump
Control Mode	Automatic Electric Control with Pressure Gauges
Power	1.5 KW
Voltage	220V/380V (Customizable)
Desalination Rate	≥97%
Frame Material	Carbon Steel Spray Plastic / Stainless Steel Optional
Overall Dimension	L1400W700H1600 mm
Net Weight	Approx. 220 KG
Certification	CE Certified
Warranty	1 Year Whole Machine
