20L Cosmetic Homogenizer Mixing Tank With Feeding Pump Automatic Cream Lotion Shampoo Filling Production Line Machine

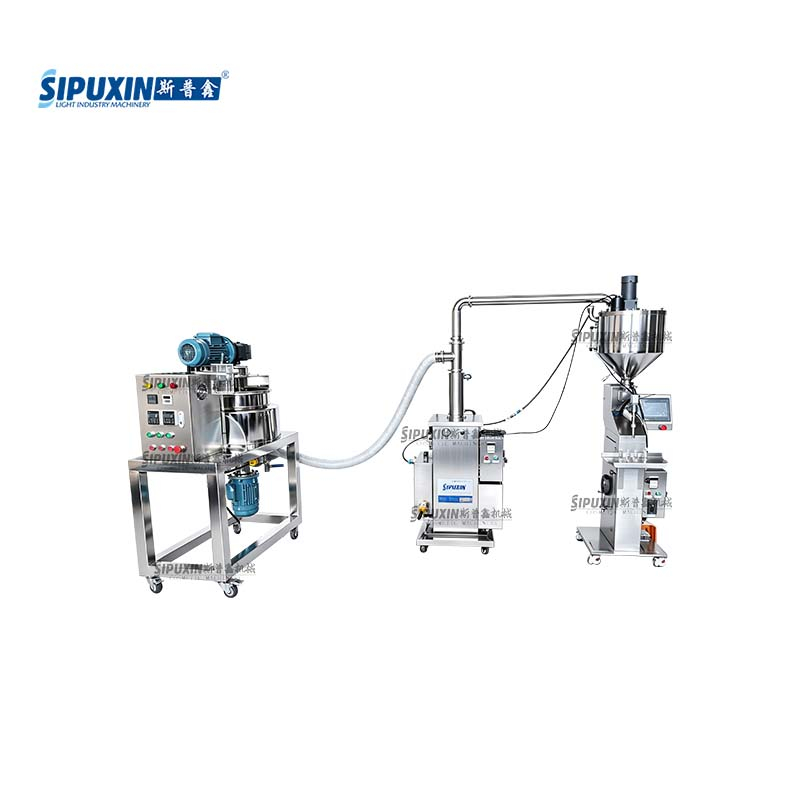

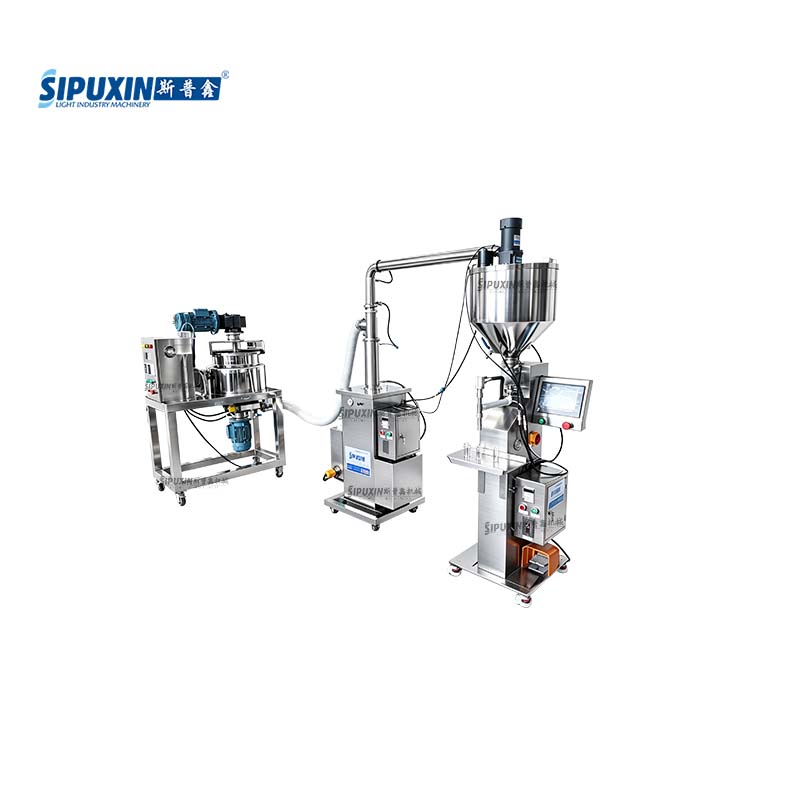

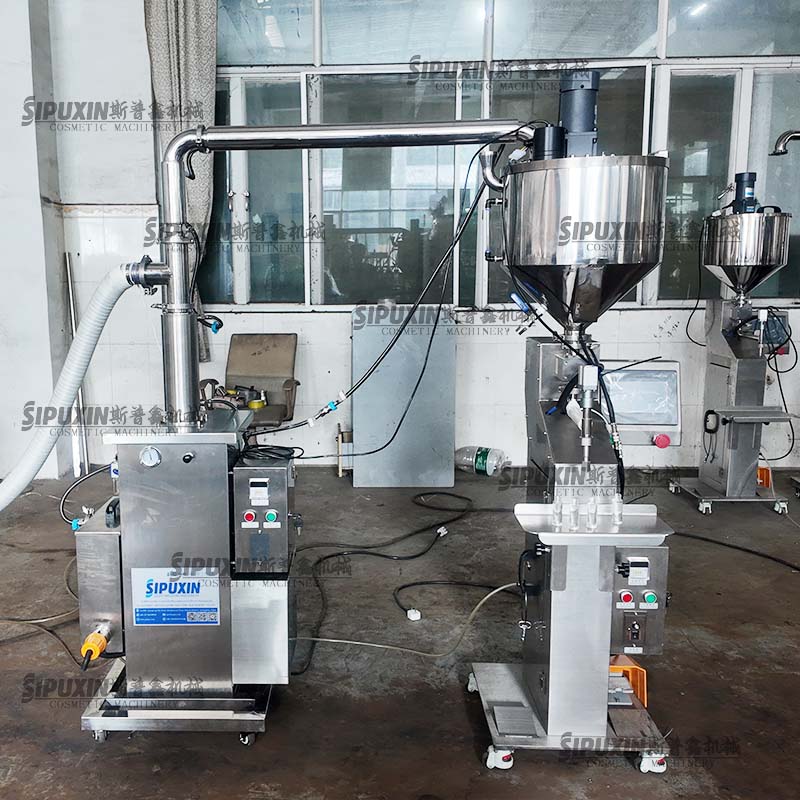

This complete set consists of 20L homogenizing mixing pot, transfer feeding pump and filling machine. It is an integrated small production line for cream, lotion, shampoo and cosmetic liquid, adopting SUS304 stainless steel, with homogenizing, mixing, feeding and automatic filling functions, PLC control, compact structure for lab and small batch manufacturing.

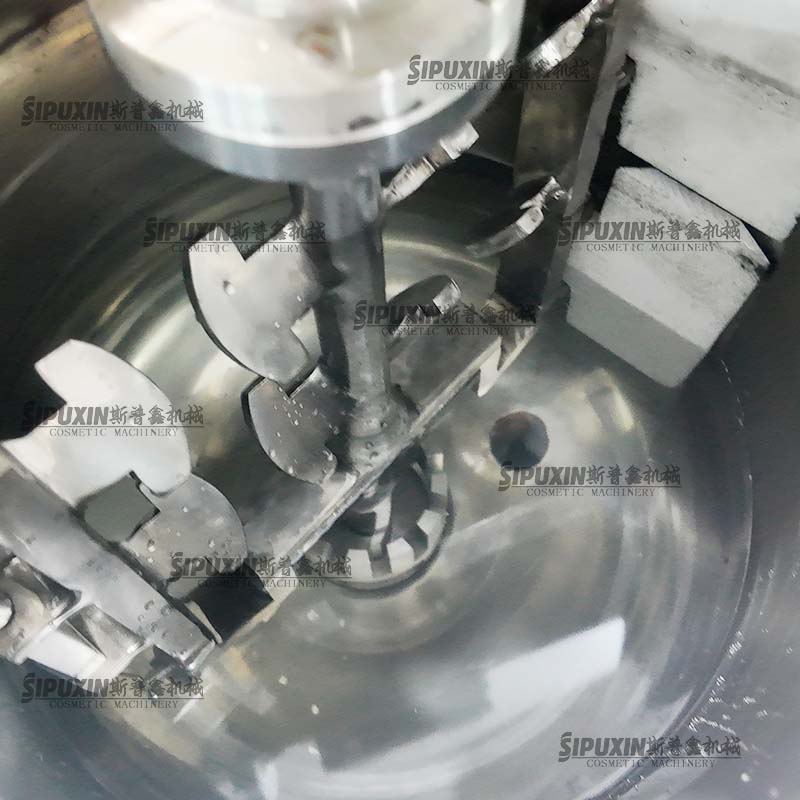

stirring



• Double wall scraping agitator, full tank wall contact, no material residue

• High shear homogenizer head at tank bottom, powerful emulsification & dispersion

• All SUS304 stainless steel, mirror polishing surface, easy to clean

• Match with feeding pump and filling machine to form complete small cosmetic production line

• Suitable for cream, lotion, ointment, shampoo, hair care products lab making

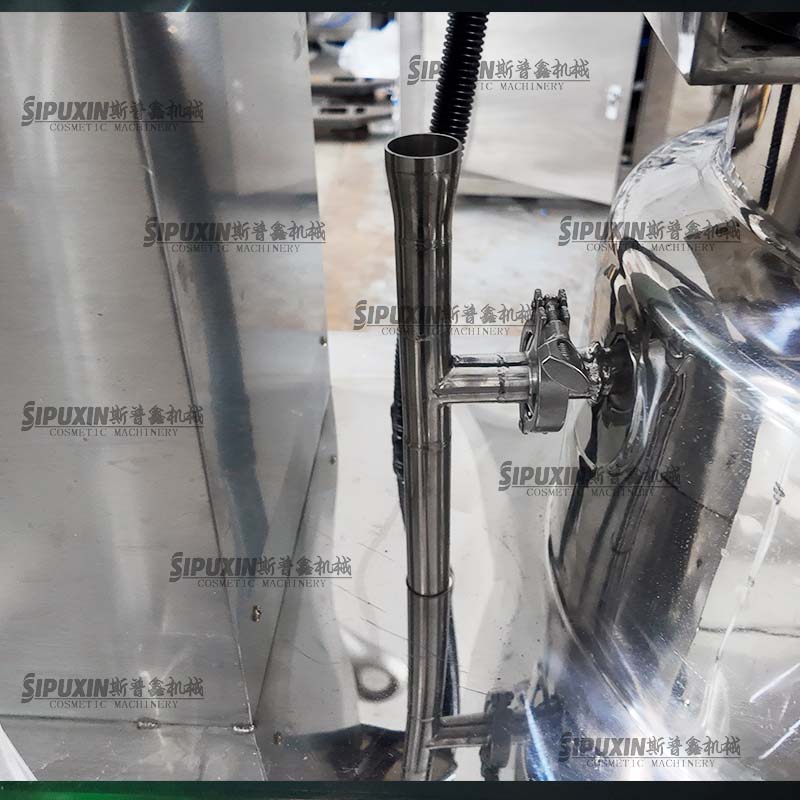

Sanitary Discharge Pipe With Butterfly Valve

• SUS304 stainless steel seamless discharge pipeline, mirror polishing, no dead corners

• Sanitary quick-open butterfly valve, easy control of discharging flow

• Extended outlet pipe, convenient to connect feeding pump for automatic material transfer

• Perfect match with filling machine to form integrated cosmetic production line

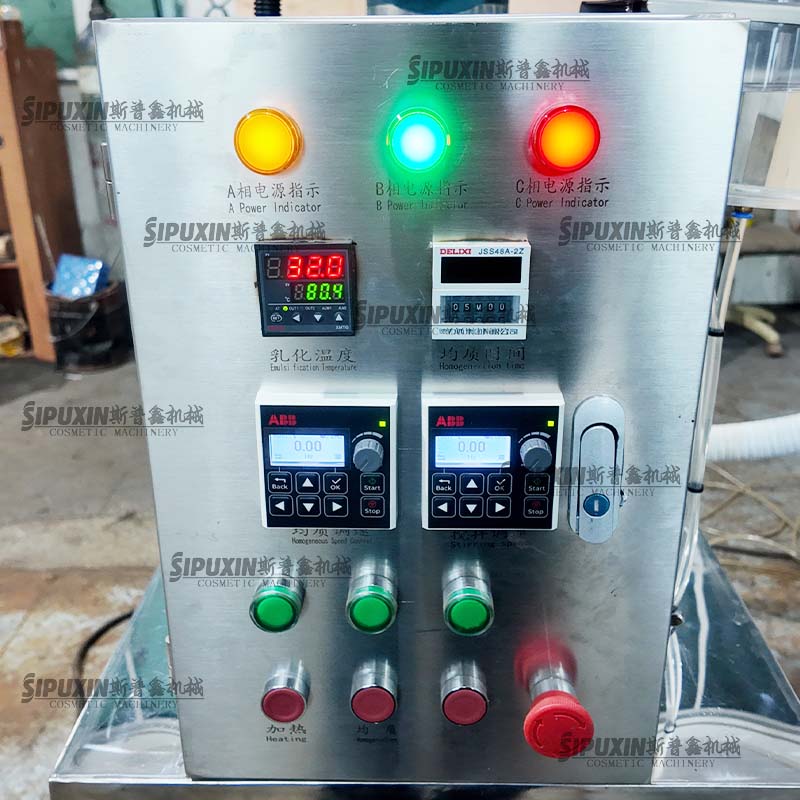

Control Panel

  1.Three-phase Power Indicator Lights

  2. Temperature Controller

  3. Timer Counter

  4. ABB Frequency Converters

  5. Control Buttons

◦ Green：Start (Heating / Stirring / Homogenizing)

◦ Red：Stop (Heating / Stirring / Homogenizing)

◦ Big Red Emergency Stop Button

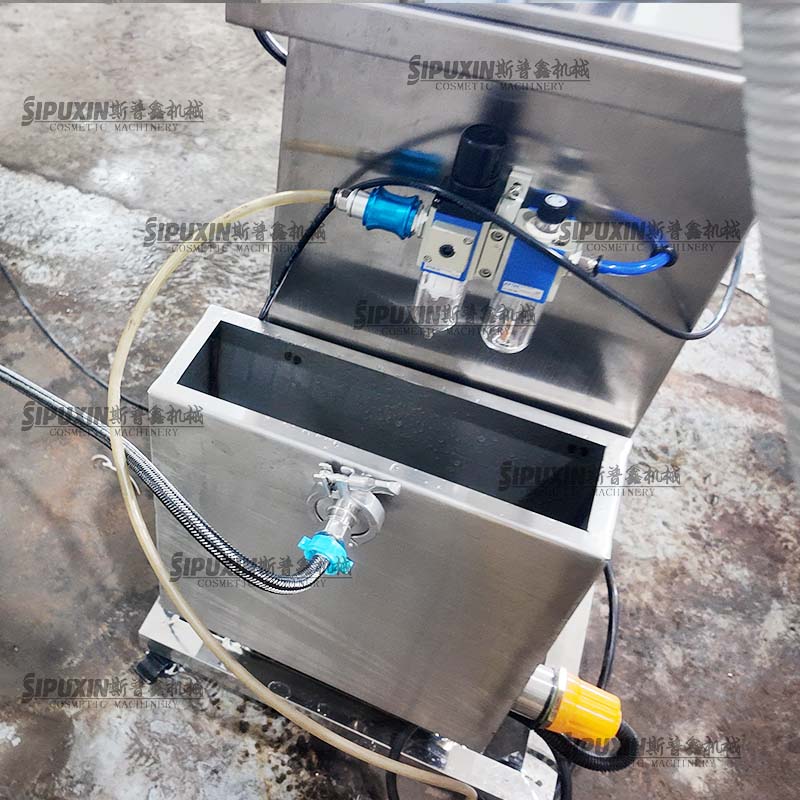

Pneumatic Feeding Pump Assembly

1. Air Filter Regulator Lubricator (Air Treatment Unit)

2. Stainless Steel Material Tank & Quick Discharge Valve

3.  Pneumatic Diaphragm Pump Head

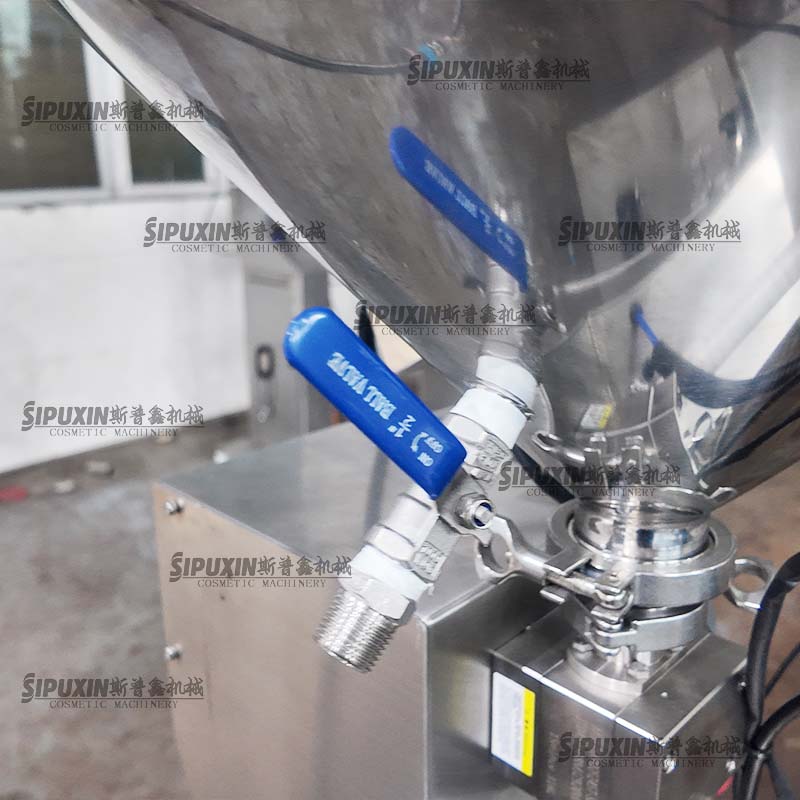

Sanitary Ball Valve For Filling Machine Hopper

1. Sanitary tri-clamp connectionQuick disassembly design without dead corners, easy to fully clean residual cream, lotion and cosmetic materials, meet GMP hygiene standards.

2. Stainless steel ball valve bodyMade of SUS304 stainless steel, acid and alkali resistant, corrosion resistant, suitable for all kinds of cosmetic fluid and paste.

3. Extended anti-slip handleLabor-saving operation, clear open/close status identification, durable long-term frequent operation.

4. External thread discharge portStandard male thread interface, convenient to connect conveying hose for material discharging, emptying and pipeline cleaning.

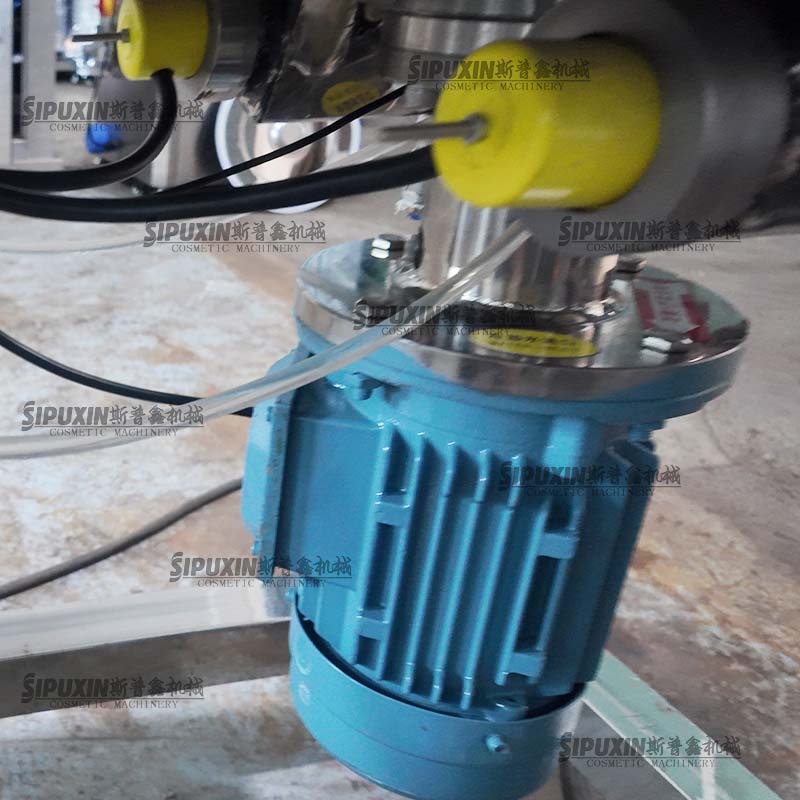

Homogenizer Motor

1. Cast iron motor housingWith ribbed heat dissipation structure, fast heat dissipation, stable continuous operation, long service life.

2. Vertical mounting structureDirectly connected to the bottom homogenizing head, compact layout, saves tank internal space.

3. High-speed rotation outputDrives rotor-stator to produce strong shear force, fully emulsify, disperse and refine cream, lotion and cosmetic paste.

4. Waterproof sealing designMatch with cooling pipeline, effectively isolate water vapor and material splashing, reduce motor failure rate.

5. Stable power outputSupport frequency conversion speed regulation, adjustable homogenizing speed to meet different material production demands.

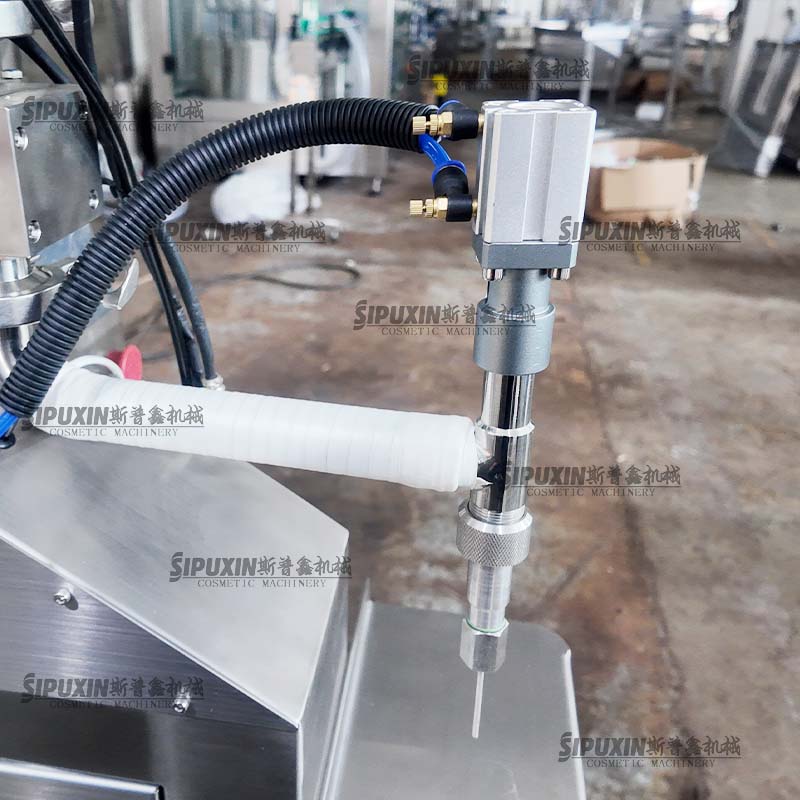

Filling Head

1. Pneumatic drive cylinderControlled by compressed air to realize automatic lifting & closing of the filling nozzle, prevent material dripping after filling.

2. Insulated feeding hoseWrapped thermal insulation layer, keep constant temperature for hot filling materials such as wax cream, avoid solidification inside the pipeline.

3. SUS304 stainless steel filling needle & valve bodySmooth inner wall without dead corners, easy to clean; suitable for cream, lotion, gel and various cosmetic viscous liquids.

4. Adjustable flow & stroke knobTwist the knurled knob to adjust filling depth and flow rate, match different bottle heights and filling volumes.

5. Quick disassembly structureAll connecting parts can be detached without tools, convenient for daily cleaning and material switching.




Item	Parameter
Complete Set Name	20L Cosmetic Homogenizer Mixing Tank + Pneumatic Feeding Pump + Pneumatic Filling Machine
Effective Volume of Mixing Tank	20L
Tank Material	Full SUS304 Stainless Steel, Mirror Polished
Mixing System	Frame Wall Scraping Stirrer + Bottom High Shear Homogenizer
Stirring Motor Power	1.5kW ABB Frequency Conversion Motor
Homogenizer Motor Power	2.2kW Cast Iron High Speed Motor
Heating Mode	Electric Heating with Temperature Control
Temperature Control Range	30℃ ~ 95℃
Feeding Pump Type	Pneumatic Diaphragm Transfer Pump
Filling Head Type	Pneumatic Anti-drip Filling Nozzle with Heat Insulation Pipe
Filling Range	10mL ~ 500mL Adjustable
Production Capacity	500 ~ 2000 Bottles Per Hour
Drive Mode	Pneumatic + Electric Frequency Conversion Drive
Control System	Independent ABB Inverters + Temperature Controller + Timer + Emergency Stop Button
Applicable Materials	Cream, Lotion, Shampoo, Gel, Liquid Soap, Cosmetic Ointment
Total Power of Whole Line	4.2kW
Power Supply	220V / 50Hz Single Phase
Core Components	ABB Motor, ABB Frequency Converter, PLC, Stainless Steel Pump, Bearing, Gearbox, Sanitary Valve
