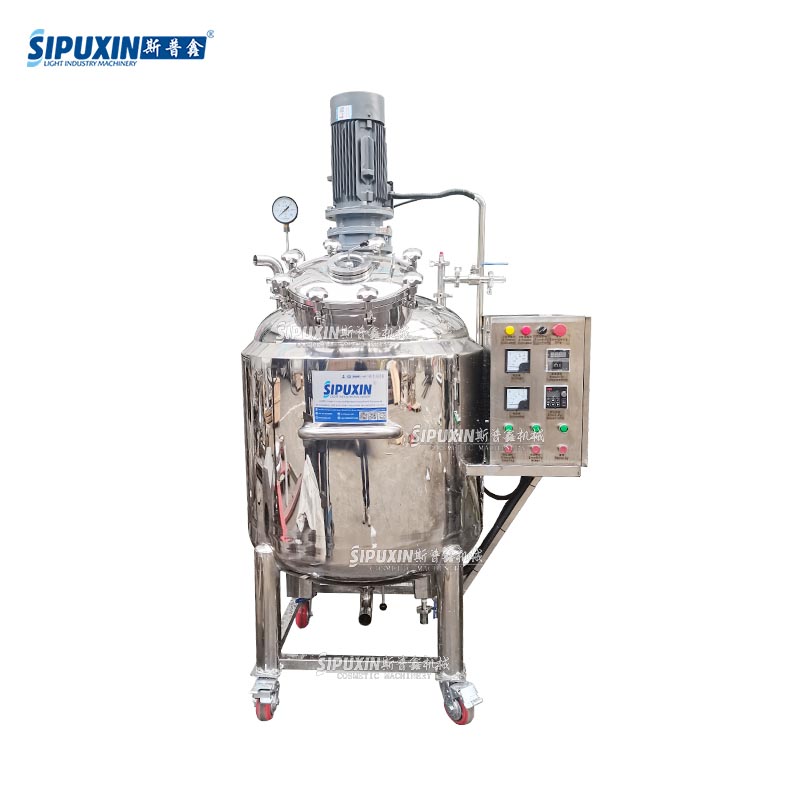

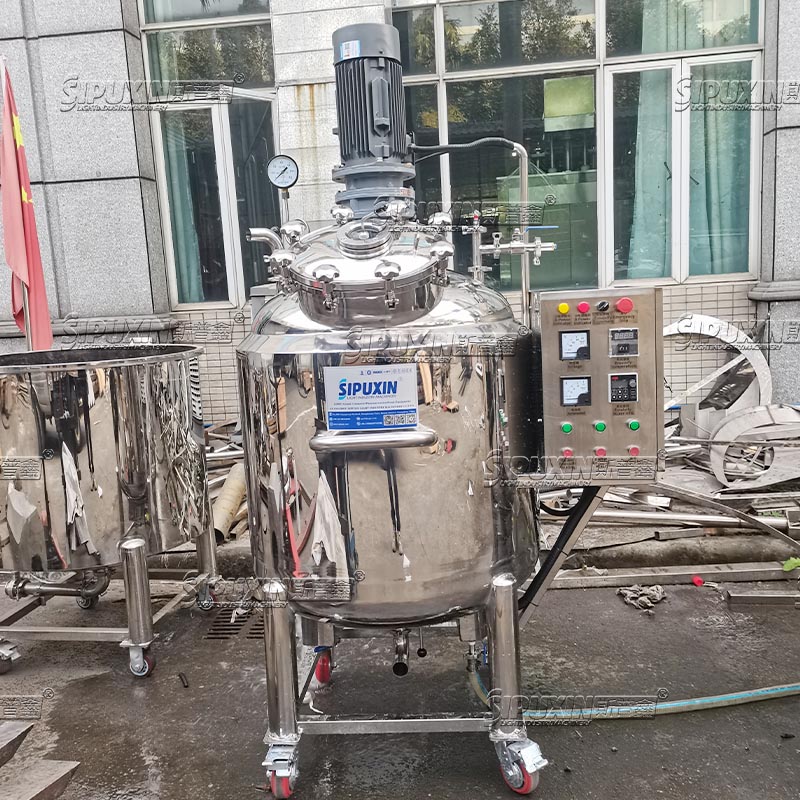

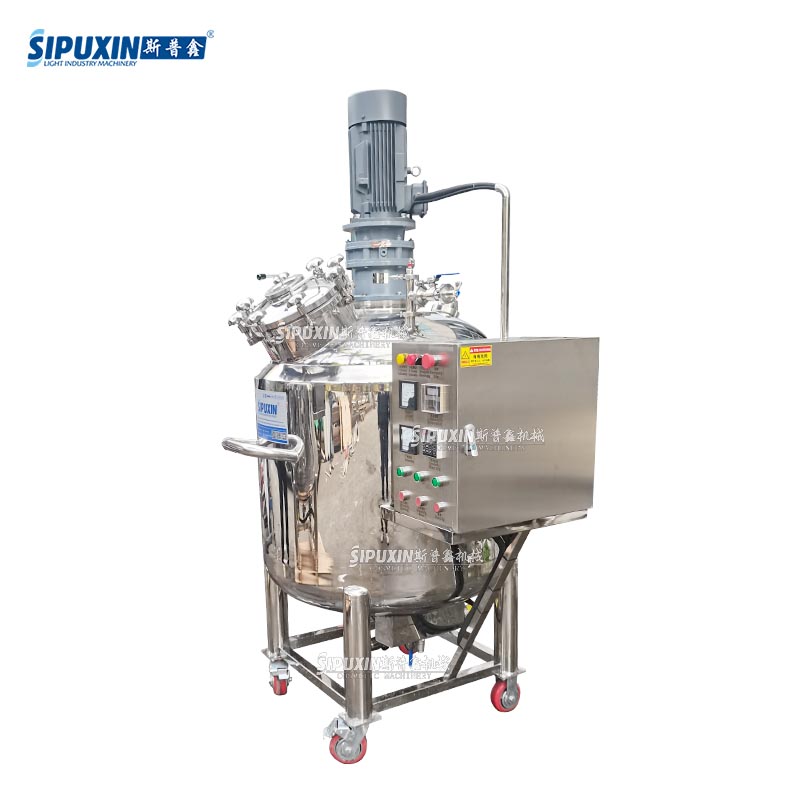

300L Electric Heating Sealed Mixing Tank With Manhole, Mobile Stainless Steel Mixing Vessel For Shampoo Lotion Liquid Soap Cosmetic Raw Material Mixing

Introduction

This 300L sealed movable mixing tank adopts SUS304 stainless steel with electric jacket heating and top stirrer. Equipped with sealed manhole, pressure gauge and brake casters for flexible workshop transfer. Independent control panel realizes temperature and speed adjustment. Suitable for mixing shampoo, lotion, liquid soap, food syrup and medicinal liquid, complying with GMP standard.

Machine composition

1. Tank body: SUS304 stainless steel sealed tank with manhole, jacket heating layer, mirror polished inner wall

2. Top stirring assembly: vertical stirring motor, mixing paddle, mechanical seal

3.  Electric heating system: heating tube inside jacket, temperature sensor

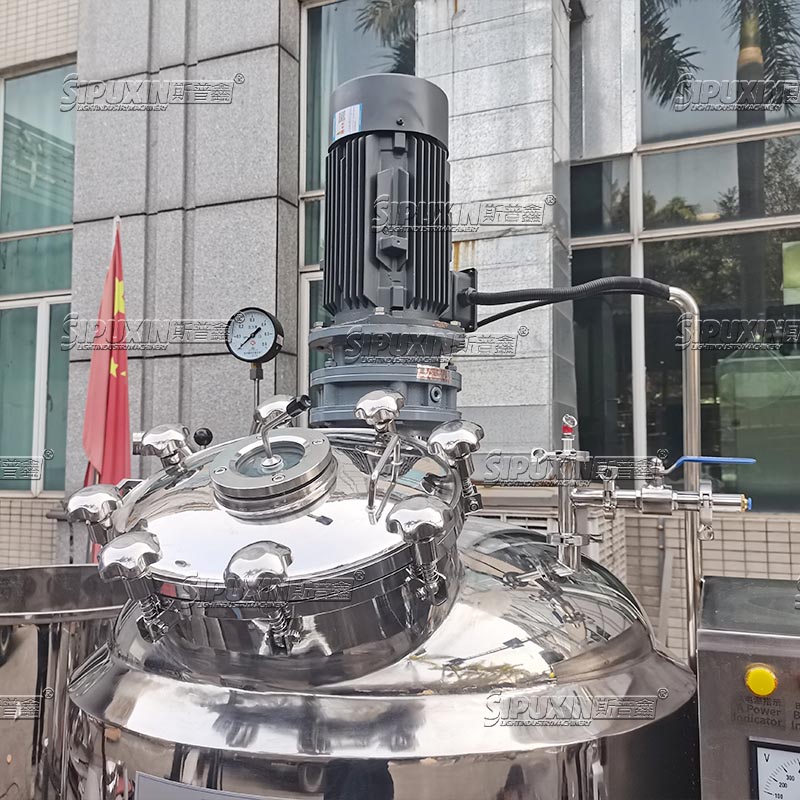

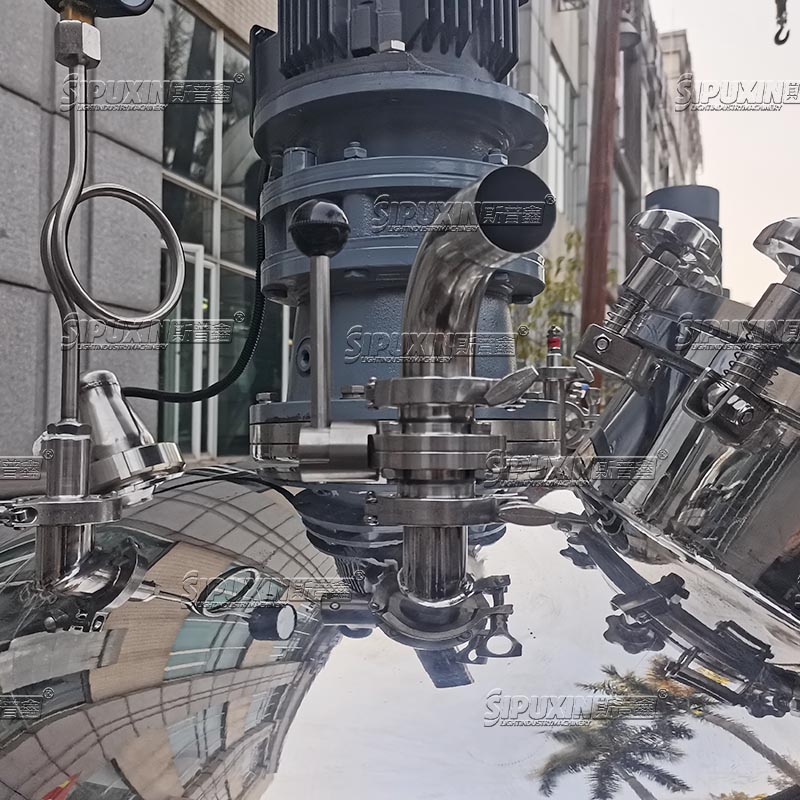

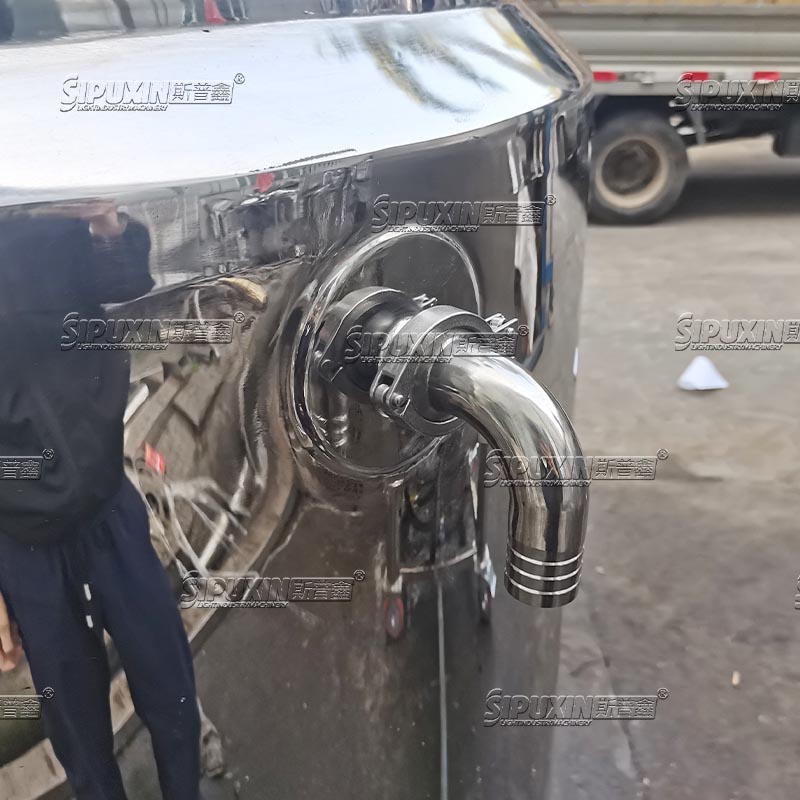

4.  Sealing & auxiliary fittings: manhole cover, silicone sealing ring, pressure gauge, sampling port, discharge valve, vent valve

5. Independent control cabinet: temperature controller, speed regulator, heating switch, indicator lights, safety protection circuit

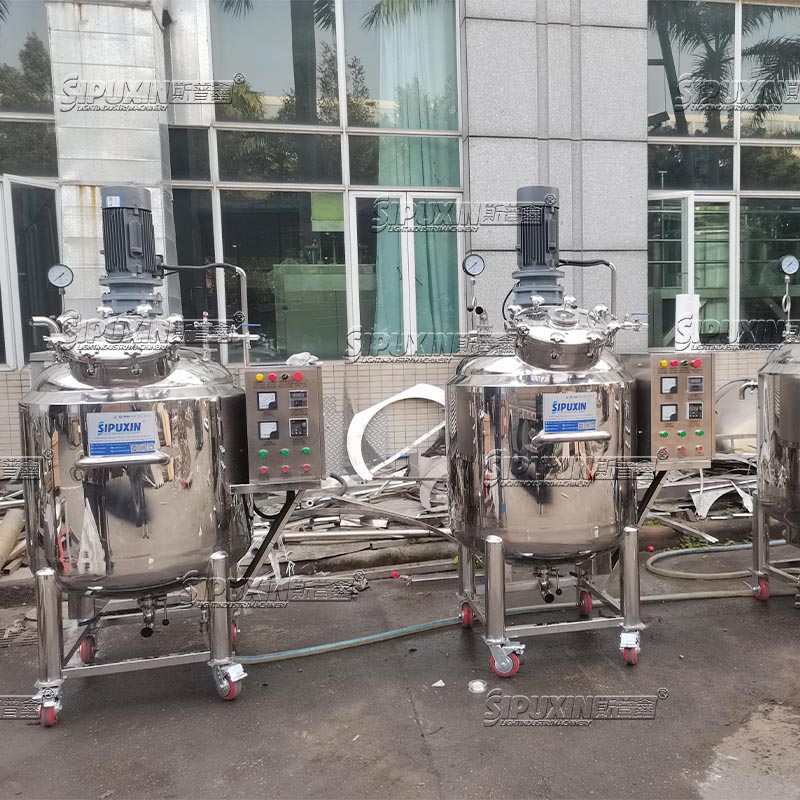

6.  Mobile support part: stainless steel support legs + 4 brake universal casters

Usage and Application

Usage

1. Open the manhole and put raw materials into the tank according to production formula.

2. 2. Close the manhole and lock tightly to keep tank sealed.

3. 3. Set target temperature on control panel and start electric heating circulation.

4. 4. Turn on top stirring motor, adjust suitable stirring speed for full blending.

5. 5. Monitor tank internal pressure via pressure gauge during mixing.

6. 6. Stop heating and stirring after mixing finished, open bottom discharge valve to release finished material, then move tank by casters for cleaning.

Application

1. Daily chemical industry: shampoo, body wash, hand sanitizer, liquid soap, hair conditioner, lotion, cosmetic base liquid, perfume premix.

2.  Food industry: fruit syrup, beverage base, sauce, edible essence, dairy mixing.

3. Pharmaceutical industry: liquid medicine, disinfectant, herbal liquid extract, medicinal liquid preparation.

4. Fine chemical industry: detergent raw material, water-based glue, lubricant liquid mixing.

Core Advantage

1. Fully sealed tank body with standard manhole design, good tightness, effectively prevent raw material volatilization and dust pollution, support slight negative pressure mixing.

2. Electric jacket heating system, uniform temperature conduction, adjustable temperature from room temperature to 90°C, accurate temperature control to protect raw material activity.

3.  Movable universal casters with brake, flexible to shift workshop position, easy for feeding, discharging and cleaning without fixed installation.

4.  Whole tank mirror polished SUS304 stainless steel, food & cosmetic grade, meet GMP hygiene standard, smooth inner wall no dead angle, easy CIP cleaning.

5. Independent separated control cabinet, integrated temperature display, stirring speed control, heating switch, pressure monitoring, simple operation and safe circuit protection.

6. Top vertical agitator with adjustable frequency speed, evenly stir liquid, cream, slurry, no precipitation and layering.

7. Complete accessories: pressure gauge, sampling port, feeding port, discharge valve, vent valve, fully functional for small & medium batch production.

Item	Specification
Model	SPX-300L Sealed Mobile Mixing Tank
Effective Volume	300L
Total Tank Volume	360L
Heating Mode	Electric jacket heating
Temperature Range	RT ~ 90℃
Tank Material	SUS304 stainless steel, mirror polishing
Agitator Type	Top vertical mixing agitator
Stirring Power	2.2 kW
Stirring Speed	0–120 rpm frequency adjustable
Heating Power	9 kW
Sealing Structure	Manhole sealed cover, silicone sealing ring
Auxiliary Parts	Pressure gauge, sampling port, feed port, discharge valve, vent port
Mobile Part	4 universal brake casters
Control System	Independent separated electrical control cabinet
Working Voltage	380V/50Hz (customizable 220V/415V)
Overall Size	1450×1100×1850 mm
Net Weight	About 420 kg
Certification	CE, ISO9001
