500L Custom Single Layer Stainless Steel Mixing Tank, PLC Controlled Cheese Mixing Vessel for Dairy Milk Yogurt Cream Production

product overview

Brief Introduction

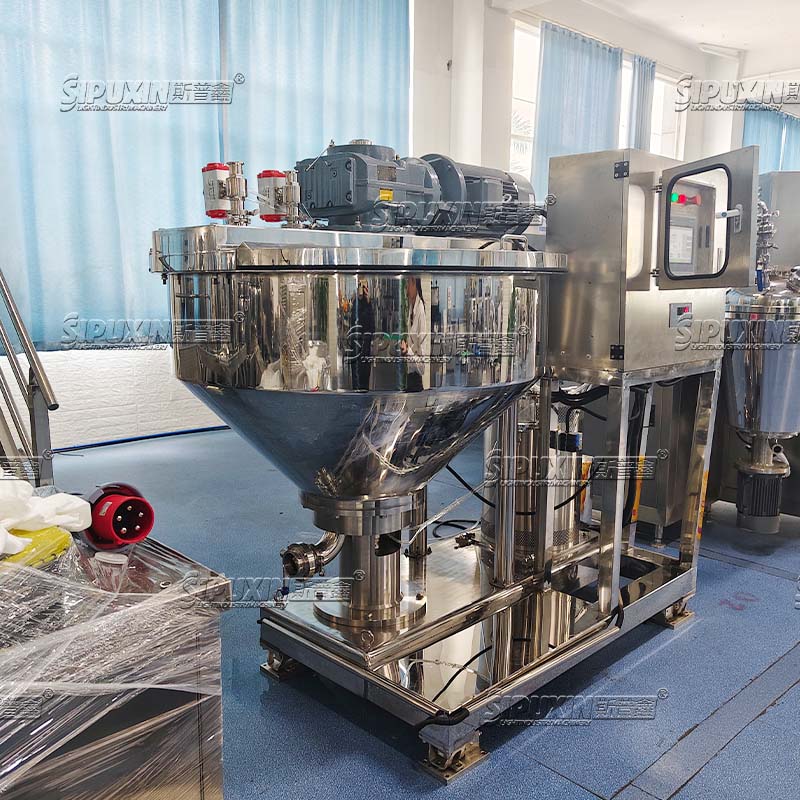

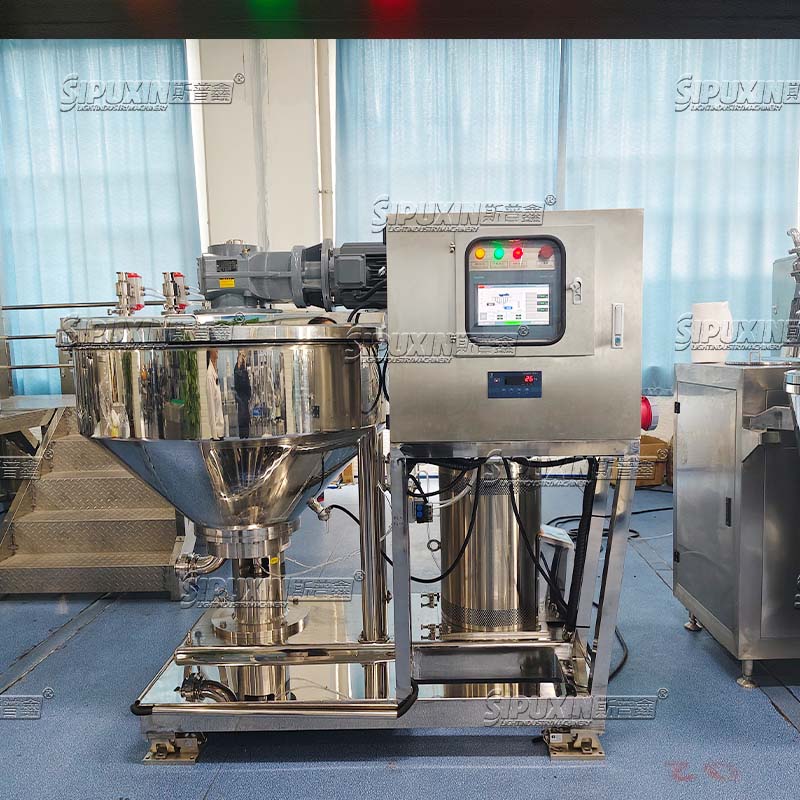

500L custom single-layer cheese mixing tank adopts food-grade SUS304 stainless steel with conical bottom for full material discharge. Equipped with top stirring motor and PLC touch control panel, it realizes adjustable-speed homogeneous mixing of milk, cream and ferment for all kinds of cheese. The smooth inner wall enables easy cleaning to meet food hygiene standards. Custom functions like heating or circulation can be added. It perfectly matches dairy sterilizers and filling machines to form a complete dairy processing line with stable and low-loss production.

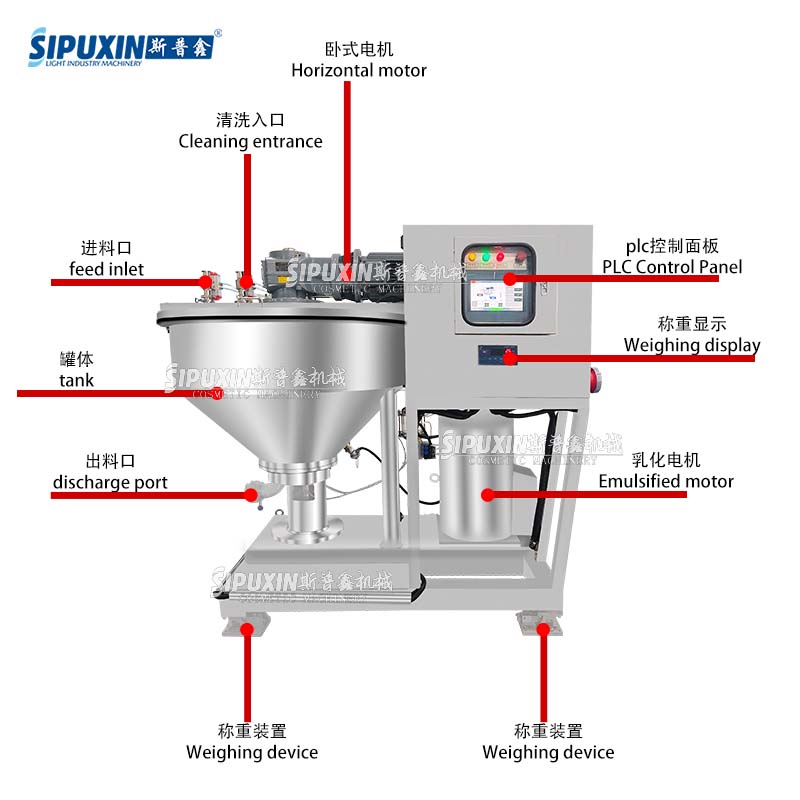

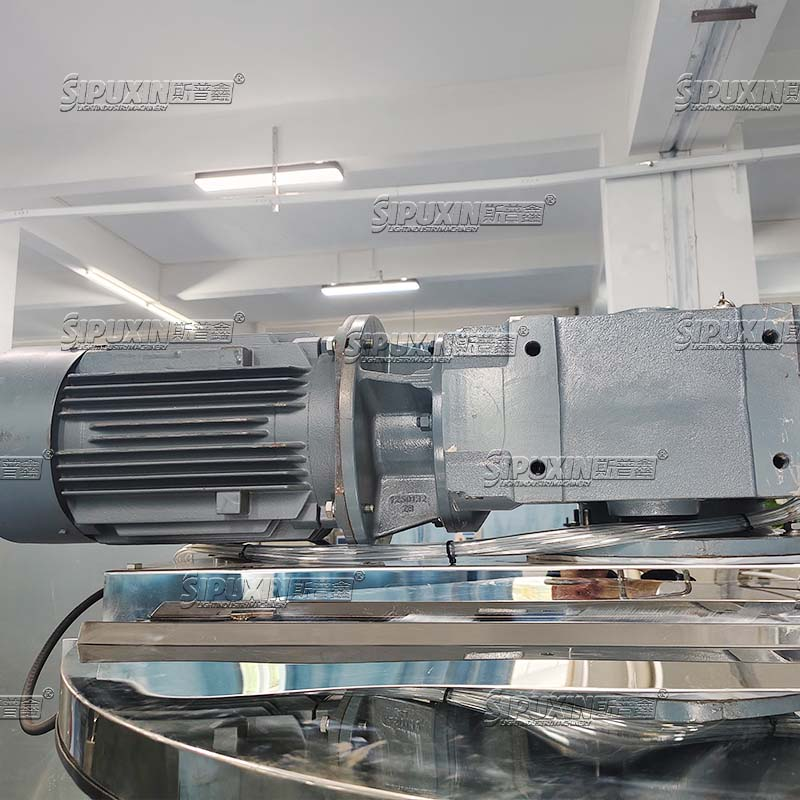

1. Horizontal motor

Top-mounted horizontal stirring motor with speed reducer, drives the mixing paddle to stir dairy raw materials evenly, prevents material adhesion on tank wall.

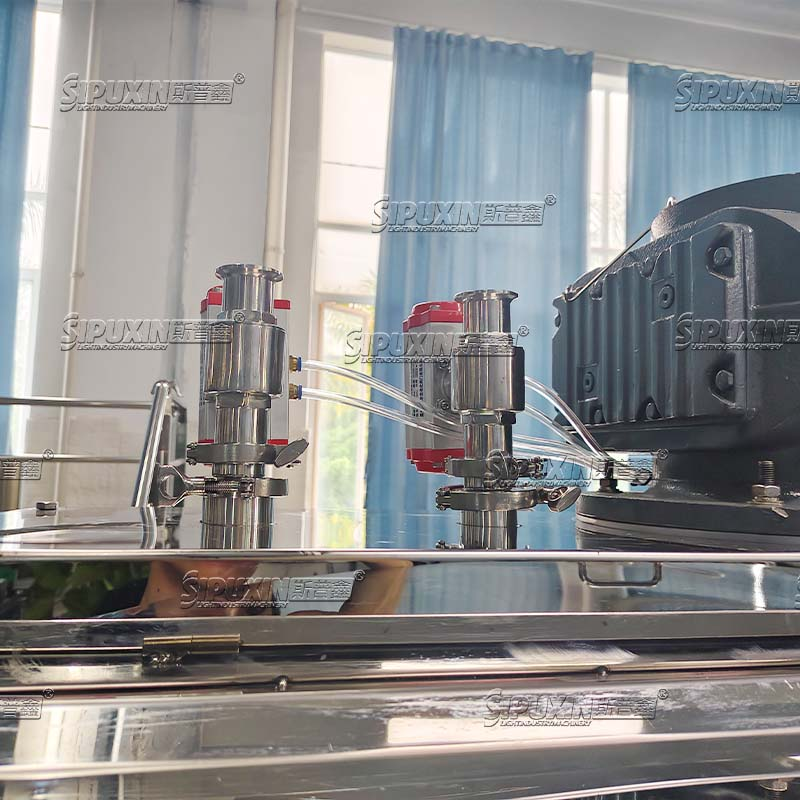

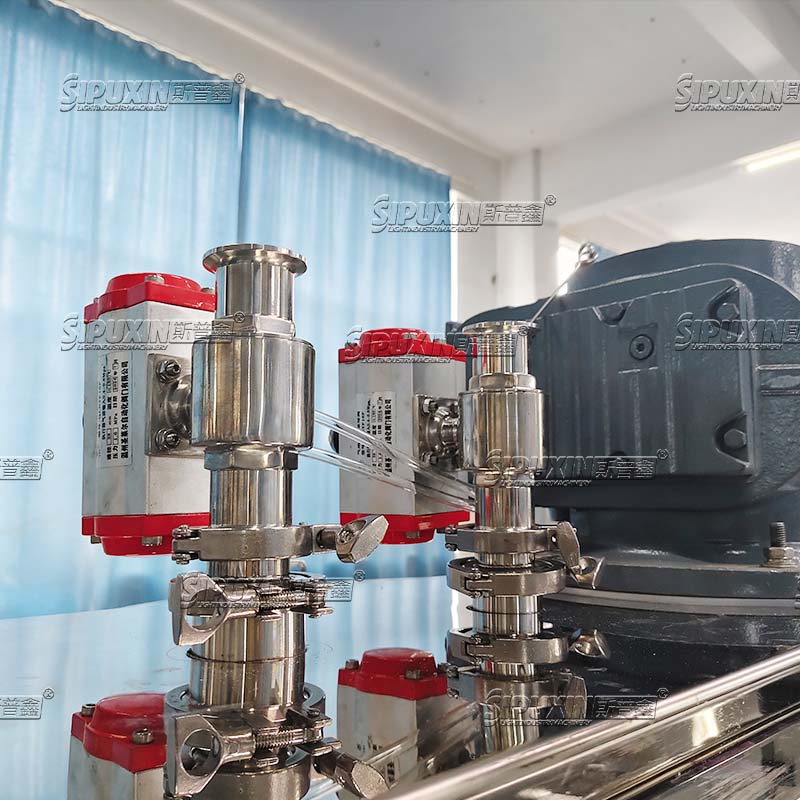

2. Cleaning entrance 清洗入口

Reserved opening for CIP cleaning spray head, convenient for automatic inner tank flushing after batch production, meets food sanitation standards.

3. Feed inlet

Sanitary quick-open feed port on tank top, for adding milk, cream, fermentation strains and other cheese raw materials, equipped with sealing valve to avoid overflow.

4. Tank

Single-layer SUS304 food-grade stainless steel tank with conical bottom, mirror polished inner surface without dead corners, ensures complete discharge of cheese paste with no residue.

5. Discharge port

Sanitary bottom discharge valve at cone tip, fast opening design, can directly connect with filling pipelines for finished cheese output.

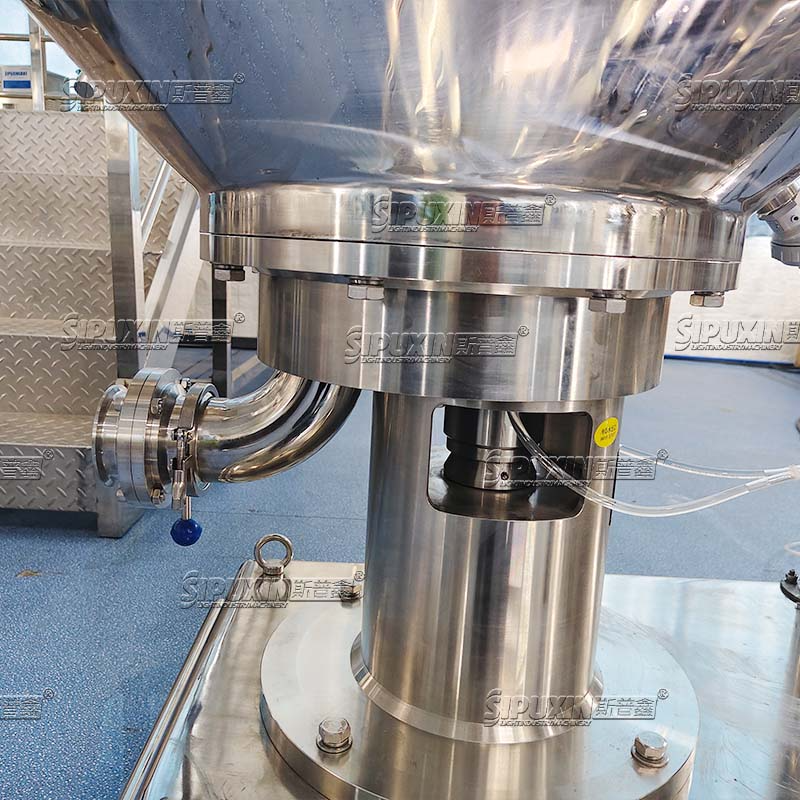

6. Emulsified motor

Bottom high-shear homogenizing motor, breaks large dairy particles, makes cheese texture delicate and uniform, suitable for soft cream cheese production.

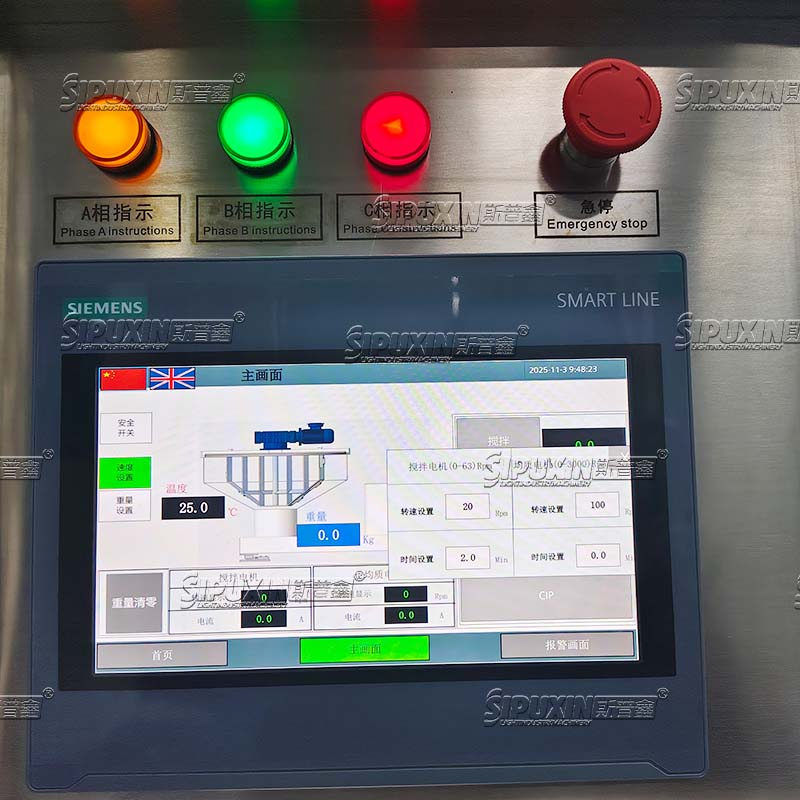

7. PLC Control Panel PLC

Touch screen integrated control unit, can set stirring speed, mixing time, emulsification cycle, store multiple production formulas, intuitive operation.

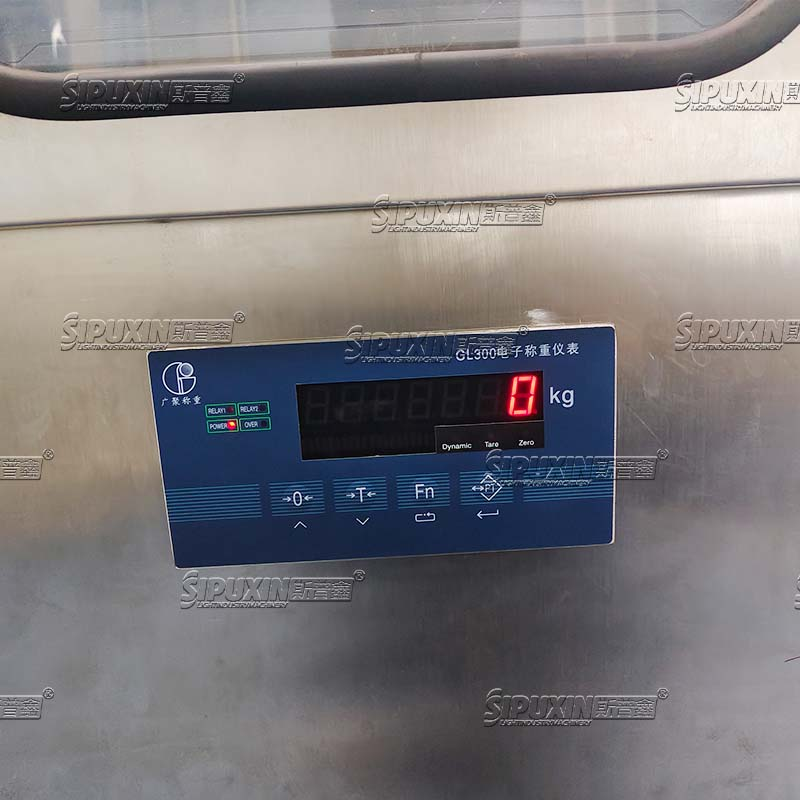

8. Weighing display

Real-time digital weight monitor, synchronously shows raw material weight inside the tank, realizes accurate batching without extra weighing equipment.

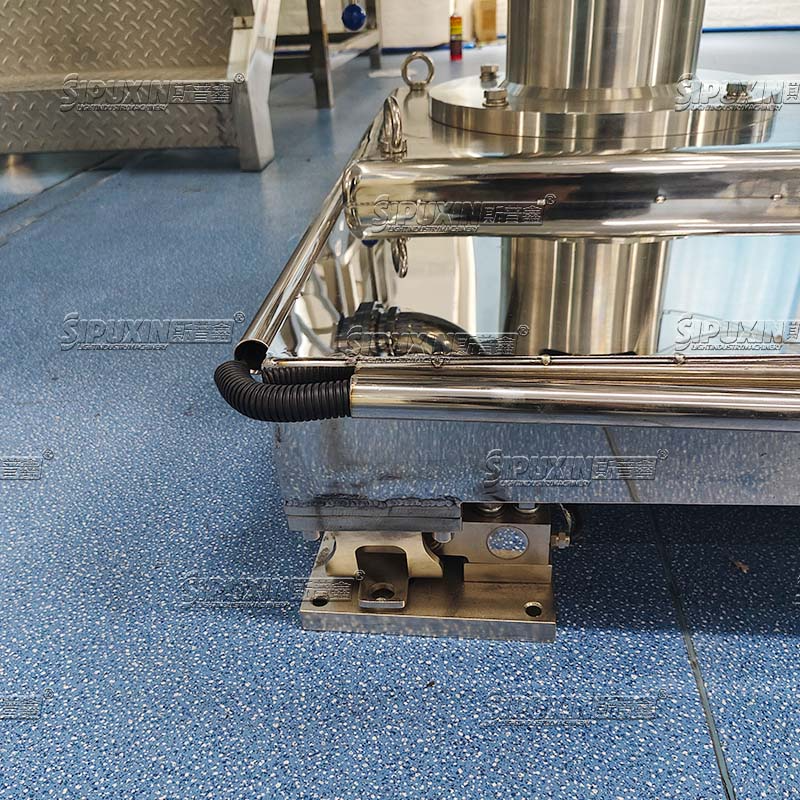

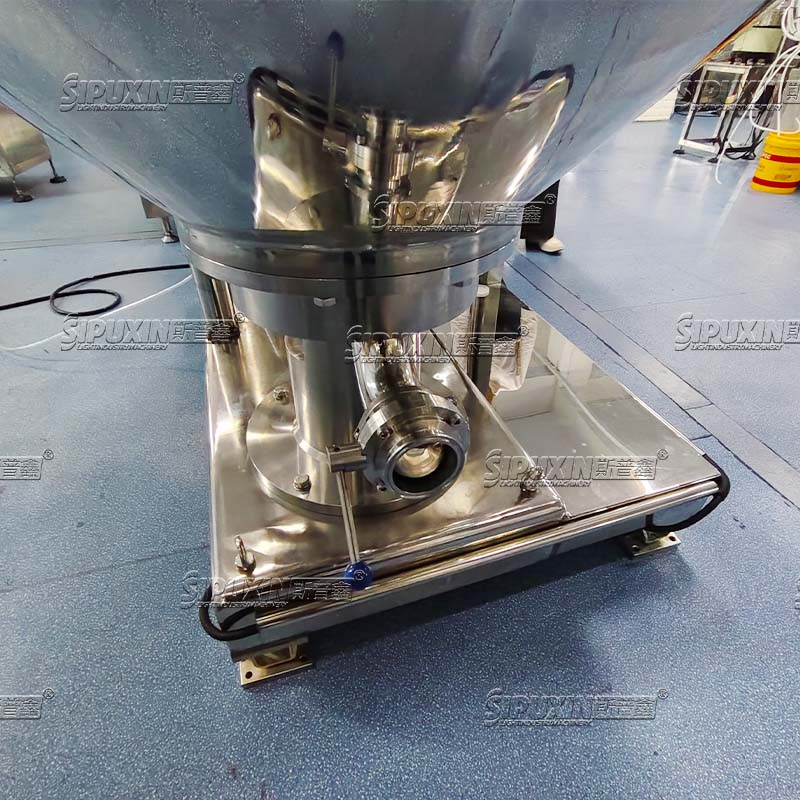

9. Weighing device

High-precision load cells installed on the base stand, supports whole tank real-time weighing, guarantees precise formula proportioning for dairy products

Range Cheese, mayonnaise, jam, honey, syrup, facial cream, lotion, shampoo, liquid detergent and various sauces & semi-solid emulsions.
