3000L Sealed Wall & Bottom Scrapping Mixing Tank Stainless Steel Heating Mixing Vessel with High Shear Homogenizer for Cosmetic Liquid Shampoo Detergent

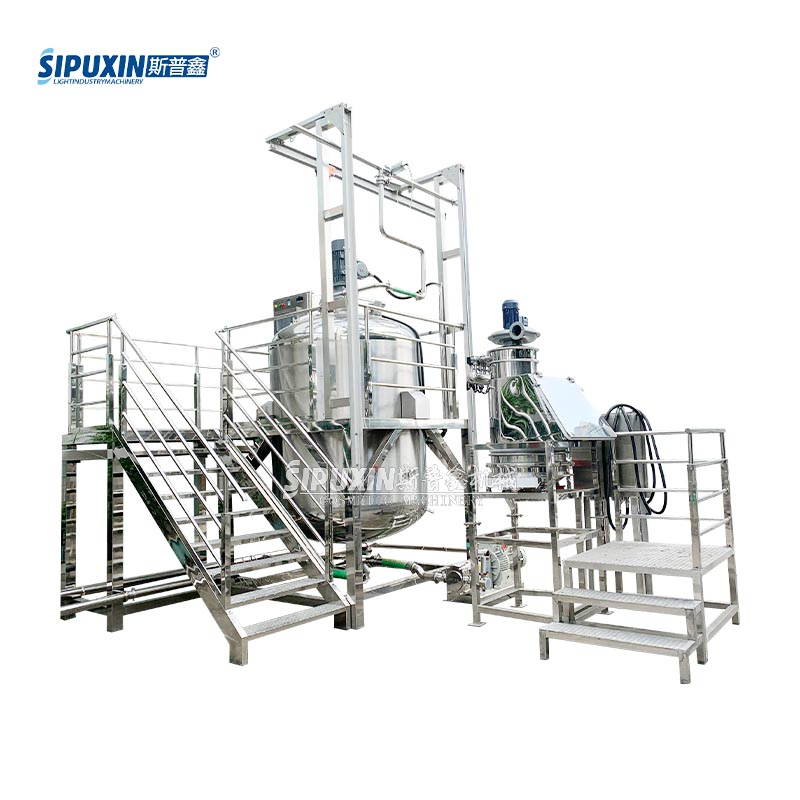

3000L fully sealed stainless steel mixing tank with wall & bottom scraper and side homogenizer, equipped with complete stainless steel operating platform. It realizes dead-angle-free uniform mixing, supports jacket heating, suitable for large-batch blending of shampoo, detergent and various cosmetic liquids, complies with GMP hygiene standards.

Speed:	0-3000 rpm
Availability:

Quantity:



Inquire Add to Basket

Model:
SPX-3T-m-26616
Brand:
Sipuxin

Product Description

3000L fully sealed stainless steel mixing tank with wall & bottom scraper and side homogenizer, equipped with complete stainless steel operating platform. It realizes dead-angle-free uniform mixing, supports jacket heating, suitable for large-batch blending of shampoo, detergent and various cosmetic liquids, complies with GMP hygiene standards.

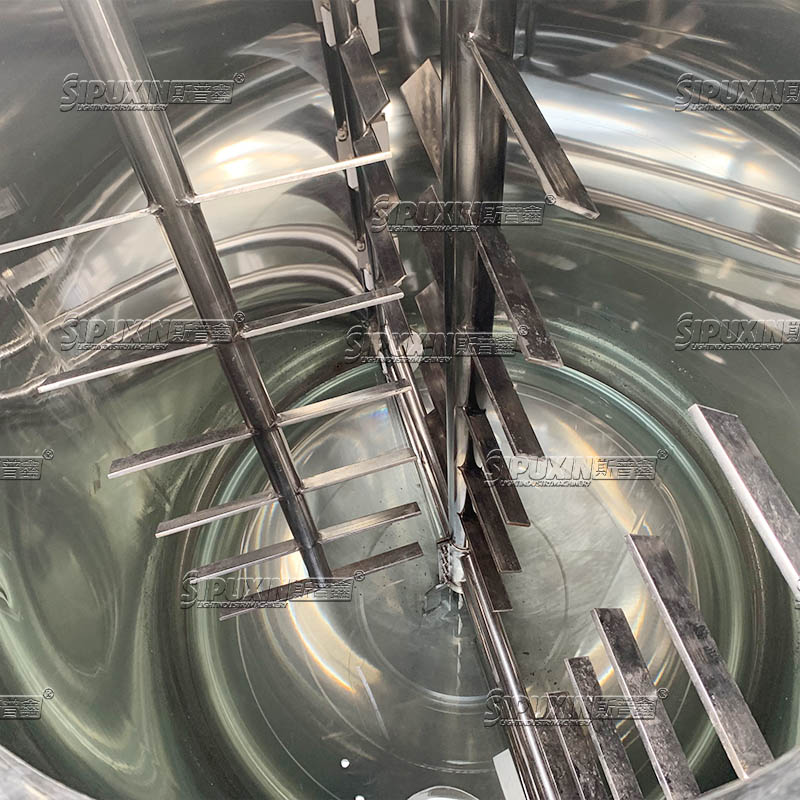

stirring

1.Fixed slurry + scraping wall scraping bottom stirring bladeensures material rolling and stirring.

2.Effect Seamless welding,easier to clean after production .

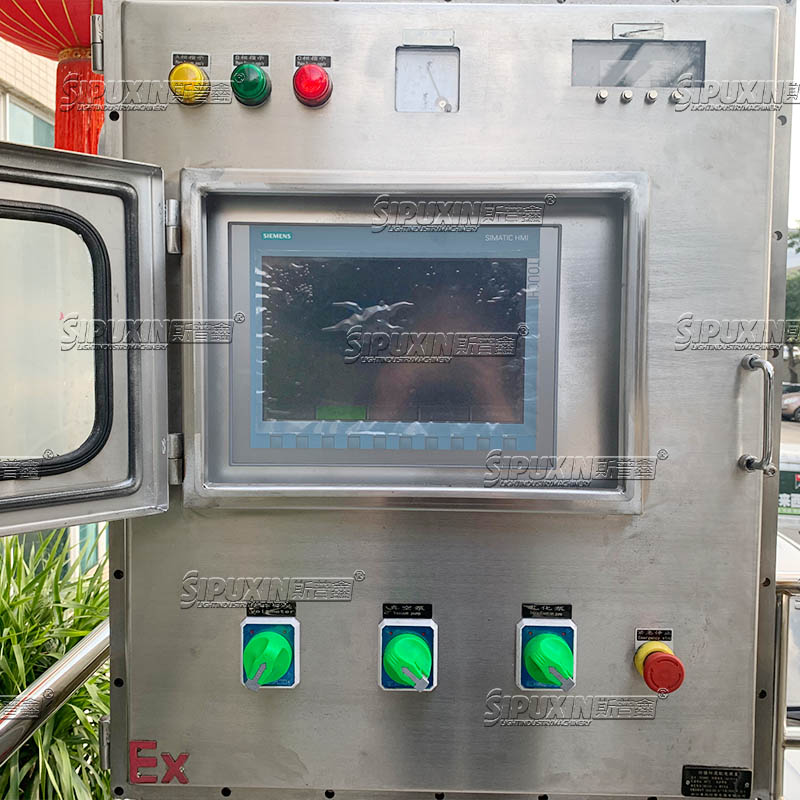

Button control panel

Press these button to control the machine start or stop operation; also can adjust the parameter according to different materials,which is easy to operate.

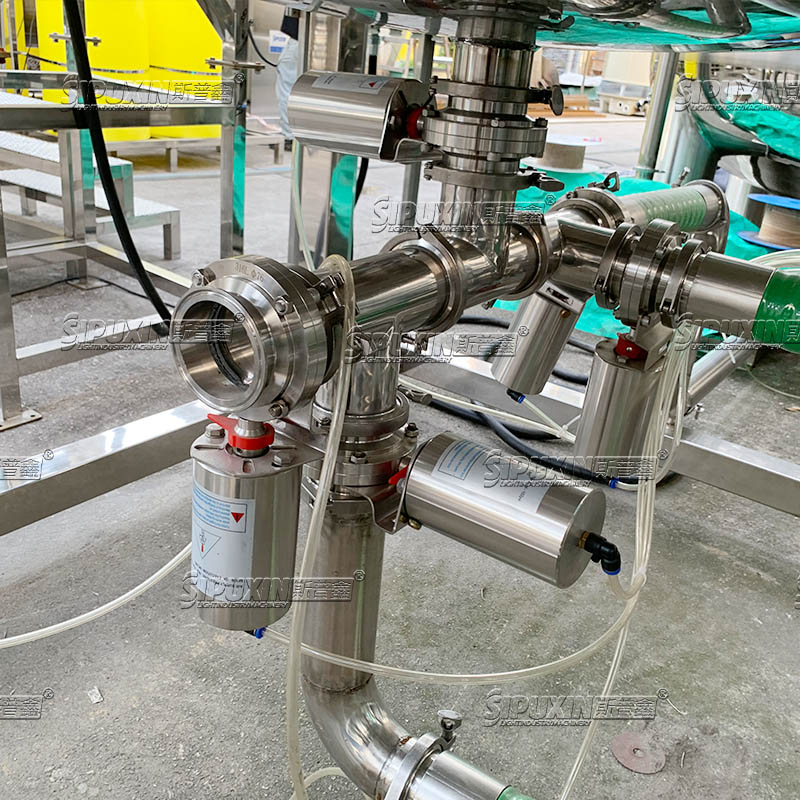

Discharge

Bottom discharge which is convenient for transporting out materials.

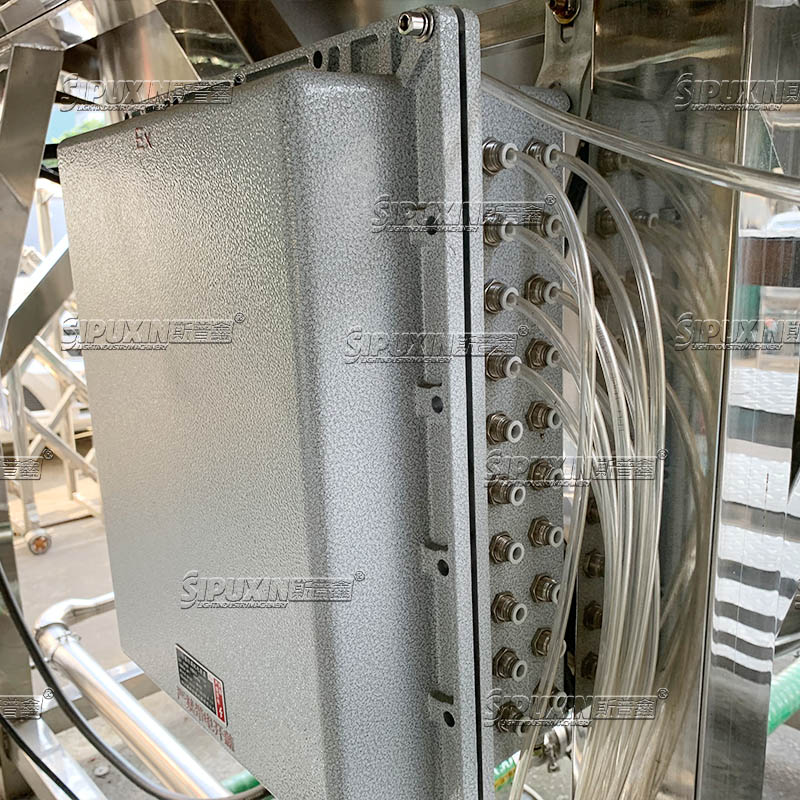

Electric box

Use internationally renowned brand components to ensure the quality of the equipment and longer service life.

Materials are accurately dosed via built-in weighing system. Under vacuum environment, high shear homogenizer and scraper mixer operate simultaneously to crush, blend and emulsify raw materials evenly. Hydraulic lifting design facilitates feeding, discharging and internal cleaning.

3T搅拌锅 (8)

Top Mounted Mixing Reducer Assembly

It lowers motor speed and boosts torque to drive the stirring frame steadily at 0–60 rpm. It can handle high-viscosity materials without splashing, supports variable frequency speed control, and guarantees even mixing without dead zones.Cooperating with the sealed tank cover and reserved ports, it enables fully sealed mixing and vacuum defoaming to avoid material contamination.

3T搅拌锅 (9)

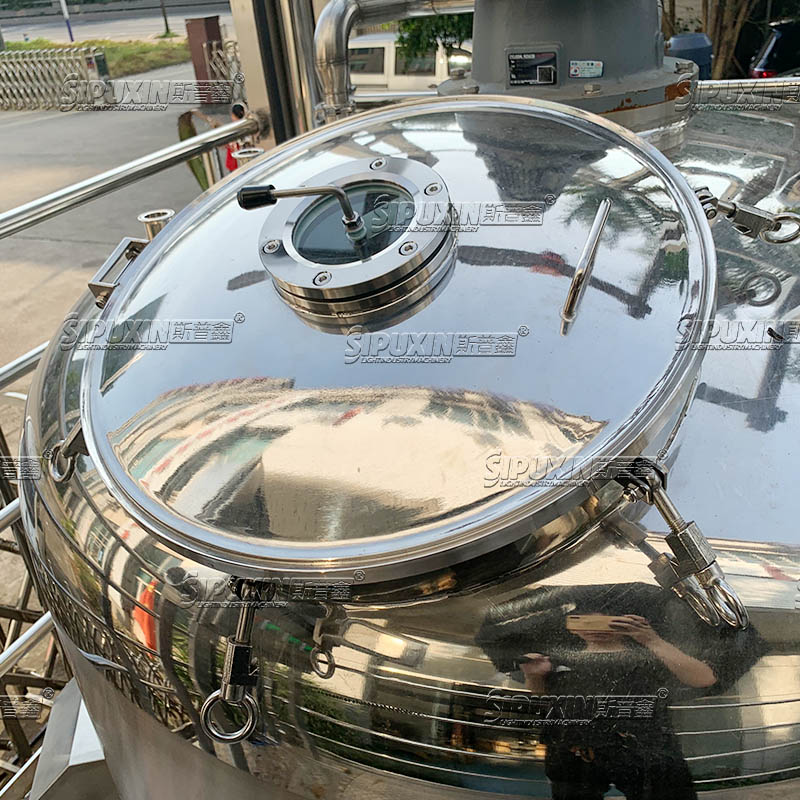

Sealed Manhole Cover with Sight Glass

The quick-opening lock type manhole cover realizes fully sealed production, preventing dust and foreign matter from polluting raw materials inside the tank.

2. The central sight glass allows operators to observe the mixing state, material level and emulsification progress inside the tank in real time without opening the cover.

3. The overall mirror-polished stainless steel surface is easy to clean and meets GMP hygiene requirements for cosmetic and daily chemical production.

Item	Specification	Remarks
Core Model	SPX-3000L Fully Sealed Mixing Tank	Customizable capacity: 500L–5000L
Nominal Capacity	3000L (3 Tons)	Effective working volume: 2400L
Tank Material	SUS304 Stainless Steel	Material contact parts upgradable to SUS316L
Tank Structure	Double-layer jacketed fully sealed vertical tank	Equipped with thermal insulation layer for constant temperature
Mixing System	Integrated wall & bottom scraping stirring frame	PTFE scraper fits tank wall and bottom tightly
Stirring Speed	0–60 rpm	Stepless frequency conversion adjustable
Homogenizing System	Side-mounted high shear homogenizer	For emulsification and dispersion
Homogenizer Speed	3000 rpm	Variable frequency optional
Heating Mode	Jacket electric / steam heating	Temperature control range: 20–120℃ optional
Sealing Performance	Full sealed tank, support vacuum negative pressure	Max vacuum degree: -0.095MPa
Top Cover	Quick-lock manhole cover with sight glass	Reserved ports for feeding, vacuum, temperature detection
Operating Platform	Full SUS304 stainless steel platform with stairs & guardrail	Anti-slip, safe for operation and maintenance
Total Power	12.5 kW	Stir motor 7.5kW, homogenizer motor 4kW, auxiliary 1kW
Power Supply	380V 50Hz 3 Phase	Customizable 220V/415V/440V, 50/60Hz
Core Components	PLC, Motor, Pump, Gear, Bearing, Gearbox, Pressure Vessel	Famous brand spare parts available
Applicable Products	Shampoo, body wash, liquid soap, detergent, floral water, cosmetic lotion, liquid raw material mixing	Mass production for daily chemical & cosmetic factories
Compliance Standard	GMP hygiene standard, CE certification optional	Meet international cosmetic production requirements
