SIPUXIN 300L Movable Electric Heating Vacuum Homogenizer Emulsifying Mixer, Cosmetic Production Mixing Tank for Cream Shampoo Lotion

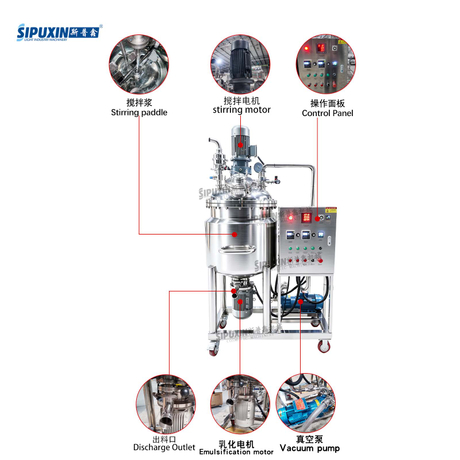

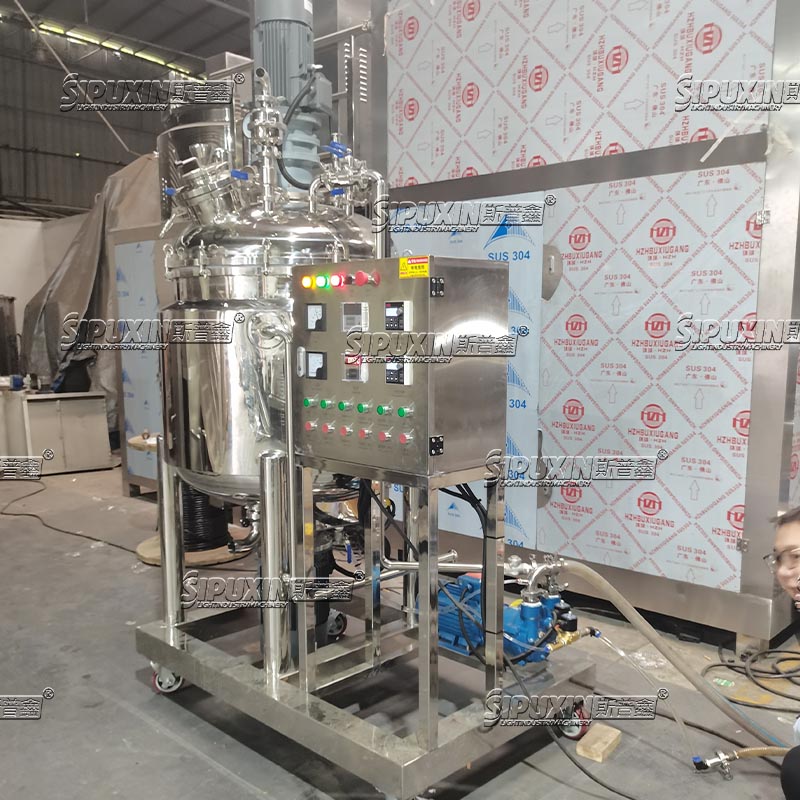

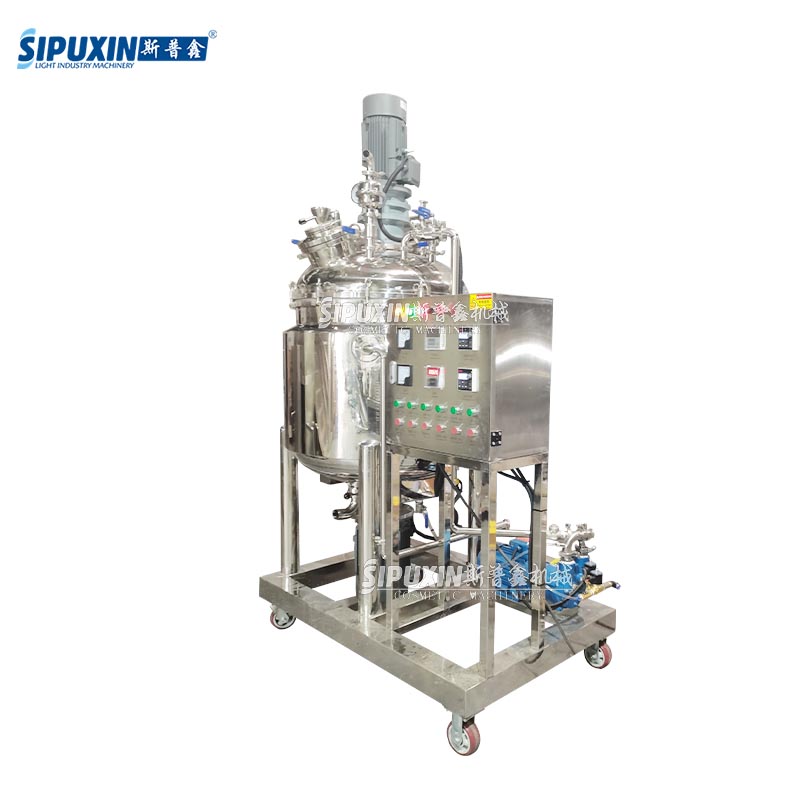

     300L Mobile Electric Heating Vacuum Homogenizing Emulsifier is a compact, versatile solution for producing cosmetics, pharmaceuticals, and emulsified products. With a 300L stainless steel tank, electric heating, and vacuum homogenization, it ensures smooth, bubble-free creams, lotions, and shampoos. Its mobile design with lockable casters allows flexible use in small to medium production lines.

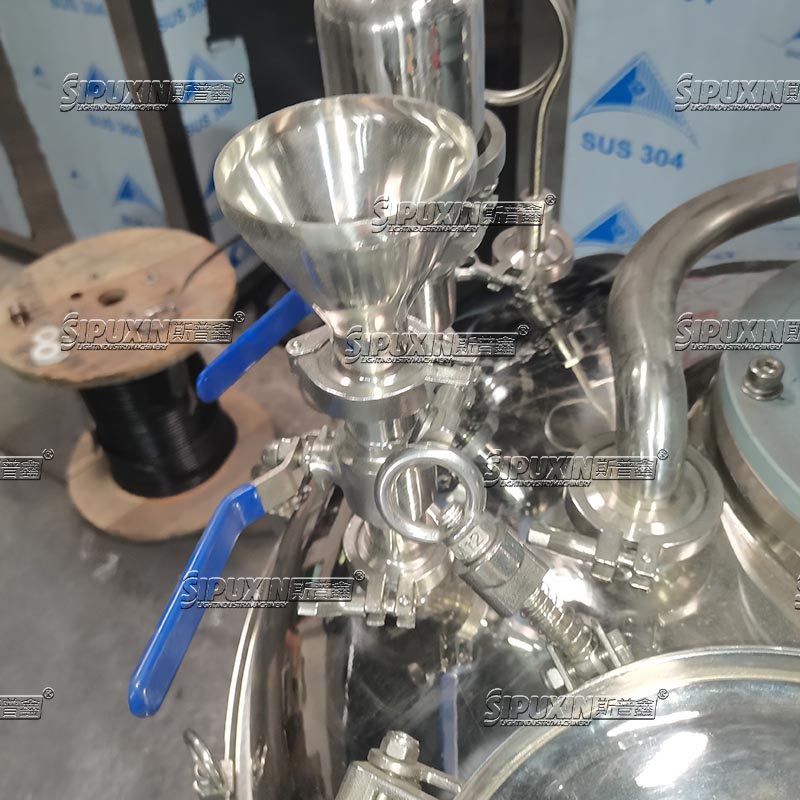

Feeding Hopper & Valve Assembly

This is the sanitary feeding hopper and valve assembly, designed for controlled material addition during vacuum emulsification.

• Structure: It consists of a polished stainless steel conical hopper, sanitary ball valves with easy-to-operate handles, and quick-release connections for disassembly and cleaning.

• Function: Used to safely add powders, thickeners, pigments, or liquid raw materials into the tank under vacuum conditions. It prevents dust scattering, air bubble entry, and material oxidation.

• Advantages: The hygienic design meets GMP standards, allowing operators to add ingredients without breaking the vacuum, ensuring product quality and production efficiency.

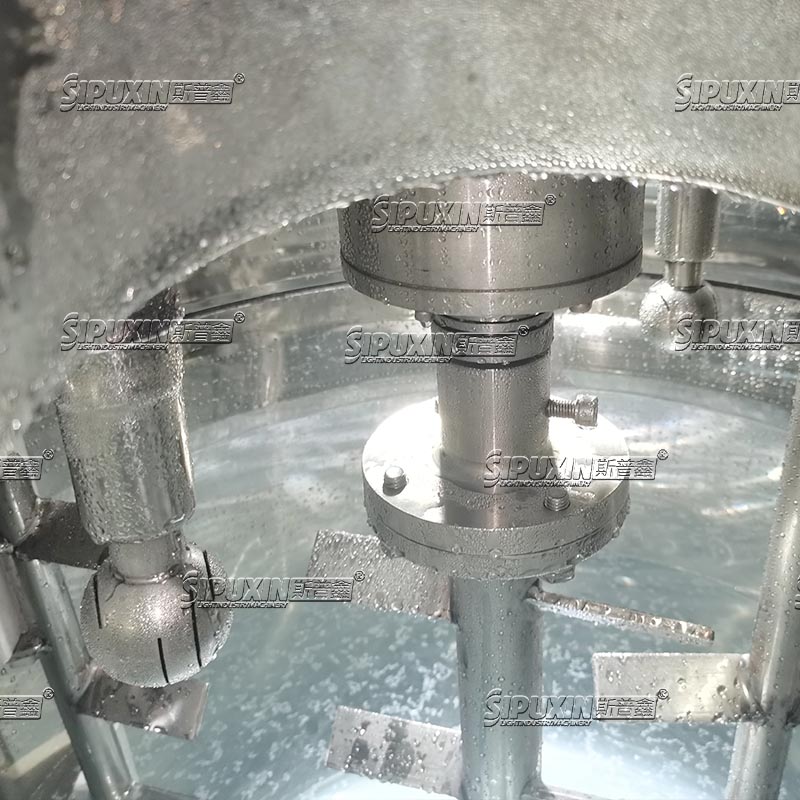

Stirring System

This emulsifier is equipped with a low-speed anchor stirrer with a continuously adjustable speed range of 0–60 RPM. Designed to work in synergy with the high-shear homogenizer, it moves slowly along the tank wall to prevent material buildup and eliminate dead zones. The adjustable 0–60 RPM speed allows precise control for different product viscosities, ensuring uniform mixing even for thick creams, pastes, and gels.

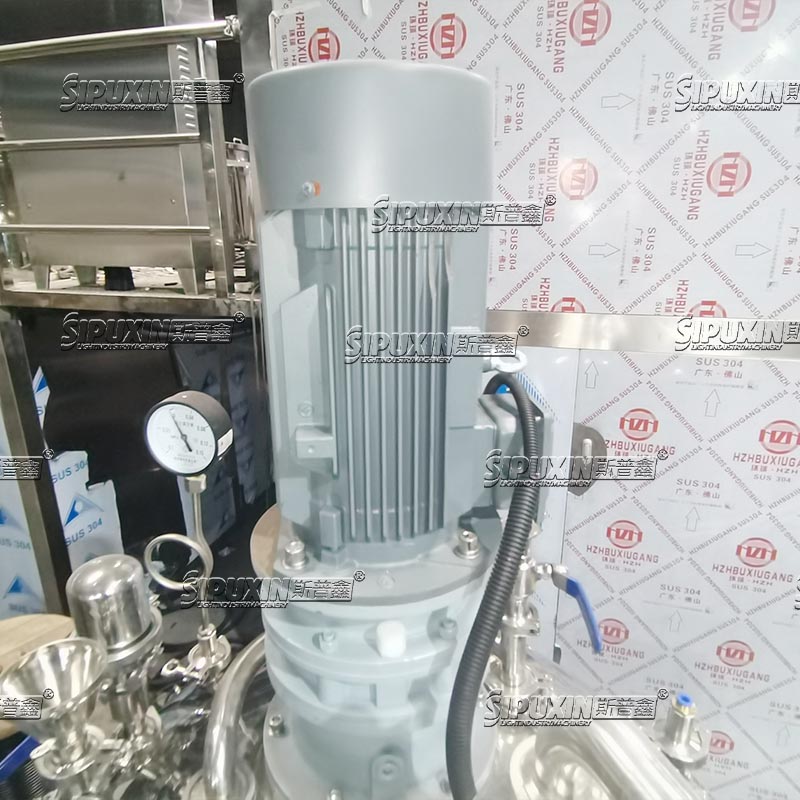

High-Speed Homogenizing Motor

consisting of the main drive motor and the rotor-stator homogenizing head.

• High-Power Drive Motor: The motor unit delivers stable, high-torque power to the homogenizer, enabling it to run at high speed for continuous shearing, dispersion, and emulsification of oil and water phases.

• Rotor-Stator Homogenizing Head: Mounted directly below the motor, the precision-engineered rotor-stator generates strong mechanical shearing force. It breaks down materials into micro-sized droplets, forming a fine, stable emulsion with uniform particle size.

• Sanitary Process Connections: The surrounding stainless steel fittings include a pressure gauge and sanitary valves, which monitor internal pressure and allow vacuum deaeration, raw material addition, and tank cleaning, ensuring hygienic and controlled production.

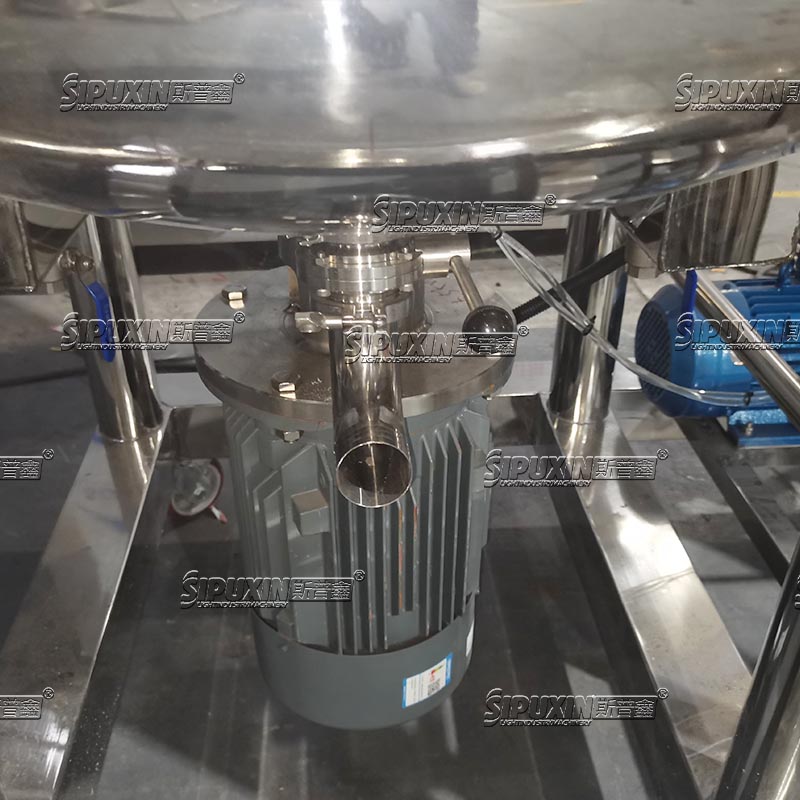

Bottom High-Shear Homogenizer

• Installation: Mounted at the bottom of the stainless steel tank, the homogenizer is directly connected to a high-power drive motor. This design allows it to work with high efficiency even for high-viscosity materials, eliminating dead mixing zones at the tank base.

• Function: The rotor-stator assembly generates strong mechanical shearing, impact, and turbulence at high speed. It breaks down oil and water phases into micro-sized droplets, forming a fine, stable emulsion with uniform particle size.

• Advantages: The bottom homogenizer improves circulation within the tank, ensuring consistent quality for creams, lotions, and other emulsified products. The hygienic stainless steel design meets GMP standards for cosmetics and pharmaceutical production.

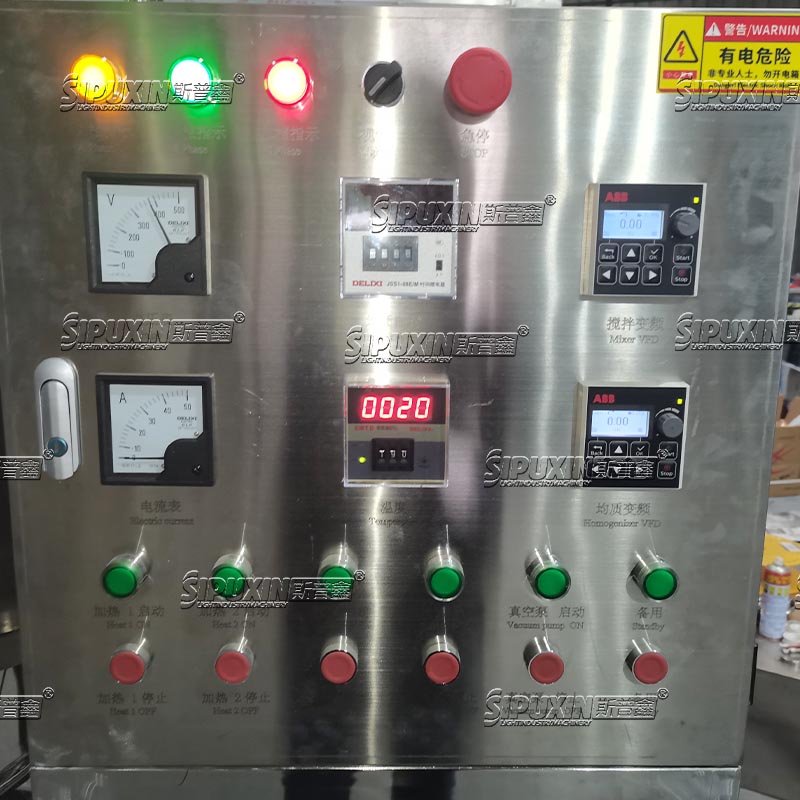

Control Panel

providing full operational control and real-time monitoring.

• Monitoring & Displays: It features a voltage meter, current meter, digital temperature controller, and dual ABB variable frequency drives (VFDs) for the mixer and homogenizer, allowing precise speed adjustment.

• Control Elements: Includes indicator lights (power, operation, fault), a main power switch, an emergency stop button, and dedicated push buttons for heating, vacuum pump, stirrer, and homogenizer start/stop functions.

• Function: The centralized control interface enables operators to easily set, monitor, and adjust all production parameters, ensuring stable, repeatable processes and enhanced safety during operation.
