Triangular Cone Open Hydraulic Lifting Electric Heating Vacuum Homogenizing Emulsifier Machine For Cosmetic Cream Hair Mask Ointment High Viscosity Paste Making

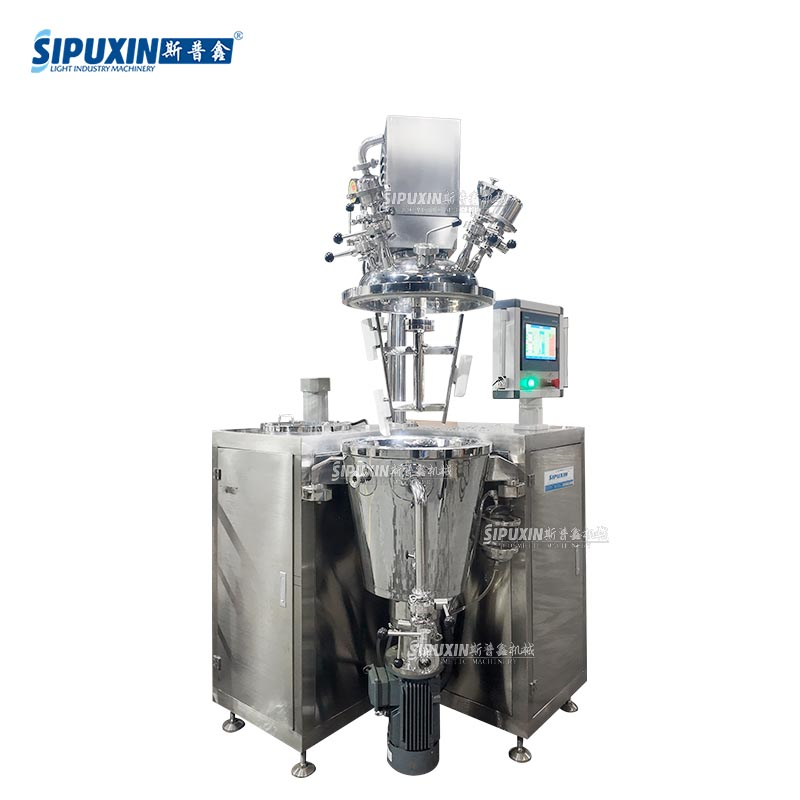

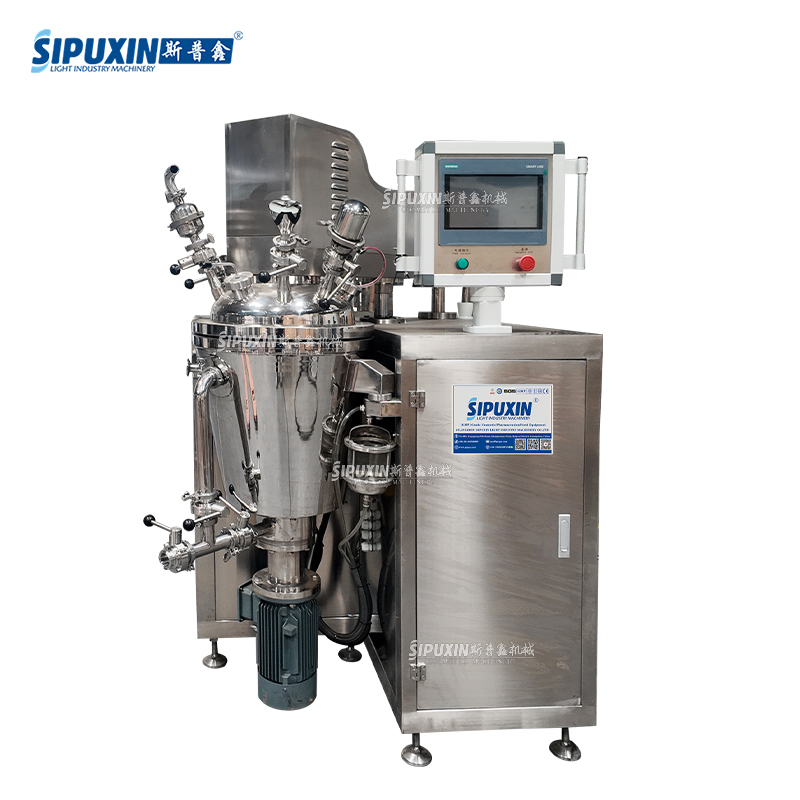

This machine adopts unique triangular cone pot design with hydraulic lifting cover, electric jacket heating and high-shear vacuum homogenizing system. All material contact parts are SUS304/SUS316L stainless steel. Under vacuum environment, it completes stirring, homogenizing, heating and emulsification synchronously, eliminating air bubbles inside finished paste. Hydraulic lifting structure brings full open space for feeding, discharging and internal cleaning, widely applied for thick cream, ointment and high-viscosity emulsion production.

Speed:	0-3000 rpm
Availability:

Quantity:



Inquire Add to Basket

Model:
SPX-homo-618
Brand:
Sipuxin

Product Description

This machine adopts unique triangular cone pot design with hydraulic lifting cover, electric jacket heating and high-shear vacuum homogenizing system. All material contact parts are SUS304/SUS316L stainless steel. Under vacuum environment, it completes stirring, homogenizing, heating and emulsification synchronously, eliminating air bubbles inside finished paste. Hydraulic lifting structure brings full open space for feeding, discharging and internal cleaning, widely applied for thick cream, ointment and high-viscosity emulsion production.

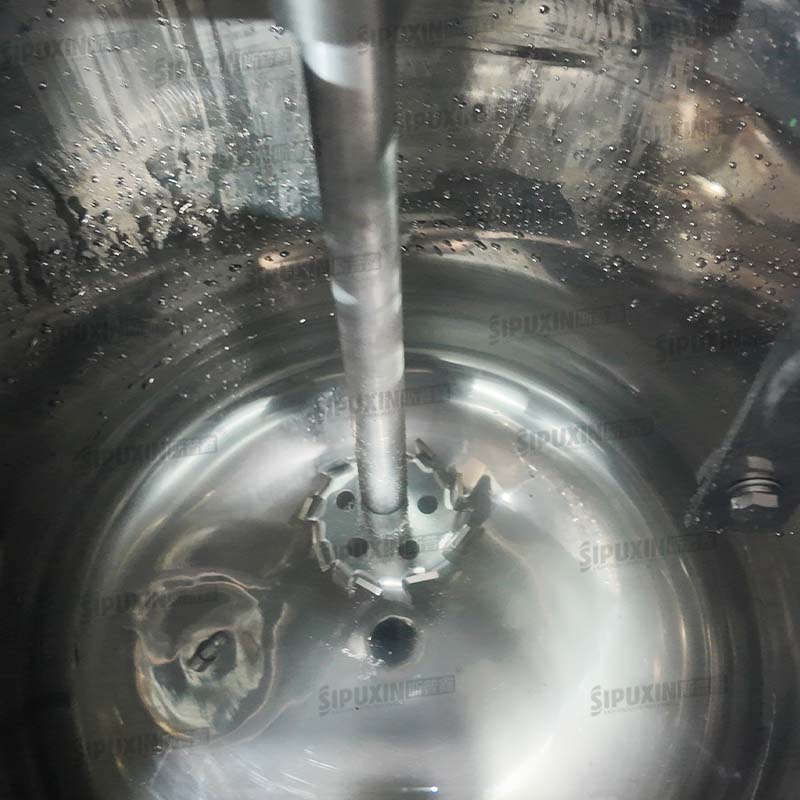

stirring paddle

It runs at high speed to shear, disperse and emulsify cosmetic raw materials, cooperating with the top anchor stirring frame to form full circulation mixing inside the triangular cone pot.

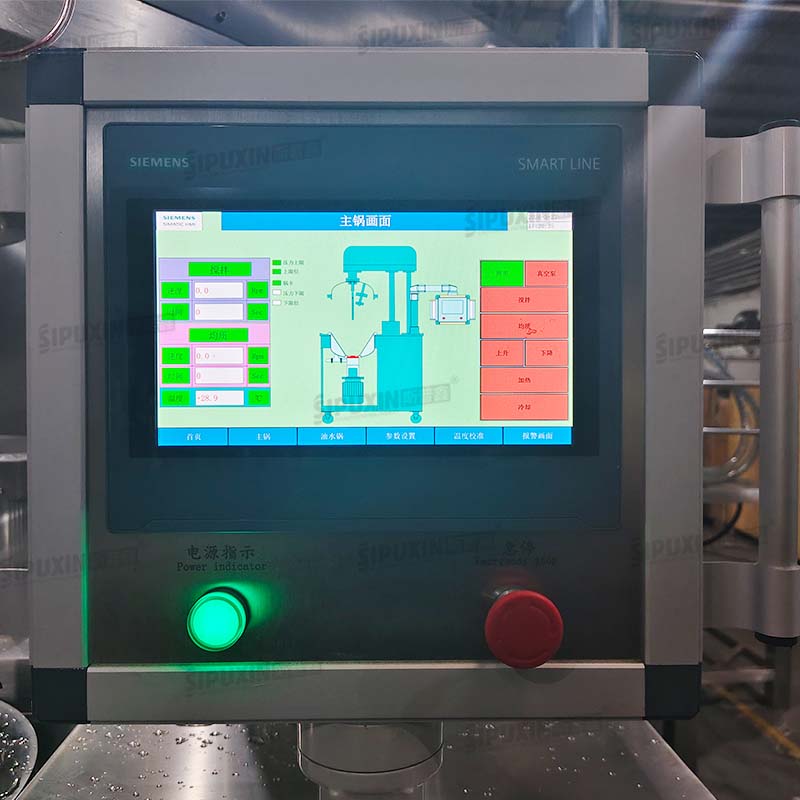

Control Panel

Siemens touch screen controls all machine parameters with real-time data display, fitted with power indicator and emergency stop for safe automatic operation.

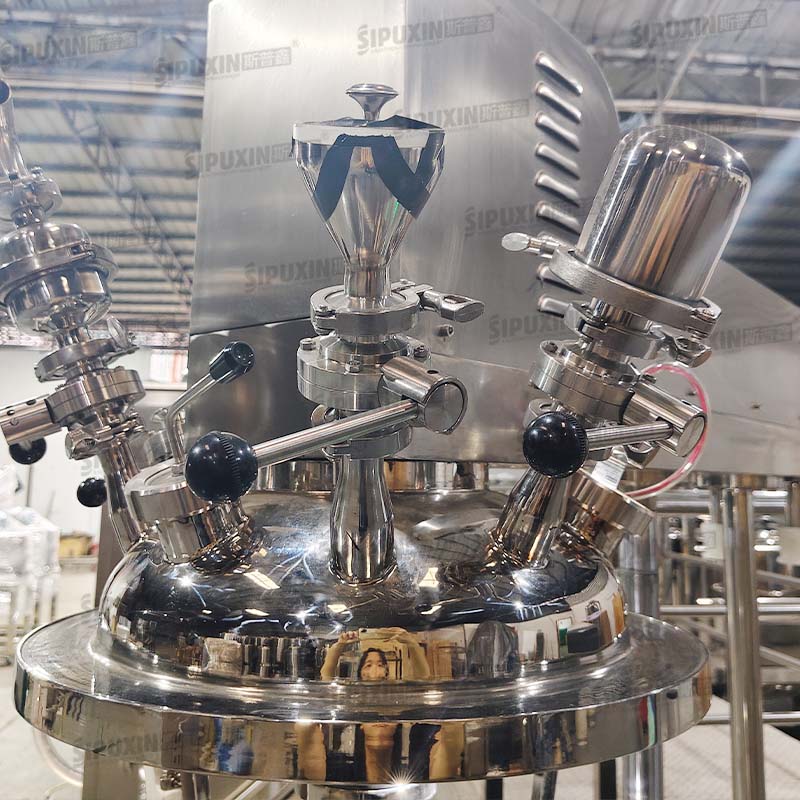

Feeding Assembly

The sealed top lid of triangular cone vacuum homogenizing emulsifier, integrated with multiple functional ports:

Central feeding funnel: add powder raw materials under vacuum state
Vacuum filter tank: connect vacuum pump to extract air inside the pot
Manual ball valves: for liquid feeding, sampling and pressure reliefAll parts are mirror-polished SUS316L stainless steel, fully sealed to maintain negative pressure during emulsification.

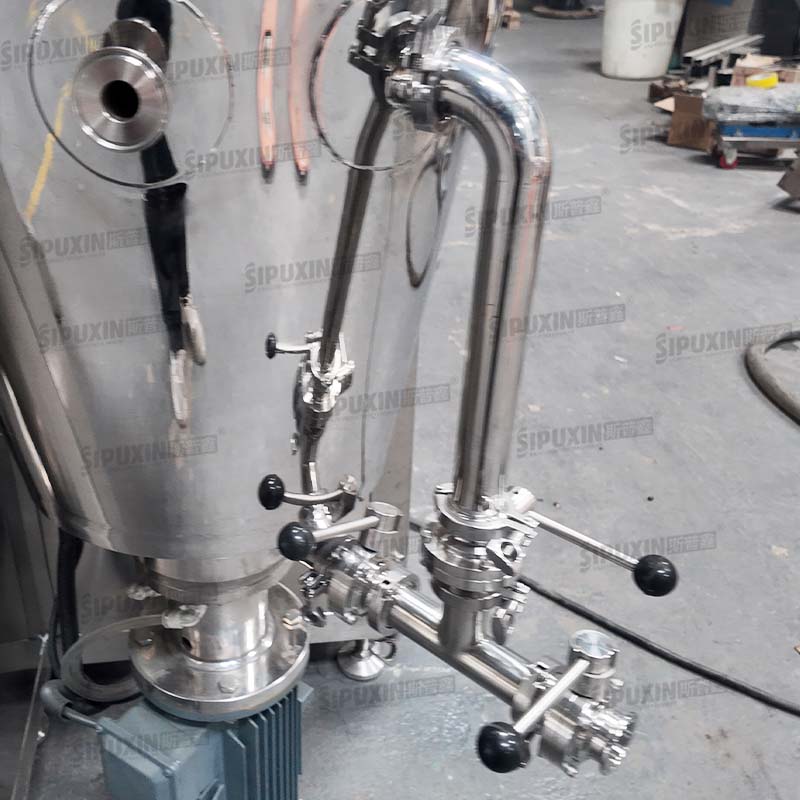

discharge pipeline

Stainless steel pipeline with multi manual ball valves, used for finished material discharging, sampling and tank cleaning.

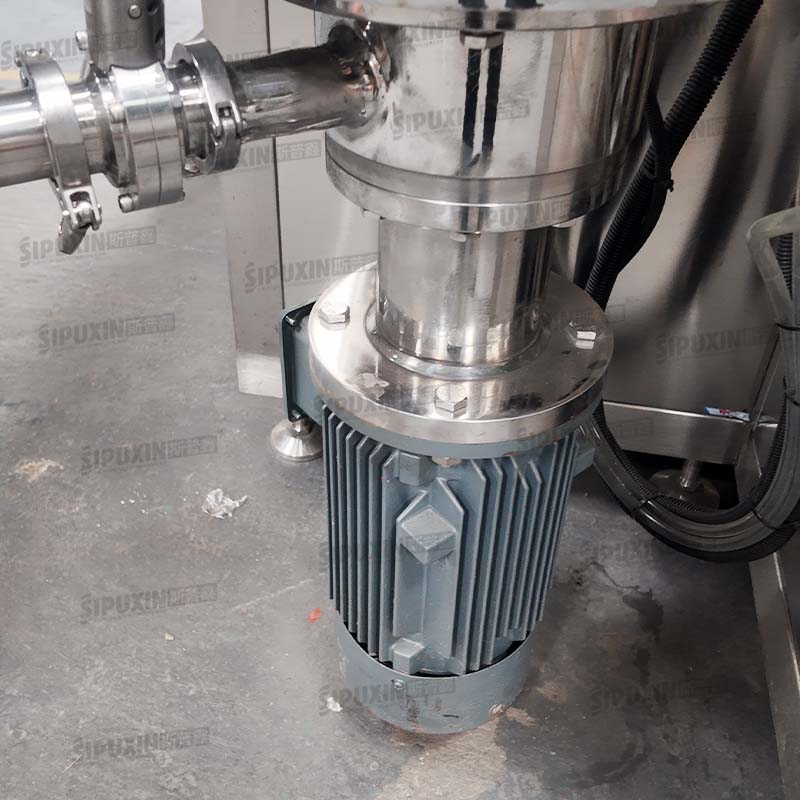

Homogenizer Motor

high-speed motor drives the bottom sawtooth homogenizing head to cut, disperse and emulsify cosmetic raw materials for fine, stable paste texture.

Item	Standard Specification	Remarks
Full Machine Name	Triangular Cone Open Type Hydraulic Lifting Electric Heating Vacuum Homogenizing Emulsifier	Customizable capacity & configuration
Tank Material	Food-grade SUS316L / SUS304 stainless steel	Mirror polishing for product contact area, GMP compliant
Stirring System	Anchor wall-scraping frame stirrer, frequency control	Speed: 0–63 rpm, no material dead zone
Homogenizing System	Bottom high-shear sawtooth homogenizer, frequency control	Speed: 0–3000 rpm, ultra-fine emulsification & dispersion
Heating Mode	Jacket electric heating with thermal insulation	Max temp 95℃, temperature accuracy ±1℃
Vacuum System	Water ring vacuum pump	Vacuum degree: -0.096 ~ -0.098 MPa, bubble removal
Lifting Mode	Full automatic hydraulic lifting	Fully open tank for feeding, cleaning & maintenance
Control System	Siemens PLC + color touch screen	One-key operation, real-time data monitoring, fault alarm
Sealing Structure	Food-grade mechanical seal + silicone gasket	Zero leakage under vacuum condition
Power Supply	AC380V 50Hz / customized 220V 60Hz	Voltage adjustable for different countries
