Automatic Linear Perfume Filling Machine Multi Heads Glass Bottle Fragrance Filler PLC Control Cosmetic Liquid Machinery

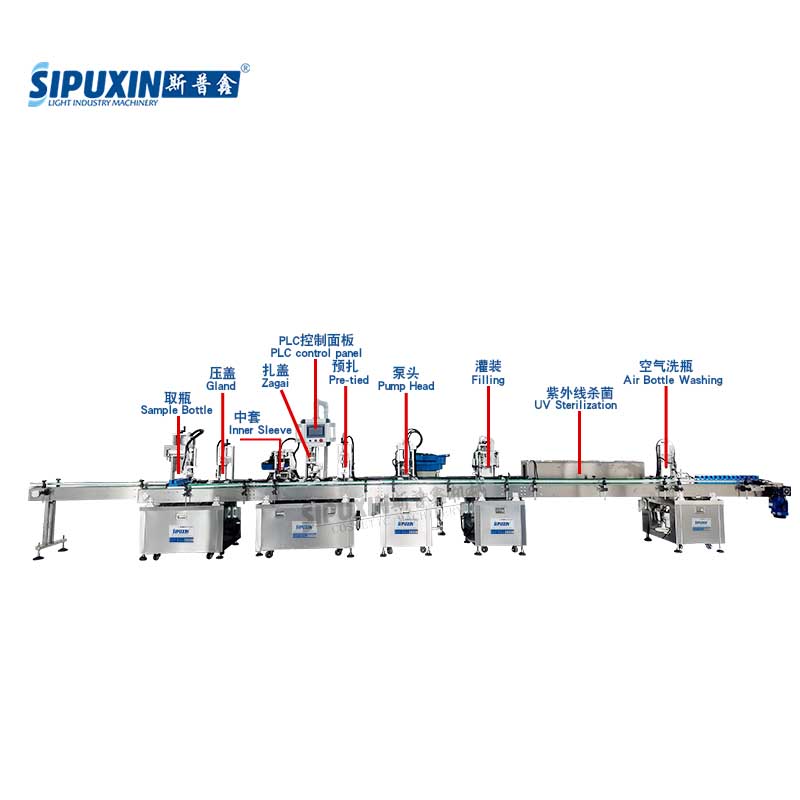

Machine components details

Pictures for reference

Air washing

1 piece of the air washing is equipped to clean the perfume bottles.

Remove the dust.

UV Sterilization

The UV sterilization device on the linear perfume filling machine is used to kill bacteria and microorganisms on bottle surfaces and in the air, ensuring the perfume remains hygienic, contamination-free and up to cosmetic safety standards during filling.

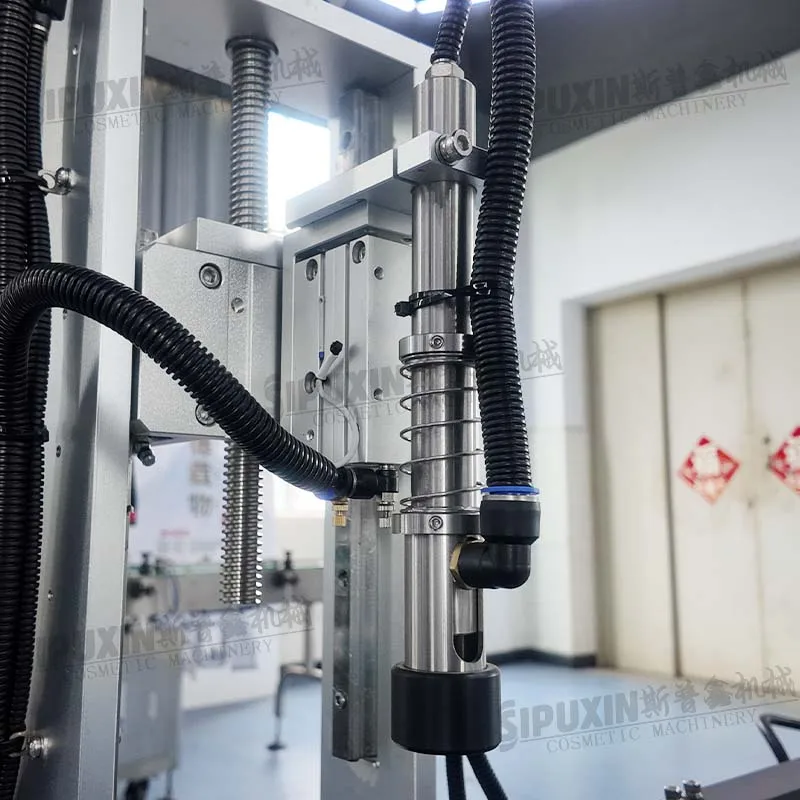

Filling nozzle

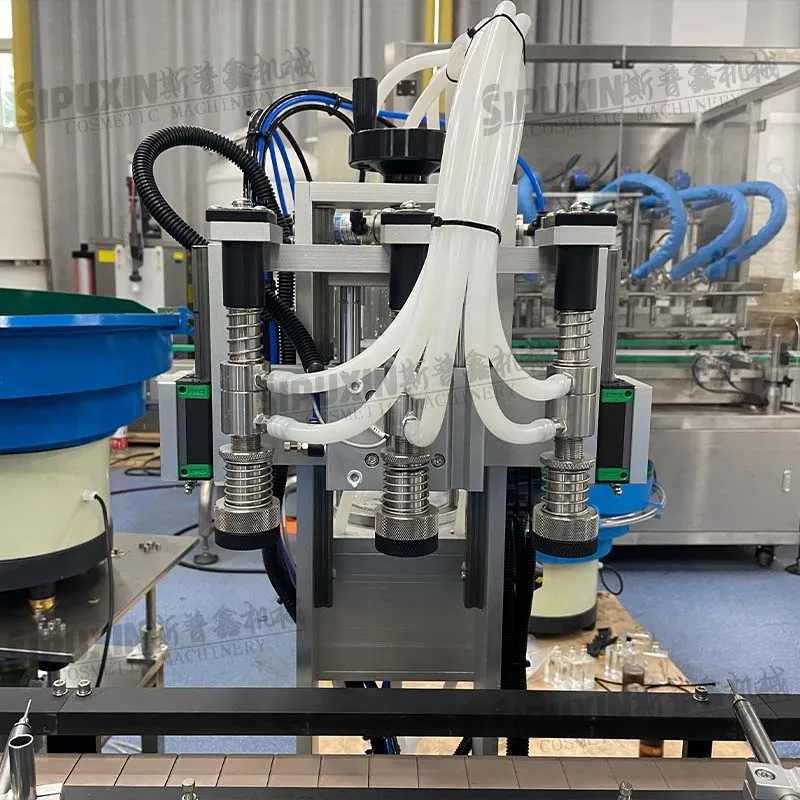

3 pieces of the vacuum filling nozzles fill the perfume to the bottles,it can make sure the liquid level of the bottle is at the same line.

And also remove the air out,make sure that there is no bubbles inside the bottles.

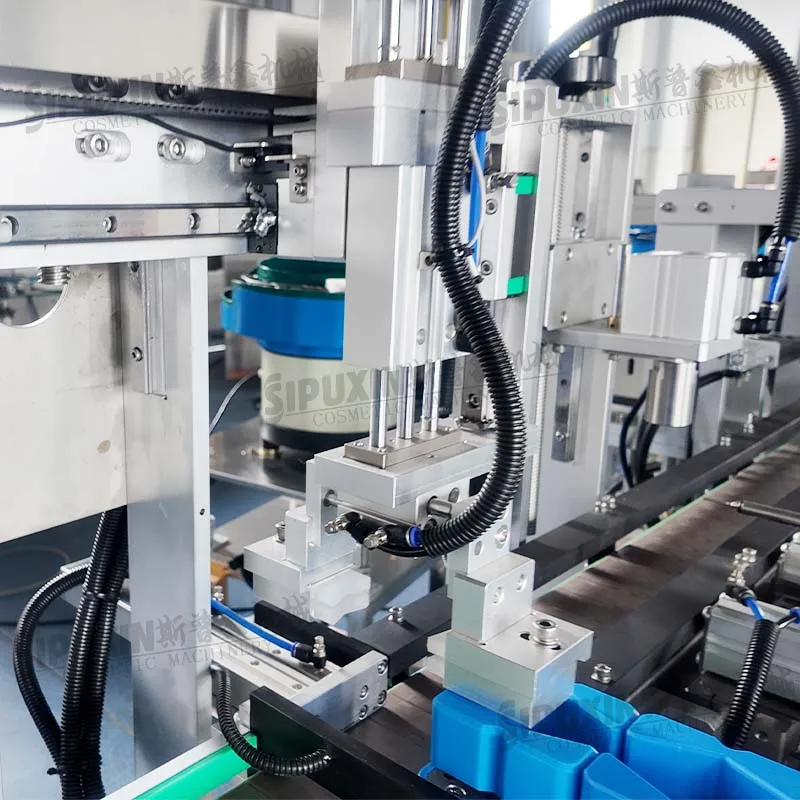

Pump feeding

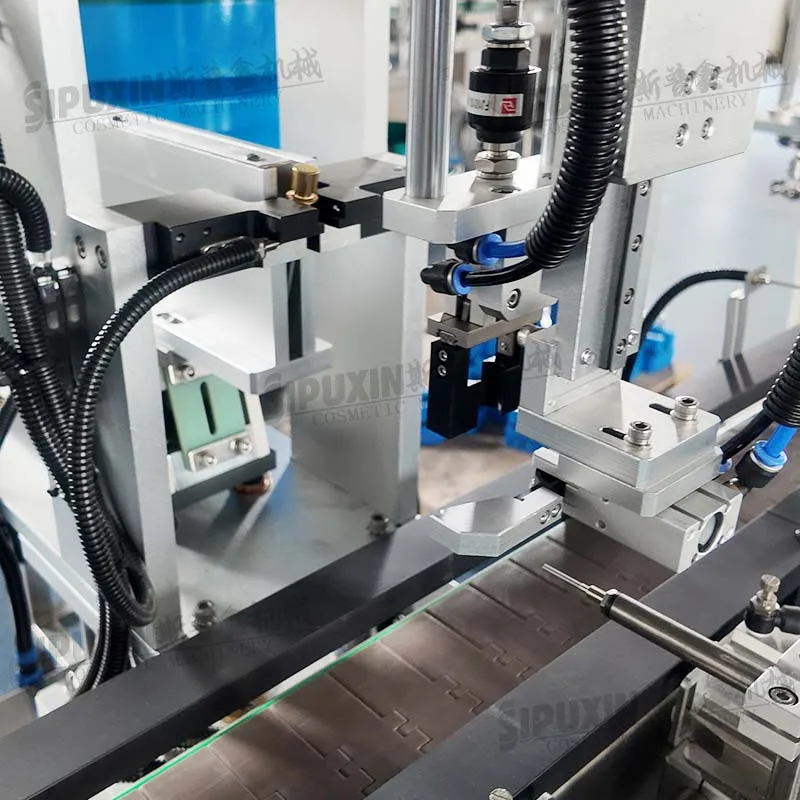

This spray pump feeding station is connected with the vibration bowl. When the vibration bowl start vibrating,it will feed the pump the this station automatically. And then the robotic hand will clamp the pump into the bottle.

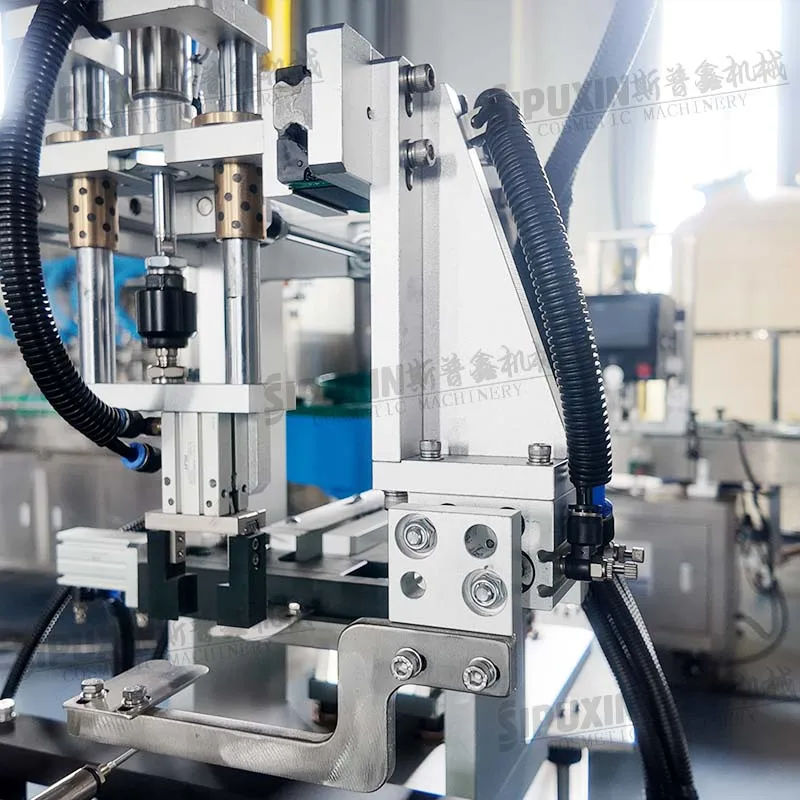

Pre-crimping

After the pump being fed into the bottle,some pump will be not very vertical to fit the bottles. So this pre-crimping station will press the pump a bit,make the pump vertically fit into the bottle,,make it ready for crimping officially.

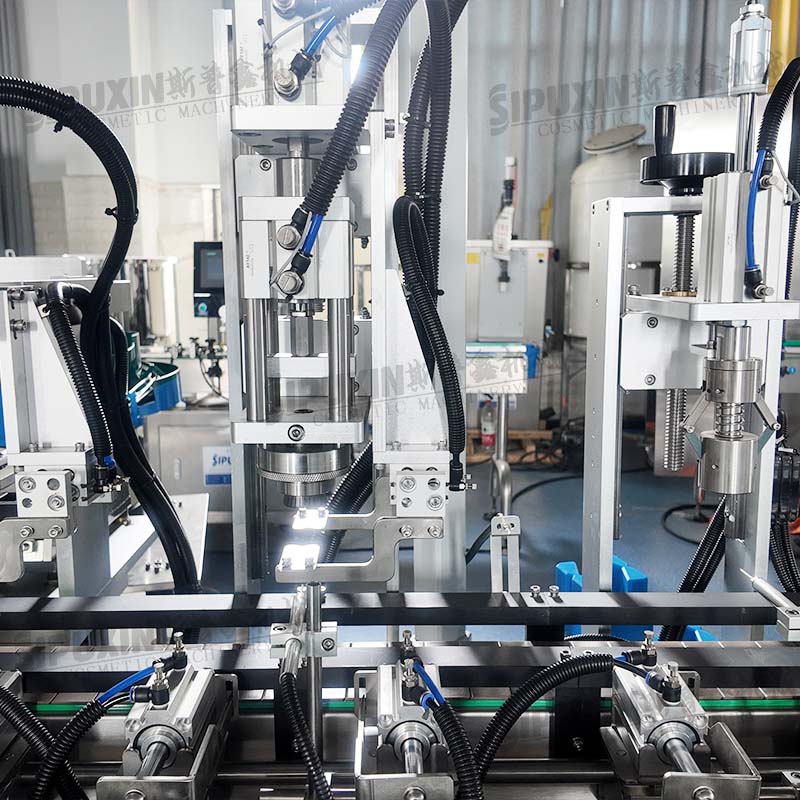

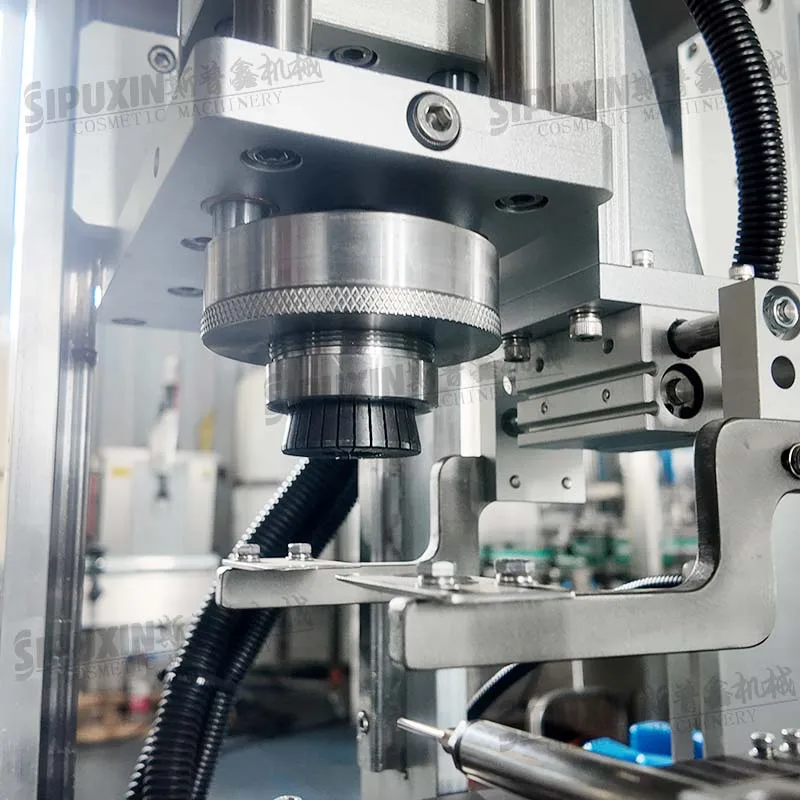

Crimping

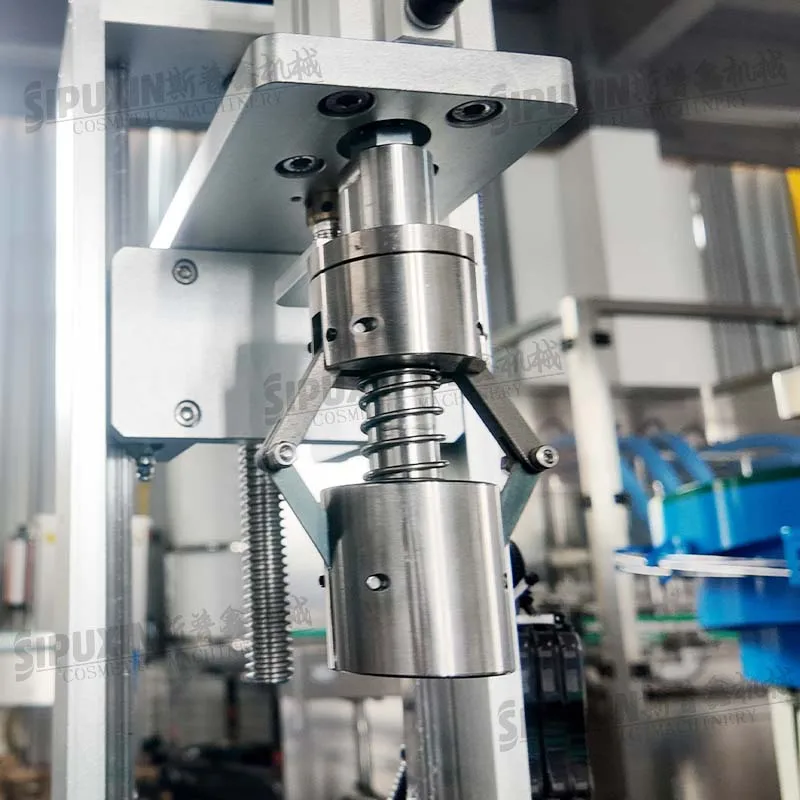

The crimping station will press the pump into the bottle ,and then crimping it,make the pump fixed with the bottles.

Collar feeding

This collar feeding station is connected with the vibration bowl. When the vibration bowl start vibrating,it will feed the pump the this station automatically. And then the robotic hand will clamp the collar into the bottle.

Collaring

The collaring station will press the collar down,make it fixed into the bottle.

Bottle pick out

The robotic hand will clmap the finished bottles out to the conveyor belt to the next process.

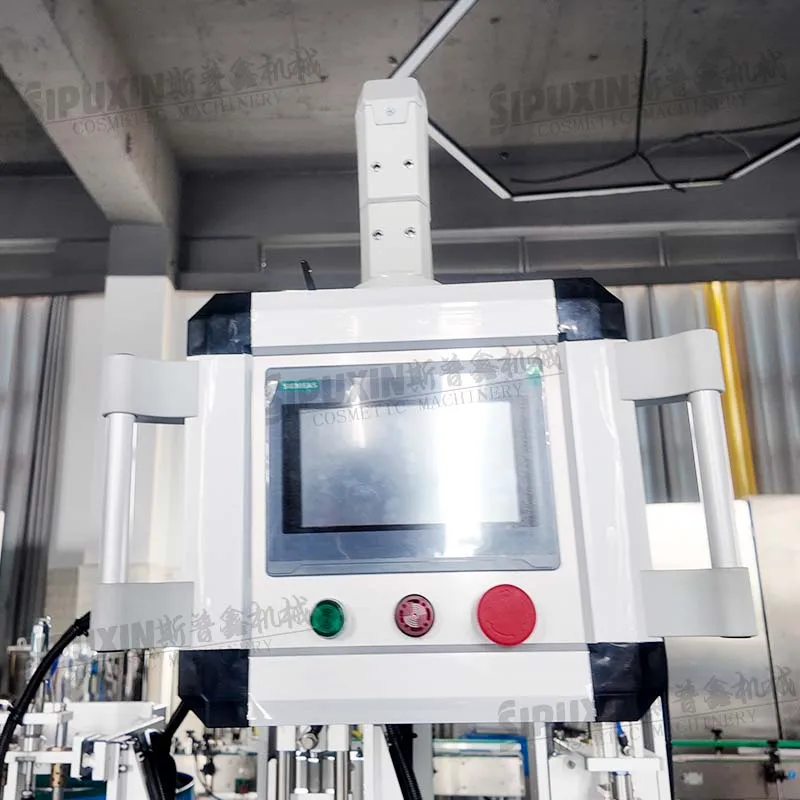

PLC control

This machine uses SIEMENS PLC control system with HMI touch screen. It can set the filling volume,filling speed those kind of parameters. with remote sensing control
