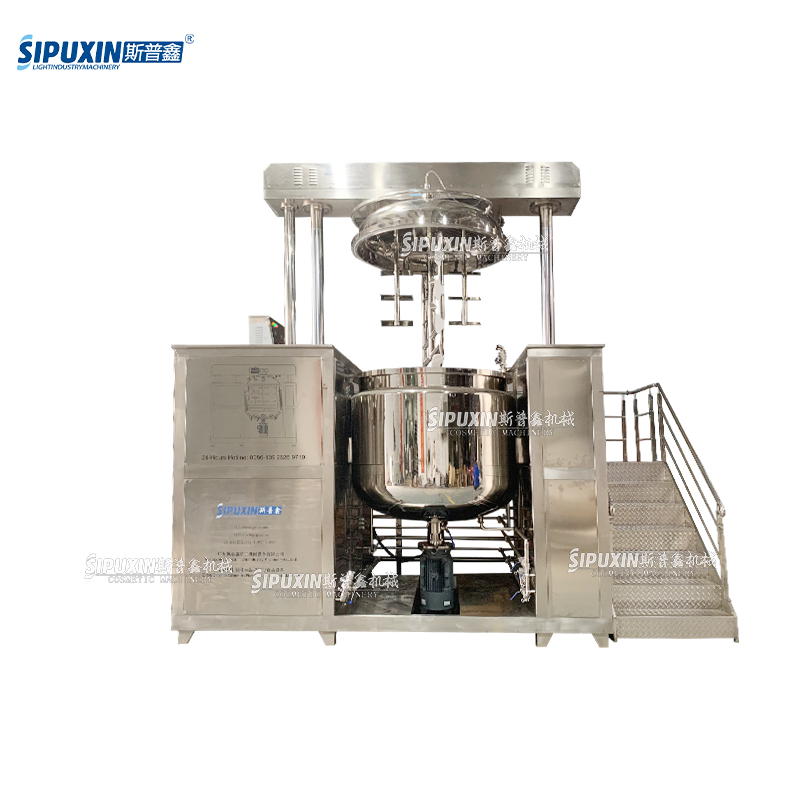

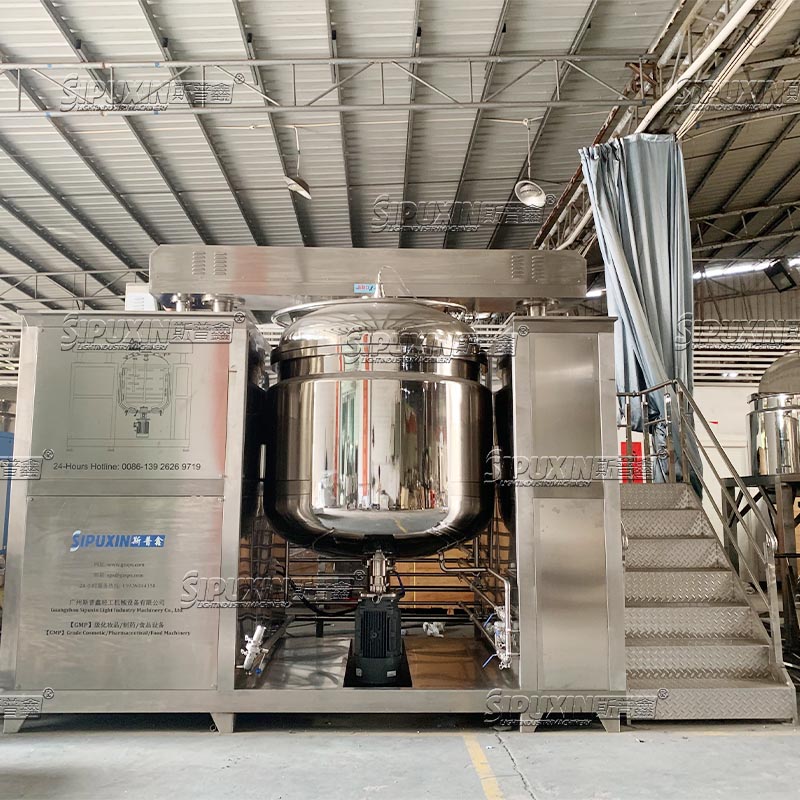

1500L Double Cylinder Hydraulic Lift Vacuum Emulsifier, Button Control, Full Set Pipeline & Cooling Water System
You are here:Home » Global Cases » Global Cases » 1500L Double Cylinder Hydraulic Lift Vacuum Emulsifier, Button Control, Full Set Pipeline & Cooling Water System
1500L Double Cylinder Hydraulic Lift Vacuum Emulsifier, Button Control, Full Set Pipeline & Cooling Water System
Views: 0 Author: Bella zhu Publish Time: 2026-06-06 Origin: Site
Product Description
1500L Double Cylinder Hydraulic Lift Vacuum Emulsifier, Button Control, Full Set Pipeline & Cooling Water System
Equipped with complete pipeline and cooling water unit, it is widely used for mixing & emulsifying cosmetic cream, ointment and food paste under vacuum condition.

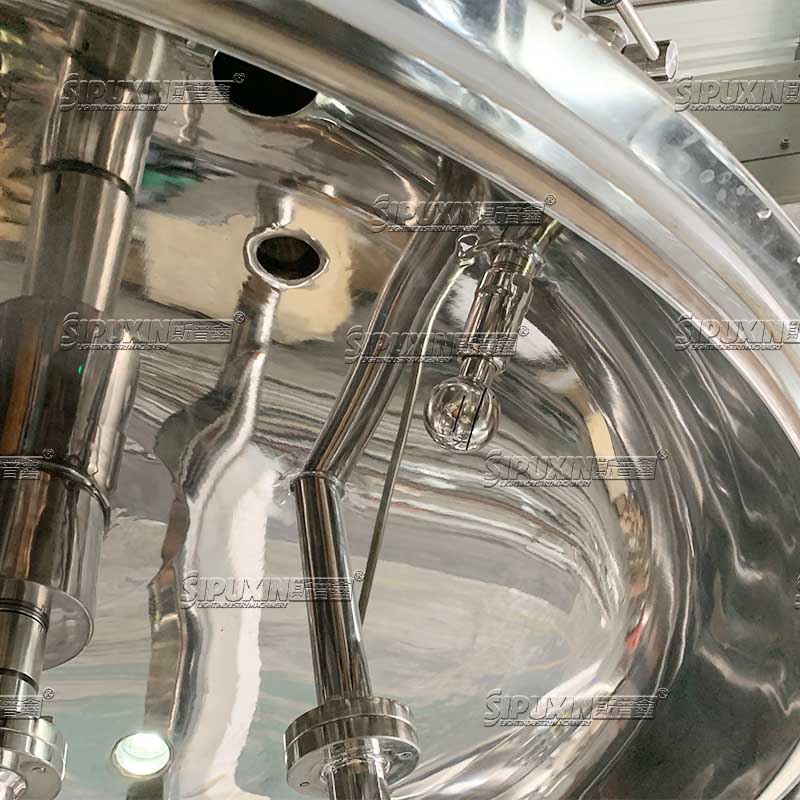

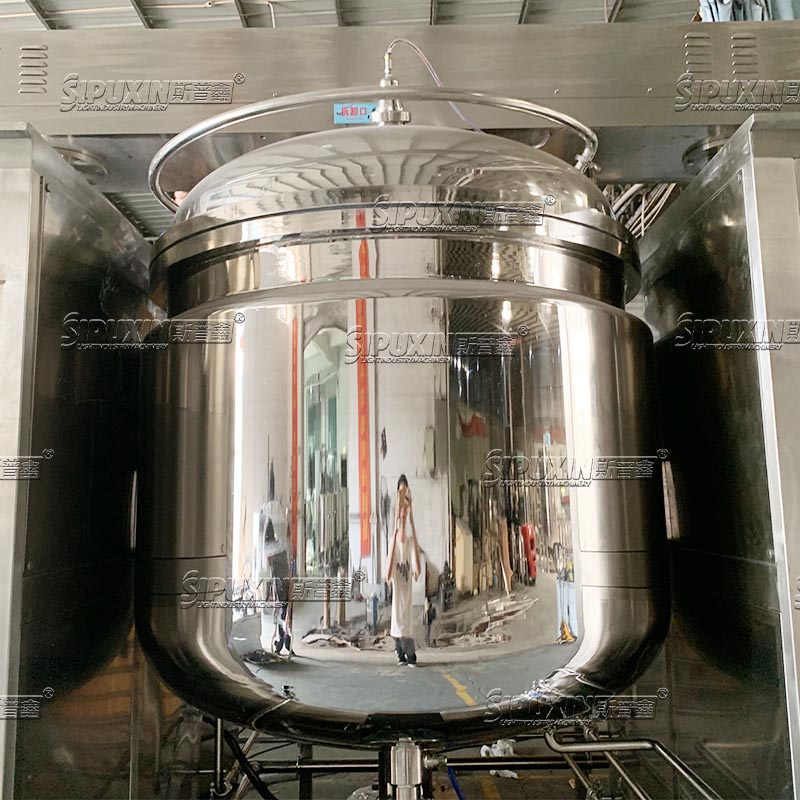

1. Main Emulsifying Tank System
Inner tank adopts SUS316L stainless steel, jacket layer for steam heating and cooling water circulation. Closed vacuum design avoids air bubble during homogenization, suitable for high-viscosity cream, ointment and paste production.
2. Double Cylinder Hydraulic Lifting Structure
Equipped with two hydraulic cylinders, realizing whole tank turnover lifting. Easy for residual material discharging and tank inner cleaning, reduce manual cleaning workload.

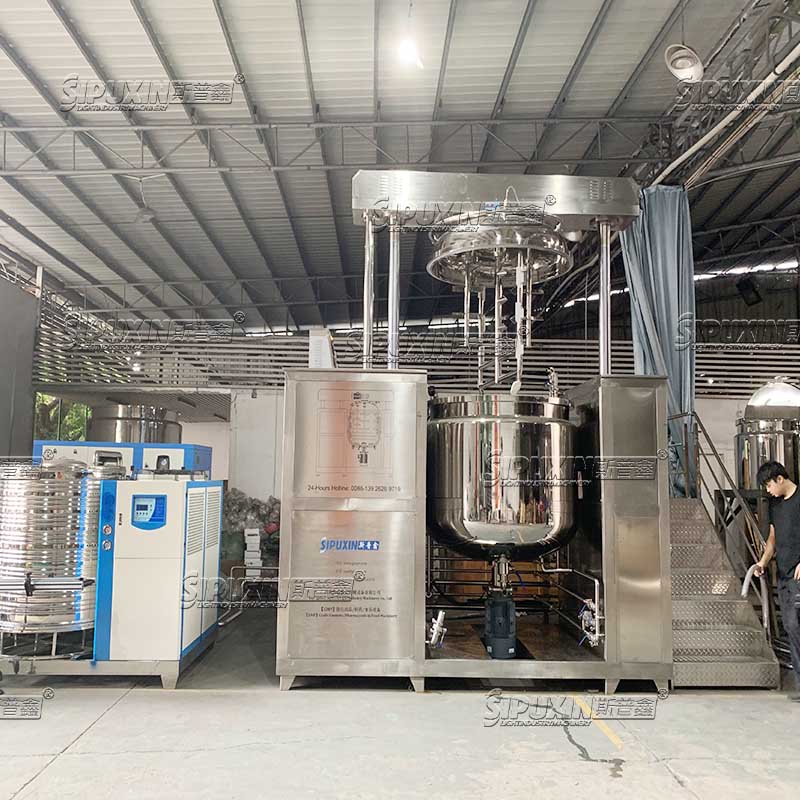

3. Heating & Cooling Circulation Pipeline System
Complete set of connecting pipelines supports steam input for raw material heating; matched with independent cooling water unit to rapidly cool finished materials after emulsification. All pipes are sanitary stainless steel with quick disassembly structure.

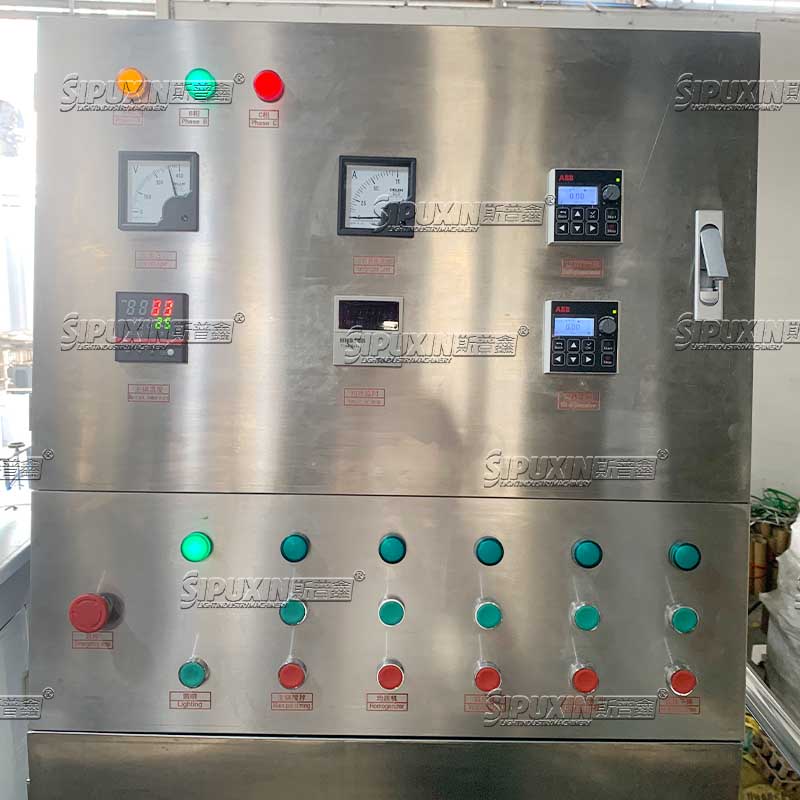

4. Button Control Electric System
Adopt button panel centralized control, separately control lifting, stirring, homogenizing, heating and vacuum actions. Stable circuit, easy operation and convenient daily maintenance.

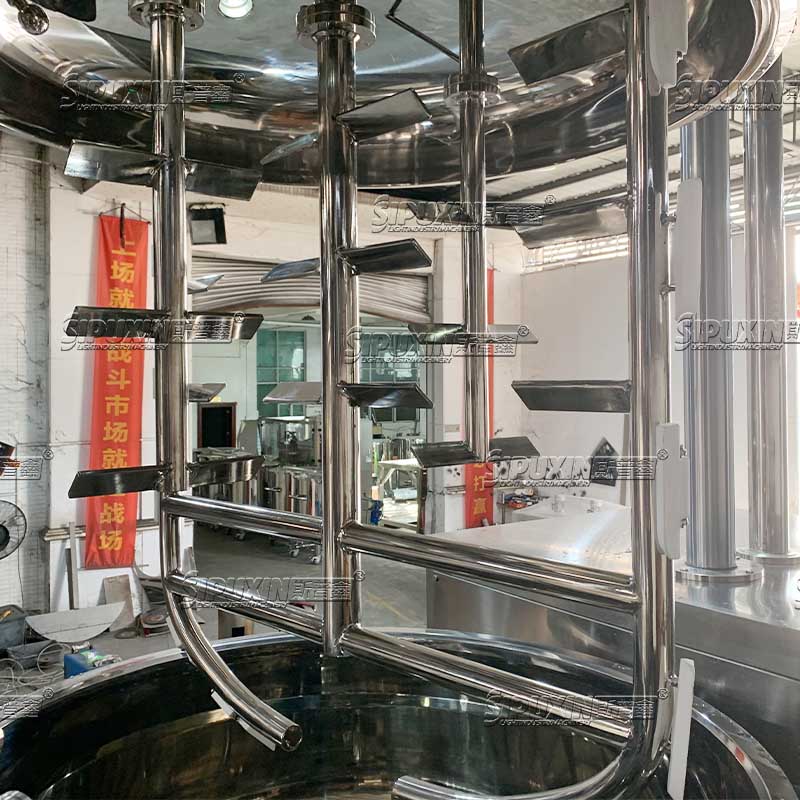

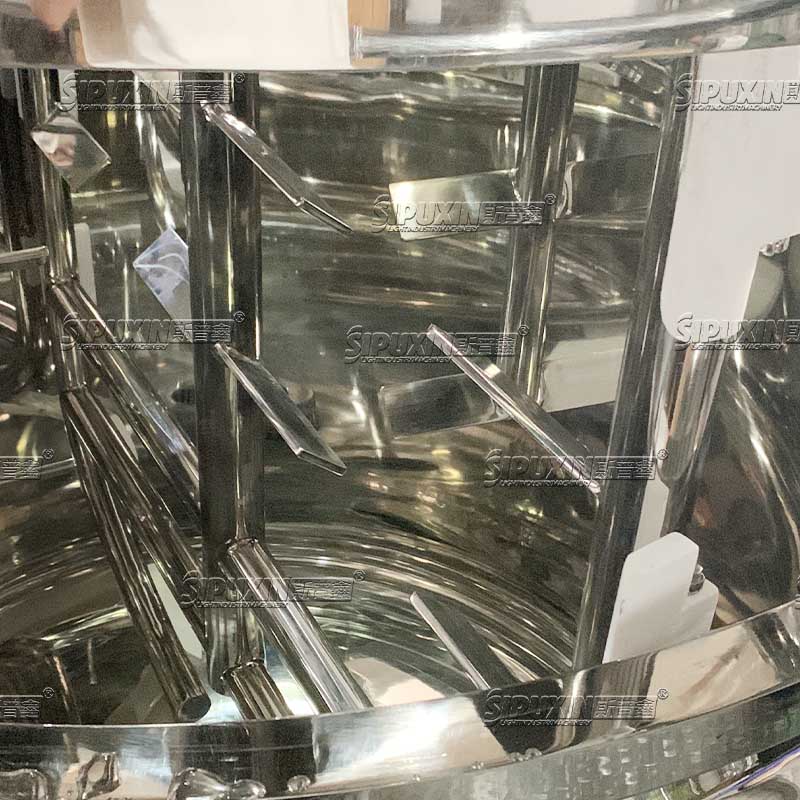

5. Stirring & Homogenizing Assembly
Mid-speed wall scraping stirring + bottom high-speed homogenizer work together under vacuum, evenly disperse raw materials to get fine and smooth finished products.
6. Machine Frame
Whole frame made of SUS304 stainless steel, anti-corrosion and sturdy structure, meet GMP production requirement for cosmetic, pharmacy and food industry.
Designed for large-batch production of cosmetic cream, body lotion, pharmaceutical ointment and food paste. It adopts double hydraulic cylinders to realize full pot turnover lifting for convenient feeding and tank cleaning.
The tank supports steam heating via jacket layer to heat raw materials evenly, matched with complete circulating pipeline and independent cooling water system for rapid material cooling after emulsification. The whole machine uses button panel control for straightforward operation and stable running. Inner contact tank is SUS316L stainless steel while outer jacket and machine frame are SUS304 stainless steel, complying with GMP sanitary standard. Under closed vacuum environment, the high-speed homogenizer realizes fine emulsification to guarantee smooth finished product texture.
Product specification
Item
Spec
Capacity
1500L
Lift Mode
Double cylinder hydraulic lifting
Heating
Steam heating
Control
Button panel control
Auxiliary
Complete pipeline + cooling water system
Vessel Material
SUS316L inner tank, SUS304 jacket & frame
