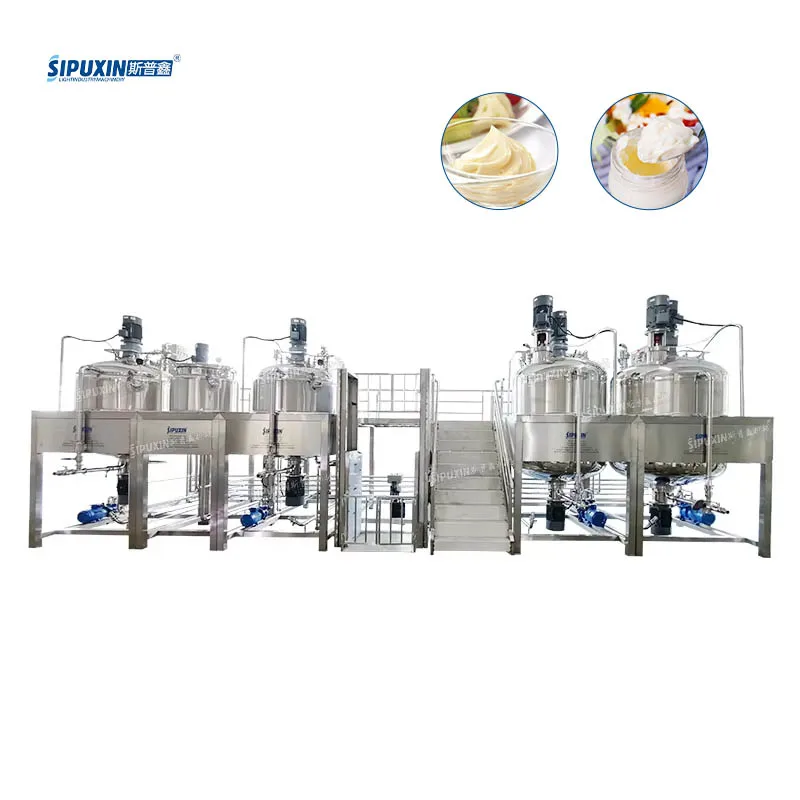

Fixed Large‑Capacity Stainless Steel Vacuum Homogenizer Emulsifier for Large‑Scale Cosmetics, Toothpaste & Chemical Production

Machine components details

Pictures for reference

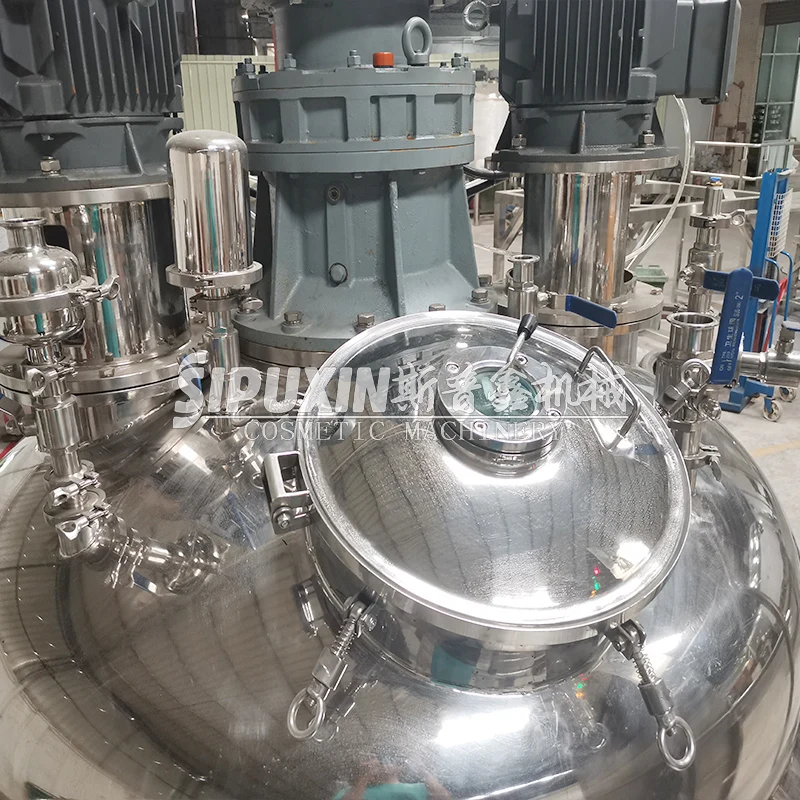

Lid accessories

Sight glass:For better observation of the working situation inside.

Material inlet:Transfer the material through vacuum sunction.
Spice bucket:Add the fragrance and small additives.
Air breather:Prevent air from entering when vacuuming; Balance air pressure between pot and outer environment.
Clean device:Spray ball can 360 ° rotate to clean the pot.
Lamp:For better observation .
Vacuum pressure gauge:Set and display the pressure inside the pot.

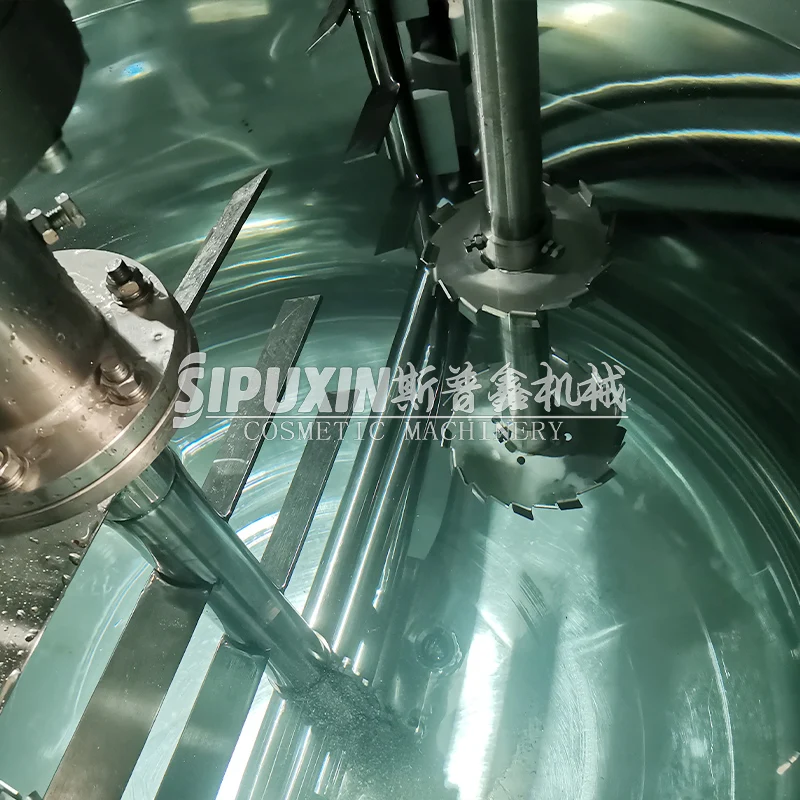

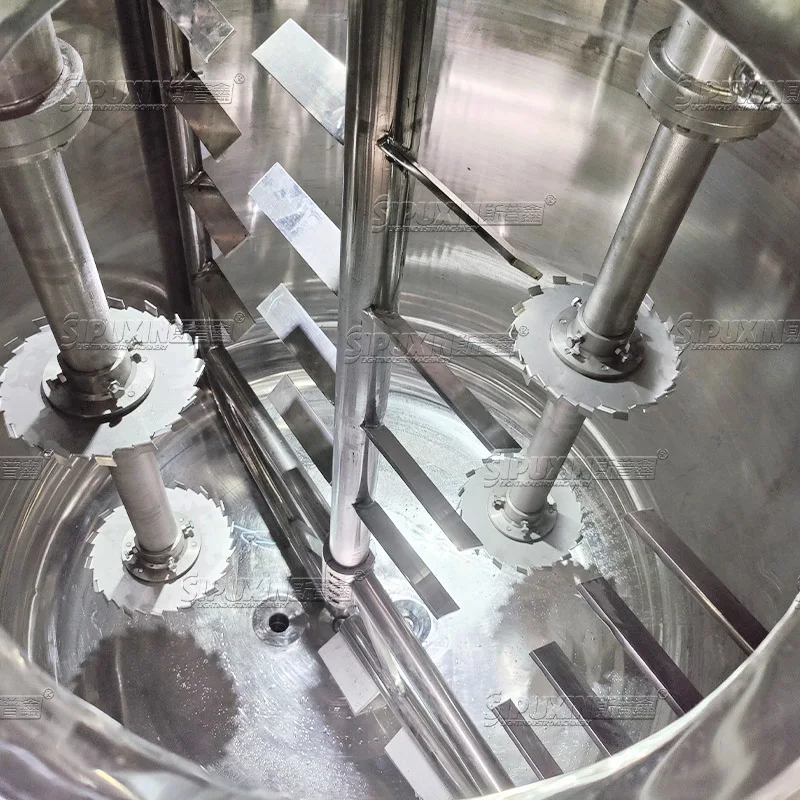

Mixing system

Frame-wall fixed mxier with dispersing mixer*2 pcs

Mixing Speed:0-63RPM

Dispersing speed:0-1440RPM
Material:SUS.316

Effect:

1.Uniformly mix toothpaste paste raw materials under vacuum 2.Disperse particles and improve paste smoothness 3.Stir and defoam to ensure paste texture

Oil and water phase pot

Dispersing mixer: 0-960 RPM
Material: SUS.316

Cover: Flip open cover

Function:Pre-heating and pre-mixing the raw material

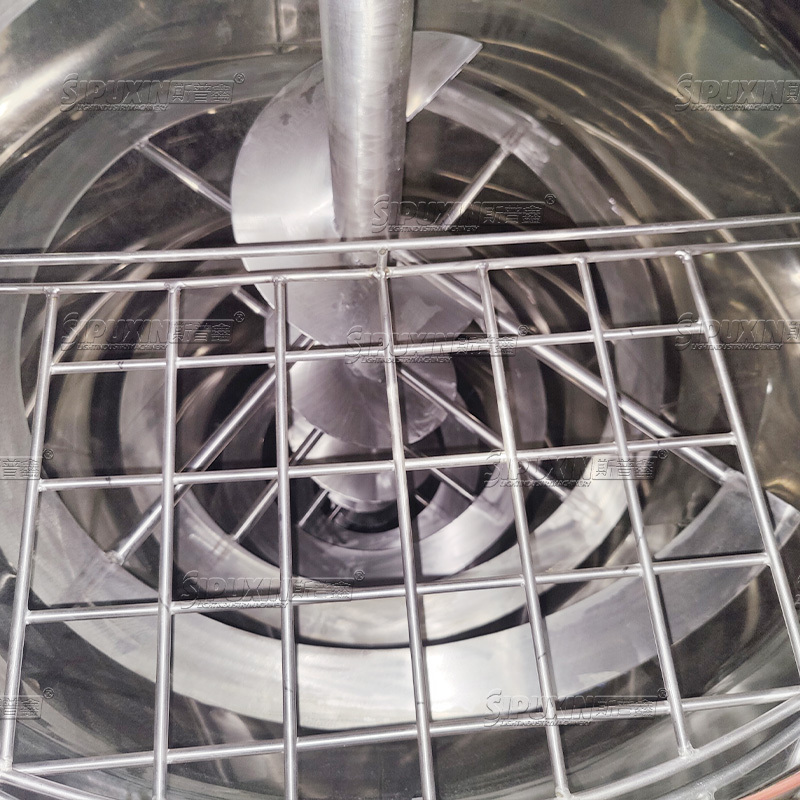

Powder pot

It is equipped with a powder mixer

Function:

1.Preprocess toothpaste powder raw materials.

2.Mix and disperse powder to prevent caking,make the powder soft. 3.Convey powder to main mixing system quantitatively.

Vacuum dust-free device

The powder mixing pot is equipped with a vacuum dust-free device.

Normally,when people pour the powder into the powder pot,the powder is easy to fly out to the platform,factory etc.,which is bad for the factory environment and people's health.

So our factory add a vacuum dust-free device on the top of the powder pot.When people pour the powder,this device will suck the powder into the powder pot,so the powder will not fly everywhere.

Function:

1.Block powder flying and keep production environment dust-free. 2.Prevent powder loss and reduce raw material waste.

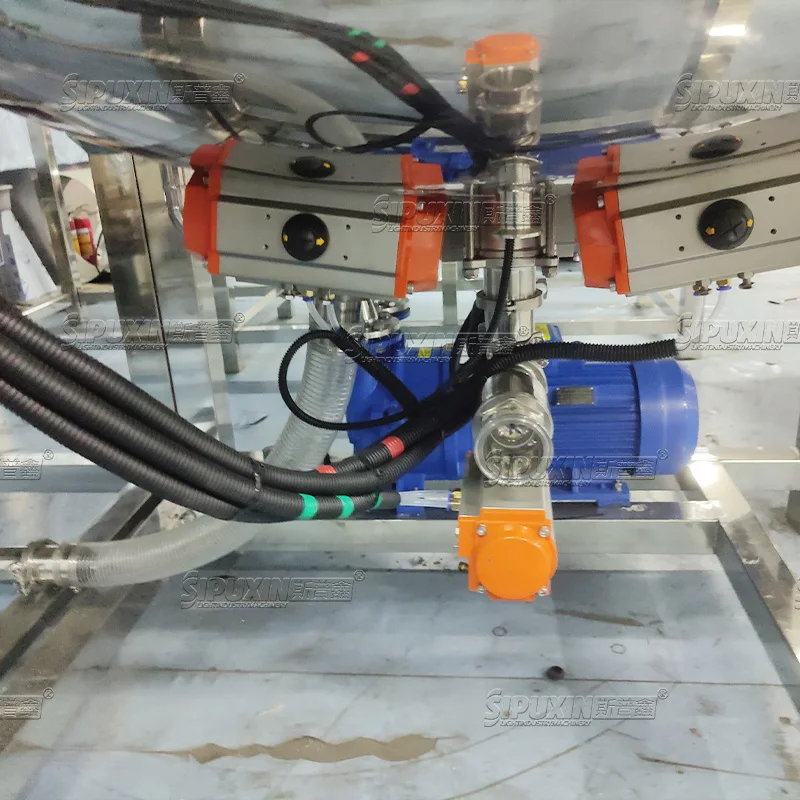

Bottom discharge

The bottom discharge hole with manual valve control.

4 ways of discharging:

1.Gravity discharge:It is suitable for the low viscous product.Let it be discharged by gravity

2.Pressure discharge:Add air,give it pressure to discharge the product.

3.Pump discharge:Use pump(like lobe pump) to discharge the product.

4.Tilting discharge:Use the tilting function to tilt the pot down,to discharge the product.

Button control box

Material:SUS.304

Components:Power switch,voltage,current,speed adjustment,temperature controller,timer of the homogenizer,self-protection system
etc.

* Be able to display, set and adjust the center mixer speed .
* Be able to set and adjust the homogenizing speed
* Be able to display, set and adjust temperature
* Be able to display,set and adjust working time for homogenizer.

Stair and operating platform,handrail

Material:SUS.304

Thickness:2mm

Function：

1.It is water-proof and oil-proof,to prevent people from slipping.

2.It is very easy to clean and maintain it.

3.It provides a place for people to operate it.

Guangzhou Sipuixin Light Industry Machinery

We,Guangzhou Sipuxin Light Industry Machine Co.Ltd.,locates in No.380 Guangcong 9th Road,Zhongluotan Town ,Baiyun District,Guangzhou,China--the core technology area for machinery design and manufacture.

Based on Jiangsu light industry Research Institute and Germany top homogenizing technology, with solid backing from Yangzhou Sipuxin Light Industry Machinery Equipment Factory, Sipuxin is professional manufacturer for Vacuum homogenizing emulsifier, Mixing tank, RO water treatment, Storage tank, CIP cleaning system,Filling/Capping/Labeling
machine, Ink-jet/laser printing machine and other packing machine.
We have passed CE, BV,TUV, SGS quality certificate, and coincident with GMP standard.

Factory setting

Our showroom

production configuration

Engineering Case

Package

FAQ

1.Are you a factory? Yes, we are a factory with more than 20 years experiences. 2.Where is your factory? Our factory is located in Baiyun District, Guangzhou City, Guangdong Province. 3.What should I do when I receive a machine that I don't know how to use? Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer 's site to solve any problems.

4.Can your product be customized? Yes, we can customize products according to your needs.

5.What is the warranty period for your product? One year.
