10L Laboratory Electric Heating Hydraulic Lifting Vacuum Homogenizer
This is SIPUXIN 10L laboratory vacuum homogenizer emulsifier with electric heating and hydraulic lifting structure. It is widely used for laboratory formula research and small‑batch production of cream, lotion, ointment, shampoo and other cosmetic, food and chemical products. Combined stirring, high‑speed homogenization, vacuum defoaming and electric heating in one unit. Hydraulic lifting design is convenient for opening cover, cleaning and material discharging. Material contact parts adopt food‑grade stainless steel SUS304 / SUS316L for option. Two control modes: button panel or PLC touch screen for selection. Perfect equipment for cosmetic lab, new product development and small‑scale trial production.
10L Laboratory Electric Heating Hydraulic Lifting Vacuum Homogenizer
Overview
This 10L lab vacuum homogenizer integrates stirring, high‑speed homogenizing, vacuum defoaming and electric heating functions. Adopts hydraulic lifting cover structure, easy for opening, cleaning and material dumping. Suitable for cosmetic lab R&D and small‑batch production for cream, lotion, ointment, paste and similar materials. Contact parts are stainless steel 304/316L to meet hygiene requirement.
Main Technical Parameters
Item
Specification
Model
SPX‑10L Laboratory Vacuum Homogenizer
Effective working volume
10L
Homogenizer speed
0‑3000 rpm (adjustable)
Mixing stirring speed
0‑60 rpm (adjustable)
Heating method
Electric heating
Opening way
Hydraulic lifting cover
Control system
Button panel / PLC touch screen optional
Material
SUS304; SUS316L optional
Voltage
220V / 380V customized
Application
Cosmetics, personal care, food, chemical industry
Warranty
1 year
Core Features

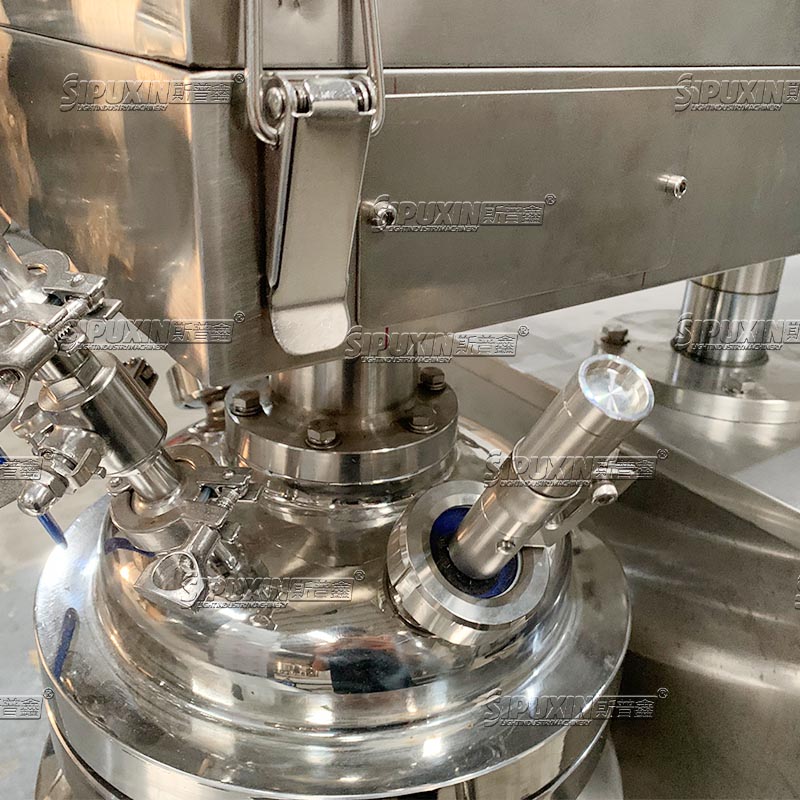

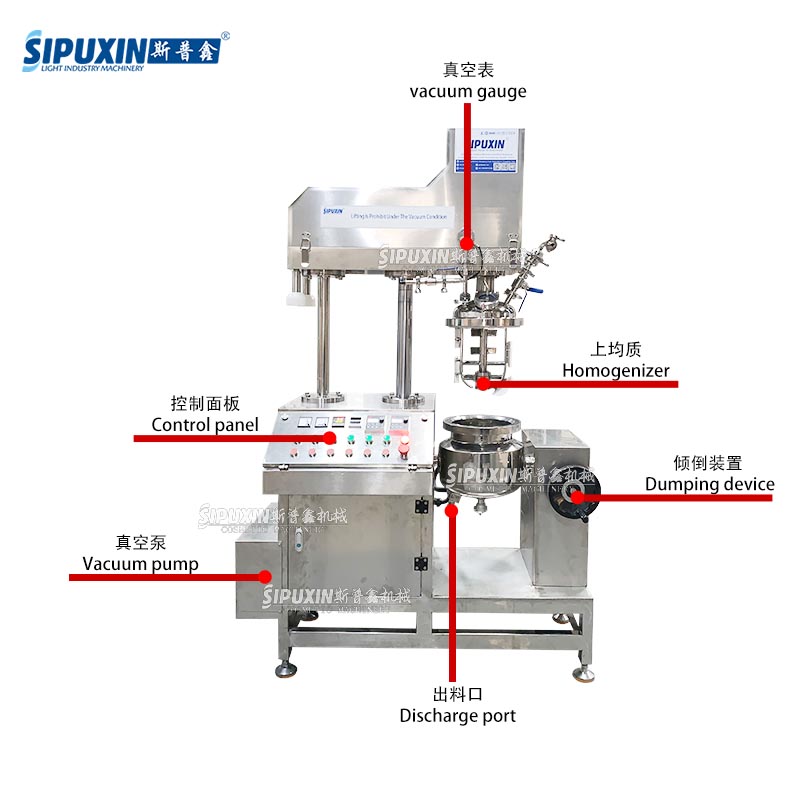

Vacuum system: Equipped with vacuum pump and vacuum gauge, realize vacuum mixing, reduce air bubbles, improve product fineness and stability.

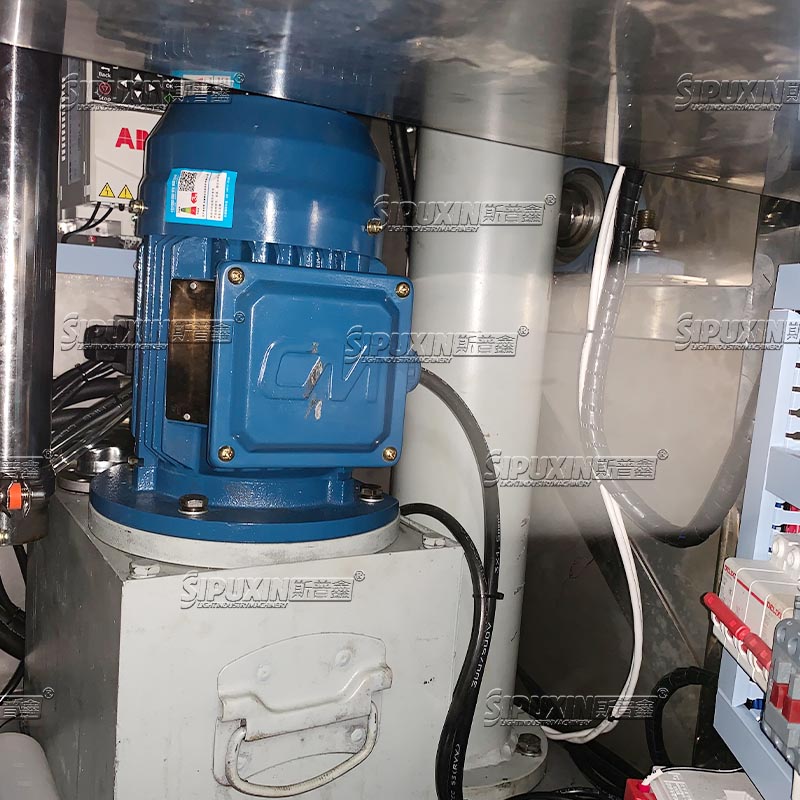

Hydraulic lifting: Hydraulic lifting for tank cover, convenient for cleaning, observation and material handling.
Electric heating: Built‑in electric heating device with temperature control function.

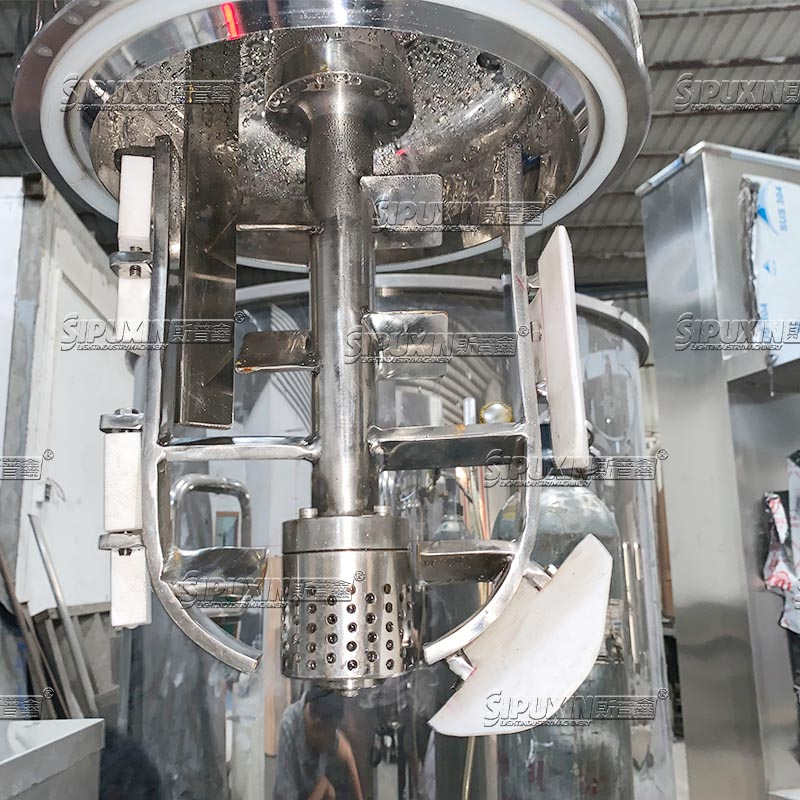

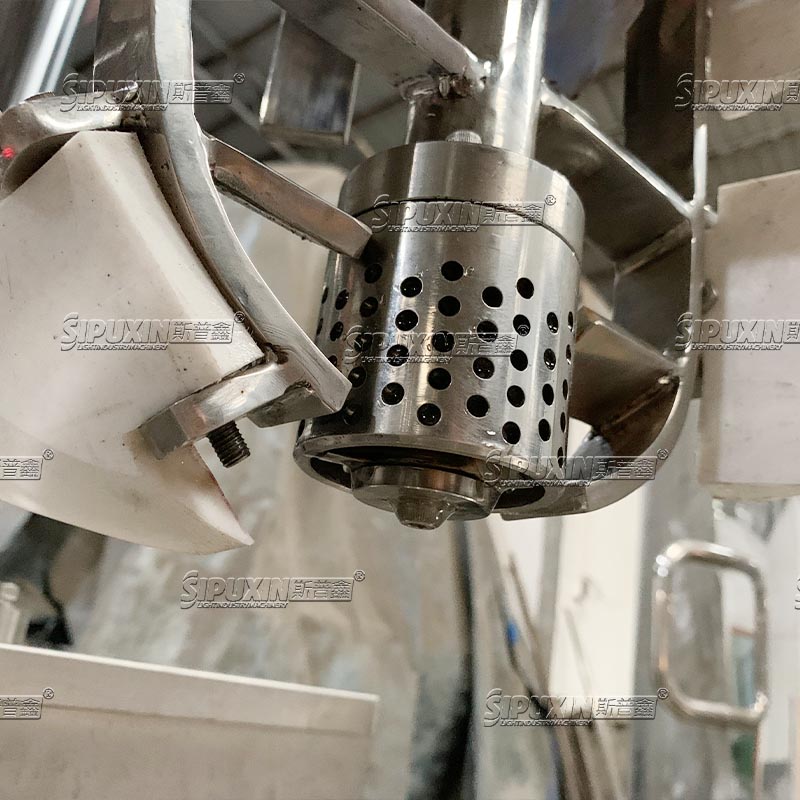

Dual working system: Slow stirring + high‑speed homogenizer, achieve good emulsification effect for cream and paste material.
Hygienic stainless steel: Material contact part stainless steel, easy to clean, meet cosmetic & food hygiene standard.
Compact size: Small footprint, ideal for laboratory and small trial‑order production.
Application Scope
Cosmetics: face cream, body cream, lotion, ointment, hair care paste
Food industry: sauce, paste, jam
Chemical industry: various paste‑form chemical products
Our Service
12‑month warranty for whole machine
Support customized configuration (material, voltage, control panel)
