500L Single-Layer Homogenizing Stirring Tank+ 200L Electric Heating Mobile Storage Tank

1. Product Overview

Our matched mixing & storage tank unit consists of 500L single layer homogenizer mixing tank and 200L electric heating movable storage tank, an integrated solution for liquid cosmetic manufacturing lines. It integrates emulsifying mixing, constant temperature storage and material transfer functions, perfectly matching small-batch production of shampoo, body wash, perfume, lotion and liquid soap.

2. Core Features

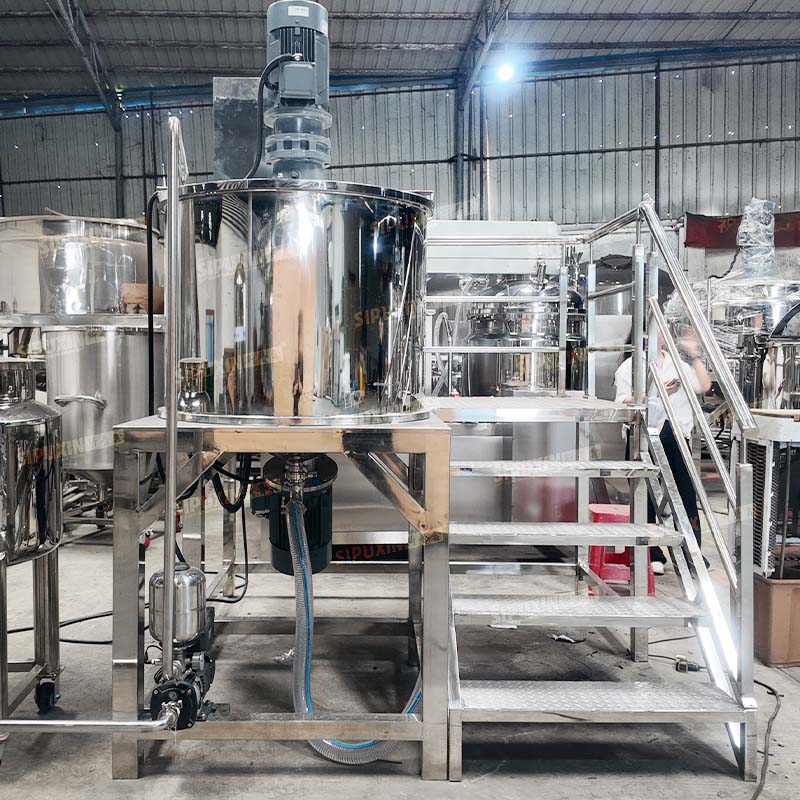

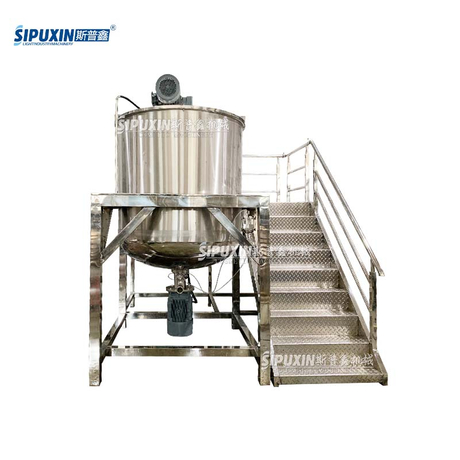

1. 500L Main Homogenizing Tank

• Single-layer stainless steel structure, optional SUS304/SUS316L

• Top-installed high shear homogenizer + anchor slow stirring system, realize fast emulsification and no agglomeration

• Manhole cover, feed inlet, discharge port, observation window and cleaning spray ball for easy operation and sanitation

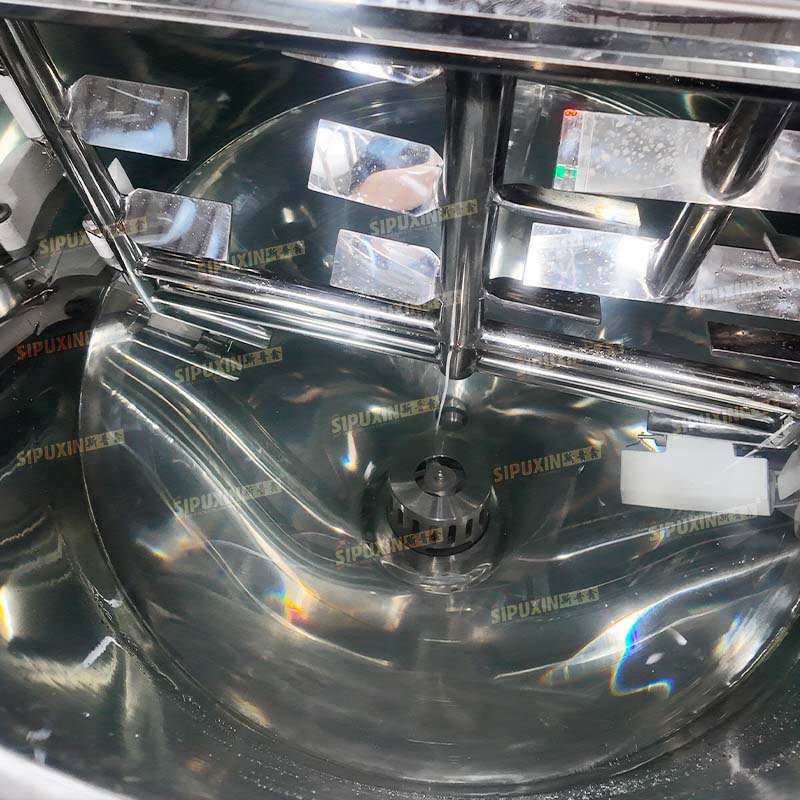

• Mirror polished inner wall, fully comply with cosmetic hygiene requirements

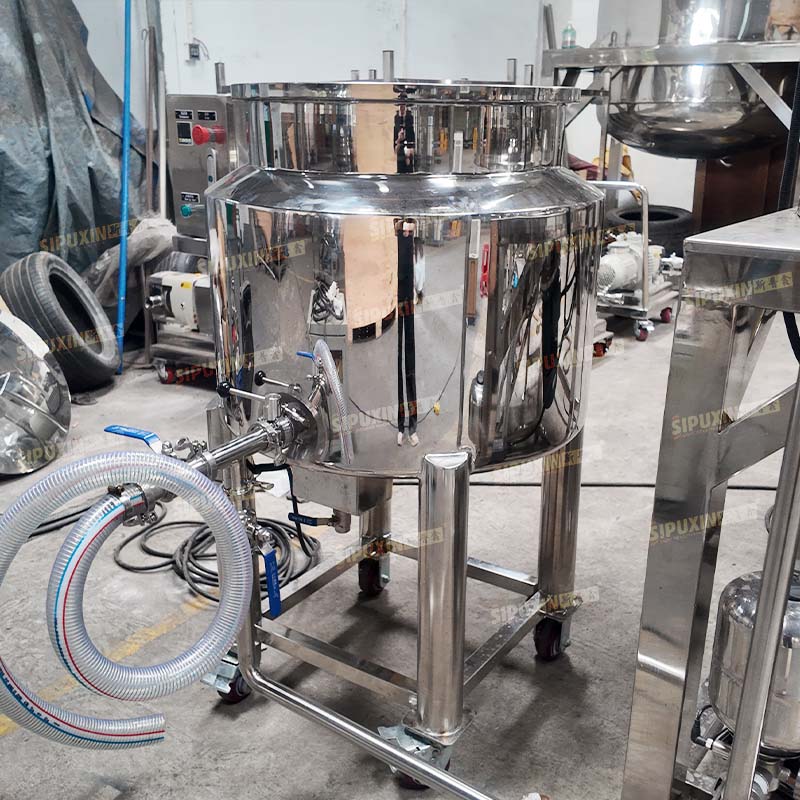

2. 200L Electric Heating Mobile Storage Tank

• Electric heating system with temperature control panel, adjustable heating temperature to keep liquid viscosity stable

• Four heavy-duty movable casters with brakes, flexible to move materials to filling machine or other equipment

• Sealed lid to prevent dust and material oxidation during storage

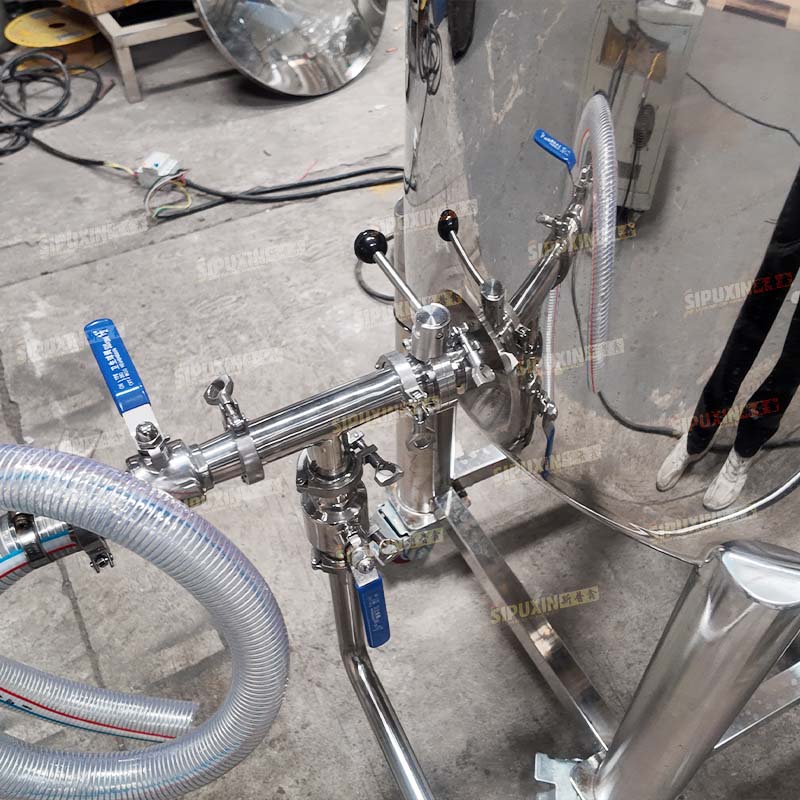

• Bottom discharge outlet for complete material draining without residue

3. General Advantages

• All wetted parts stainless steel, corrosion-resistant for cosmetic raw materials

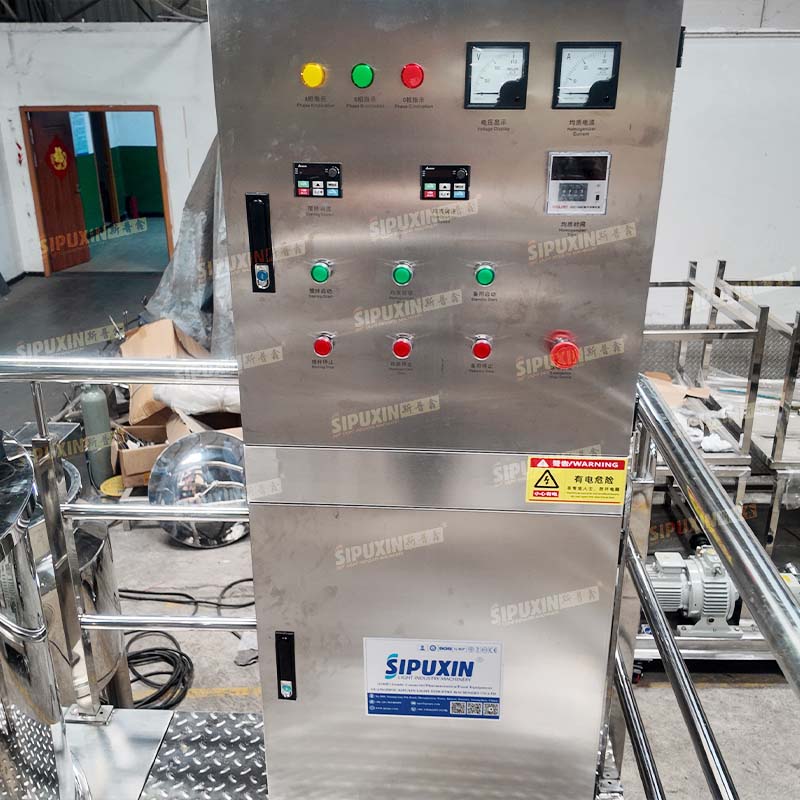

• Simple operation, PLC or button control optional

• Compact layout, save factory space; one-stop mixing & storage to improve production efficiency

• Customizable volume, voltage and heating power according to customer demands

3. Application Scope

Suitable for production of all liquid cosmetic & daily chemical products:

Shampoo, hair conditioner, body lotion, shower gel, perfume, floral water, facial cleanser, liquid hand soap, essential oil mixture, mild detergent liquid etc.

Also applicable to small food and pharmaceutical liquid mixing.

4. Technical Parameter List

500L Homogenizing Stirring Tank

• Effective Volume: 500 Liters

• Material: SUS304 / SUS316L Stainless Steel

• Homogenizer Power: 4kw (customizable)

• Stirring Motor Power: 1.5kw

• Working Voltage: 380V 50Hz (customizable for different countries)

200L Electric Heating Mobile Storage Tank

• Effective Volume: 200 Liters

• Heating Power: 3kw electric heating tube

• Temperature Control Range: 30℃ ~ 90℃

• Mobile Structure: 4 pcs brake casters

• Sealing Type: Silicone rubber sealed cover

5. Our Service

1. Free customized design for tank volume, heating power, voltage and control system

2. One year warranty for all core motors and electrical parts

3. Overseas engineer installation & operation training support on demand

4. Complete production line matching: mixing tank, filling machine, labeling machine, conveyor available in our factory
