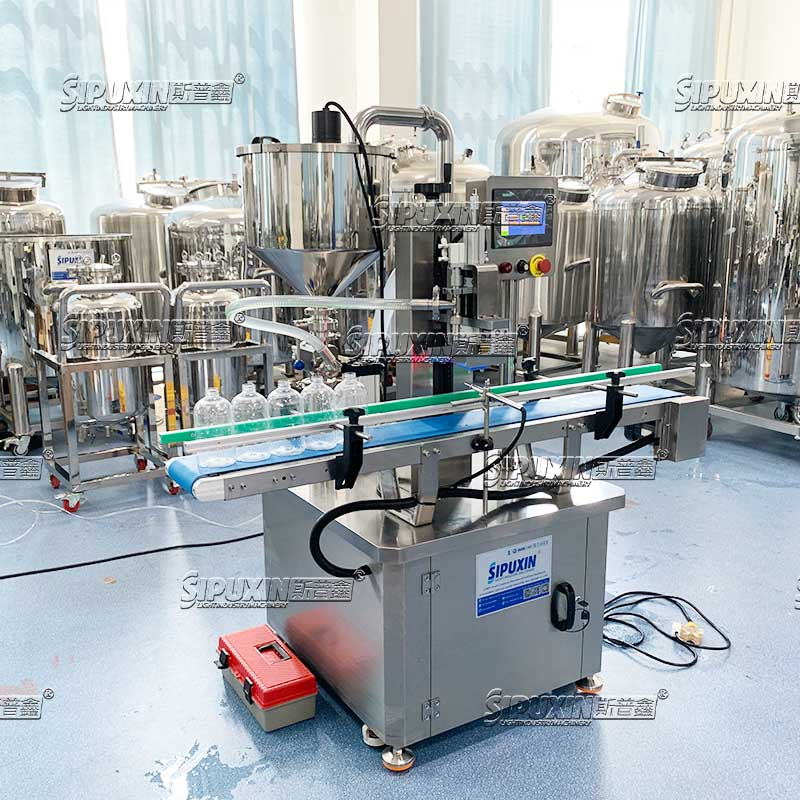

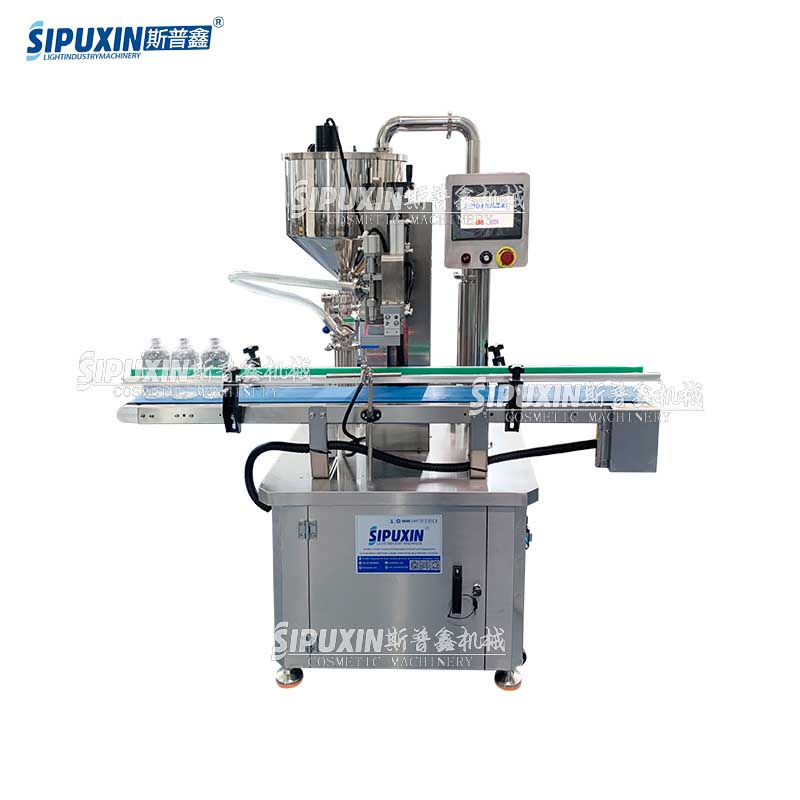

Our automatic single‑head piston filling machine adopts piston volumetric filling principle. The whole machine is made of SUS304 stainless steel, which meets hygiene requirements for cosmetics, food and daily‑chemical products. Controlled by PLC & touch screen, filling volume and speed can be set easily. Equipped with conveyor belt for automatic bottle feeding & positioning. It works for liquid and viscous paste materials, widely used for personal‑care, food and household‑chemical production. Heating hopper is optional for high‑viscosity hot filling.
This single‑head automatic piston filling machine is designed for quantitative filling of liquid and paste materials. Servo‑driven piston ensures stable filling volume and little dripping. Conveyor realizes continuous bottle feeding, fit for medium‑small batch production.
Main Technical Parameters
Item
Specification
Filling Range
50‑5000ml(adjustable)
Filling Accuracy
±1‑2%
Material Contact Part
SUS304 Stainless Steel

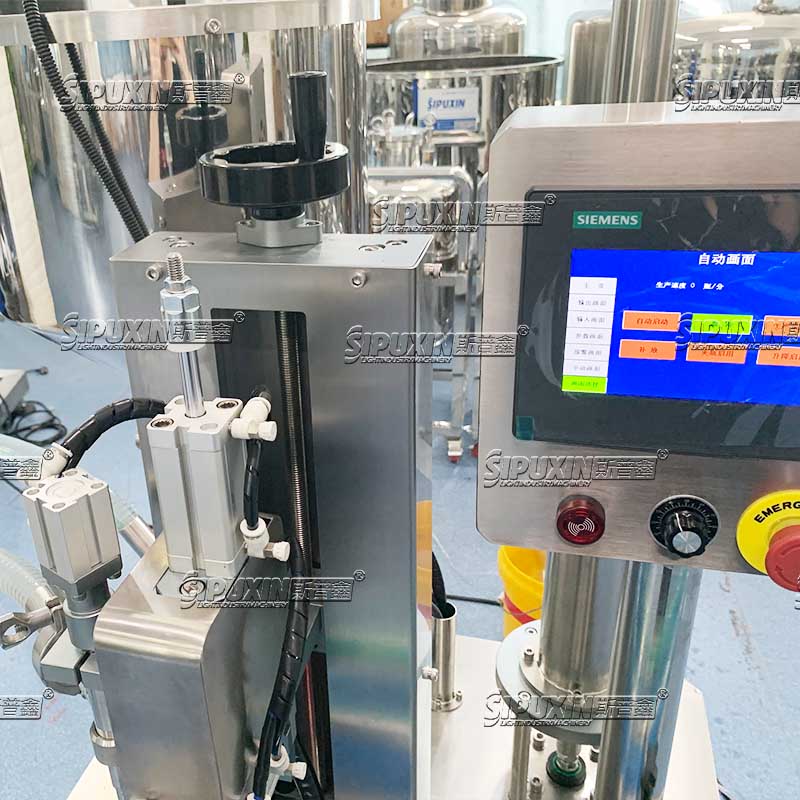

Control System
PLC + Touch Screen
Applicable Bottle
Plastic bottle, glass bottle; round / flat bottle
Optional Function
Heating & stirring hopper
Power Supply
220V 50/60Hz
Applicable Materials
‑ Cosmetics: shampoo, shower gel, body lotion, hand cream, facial cream ‑ Daily chemical: hand sanitizer, detergent ‑ Food: sauce, honey, fruit syrup and other viscous food
Features
‑ Simple parameter setting on touch screen, easy operation ‑ Stainless‑steel structure, easy to clean ‑ Servo piston drive, high filling precision, anti‑dripping ‑ Movable casters for convenient position change in workshop ‑ Support custom configuration according to customer demands
Our Service
1‑year machine warranty, lifelong technical consultation. We provide overseas remote technical support. Customized solution is available for your production project.
