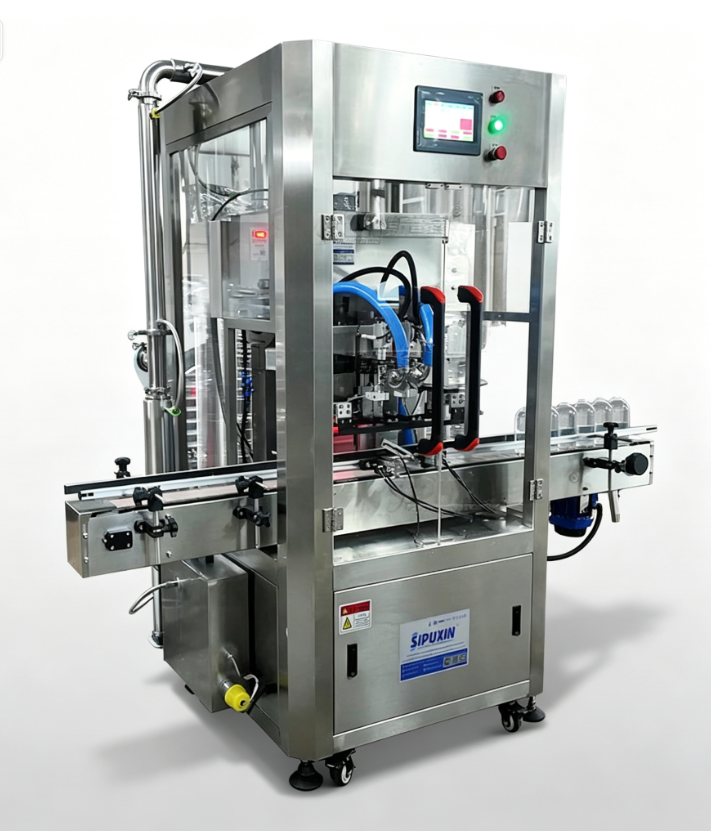

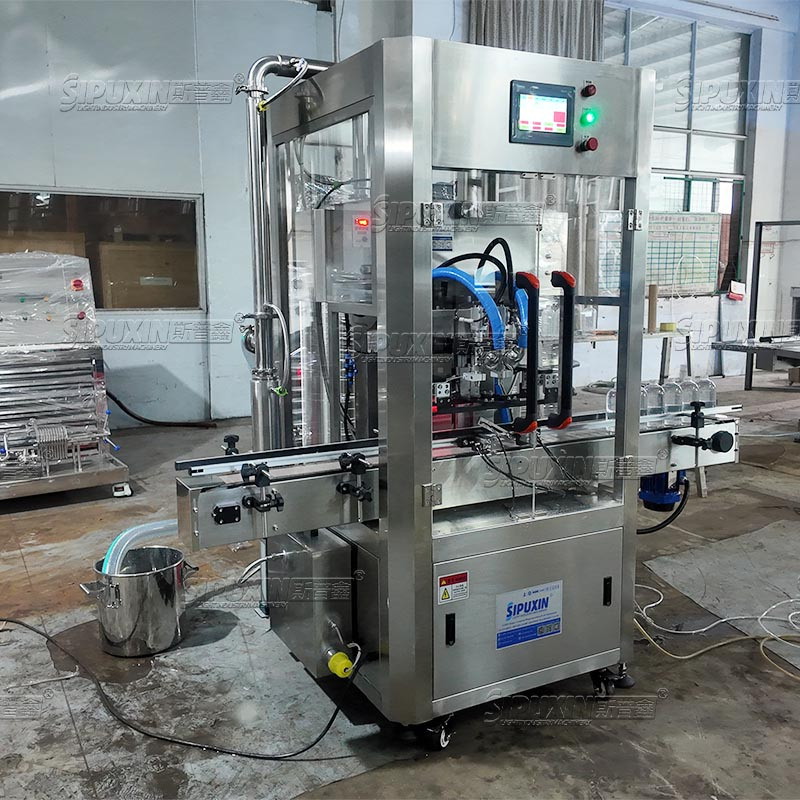

Automatic Double Head Heated Gear Pump Filling Machine
Automatic double‑head heated gear pump filling machine for cosmetic cream, wax, body scrub and high viscosity paste materials. With heating system, PLC control, SUS316 stainless steel, suitable for cosmetic production line.
This automatic double‑head heated gear pump filling machine is specially designed for high‑viscosity materials that easy to solidify, such as body scrub, wax, cream, ointment and cosmetic paste.

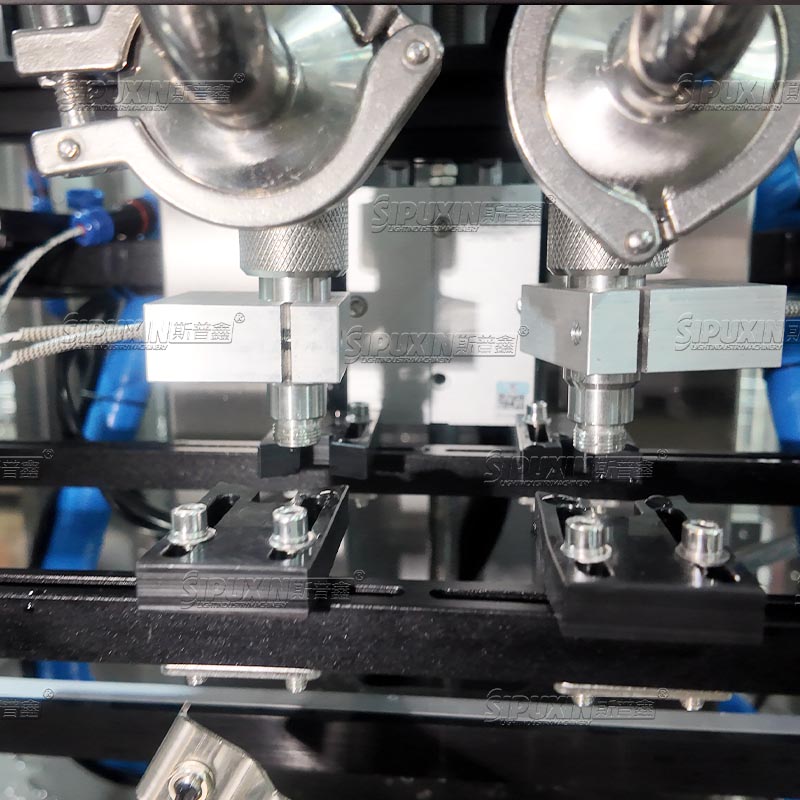

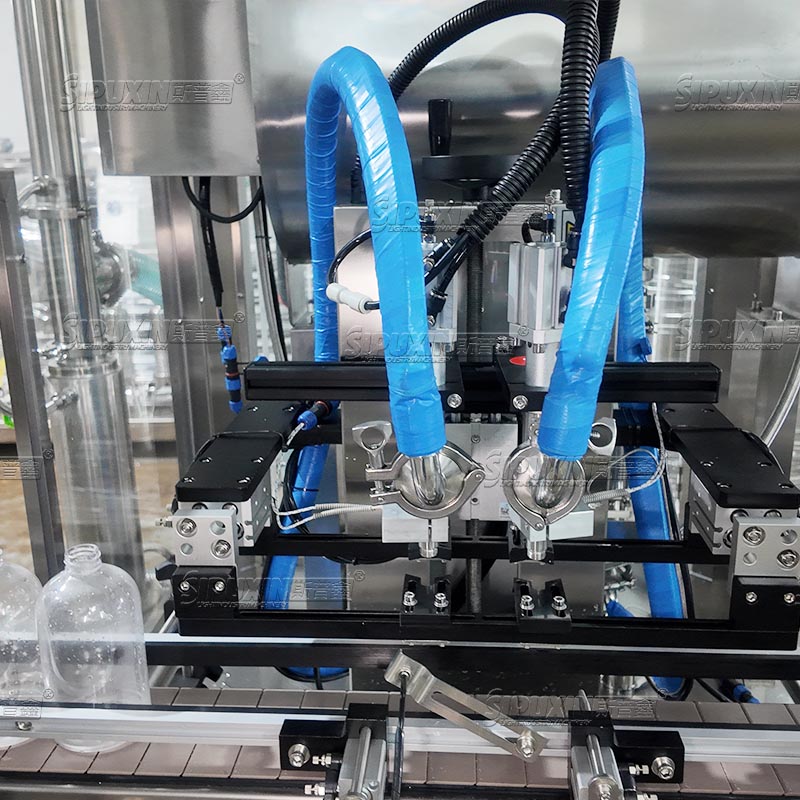

Whole machine adopts SUS304/SUS316 stainless steel, meets cosmetic sanitary requirement. Equipped with heating system for tank, pipeline and filling nozzles to keep materials in good fluid status.

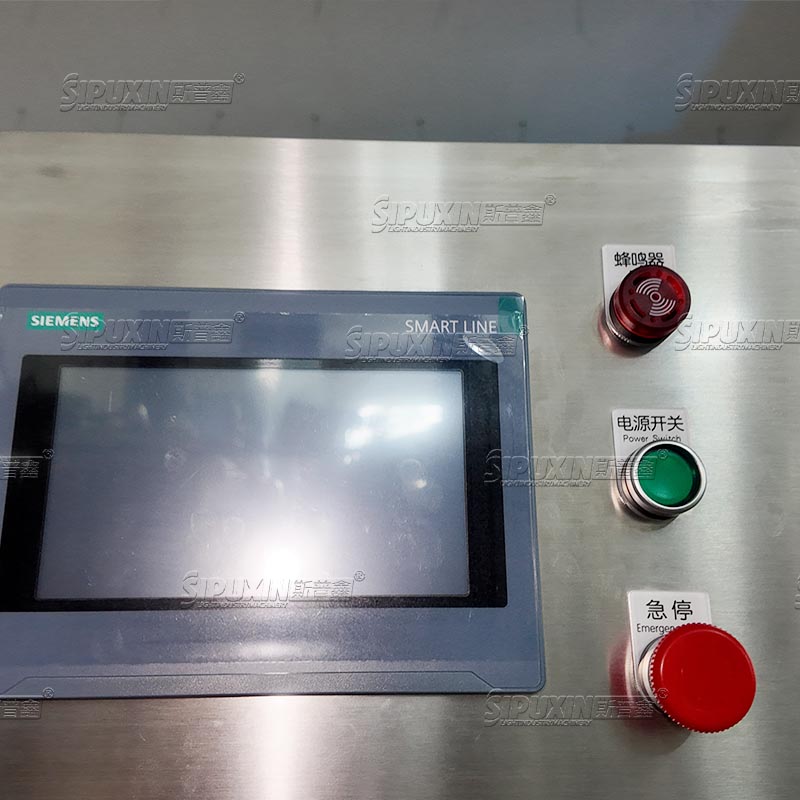

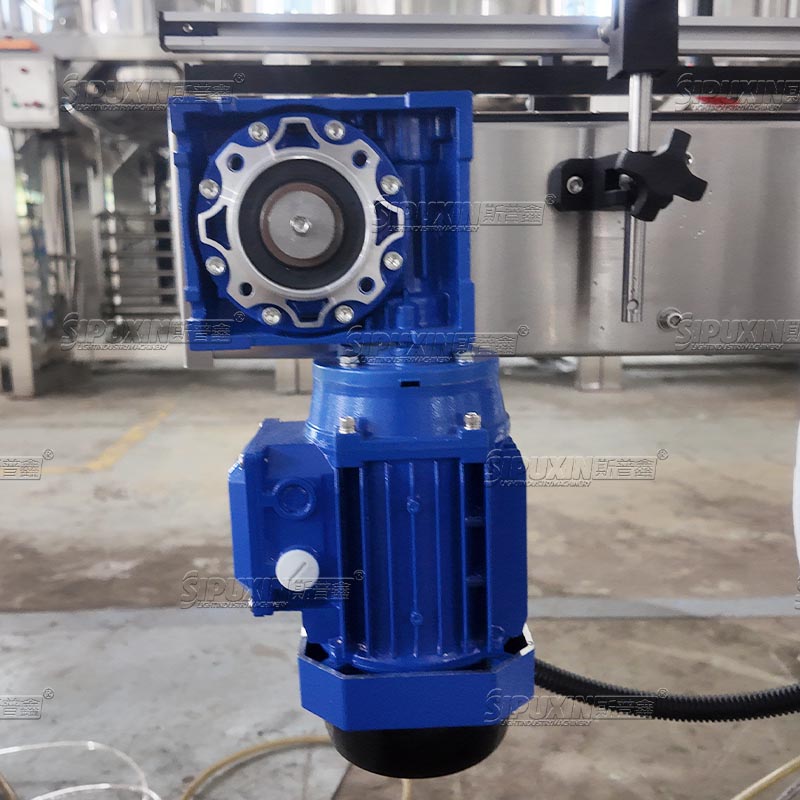

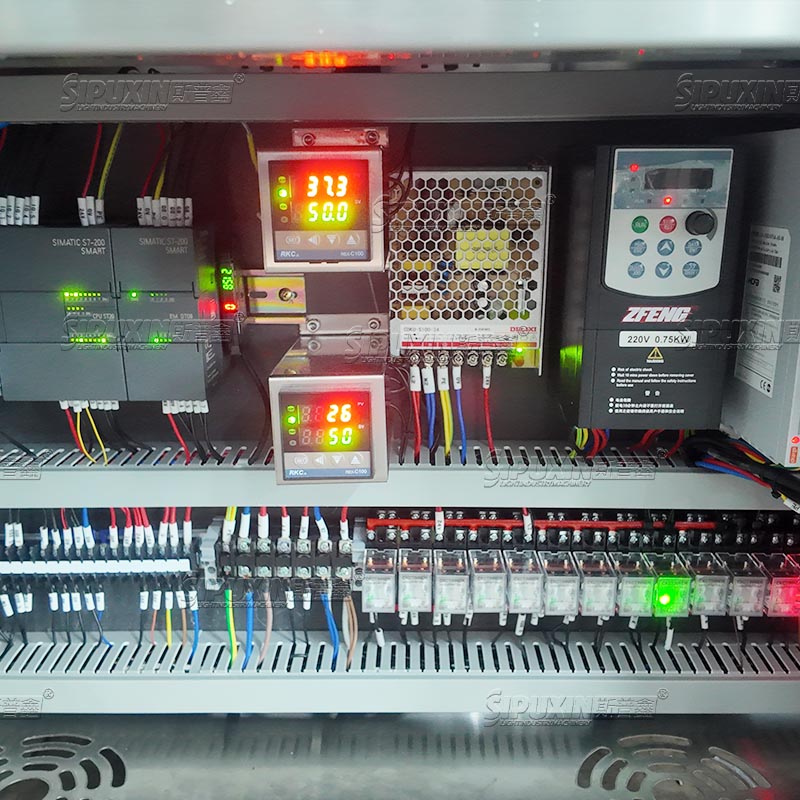

Gear pump ensures accurate filling volume. PLC touch screen control, easy to adjust filling volume and speed. With automatic bottle conveyor, realize continuous online filling work.
Main Technical Parameters
Item
Specification
Filling heads
2 heads
Filling range
10‑1000ml(customized)
Filling accuracy
±1%
Heating temperature
30‑120℃ adjustable
Material contact parts
SUS316 Stainless Steel
Control system
PLC + Touch Screen
Conveyor speed
adjustable
Power supply
220V/380V 50‑60Hz
Main Features
Double gear pump for stable and precise metering
Full‑range heating system prevents material solidification
