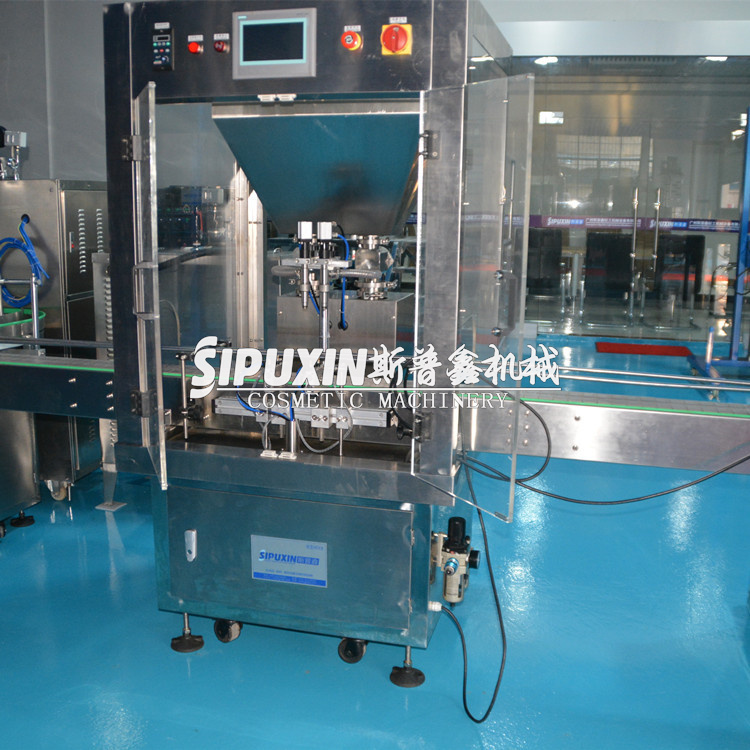

Automatic Double‑Head Constant Temperature Filling Machine
Our automatic double‑head constant temperature filling machine is specially developed for high‑viscosity materials that are easy to solidify at room temperature. It integrates heating, constant temperature storage and automatic quantitative filling, greatly improving production efficiency for cosmetic, pharmaceutical and daily‑chemical factories.

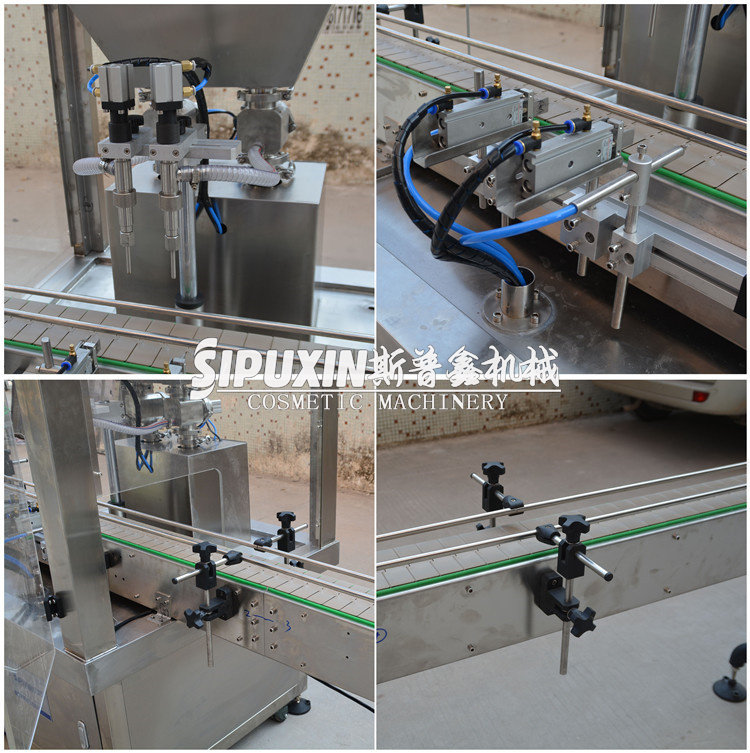

Equipped with two filling nozzles, this machine realizes double‑station filling. The built‑in constant temperature heating system keeps material temperature stable within 30‑90℃, preventing wax, ointment and thick cream from solidifying and blocking nozzles during continuous production.
All parts contacting materials are made of SUS304 stainless steel, SUS316L is optional. It meets GMP hygiene standard, easy to disassemble and clean. The piston filling structure ensures high filling accuracy, anti‑drip nozzle avoids material waste and keeps workshop clean.
Operators can set filling volume, temperature and running parameters on touch‑screen control panel. Filling range is 50‑1000ml, easy adjustment for different products and containers. It can work alone or connect with other machines to form an automatic filling production line.
Main Features
✅ Double‑head design for higher production capacity
✅ 30‑90℃ adjustable constant temperature heating system
✅ Anti‑drip filling nozzle, reduce material loss
✅ SUS304 / SUS316L material contact parts, GMP standard
✅ Touch screen control, simple parameter setting
✅ Easy disassembly for cleaning and maintenance
✅ Support non‑standard customization
Technical Parameters
- Filling Heads: 2 heads
- Filling Range: 50‑1000ml (customizable)
- Temperature Control Range: 30‑90℃
- Total Power: 3.5KW
- Voltage: 220V / 380V, 50/60Hz
- Contact Material: SUS304 (SUS316L optional)
- Machine Weight: 320kg
- Dimension: 1450*720*1350mm
Application
This thermostatic filling machine is widely used for filling cream, ointment, wax paste, lip balm, thick lotion, honey and other viscous products. Suitable for cosmetics, pharmacy, personal care and food industries. We can customize filling range, nozzle height and machine structure according to your actual production requirements.
