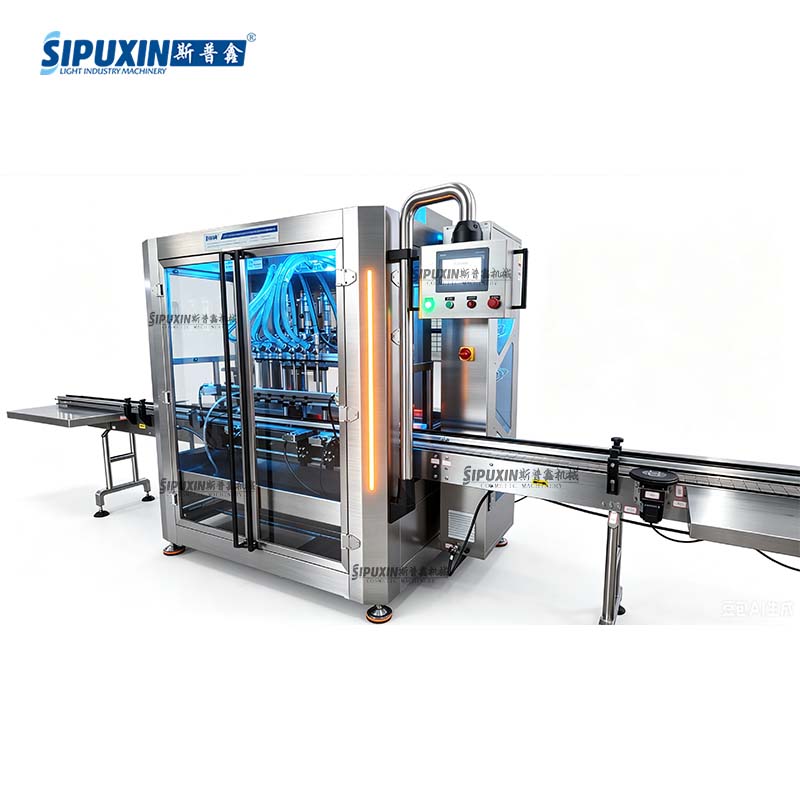

High‑Speed Servo 6‑Head Automatic Piston Filling Machine Linear Liquid Paste Filling Equipment for Cosmetic Shampoo Lotion Detergent Production

This automatic servo 6‑head piston filling machine is linear multi‑nozzle filling equipment, widely used for cosmetic, daily‑chemical and food industry. Six independent servo‑driven piston filling heads, realize high‑speed and stable filling for liquid and medium‑viscosity paste products.

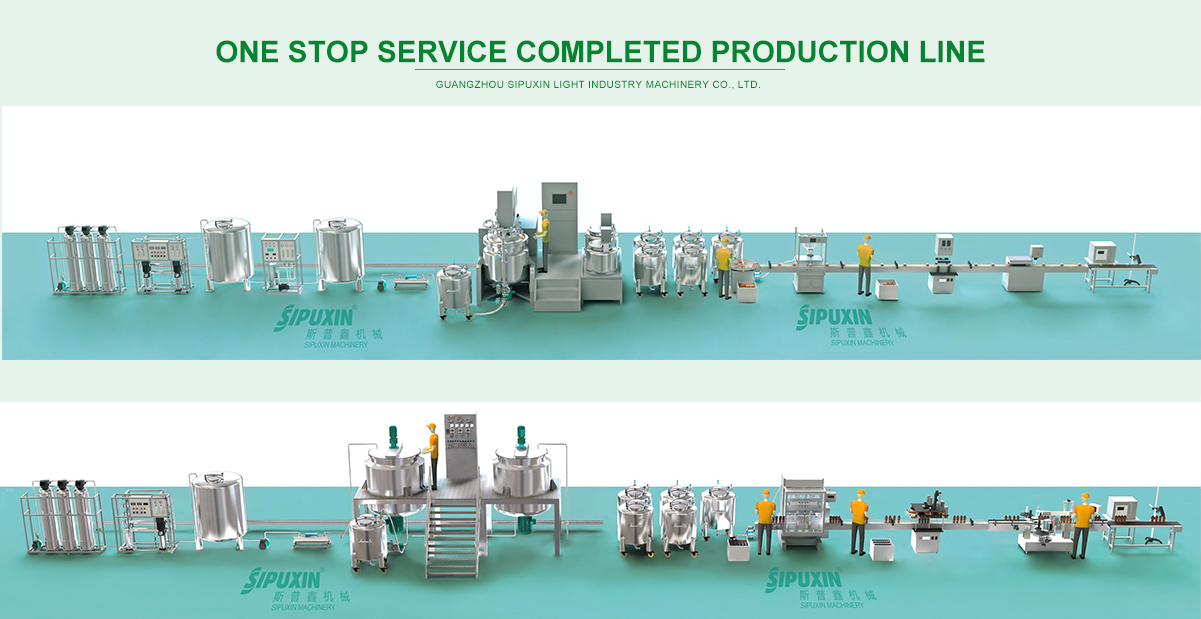

All parts touching material adopt SUS316 sanitary stainless steel, easy to disassemble and clean, meet GMP requirement. PLC touch‑screen operation, filling volume can be set directly on screen, parameters memory function. Equipped with automatic conveyor belt, can connect with capping machine and labeling machine to build complete bottling production line.

Main Features

✅6 independent servo piston filling heads, high production efficiency

✅Filling accuracy ±0.5‑1%, reduce material waste

✅SUS316 contact parts, easy disassembly & cleaning

✅Suitable for liquid and medium‑viscosity paste

✅PLC touch‑screen control, parameter storage

✅Match conveyor, compatible with capping & labeling machine

✅Support bottle size adjustment and non‑standard customization

Technical Parameters

‑Filling heads:6 servo piston heads

‑Filling volume:50‑1000ml (customizable)

‑Filling accuracy:±0.5‑1%

‑Production speed:20‑60 bottles per minute

‑Contact material:SUS316 stainless steel

‑Total power:4.2KW

‑Working air pressure:0.5‑0.7Mpa

‑Voltage:380V 3‑phase, other voltage customizable
