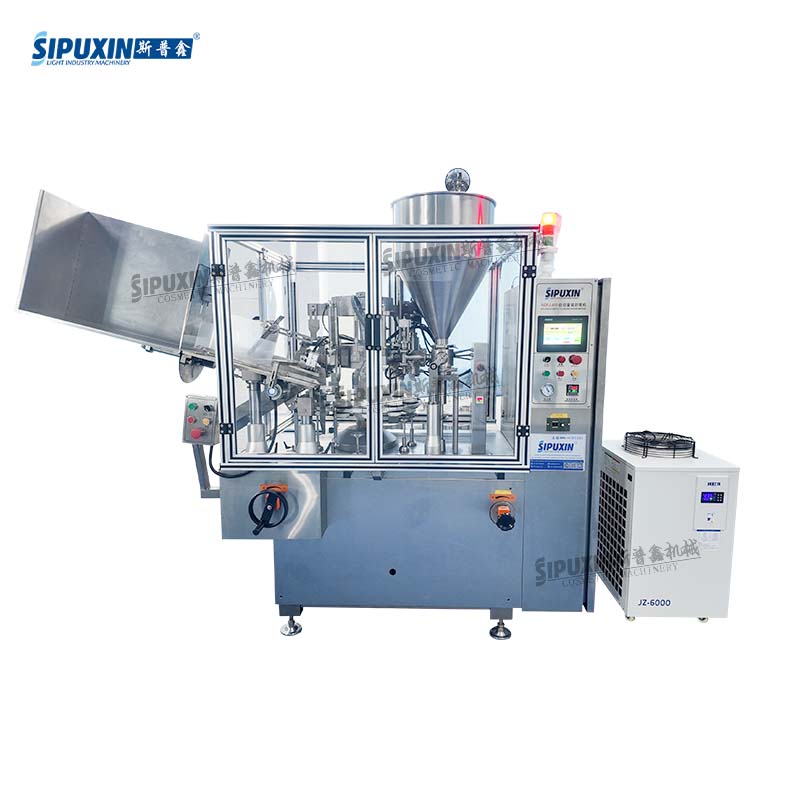

SGFJ-400 Automatic Filling and Sealing Machine

SGFJ-400 Automatic Soft Tube Filling and Sealing Machine

Product Introduction

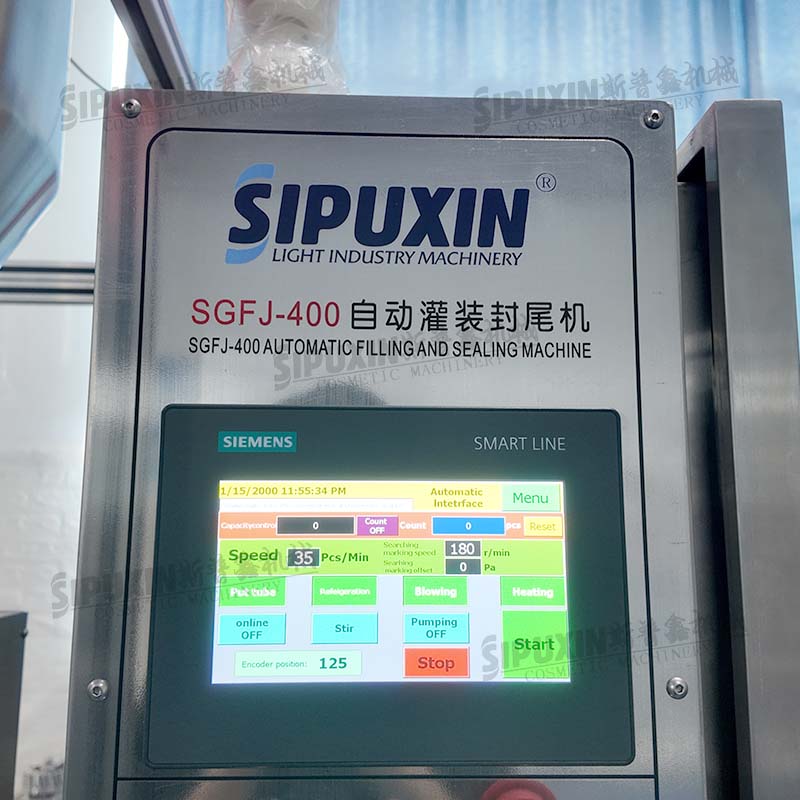

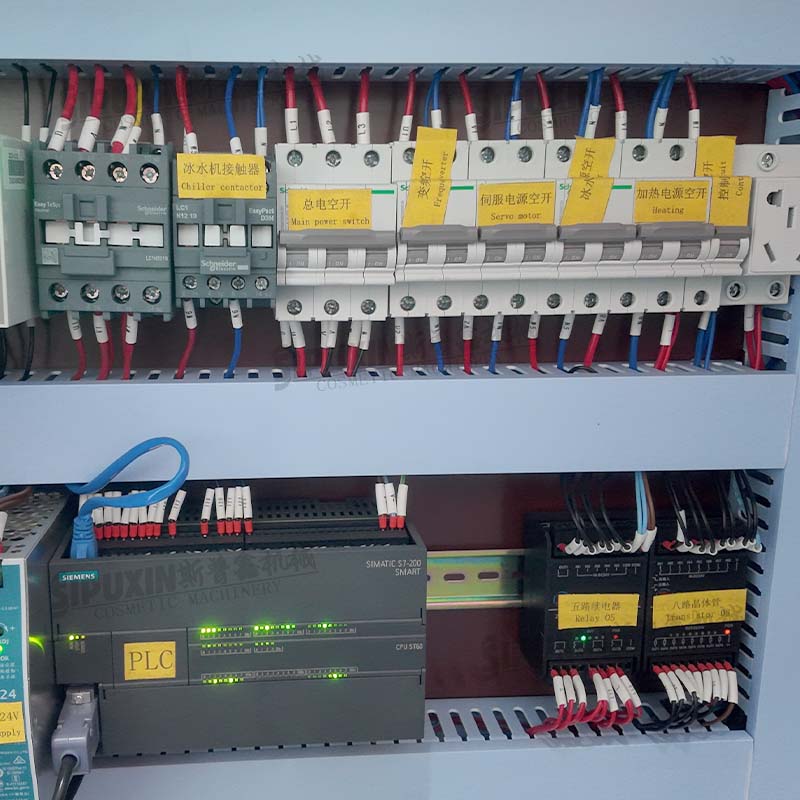

This fully automatic soft tube filling & sealing machine integrates tube feeding, positioning, quantitative filling, tube sealing and coding. It adopts pneumatic driving and PLC touch screen control, easy to operate and maintain. Suitable for cosmetic hand cream, facial cleanser, pharmaceutical ointment, toothpaste and other paste & lotion materials.

Main Features

Fully automatic workflow: auto tube loading → filling → sealing → tail cut → finished product discharge

High filling accuracy, adjustable filling volume: 10 ~ 1000ml

Compatible with plastic soft tubes and aluminum composite tubes

Pneumatic stable driving, with no-tube no-filling protection

Hot air sealing, optional tail trimming and date printing function

30~50 tubes/min stable production capacity

Easy disassembly for cleaning, meets hygiene requirements for cosmetic & pharma production

Technical Parameters

Model: SGFJ-400

Automation: Fully Automatic

Driving Type: Pneumatic

Voltage: 220V / 50Hz

Air Pressure: 0.6~0.8Mpa

Filling Head: Single Head

Speed: 30~50 tubes/min

Filling Volume: Customized, 10–1000ml

Application: Cosmetics, Daily Chemical, Pharma; Cream, Lotion, Ointment, Paste

Tube Material: Plastic Tube, Aluminum Composite Tube

Overall Dimension: 340016702350mm

Net Weight: 100kg

Warranty: 1 Year

Application Industry

Cosmetics, personal care, daily chemical, pharmaceutical, food paste production.

Products: facial cleanser, hand cream, body lotion, hair dye, medical ointment, toothpaste, gel paste.

Our Advantages

1. SIPUXIN professional cosmetic machinery factory with rich export experience

2. Customizable filling volume, tube mold according to your tube samples

3. We provide mechanical test report and factory outgoing video inspection

4. Overseas after-sales technical support

5. One-stop packaging machine solution for your production line
