SIPUXIN Automatic Heating Paste Filling Machine is specially designed for high-viscosity materials that need constant temperature filling, such as powder makeup, lip balm, body scrub, hair wax, ointment and cream.
Equipped with heating tank, stirring motor and heated filling nozzle, it keeps materials uniform and prevents solidification during the whole filling process. The single head gear pump ensures stable metering with filling accuracy up to ±1%.
Features: • Heating & stirring integrated tank, temperature adjustable • SUS316L food grade stainless steel, easy to clean • PLC control panel, simple operation • Conveyor belt for automatic production line • Pedal switch for semi-auto mode • Anti-drip filling nozzle
Widely used in cosmetic, food, pharmaceutical and chemical industries for paste and viscous material filling.
SIPUXIN Single Head Heating & Stirring Paste Filling Machine
This automatic heated filling machine integrates heating, stirring and filling functions. It is designed for high-viscosity materials easy to solidify, including powder makeup, lip balm, body scrub, hair wax, ointment and cosmetic cream. Equipped with constant temperature system and mixing mechanism, it effectively avoids material precipitation and solidification to achieve stable filling performance.
Component Name
Function Introduction
Stirring Motor
Drive internal agitator to keep materials evenly mixed, prevent material layering and precipitation
Tank
Double-layer jacket SUS316L stainless steel tank for material storage and heat preservation
Heating Device
Constant temperature control for tank, adjustable temperature to maintain good material fluidity
Heated Filling Nozzle
Heating insulated discharge outlet with anti-drip structure, avoid nozzle blockage from cooled solid materials

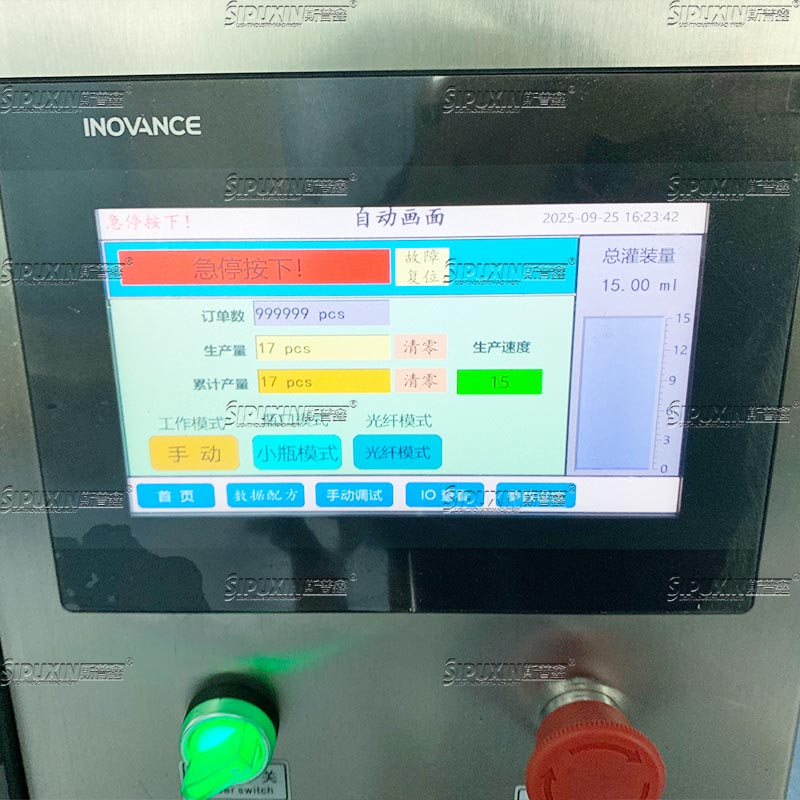

PLC Control Panel
Intelligent operation panel, set filling volume, speed, temperature and stirring speed freely
Conveyor
Automatically convey containers, connect with downstream equipment to realize assembly line production
Pedals
Semi-automatic trigger switch, support manual single filling for small batch trial production
Core Advantages
All parts contacting materials adopt food-grade SUS316L stainless steel, meet cosmetic and food hygiene standards, easy to disassemble and clean. Gear pump metering filling, high filling accuracy within ±1% tolerance. Two working modes: fully automatic conveyor production and pedal semi-automatic filling. Machine base fitted with moving casters, convenient for position adjustment in workshop. Adaptable for jars, bottles, cans and other different containers.
Technical Specification
Item
Parameter
Voltage
220V / 50Hz
Filling Speed
30~50 bottles/min
Filling Volume Range
10ml - 1000ml (customized available)
Filling Accuracy
±1%
Filling Head
Single Head
Working Air Pressure
0.6~0.8Mpa
Overall Dimension
340016702350mm
Net Weight
100kg
Warranty
1 Year
Application Scope
Cosmetics: Powder makeup, lip balm, body scrub, hair wax, ointment, face cream, body butter
Food industry: Chocolate paste, honey paste, jam and other thermal required thick paste
Pharmacy & Chemical industry: Medical ointment, all kinds of viscous wax raw materials
Service Support
We supply mechanical test report and factory operation video. Customization service is available according to your production demands. We provide lifetime online after-sales technical support.
