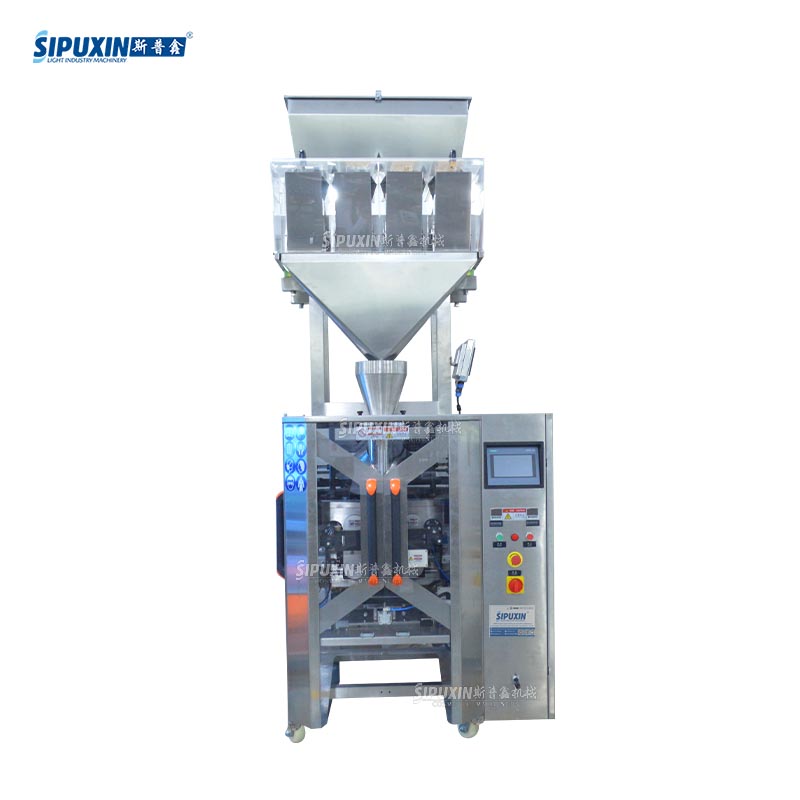

SIPUXIN Automatic Granule Packing Machine with 4 Heads Linear Weigher Z-Type Elevator 520 Back Seal Pouch Bag Filling Sealing Machine for Food Grains Powder

1

This complete automatic granule packing line consists of Z-type bucket elevator feeder, 4-head linear weigher and 520 model back-seal vertical packaging machine. It realizes fully automatic working flow from material lifting, precise weighing, bag forming, filling, sealing, cutting to finished bag output. Equipped with PLC touch screen control system, stainless steel 304 body and high-precision load cell sensors, it can pack various granular materials into back-seal pillow bags with stable weighing accuracy. Widely used for food, daily chemical and hardware small parts packaging, suitable for small and medium output production workshops.

Machine composition

1. Z-type bucket elevator: Auto lift granular materials without spillage

2. 4-head linear weigher: High-precision quantitative weighing unit with load cell sensors

3. 520 vertical back-seal packing main machine: Integrates bag forming, filling, sealing and cutting

4. PLC touch control panel: Visual parameter setting & fault alarm

5. Photoelectric tracking sensor: Precise film positioning by color mark

6.  Adjustable heat sealing & cutting mechanism

7.  Mobile casters for easy workshop movement

Usage and Application

Usage

The Z-type elevator lifts raw materials up to the 4-head linear weigher automatically; the linear weigher finishes high-precision quantitative weighing by multi-head sensor combination; then the 520 vertical packing machine finishes bag forming, material filling, back sealing and cutting in one continuous process. All parameters are set via PLC touch screen, one worker can operate the whole line, saving labor cost.

Application

1. Applicable Industries: Food, snack, grain, spice, daily chemical, hardware small parts

2. Suitable Materials: Nuts, rice, beans, coffee beans, sugar, salt, spice powder, seeds, tea, dried fruit, washing powder, fertilizer granules, small hardware parts

3. Bag Type: Back seal pillow bag, 3-side seal bag (customizable)

4. Packing Speed: 10–30 bags per minute (depends on material and weight)

Core Advantage

1.3-in-1 Integrated Full Automatic LineZ-type feeder + 4-head linear weigher + 520 back-seal packing machine work together automatically, no manual feeding needed, reduce labor cost greatly.

2. High Precision Linear Weighing System4 independent weighing hoppers with high-sensitivity load cell sensors, weighing accuracy ±0.1–0.5g, avoid overweight or under-filled bags.

3. PLC Intelligent ControlFull machine controlled by PLC + color touch screen, bag length, weight, packing speed all adjustable digitally, fault self-diagnosis and alarm function, easy operation.

4. Food Grade SUS304 Stainless SteelAll material contact parts adopt SUS304 stainless steel, smooth surface no dead corner, easy to clean, meet food factory hygiene standard.

5. 520 Large Bag Width Packing HostMax bag width up to 520mm, suitable for large volume granule packaging; back seal structure with strong sealing strength, no leakage.

6. Stable Z-Type Bucket ElevatorClosed bucket chain lifting structure, no material spillage, low noise, feed materials continuously and stably to upper weigher.

7. Wide Material CompatibilitySuitable for most free-flowing granular, small block and small powder materials, one machine for multiple product packaging.

Item	Specification
Machine Combination	Z-Type Elevator + 4-Head Linear Weigher + 520 Back Seal Packing Machine
Control System	PLC + Touch Screen
Weighing Range	100g – 2000g
Weighing Accuracy	±0.1 – 0.5g
Packing Speed	10 – 30 bags/min
Max Bag Width	520mm
Bag Length	50 – 400mm (customizable)
Bag Type	Back seal pillow bag / 3-side seal bag
Film Material	Laminated film, PE film, composite film
Body Material	SUS304 Stainless Steel (contact parts)
Total Power	3.5kW
Working Voltage	220V / 380V, 50/60Hz (customizable)
Air Pressure Required	0.5 – 0.7Mpa
Weigher Hopper	4 Heads
Elevator Type	Z-Type Bucket Chain Feeder
