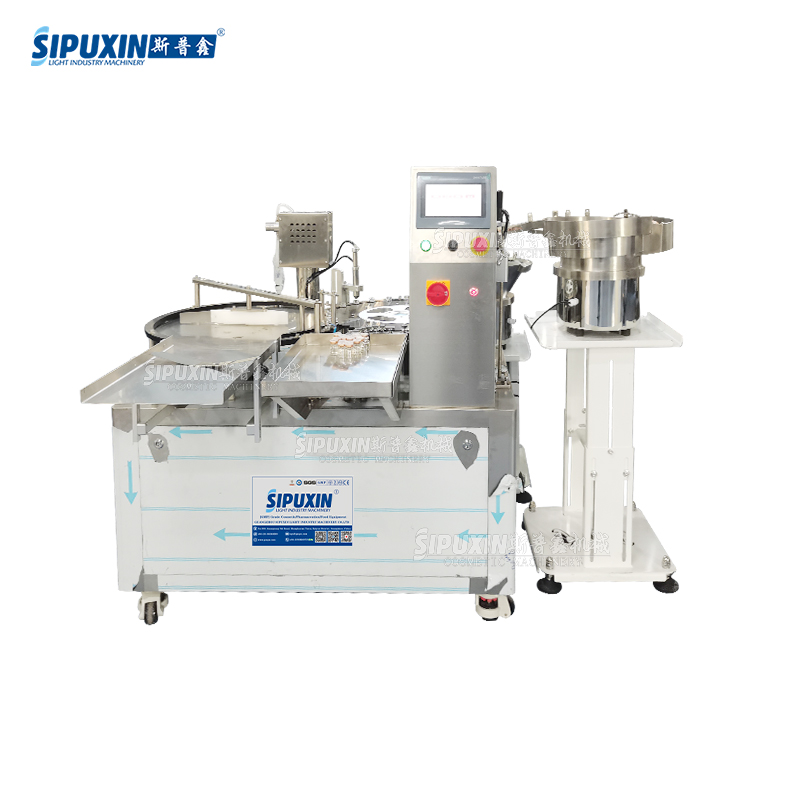

SIPUXIN fully automatic chuck‑type vial filling machine is an all‑in‑one production unit for small glass vials. It completes bottle feeding, liquid filling, rubber stopper pressing and aluminum cap capping in one rotary station.
This machine adopts rotary chuck positioning structure, which clamps tiny glass bottles firmly and avoids bottle tipping. Filling system supports peristaltic pump or ceramic pump for high‑precision liquid dosing. Made of food‑grade stainless steel, it meets GMP requirements for pharmaceutical, cosmetic serum, freeze‑dried vial, herbal extract and health‑care liquid production.
PLC & touch‑screen control makes parameter setting easy. Vibration bowls automatically supply stoppers and caps. Quick size change‑over needs no extra replacement parts. Equipped with no‑bottle no‑fill safety function to reduce material waste. Mobile casters support flexible workshop layout adjustment.
SIPUXIN Fully Automatic Chuck‑Type Vial Filling Machine is specially engineered for small glass vial production in pharmacy and cosmetic industry. It combines feeding, filling, stopper pressing and capping function in one compact rotary machine.
Main Features
Main frame: SUS304 stainless steel, material contact parts optional SUS316L, conform to GMP standard
Rotary chuck clamping design, stable hold for small glass vials, prevent bottle falling

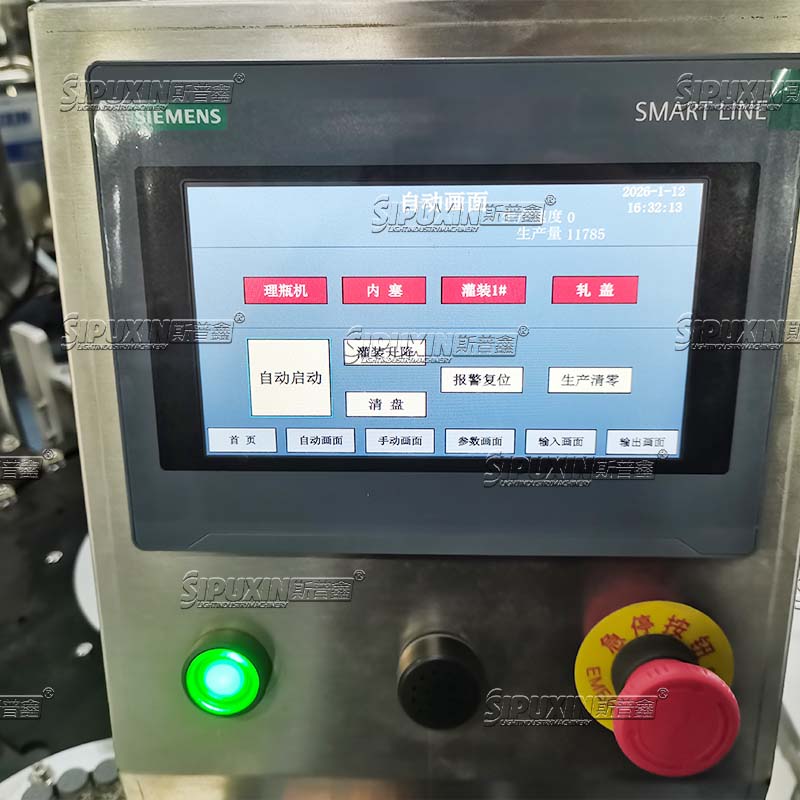

PLC + touch screen operation, easy adjust filling volume, running speed and production parameters

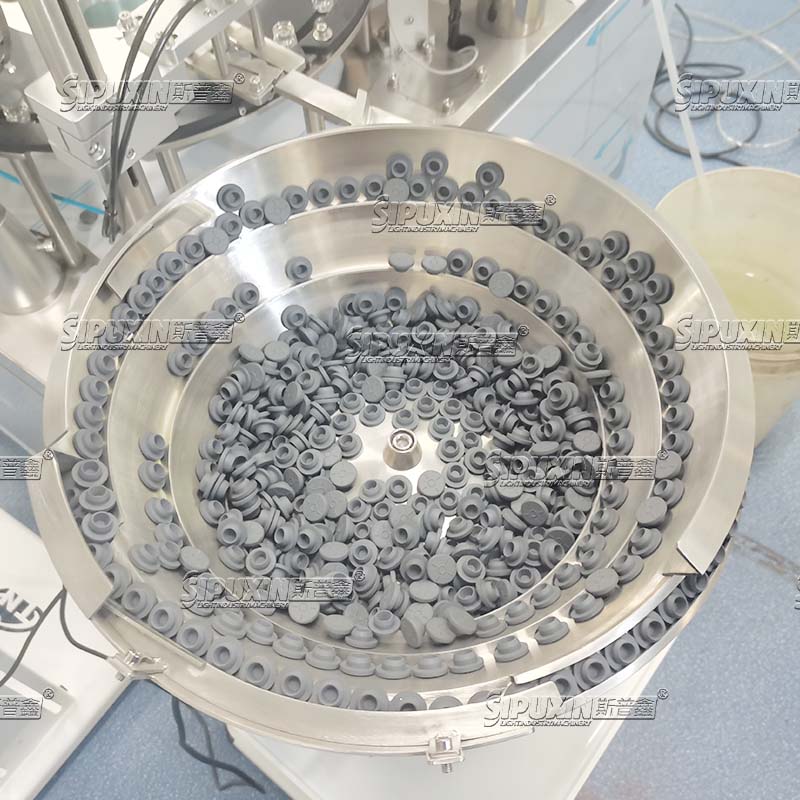

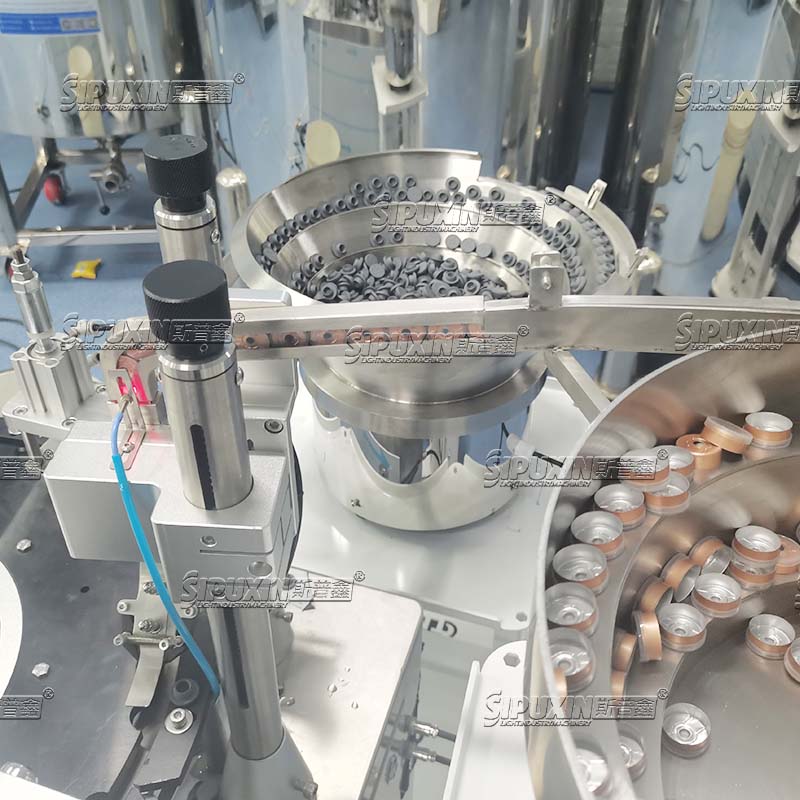

Vibratory feeder for automatic rubber stopper and aluminum cap feeding
Optional peristaltic pump / ceramic pump filling, ±1% high filling accuracy for low‑viscosity liquid
Fast format change for different vial sizes, only mechanical adjustment required
Safety interlock: stop filling when no bottle arrives, minimize liquid waste
Universal casters for easy moving and position rearrangement
Technical Specification
Item
Parameter
Applicable bottle
Glass vial, diameter 12‑50mm, height 30‑150mm
Filling range
1‑50ml (custom‑available)
Production capacity
40‑200 bottles / min
Filling accuracy
±1%
Power supply
220V 50/60Hz
Total power
1.8KW
Working air pressure
0.4‑0.6 Mpa
Machine material
SUS304; contact part SUS316L optional
Application
Fit for various small glass vials: injection vial, freeze‑dried powder vial, cosmetic essence & serum vial, oral liquid vial, plant extract liquid and other low‑viscosity liquid products.
We support custom configuration according to your bottle dimension and production requirement. Welcome to send inquiry for quotation and factory test video.
