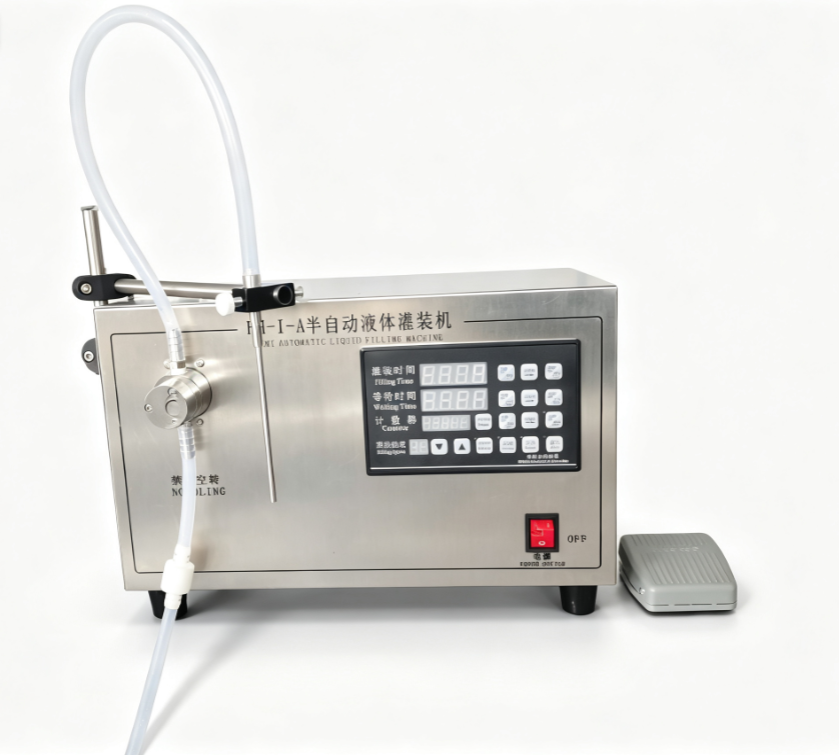

This semi‑automatic magnetic pump liquid filling machine is table‑top type, widely used for filling all kinds of low‑viscosity liquids, such as perfume, essential oil, lotion, liquid soap, honey and oral liquid. Controlled by digital panel, it supports filling time, waiting time setting and counting function. With foot pedal switch, workers can operate easily. Compact stainless‑steel body meets cosmetic & food‑grade requirements, ideal for laboratory, small‑batch production and new workshop.

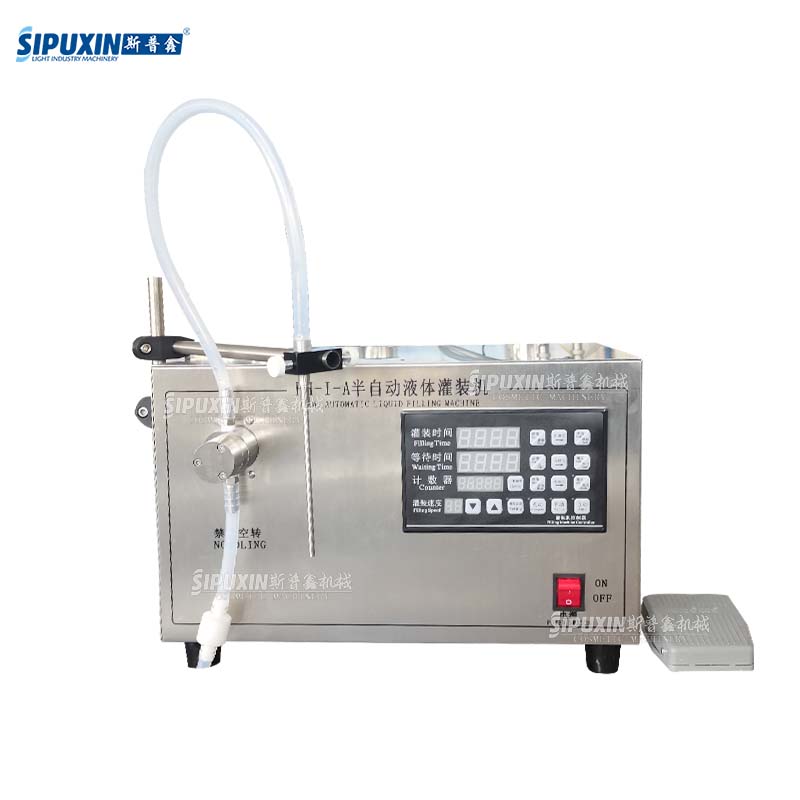

SIPUXIN H‑I‑A semi‑automatic magnetic pump liquid filling machine adopts magnetic pump filling principle. No‑contact liquid transfer avoids liquid pollution. The digital control panel allows users to adjust filling volume, filling speed and interval time directly. Equipped with foot pedal for manual trigger, flexible for different bottle sizes. The whole machine is made of stainless steel, easy to clean and maintain. Perfect for cosmetics, daily‑care, food and chemical small‑batch filling production.
Main Technical Parameters
Item
Specification
Model
H‑I‑A Semi‑automatic Liquid Filling Machine
Filling range
5‑5000ml(adjustable)
Filling accuracy
±1%
Filling speed
0‑30 bottles/min(depends on liquid & volume)
Control mode
Digital panel + foot pedal switch
Material
Stainless steel 304
Power supply
AC110V/220V 50‑60Hz
Machine dimension
420280260 mm
Weight
12kg
Key Features

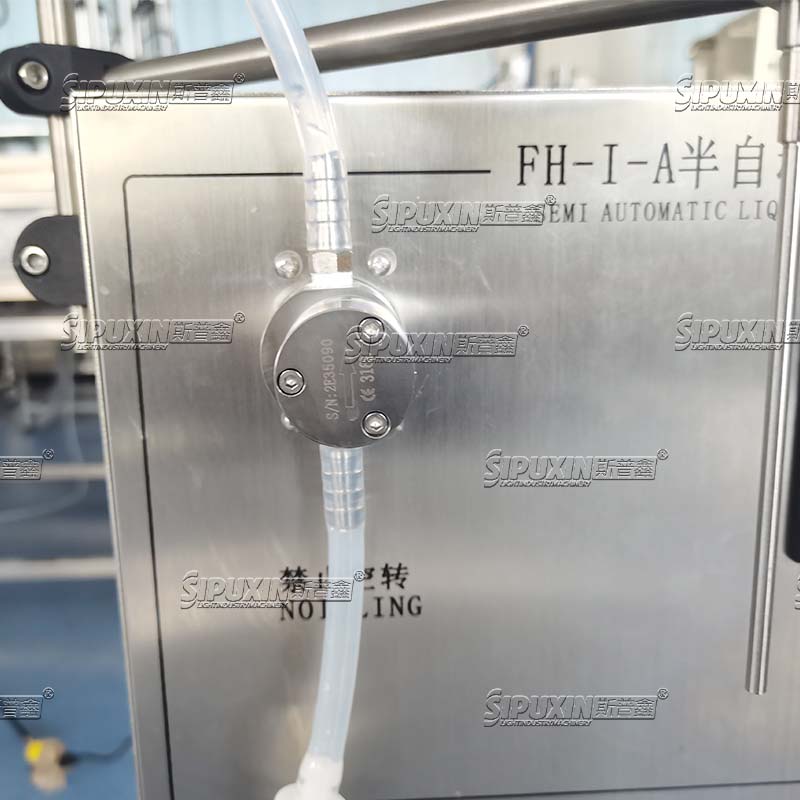

Magnetic pump filling: no mechanical shaft leakage, suitable for corrosive liquid.

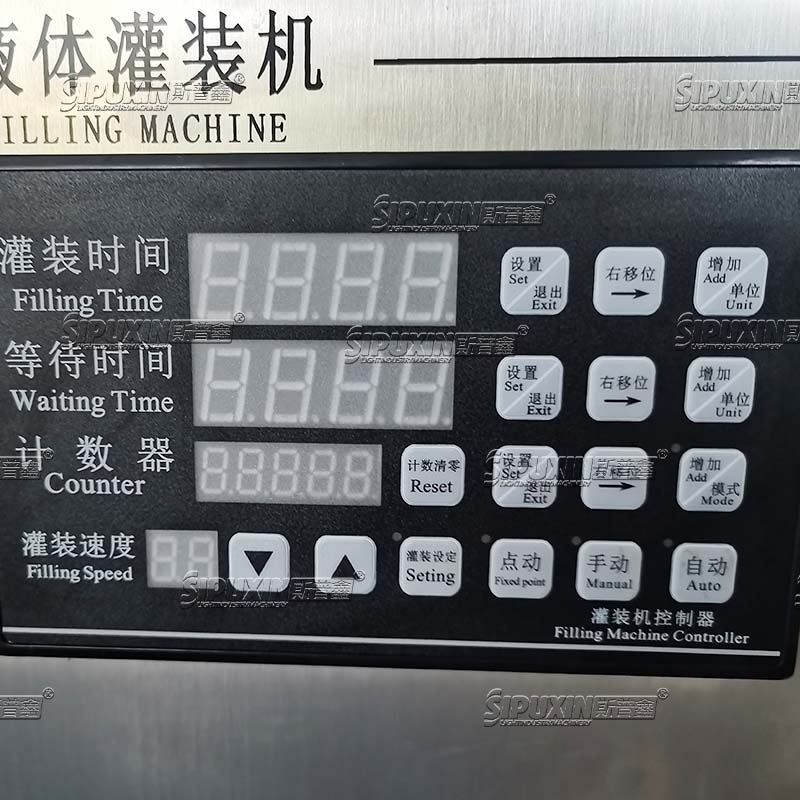

Digital setting: filling time, waiting time and counter function are available.

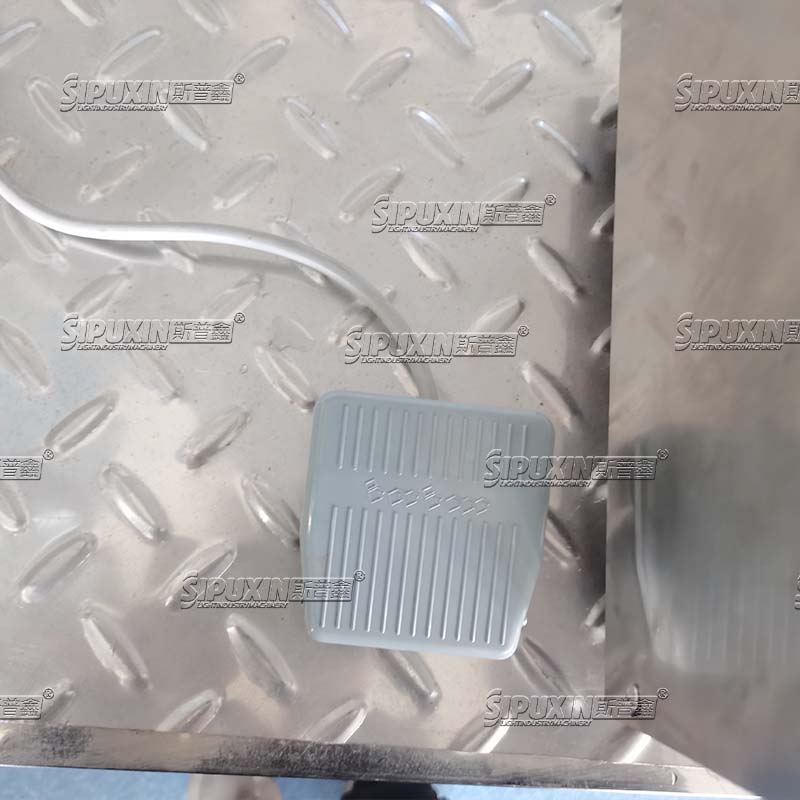

Foot pedal control: free‑hand operation, fit for various bottle heights.
Compact table‑top design, save workshop space, easy to move.
Stainless steel body, easy disassembly for cleaning.
