This integrated perfume production unit is specially developed for commercial perfume, cologne, fragrance spray manufacturing. It combines raw material blending, low-temperature cold maturation, two-stage precision filtration and automatic feeding & discharging in one compact unit, which perfectly complies with international perfume crafting technological standards.
This integrated perfume production unit is specially developed for commercial perfume, cologne, fragrance spray manufacturing. It combines raw material blending, low-temperature cold maturation, two-stage precision filtration and automatic feeding & discharging in one compact unit, which perfectly complies with international perfume crafting technological standards.
Made of food-grade stainless steel SUS304, the whole machine is corrosion-resistant, easy to clean and fully explosion-proof to safely process alcohol-based perfume liquid. It is the core production equipment for medium and small cosmetic factories to launch perfume lines.
Core Working Flow
Raw material feeding → Pneumatic stirring homogenization → Constant low-temperature refrigeration aging → Diaphragm pump conveying → Microporous membrane primary filtration → Plate frame fine filtration → Pure finished perfume discharging

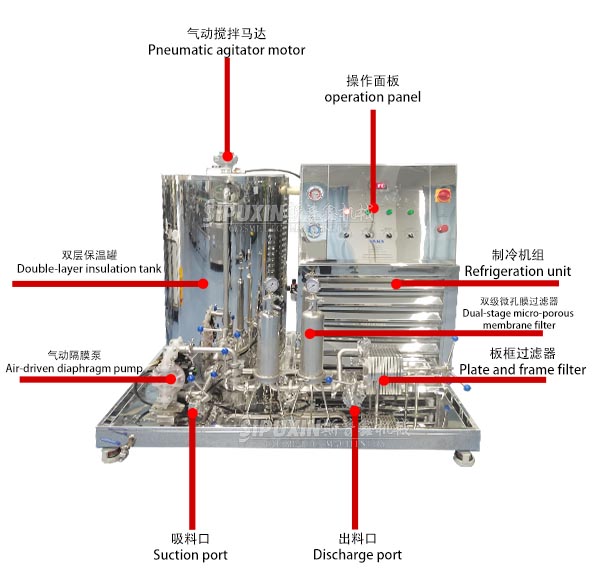

Main Components & Functions
Parts Name
Detailed Function

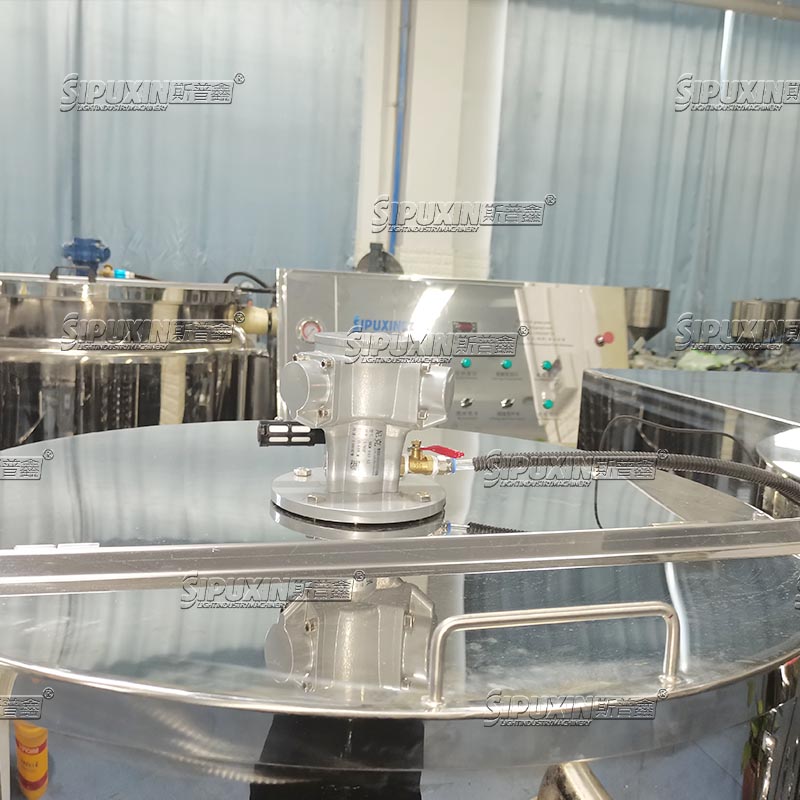

Pneumatic Agitator Motor
Explosion-proof air stirring, evenly blend essence, alcohol and purified water without overheating

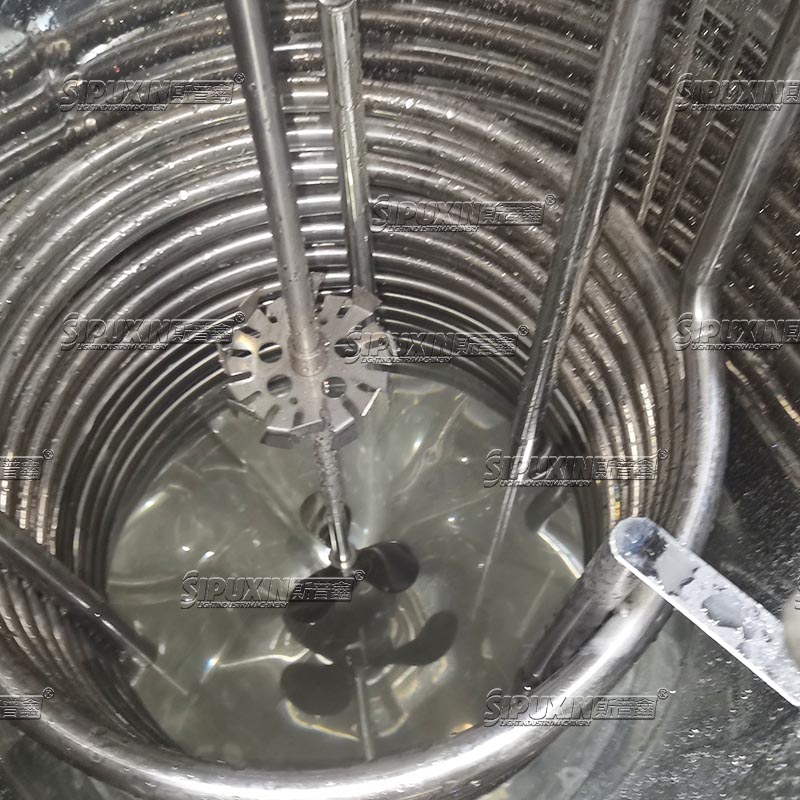

Double-layer Insulation Tank
Main aging tank, heat preservation layer locks low temperature to realize perfume cold ripening
Refrigeration Unit
Stable cooling system, adjustable temperature to meet perfume maturation requirement
Air-driven Diaphragm Pump
Safe liquid transportation, no leakage, applicable for alcohol solvent

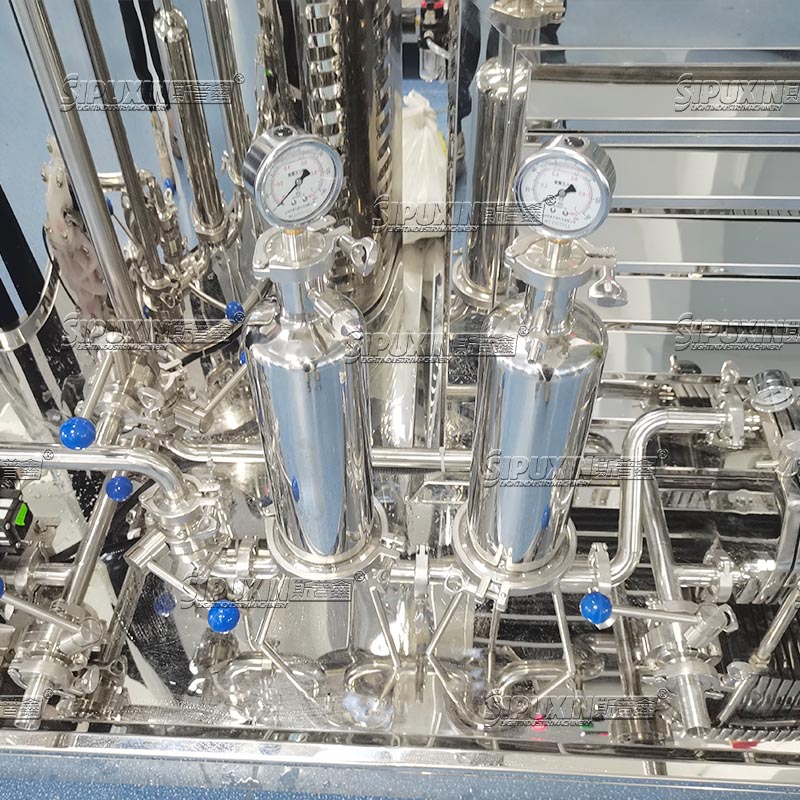

Dual-stage Micro-porous Membrane Filter
First coarse filtration, remove large impurities, suspended solids

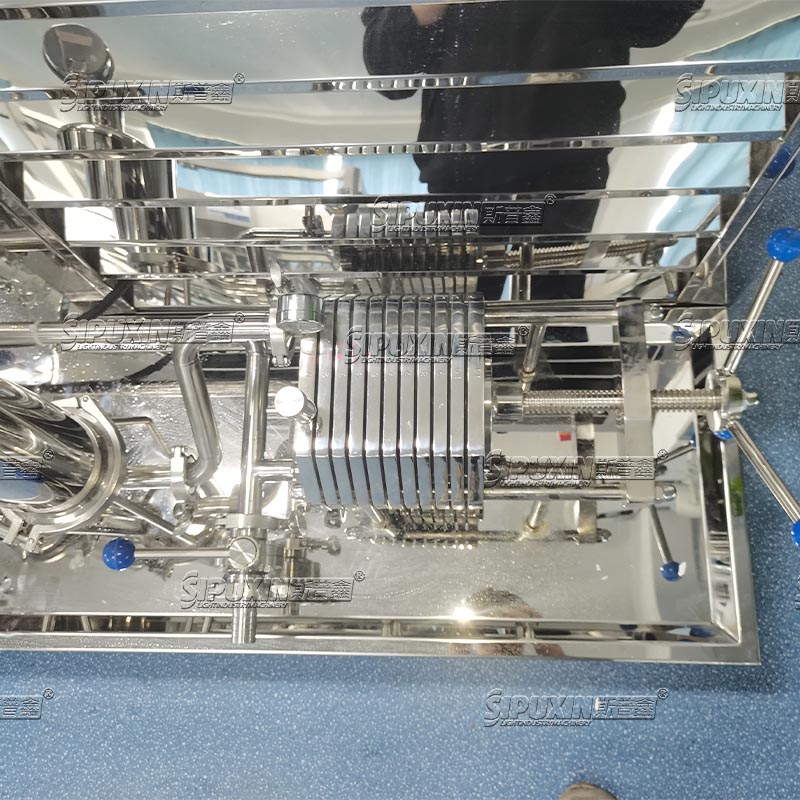

Plate and Frame Filter
Secondary fine filtration, make perfume transparent, no sediment & turbidity
Operation Panel
Central control for temperature, stirring speed, refrigeration and running status
Suction Port
Raw material inlet for feeding formula materials
Discharge Port
Outlet for filtered finished perfume, connect with filling machine directly
Product Advantages
All-in-one design: Save workshop space, simplify perfume production procedures
Explosion-proof pneumatic configuration: High safety for alcohol-containing perfume
Precise temperature control: Guarantee perfume flavor stability and fragrance layering
