500L Mobile Electric Heating Mixing Tank: Flexible Heating Mixing Solution for Small‑Medium Batch Production

Introduction

For cosmetics, daily‑chemical and food manufacturers, flexible and hygienic mixing equipment is essential for small‑to‑medium batch production. The 500L Mobile Electric Heating Mixing Tank from SIPUXIN is a multi‑functional mixing vessel combining heating, stirring and movable design. It solves common pain points such as fixed‑position equipment, difficult material transfer and inaccurate temperature control. It is widely adopted for producing shampoo, body lotion, facial mask ointment, liquid detergent and semi‑paste food materials.

Unlike fixed‑installed mixing tanks, this unit integrates heavy‑duty brake casters on the base. Operators can move the tank between raw‑material feeding station, production line and filling station inside the workshop, greatly optimizing workflow for multi‑variant small‑batch orders.

Core Structure & Working Principle

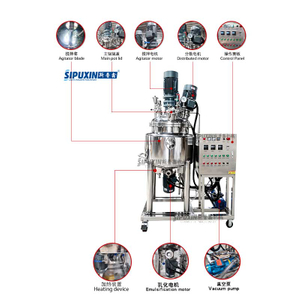

This mixing tank mainly consists of stainless‑steel tank body, electric thermal‑oil jacket heating system, frame‑type stirring assembly, mobile caster base and independent control cabinet.

When working, raw liquid or semi‑paste materials are fed into the inner tank. The electric heating system transfers heat through thermal oil inside the jacket, delivering even heating across the tank wall without local over‑burning. The frame‑type agitator rotates at adjustable low speed to circulate, dissolve and homogenize materials. Users can set target temperature on the control panel, the system will maintain constant temperature automatically during production.

Standard version comes with slow stirring only. Customers may add a high‑speed homogenizer as optional upgrade to achieve fine emulsification for thick cream and lotion formulas.

Main Technical Specifications

Outstanding Product Advantages

1. Mobile design improves workshop efficiency

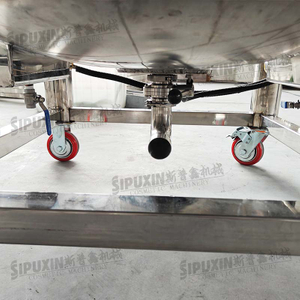

Most heating mixing tanks are fixed on concrete foundation, requiring pumps or pipelines to transfer finished materials. Equipped with lockable casters, this 500L tank can be pushed directly to filling machines or storage area. It reduces intermediate transfer steps and avoids material waste and cross‑contamination during pumping. It is ideal for factories running multiple SKUs and frequent product change‑over.

2. Stable electric constant‑temperature heating

Electric thermal‑oil jacket heating provides gentle and uniform heat distribution. Compared with direct steam heating, it does not require external steam boiler, lowering factory investment and layout difficulty. Producers can adjust temperature precisely for different formulas, suitable for heat‑sensitive cosmetic raw materials.

3. Hygienic stainless‑steel construction

Material contact parts adopt high‑quality stainless steel with mirror polished inner surface. Smooth inner wall prevents material residue, easy for manual washing or CIP cleaning. SUS316L upgrade is available when processing corrosive raw materials, meeting cosmetic and food‑grade hygiene standards.

4. High flexibility for configuration customization

This tank is not a one‑size‑fits‑all product. Besides optional homogenizer, SIPUXIN can modify capacity, discharge outlet size, seal type and control functions according to customer’s real‑world production. Whether you produce thin shampoo or thick facial mask paste, the equipment can be adjusted to match your formula characteristics.

5. User‑friendly operation & low maintenance

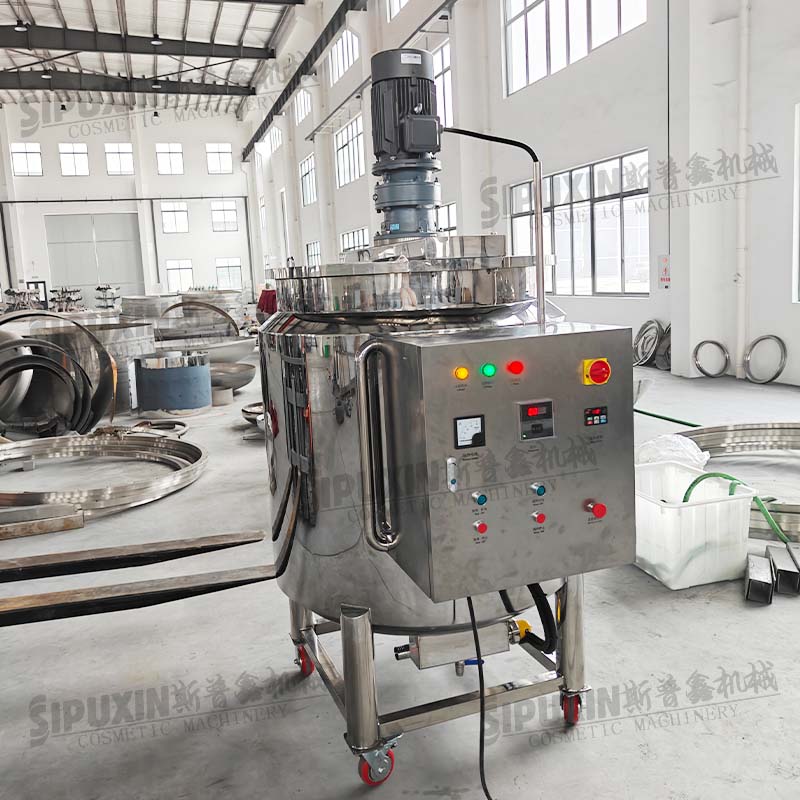

All operation buttons and temperature display are centralized on the independent control cabinet. Workers can set temperature, start‑stop stirring and monitor running status intuitively. The mechanical structure is mature and reliable, with low daily maintenance cost. Spare‑parts replacement is convenient for after‑sales support.

Typical Application Scenarios

Cosmetic industry: Shampoo, hair conditioner, body lotion, facial cream, facial mask ointment, hair dye paste. Daily‑chemical industry: Hand wash liquid, dish‑washing detergent, multi‑purpose cleaning agent. Food industry: Sauce, syrup and other liquid / semi‑paste small‑batch products.

It fits well for medium‑scale production workshops, new‑product trial‑run laboratories and OEM/ODM factories with many product lines.

What to Consider Before Purchase

Before placing inquiry, confirm key information for accurate configuration:

1. Main material property: liquid, low‑viscosity paste or high‑viscosity cream;

2. Required maximum working temperature;

3. Material requirement: SUS304 or SUS316L;

4. Whether high‑speed homogenizer emulsifying function is needed;

5. Local factory voltage standard.

SIPUXIN technical team will recommend suitable configuration based on your formula and output requirement.

After‑sales Guarantee

• One‑year full machine warranty (excluding quick‑wear spare parts)

• Online video‑guided installation, commissioning and operator training

• Long‑term spare‑parts supply service

• Support technical consultation for formula‑equipment matching

Conclusion

The 500L Mobile Electric Heating Mixing Tank balances production capacity, heating performance and workshop mobility. For cosmetics and daily‑chemical manufacturers who pursue flexible small‑medium batch production, it is a cost‑effective mixing solution without complicated steam supporting facilities. If you are looking for heating mixing equipment for new‑product development or expanding existing production line, this model is worthy of your evaluation. Contact SIPUXIN to share your production requirement and get professional proposal.
