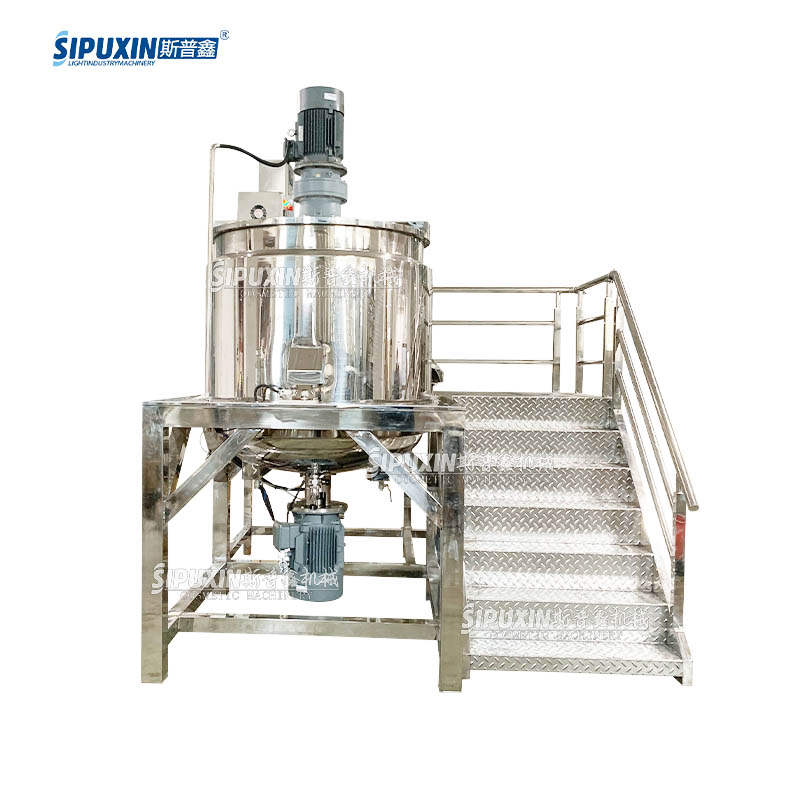

SIPUXIN 1000L stainless steel weighing homogenizing mixing tank is specially designed for liquid and cream product production in daily chemical, cosmetic and food industries. It integrates stirring, homogenizing and weighing functions in one machine, ensuring precise batching and uniform product quality.
✅ Core Features
Feature
Description
Precise Weighing System
Built-in high-precision weighing sensor, real-time weight display, accurate raw material batching, no need for separate weighing tools
Top Slow Stirring
Frame-type / paddle agitator, low-speed overall mixing, prevents material sedimentation and wall sticking
Bottom High-Speed Homogenizer
High-shear emulsifying head at the bottom, fine particle size, smooth and delicate product texture
Sanitary Grade
SUS304 stainless steel (SUS316L optional), mirror polished interior, easy to clean, GMP standard
Heating & Cooling Jacket
Optional steam or electric heating + water cooling, temperature control adjustable
Vacuum Defoaming
Optional vacuum system to remove bubbles for better product appearance
Technical Parameters
Parameter
Specification
Working Volume
1000L
Total Volume
~1300L
Material
SUS304 stainless steel (SUS316L optional)
Stirring Motor
3kW / 4kW (customizable)
Stirring Speed
0-65 rpm (VVVF speed control)
Homogenizer Motor
7.5kW / 11kW (customizable)
Homogenizer Speed
0-3500 rpm
Weighing Accuracy
±0.1%
Heating Method
Steam / Electric heating (optional)
Cooling Method
Water cooling
Discharge Valve
Sanitary butterfly valve / ball valve
Voltage
220V/380V, 50Hz/60Hz (customizable)
Application
This mixing tank is widely used for producing:
Shampoo, hair conditioner, hair mask
Shower gel, body wash, liquid soap
Body lotion, hand cream, facial cleanser
Toner, essence, makeup remover
Liquid detergent, fabric softener
Syrup, oral liquid (food & pharma grade)
Why Choose Us
Factory Direct - Guangzhou & Yangzhou manufacturing bases, 10+ years experience
Customization Available - Volume, material, motor brand, voltage all customizable
Quality Guarantee - 12 months warranty, lifetime technical support
Fast Delivery - Standard models in stock, customized order 15-25 working days
After-sales Service - Online guidance, video installation support, overseas service available
Contact Us
Welcome to contact us for detailed quotation and technical solution. We provide professional OEM/ODM service for global customers.
