500L Electric Heating Hydraulic Lift Vacuum Homogenizer Emulsifier with oil‑water tanks
Our 500L electric heating hydraulic lift vacuum homogenizer emulsifier is core production equipment for cosmetic, pharmaceutical and food industries. It integrates high‑speed homogenization, scraper stirring, vacuum de‑foaming and electric heating functions. Matched with independent oil‑water tanks for raw material pre‑melting. Hydraulic lifting design brings easy cleaning & maintenance. All material‑contact parts adopt SUS316L stainless steel, fully meet hygiene requirements for cream, lotion, ointment, hair mask and mayonnaise manufacturing.
500L Hydraulic Lift Vacuum Homogenizer Emulsifier with Oil-Water Tanks
This vacuum emulsifying machine is specially designed for producing high-quality cream, lotion, ointment, hair care paste and food sauce. It completes raw material pre-melting, vacuum feeding, homogenizing mixing and vacuum defoaming in one unit.
Main Technical Parameters
Item
Parameter
Effective Volume
500L
Heating Method
Electric jacket heating
Lifting Mode
Hydraulic lifting
Stirring Type
Frame scraper stirring
Homogenizer
High shear high-speed homogenizer
Contact Material
SUS316L stainless steel
Frame Material
SUS304 stainless steel
Supporting Device
Oil tank, Water tank, Vacuum system, Control cabinet, Operating stairs
Core Features
No.
Feature
1
SUS316L contact parts, comply with cosmetic & food sanitary standard
2
Hydraulic lifting cover, easy to clean and inspect tank interior
3
High-speed homogenizer + scraper stirring, obtain fine and uniform paste
4
Vacuum defoaming system, bubble-free products, avoid material oxidation
5
Precise electric temperature control, adjustable heating temperature
6

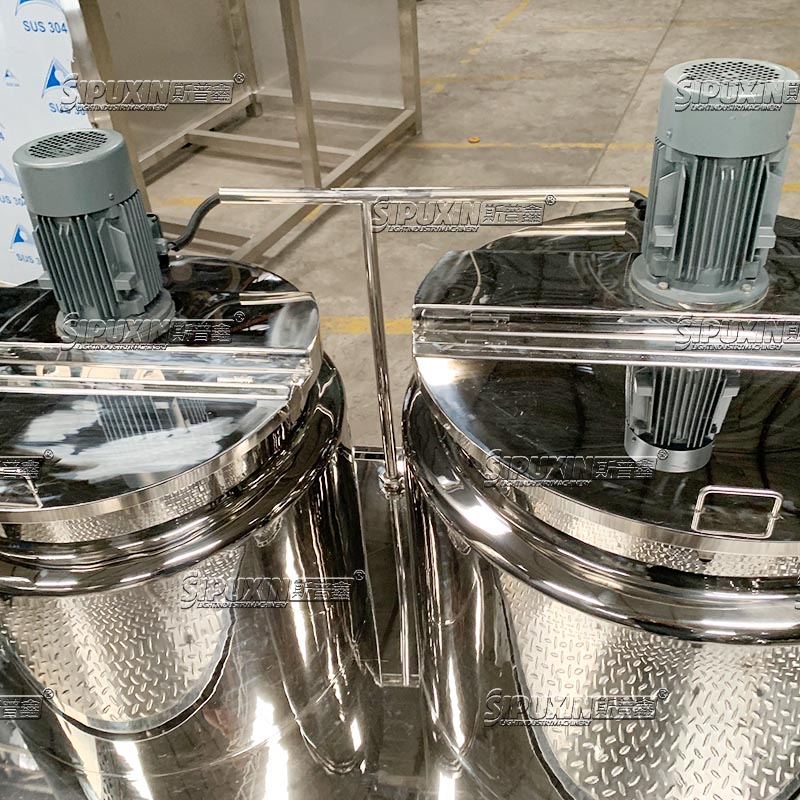

Matching oil-water tanks for separate pre-melting of raw materials
7

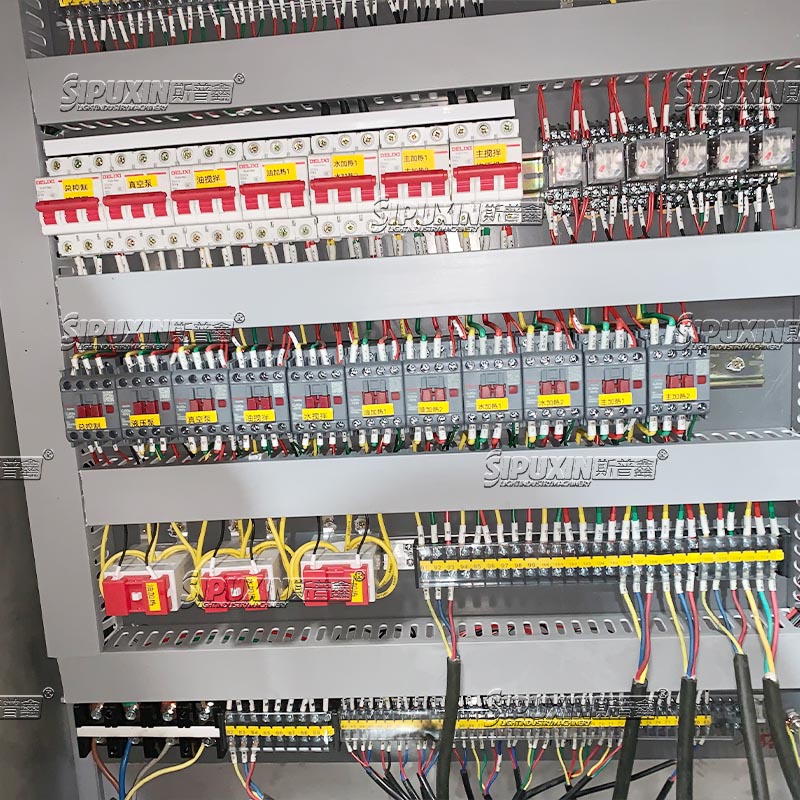

Independent control cabinet for temperature, speed and vacuum display
Application Scope
Industry
Application
Cosmetics
Face cream, body lotion, hand cream, eye cream, hair mask, cleansing paste
Pharmacy
Medical ointment, skin ointment
Food
Mayonnaise, salad sauce, paste food
Other
Various industrial paste materials
SIPUXIN is a professional manufacturer of cosmetic machinery. Customized volume and configuration are available.
