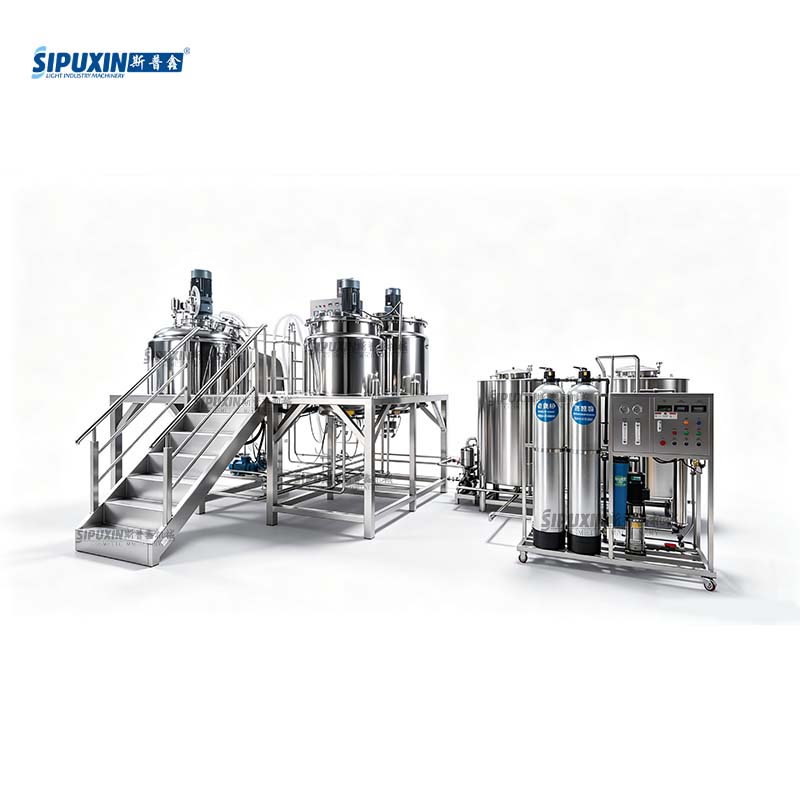

Complete 1000L Stainless Steel Vacuum Emulsifier Production Line for Large Scale Cosmetic Cream Lotion Manufacturing
As cosmetic, pharmaceutical and daily chemical factories expand mass production demand, medium and large manufacturers need large-capacity, fully automatic mixing and emulsifying equipment. Our complete set of 1000L vacuum emulsifier mixer is a one-stop integrated production line specially designed for high-volume batch production of cream, body lotion, ointment, hair mask and facial mud. This article will fully introduce its composition, working principle, core advantages, applicable industries and customized service support.
1. Full Composition of 1000L Vacuum Emulsifier Complete Line
The whole set of 1000L vacuum emulsifier production system is composed of four core units, realizing automatic batching, heating, emulsification and discharging without repeated manual transfer of raw materials.
Main emulsifying pot (1000L homogenizing mixing tank)
304/316L stainless steel main pot with hydraulic lifting cover and tilting discharge function, equipped with internal and external circulation high-speed homogenizer, anchor type slow stirring frame and water circulation heating & cooling interlayer.
Independent oil phase tank & water phase tank
Matching oil melting tank and water dissolving tank with independent heating and stirring system, used for pre-melting wax, oil, emulsifier and dissolving water-soluble raw materials separately. Material can be automatically pumped into the main emulsifying pot through pipeline.
Vacuum & hydraulic supporting system
Built-in industrial vacuum pump unit to extract air inside the pot for bubble-free finished products; hydraulic station provides power for lifting pot cover and tilting discharging, saving labor greatly.
PLC automatic electric control cabinet
7-inch English touch screen central control system, all temperature, stirring speed, homogenizing frequency, vacuum degree and production time can be preset and stored as product formulas.
2. Working Principle of 1000L Vacuum Emulsifier Line
First, raw materials are added into oil phase tank and water phase tank separately for heating, stirring and dissolving. After raw materials are fully melted and mixed, the system automatically transfers materials into the 1000L main mixing pot through closed pipeline.
Close the pot cover, start the vacuum pump to form negative pressure environment inside the tank, then open low-speed anchor stirring and high-speed circulation homogenizer at the same time. Under vacuum condition, materials are cut, sheared, emulsified and mixed repeatedly by homogenizer, so oil and water phases can be fully fused without air mixing.
After emulsification and constant temperature maturation, the finished paste can be directly discharged by hydraulic tilting pot, ready to be transported to filling machine for bottling. The whole production process is fully closed to avoid secondary pollution of materials.
3. Core Advantages of Our 1000L Vacuum Emulsifier Complete Equipment
3.1 Large Capacity for Mass Production
1000L effective volume meets the daily production demand of medium and large factories, single batch output is far higher than 50L/100L small emulsifier, effectively reducing batch switching frequency and improving overall workshop output.
3.2 Fine & Stable Finished Product Texture
Internal-external circulation homogenizing + vacuum deaeration double design completely eliminates tiny bubbles inside cream and lotion. The finished product is delicate, uniform, non-layered, long shelf life without oil floating.
3.3 Sanitary Stainless Steel Structure Meeting GMP Standard
All parts contacting raw materials adopt food & cosmetic grade SUS304/SUS316 stainless steel, inner wall mirror polishing without dead corners. All pipelines use quick disassembly clamps, support CIP automatic cleaning, easy to wash and disinfect to prevent cross-contamination between different formulas.
3.4 Full Automatic PLC Intelligent Operation
Support storage of dozens of product formulas, one-click call when switching different products, no need to reset parameters repeatedly. Equipped with over-temperature, low vacuum, overload automatic alarm function to reduce equipment failure rate.
3.5 Labor-saving Hydraulic Design
Hydraulic flip cover and tilting discharging structure, workers do not need to manually lift heavy pot cover or scoop paste out, greatly reduce labor intensity and improve workshop safety.
3.6 Flexible Heating & Cooling Option
Water circulation interlayer supports electric heating or steam heating customization, with cooling function to quickly cool down high-temperature paste after emulsification, shorten production cycle.
4. Main Applicable Materials & Industries
Cosmetic Industry
Face cream, body milk, sunscreen cream, hair mask, hair conditioner, facial mask mud, massage ointment, eye cream, makeup foundation paste
Pharmaceutical Industry
Medical ointment, antibacterial gel, wound care paste, external herbal plaster raw materials
Daily Chemical & Food Industry
Hand cream, cleaning paste, jam, thick sauce, edible ointment and other high-viscosity emulsified products
5. Customization Service We Provide for 1000L Emulsifier Line
We support personalized modification according to customers’ actual production conditions:
Material customization: upgrade all contact parts to SUS316L stainless steel for pharmaceutical-grade production
Heating mode choice: electric heating for small workshop without steam pipeline; steam heating for factory with central boiler
Supporting equipment matching: connect with filling machine, conveyor, capping machine to form complete full automatic production line
Structure adjustment: change fixed type or mobile frame, adjust tank size and pump flow according to workshop layout
Function upgrade: add CIP automatic cleaning system, online pH detection, remote control module
6. Daily Maintenance Tips to Extend Equipment Service Life
Clean all tanks, homogenizer head and connecting pipelines completely after daily production to prevent paste solidification and blockage;
Check vacuum pump oil level and hydraulic station oil volume every week, add lubricating oil regularly;
Avoid long-time high-speed empty running of homogenizer without materials to protect the shear rotor and stator;
Store different product formulas in PLC screen separately, record standard temperature and speed parameters to stabilize product quality;
Check sealing silicone rings regularly, replace aging parts in time to maintain stable vacuum effect.
Contact Us for Factory Quotation & Layout Drawing
If you are planning to build a large cosmetic, daily chemical or ointment production workshop, our 1000L full set vacuum emulsifier production line is your ideal core mixing equipment. We have 25 years of professional manufacturing experience in emulsifying machinery, can provide free equipment layout design, detailed parameter sheet, factory direct price and overseas one-stop after-sales guidance.
Send us your product types, daily output target and workshop size, our engineering team will reply you with professional customized solution within 24 hours.
