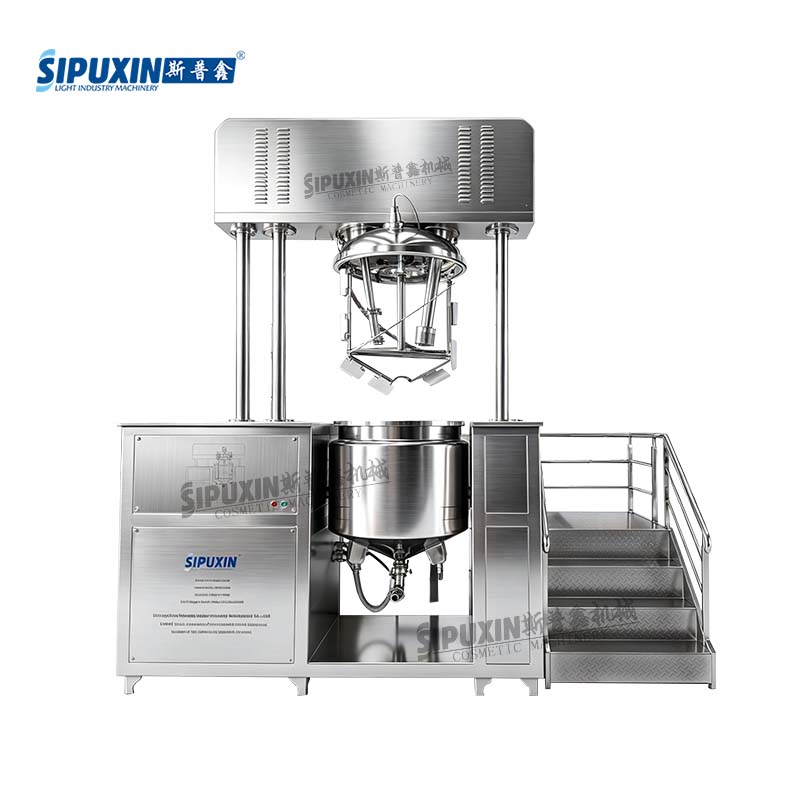

2 In 1 Vacuum Emulsifier Electric Heating High Speed Homogenizer Disperser For Toothpaste Making

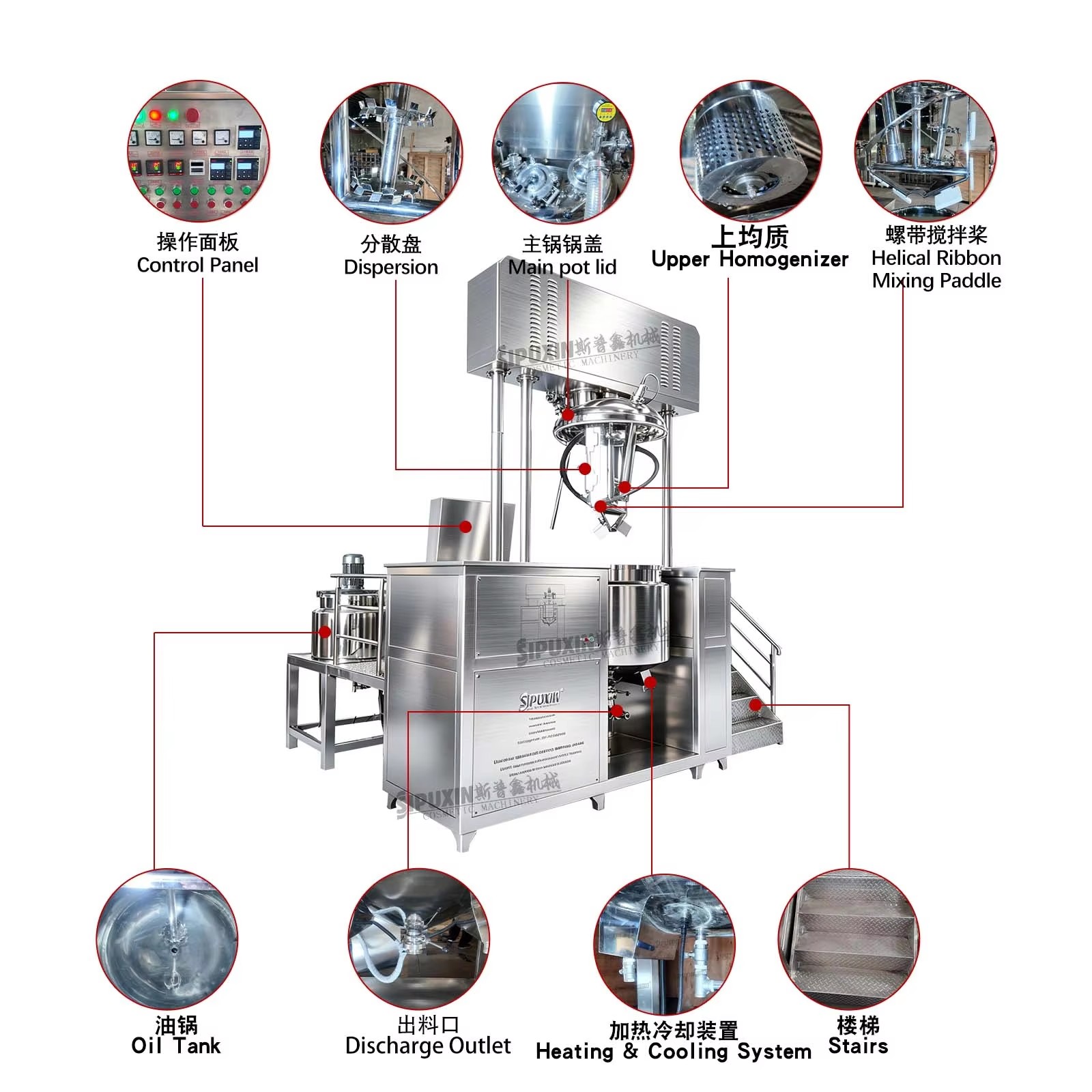

Machine components details

Pictures for reference

Lid accessories

Sight glass:For better observation of the working situation inside.

Material inlet:Transfer the material through vacuum sunction.
Spice bucket:Add the fragrance and small additives.
Air breather:Prevent air from entering when vacuuming; Balance air pressure between pot and outer environment.

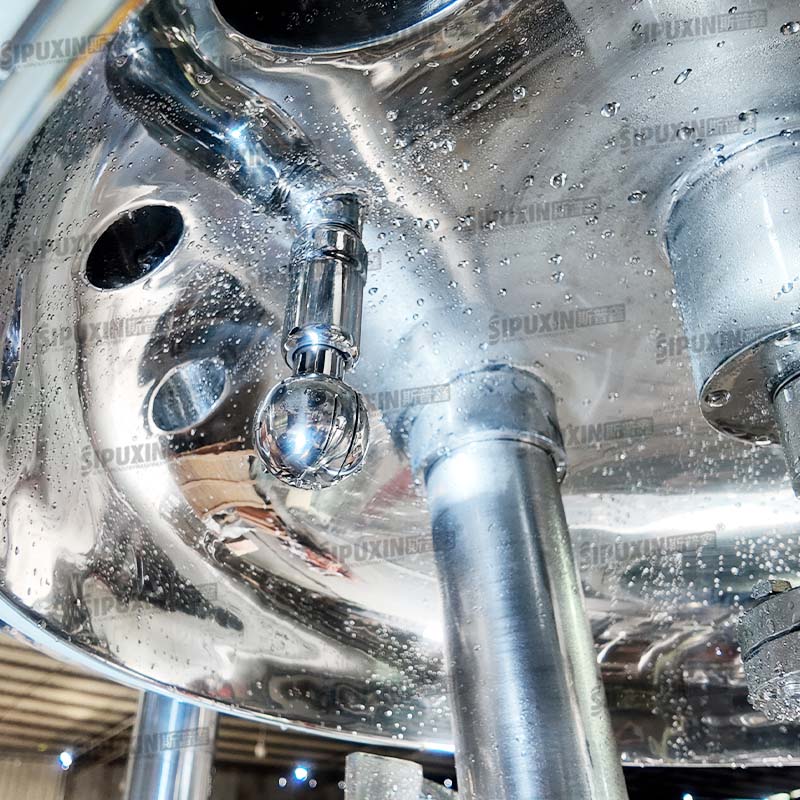

Clean device:Spray ball can 360 ° rotate to clean the pot.
Lamp:For better observation .
Vacuum pressure gauge:Set and display the pressure inside the pot.

Mixing system

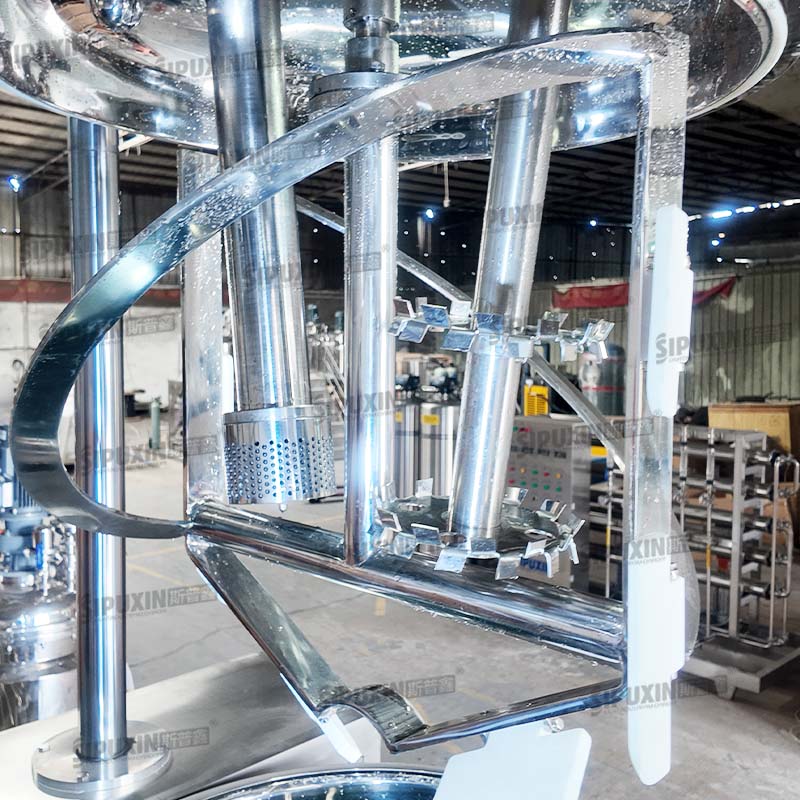

Helical ribbon mixer with side Teflon scraper and disperser

Outer mixer speed:0-63RPM

Disperser speed:0-1440RPM,speed is adjustable, ABB Switzerland brand ,frequency converter.
Material:SUS.316
Effect: The mixer of the emulsifier achieves rapid dispersion and homogenization through directional shear force and circulating
flow, forming a stable and delicate emulsion, and at the same time, the structure is simple and the energy consumption is low,
which is suitable for the continuous emulsification of high viscosity materials.

Homogenizing system

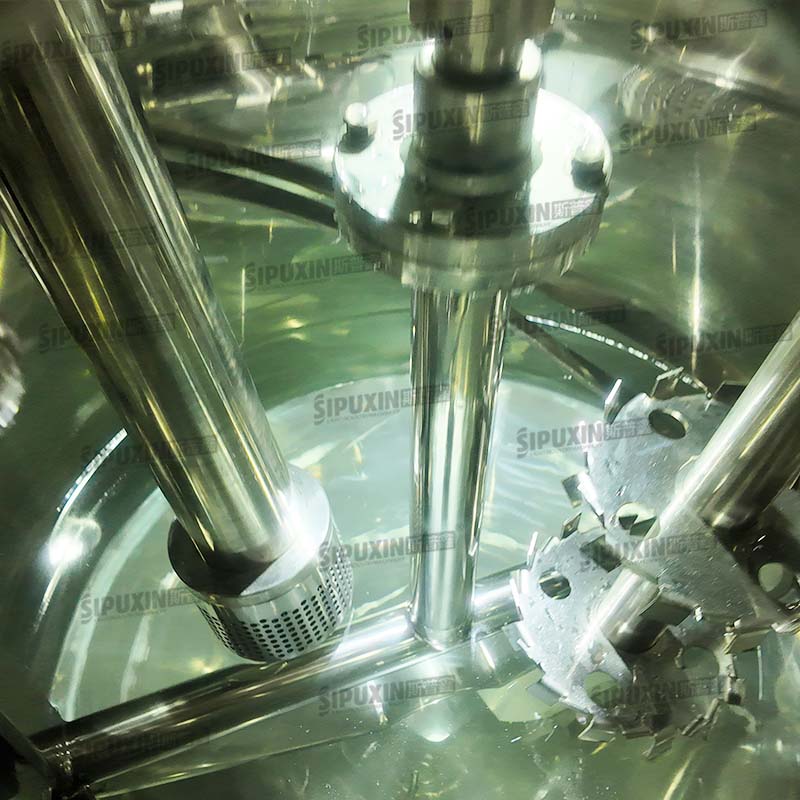

High shear top homogenizer

Speed:0-3000RPM,speed is adjustble.ABB Switzerland brand ,frequency convertor.
Material:SUS.316

Component:It is made of stator and rotor.Rotor and stator adopts wire cutting finish machining, polishing treatment before assembly. Axis adopt dynamic balance process.homogenizer Adopting Germany Bergman mechanical seal, NSK bearing made in Japan.

Oil and water phase pot

Dispersing mixer: 0-960 RPM
Material: SUS.316

Cover: Flip open cover

Function:Pre-heating and pre-mixing the raw material

Vacuum pump

Vacuum pump is generally water ring vacuum pump,it is equipped with stainless steel circulating water tank and control solenoid valve.
The maximum vacuum limit:0.1Mpa (generally 0.085Mpa)

Function:

1.Through vacuum, remove air and defoaming.

2.Transfer the raw material through vacuum suction

Bottom discharge

The bottom discharge hole with manual valve control.

4 ways of discharging:

1.Gravity discharge:It is suitable for the low viscous product.Let it be discharged by gravity

2.Pressure discharge:Add air,give it pressure to discharge the product.

3.Pump discharge:Use pump(like lobe pump) to discharge the product.

4.Tilting discharge:Use the tilting function to tilt the pot down,to discharge the product.

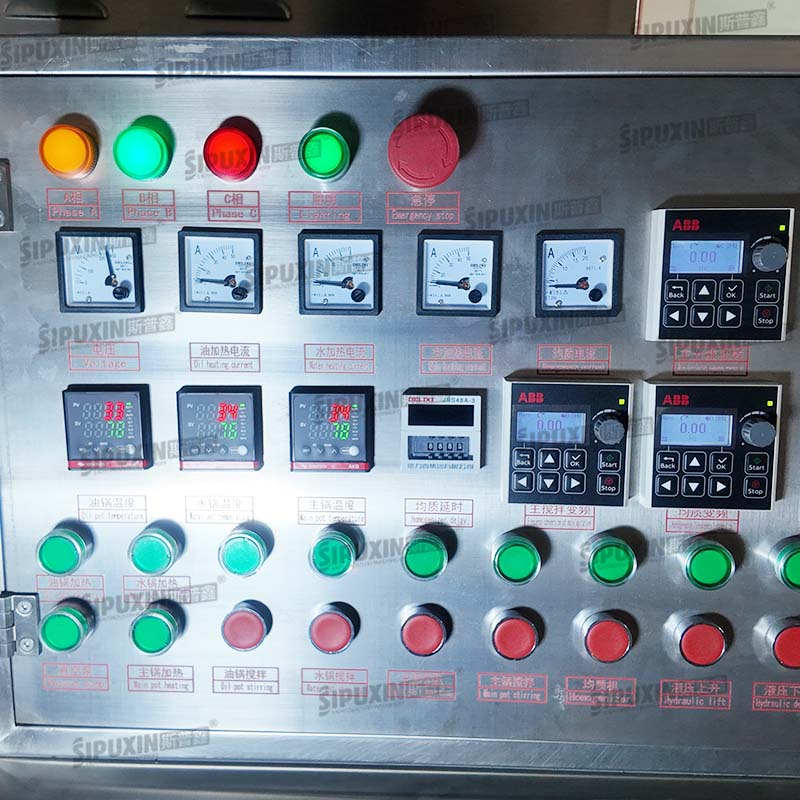

Button control box

Material:SUS.304

Components:Power switch,voltage,current,speed adjustment,temperature controller,timer of the homogenizer,self-protection system
etc.

* Be able to display, set and adjust the center mixer speed .
* Be able to set and adjust the homogenizing speed
* Be able to display, set and adjust temperature
* Be able to display,set and adjust working time for homogenizer.

Stair and operating platform,handrail

Material:SUS.304

Thickness:2mm

Function：

1.It is water-proof and oil-proof,to prevent people from slipping.

2.It is very easy to clean and maintain it.

3.It provides a place for people to operate it.

Factory setting

Our showroom

production configuration

Engineering Case

Package

FAQ

1.Are you a factory or trading company? We are a direct factory with over 24 years of production experience. We support factory inspection and welcome your visit anytime. 2.Where is your factory? Our factory is located in Baiyun District, Guangzhou City, Guangdong Province. 3.Can your machines be customized? Yes. We provide OEM & ODM service. We can customize machine size, capacity, material, voltage and functions according to your production requirements.

4.What is your warranty period? We provide 1 year warranty for the whole machine and lifelong technical support and consoulation.

5.How do I do the installation of the machines? We will send you the user manuals and videos of the operating and installing of the machines.We can also provide the online technical support through the video call.

We can also arrange our engineers to your country to help installation and teaching.
