Product Overview

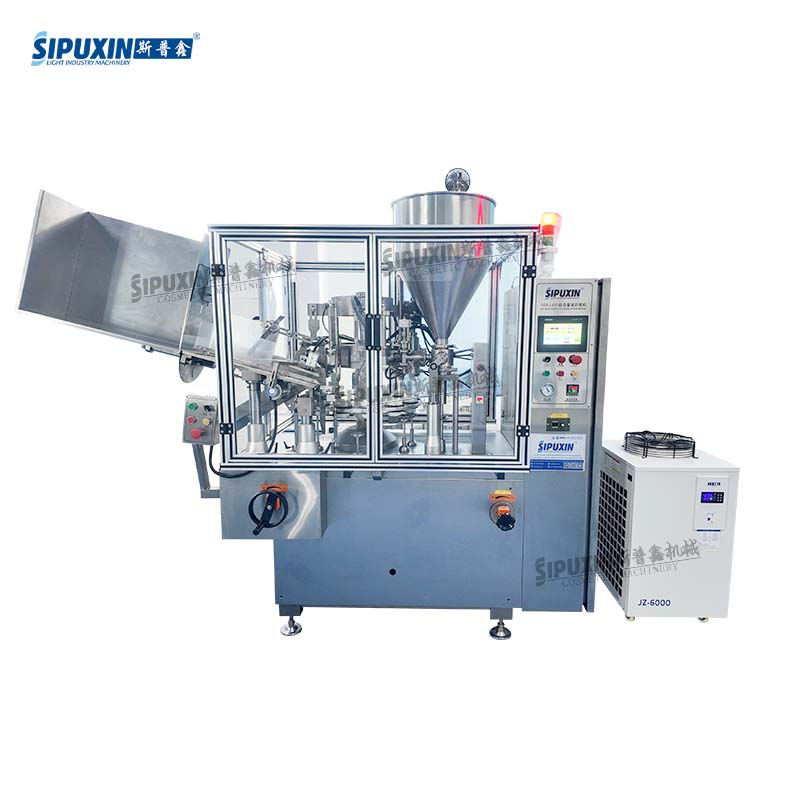

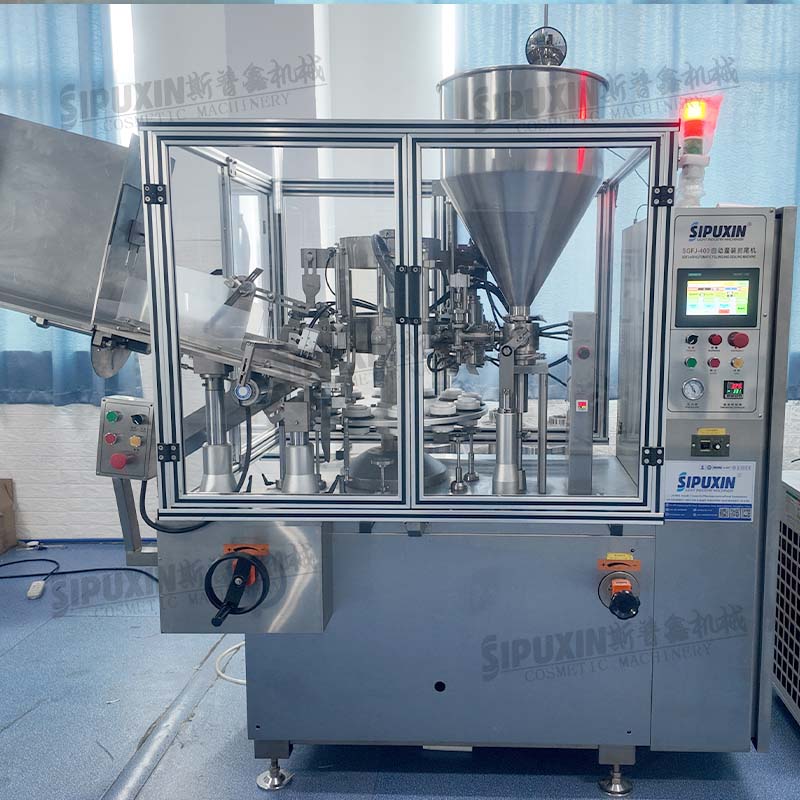

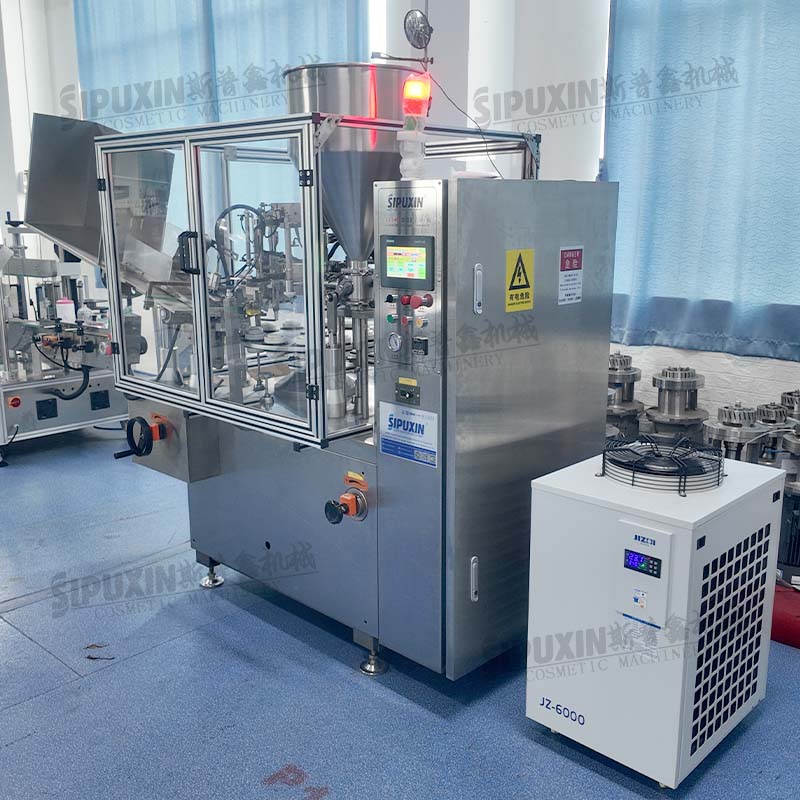

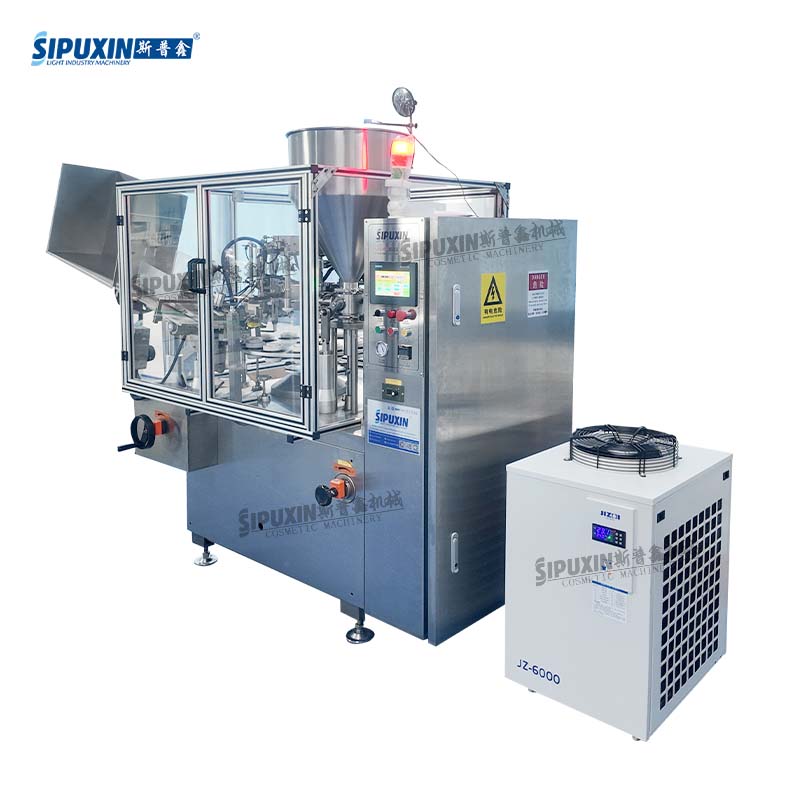

The SIPUXIN Automatic Tube Filling & Sealing Machine is an all-in-one automated solution designed for the cosmetic, pharmaceutical, food, and daily chemical industries. It integrates tube loading, filling, tail sealing, batch coding, and trimming into a continuous, hands-free process, making it ideal for mass production of creams, gels, ointments, toothpaste, sauces, and other tube-based products.
Core Workflow
*Automatic Tube Feeding: Bulk tube magazine feeds plastic or laminated tubes automatically, with built-in orientation to align the tube nozzle correctly.

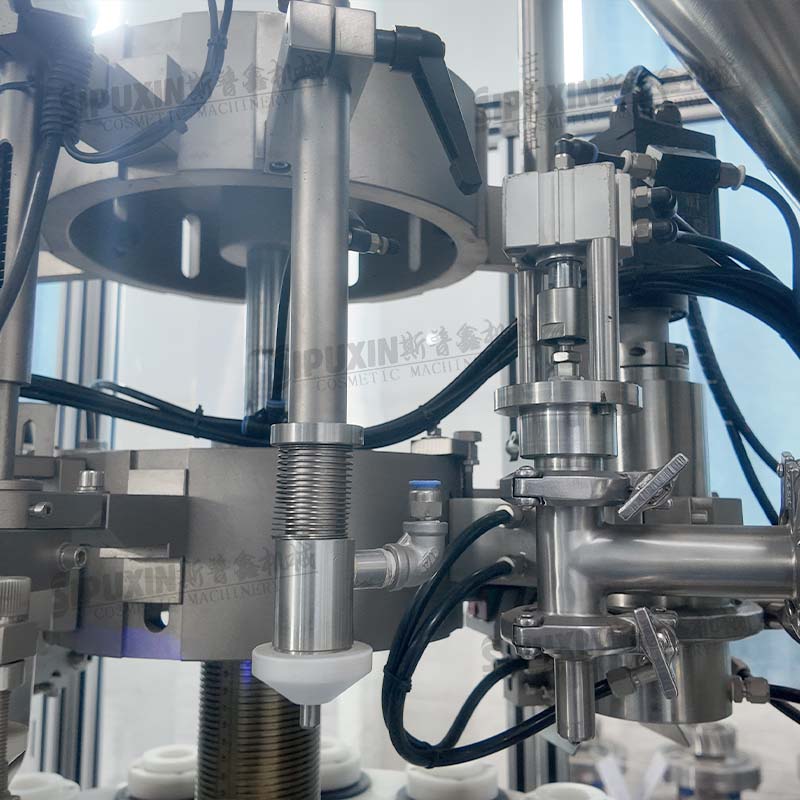

*Precision Filling: High-precision piston or metering pump delivers consistent volumes with ±1% accuracy, handling low to medium-high viscosity materials.
*Sealing & Finishing: Heat or ultrasonic sealing creates a strong, leak-proof tail with customizable patterns. Integrated coding prints batch numbers, while excess material is neatly trimmed.
*Finished Product Discharge: Completed tubes are automatically ejected, ready for packaging.
Key Construction & Configuration
• Sanitary Build: The machine is constructed from food-grade SS304 stainless steel, with optional SS316L contact parts, meeting GMP and food safety standards for easy cleaning and corrosion resistance.

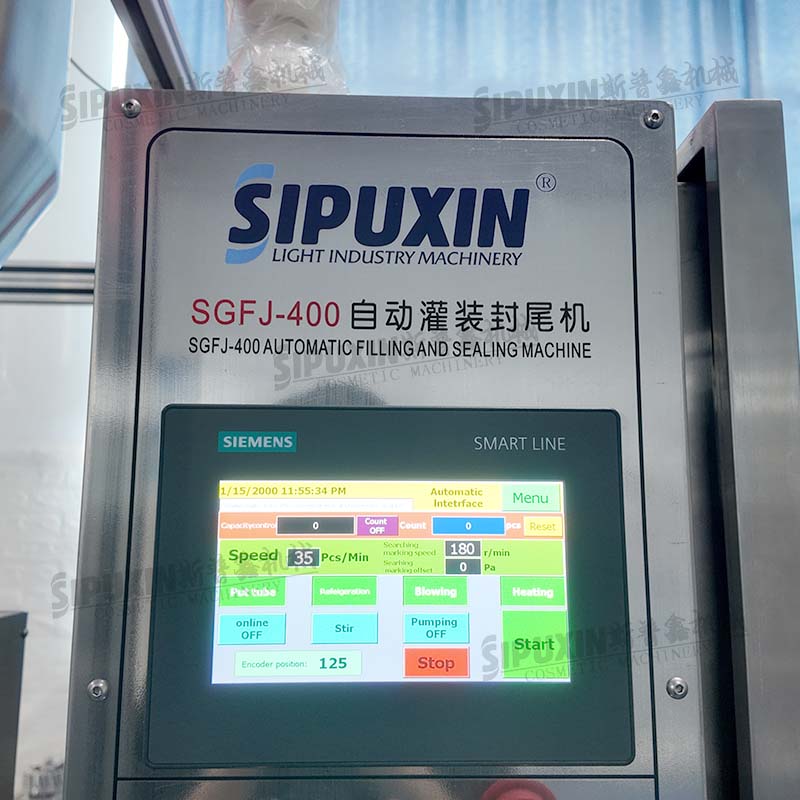

• PLC Control System: User-friendly touch screen stores multiple product recipes, enabling quick changeovers with adjustable speed, volume, and sealing parameters.
• Hybrid Drive: Electric main motor provides power, while pneumatic cylinders handle feeding, pressing, and ejection for stable, low-noise operation.
• Versatile Compatibility: Accommodates plastic and laminated tubes with diameters of 10–50mm and lengths of 50–200mm. Quick-change molds allow fast switching between product specifications.

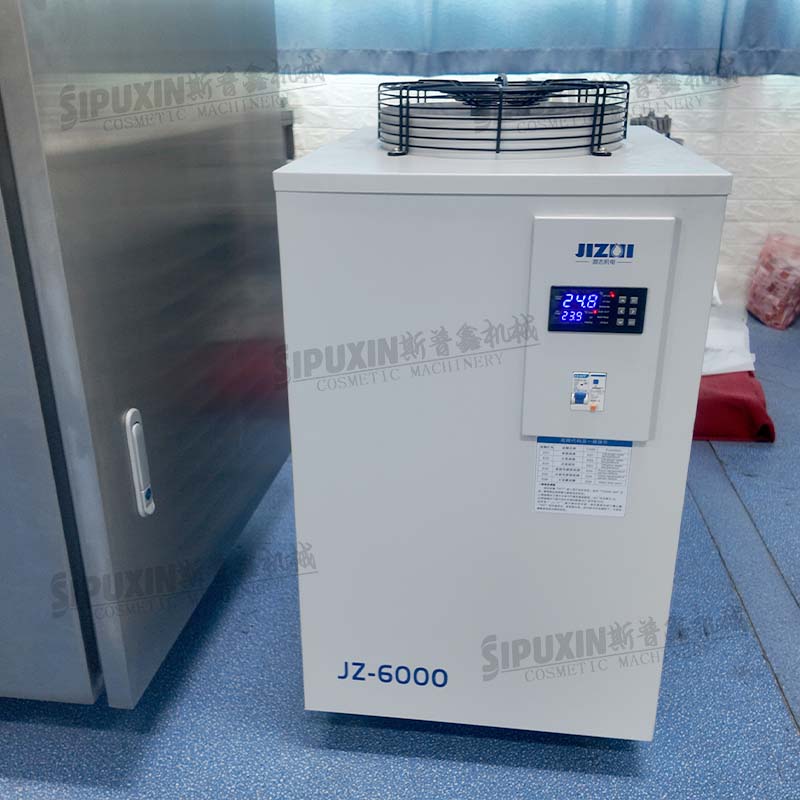

• Optional Features: The integrated chiller cools the sealed tail for faster setting. Additional options include leak detection and automatic rejection systems.
Main Advantages
✅ High Efficiency: Production speed ranges from 30–60 tubes per minute, ensuring consistent batch quality and reducing labor costs.
✅ Precision Filling: ±1% accuracy minimizes product waste and ensures cost-effective production.
✅ Hygienic & Reliable: Stainless steel construction meets strict hygiene standards, with easy-to-clean parts for cosmetics and pharmaceuticals.
✅ Flexible Operation: Supports multiple tube sizes and product types, with recipe storage for fast product changeovers.
✅ Low Maintenance: High-quality components ensure long service life with minimal downtime.
